CDD2045
KAD

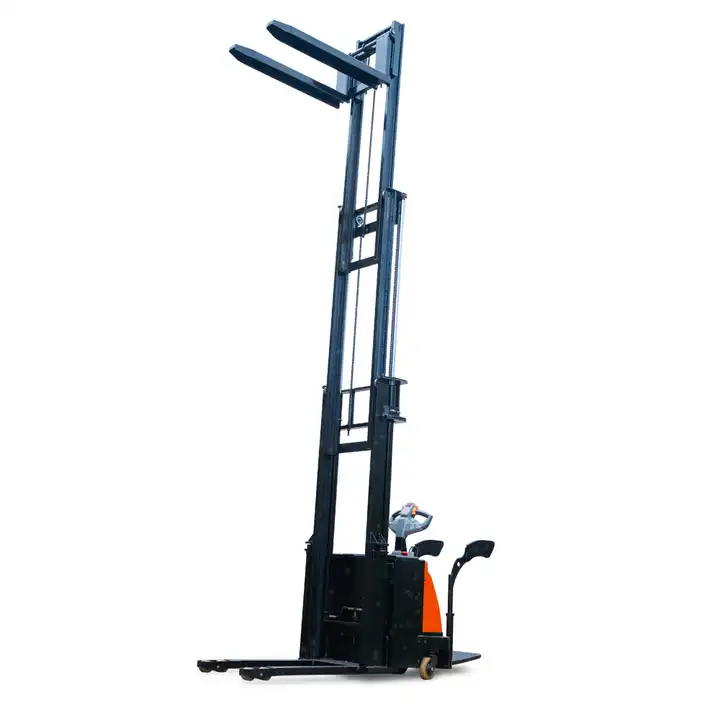

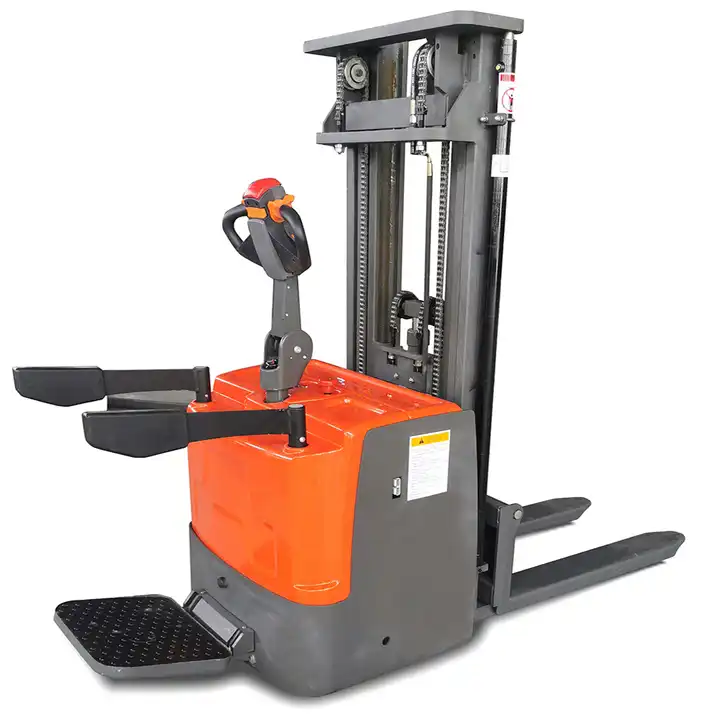

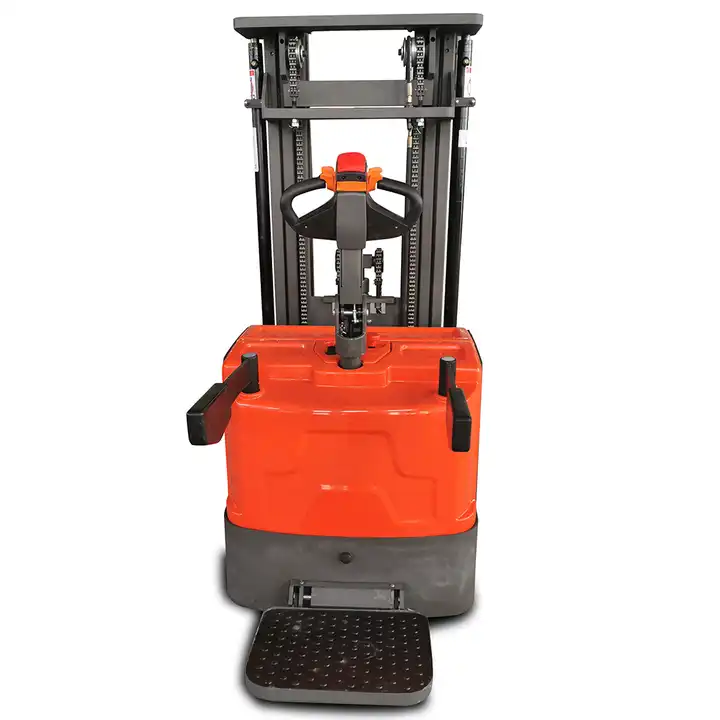

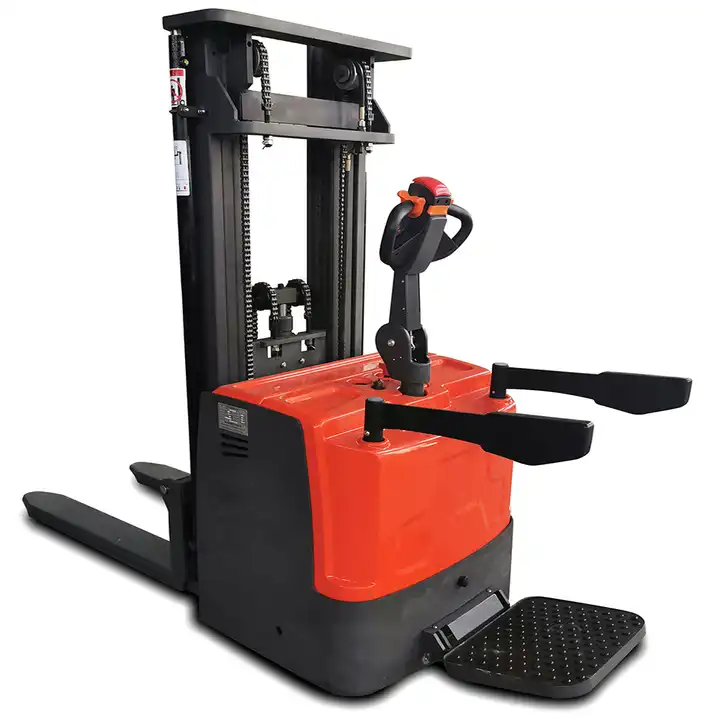

In real logistics transportation, sometimes the height of the warehouse or container is limited, so it requires the stacker to move and stack the goods in the limited height. The fully free lifting stacker perfectly solves this problem. The free-lift stacker adopts triplex mast and duplex oil cylinder, which can lift the goods to 1.6m without lifting the mast.And duplex cylinder ensure the operating vision.It greatly improves the efficiency of storage work.
It is used for loading and unloading pallet goods in factory workshop, enterprise warehouse, logistics and distribution center, general cabin, carriage and container.Specially designed for limited height warehouse or container.
·Curtis controller, Albright contactor, amp waterproof power connector
·Unique drive shock absorption technology, operating performance is superior
·High frequency MOS integrated control system ensures smooth control of walking and lifting
·The mast is made of forklift special section steel, which is more durable and not easy to deform.
·Pedal standing driving with shock absorber
·Electromagnetic clutch power loss brake, regenerative braking, reverse braking, anti sliding braking on ramp and other multiple braking functions
·Battery under voltage protection function and hydraulic overload protection device fully ensure the forklift working safety.
·When the fork exceeds the maximum height, the automatic power-off function ensures the safety of the operator.
·Special for cold storage
·Sleeve type adjustable fork
·Detachable and foldable safety wing
·Wide leg customization
·EPS electronic power steering
·Double cylinder
·Free lifting system
·Proportional lift syste
| Model | CDD12 CDD16 CDD20 | ||
Features | Drive system | Battery | |
| Driving mode | Standing | ||
| Load Capacity | Q(kg) | 1200/1600/2000 | |
| Load Center | C(mm) | 500 | |
| Weight | Weight(With battery) | kg | 830/880/910/940/970 |
| Wheels | Material | PU | |
Size | Lifting Height | H3(mm) | 1600/2000/2500/3000/3500/4000/5000 |
| Lowest Mast | H1(mm) | 2080/1580/1830/2080/2330/1820/2020 | |
Max.Height when operating | H4(mm) | 2080/2730/3230/3730/4230/4460/4960 | |
| Min.Height of Fork | S(mm) | ≤90 | |
| Length | L(mm) | 2130 | |
| Width | B(mm) | 850 | |
| Fork Length | L2(mm) | 1070 | |
| Wheelbase | Y(mm) | 1430 | |
| Fork Outside Width | B1(mm) | 550/680 | |
| Fork Inside Width | B2(mm) | 225/355 | |
| Min.Turning Radius | Wa(mm) | 1738/2099 | |
Performance data | Driving Speed (Empty/Full Load) | Mm/s | 6.5/5.0 |
Lifting Speed (Empty/Full Load) | Mm/s | 80/50 | |
Descending Speed (Empty/Full Load) | Mm/s | 120 | |
Max.Gradient (Empty/Full Load) | % | 6 | |
| Brake | Electromagnetic brake | ||
| Driving Motor | KW | DC/0.75/1.2/1.5 | |
| Lifting Motor | KW | DC/2 | |
| Battery | Capacity | V/Ah | 24//210 |
