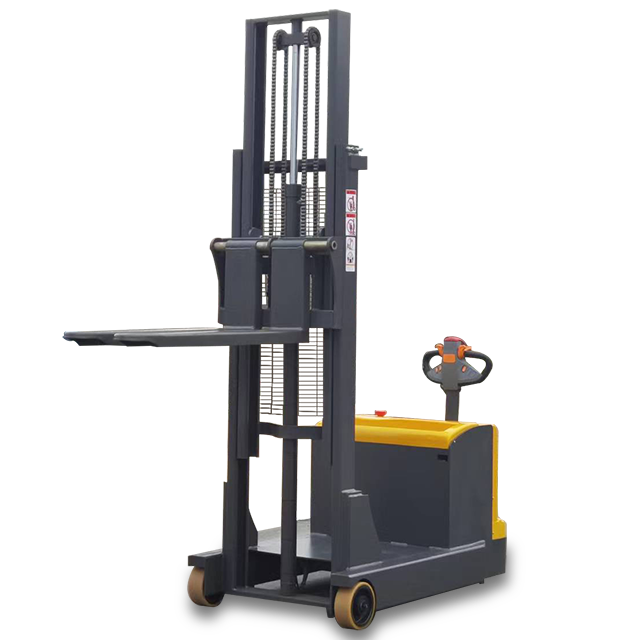

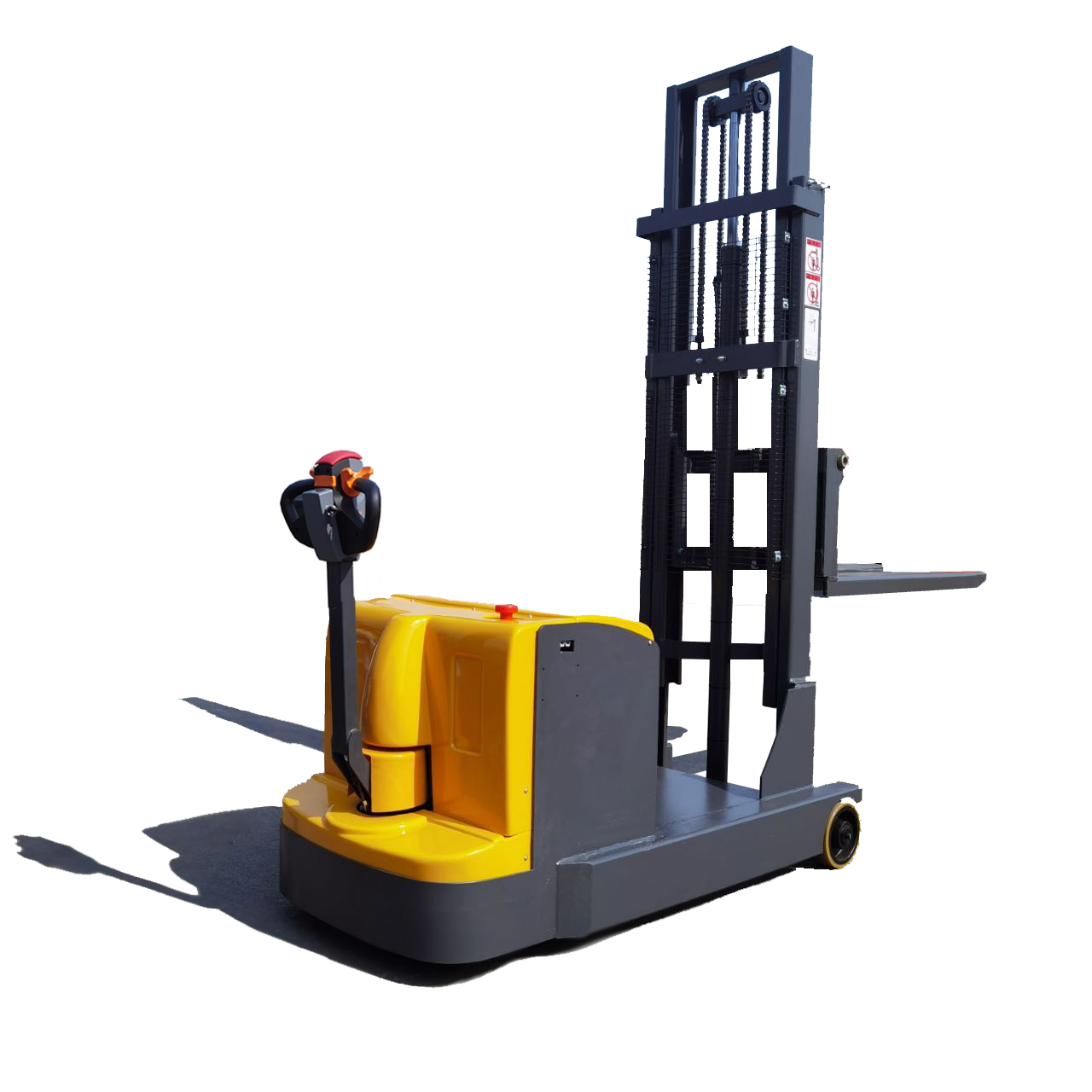

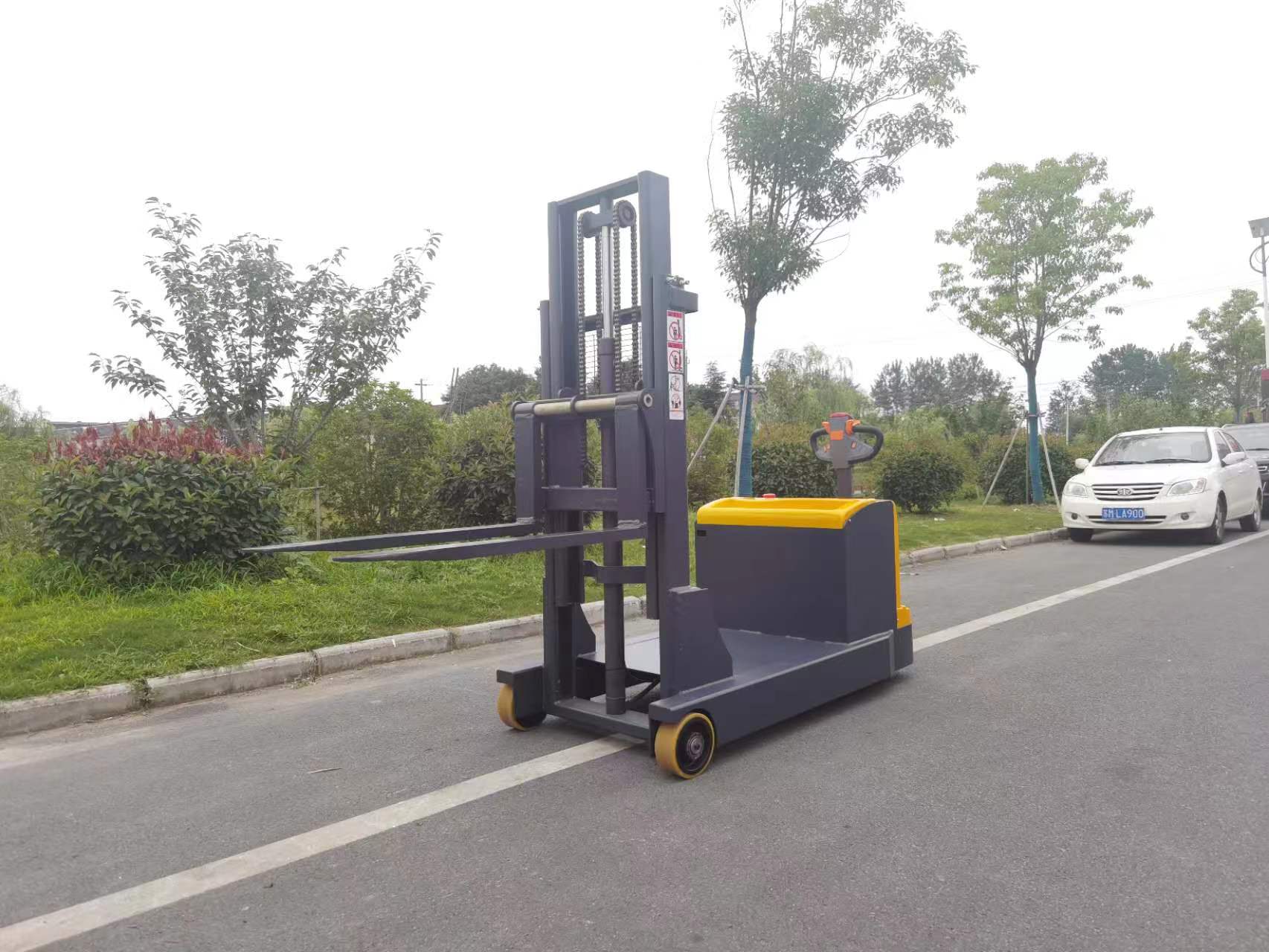

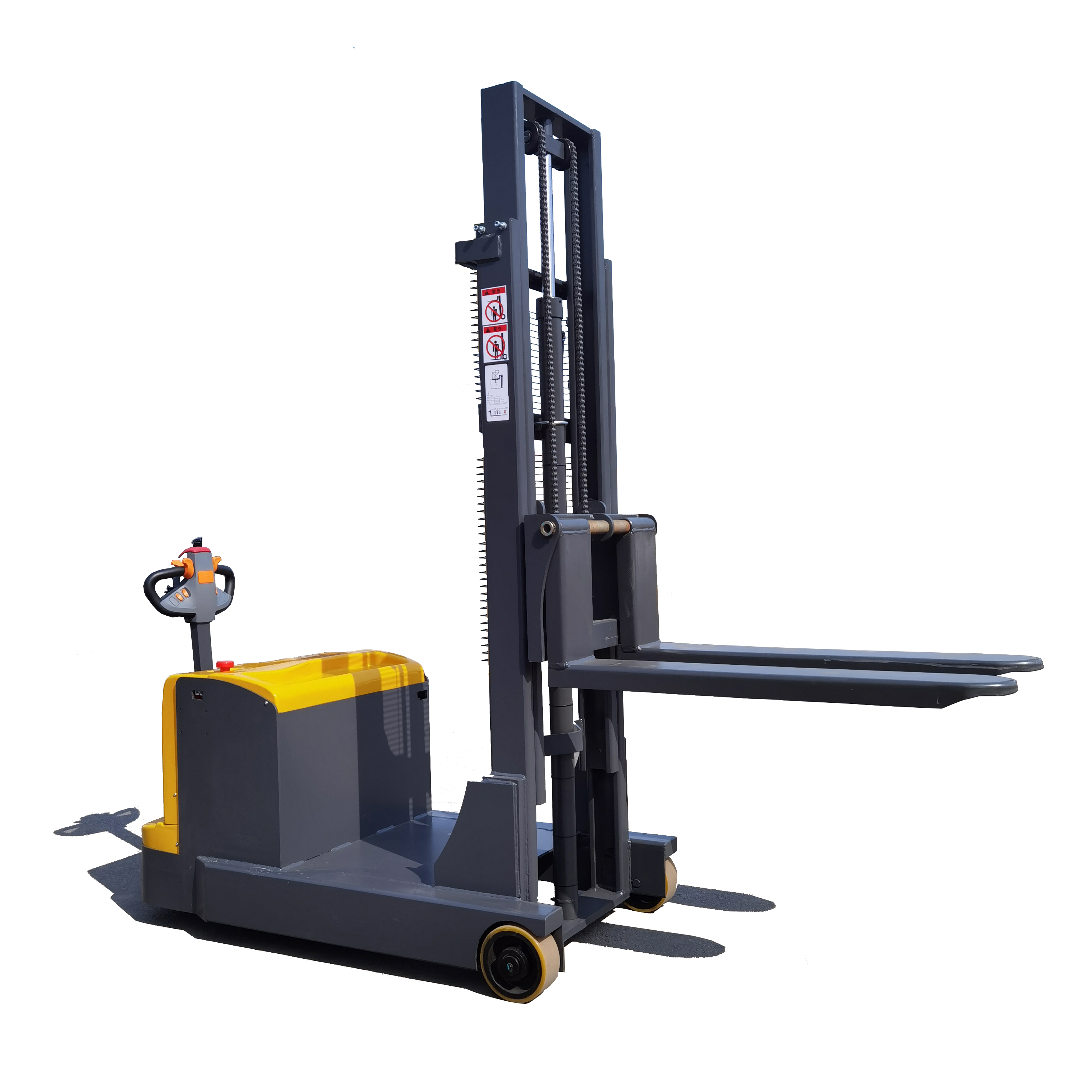

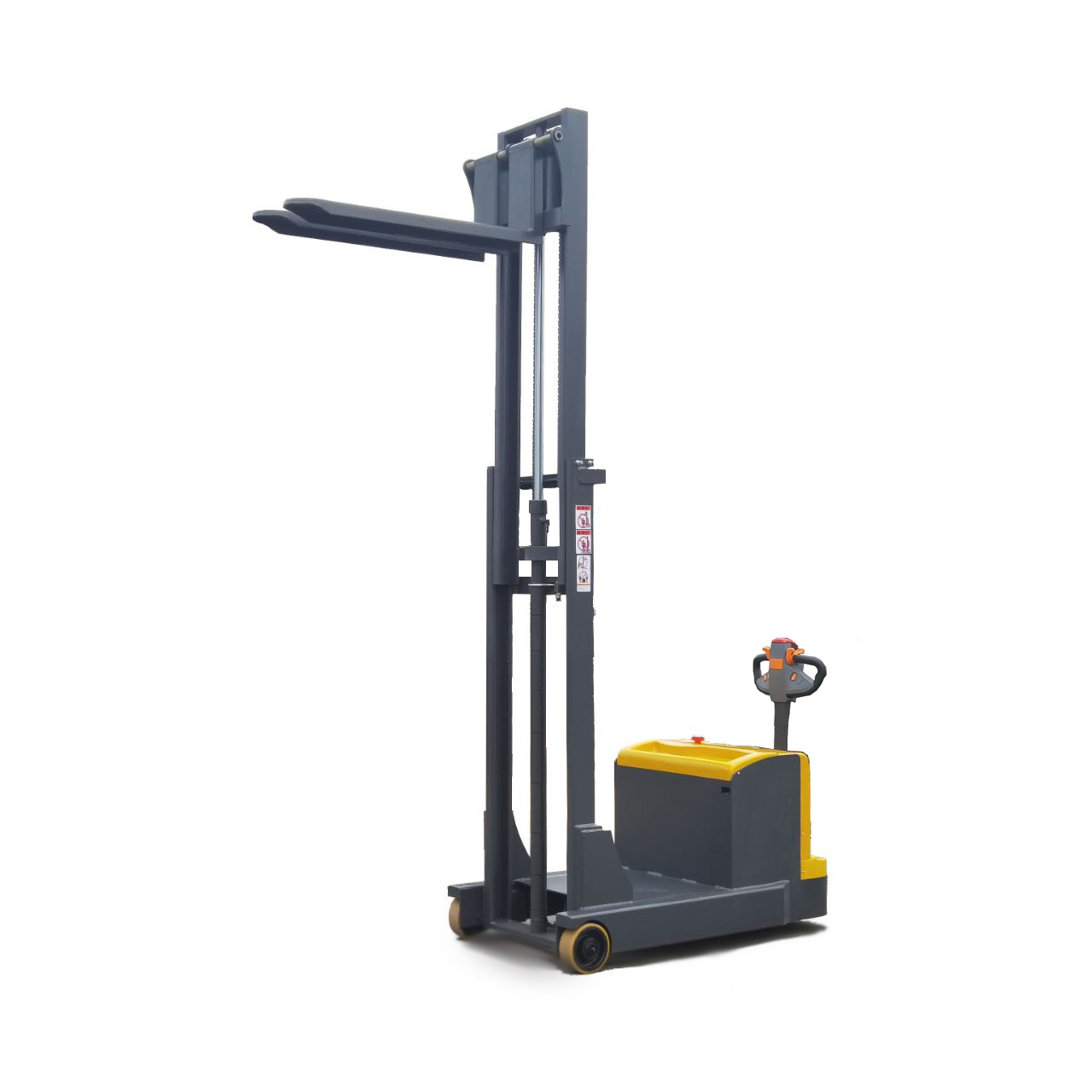

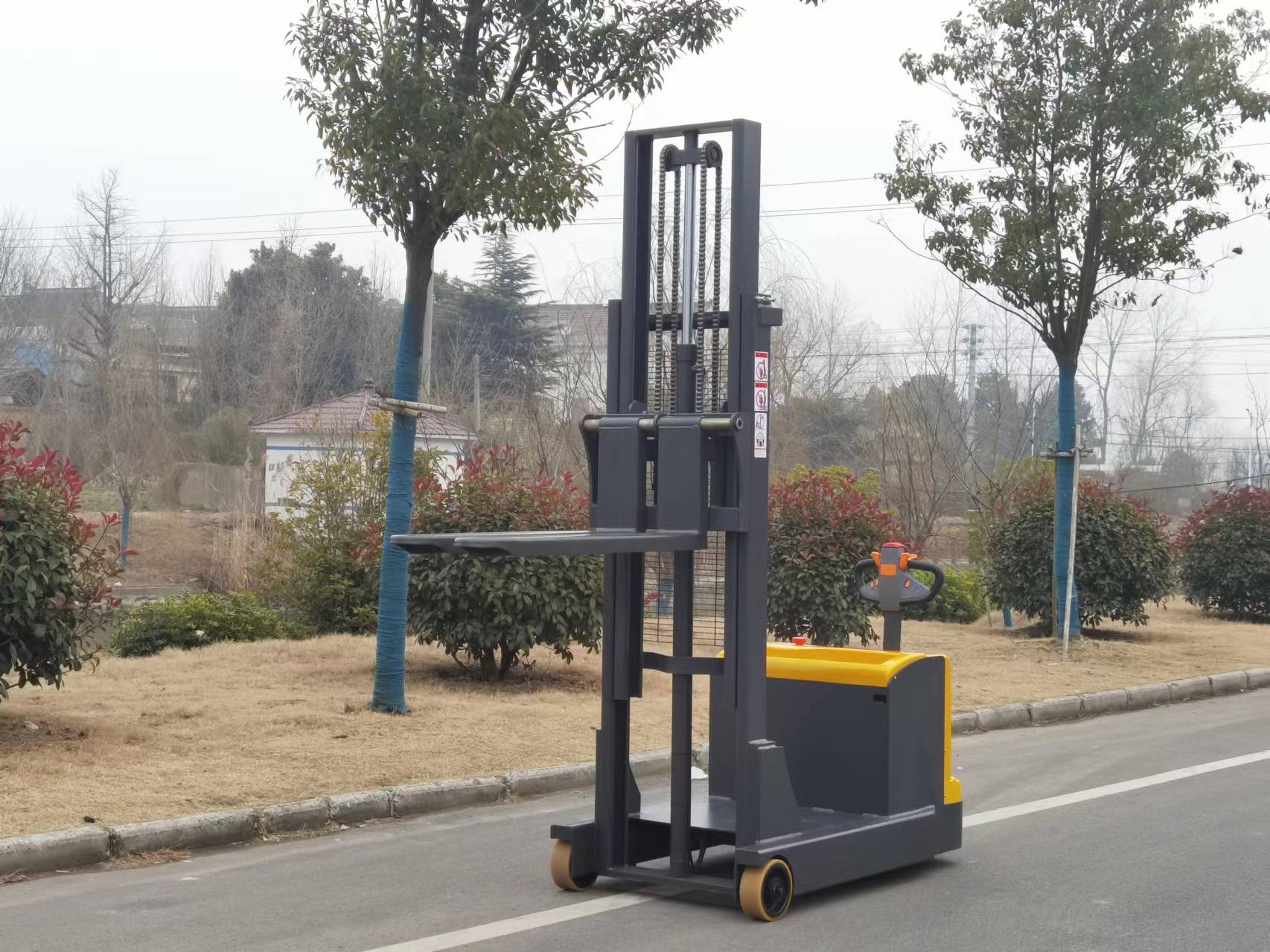

1 Ton Pedestrian Pallet Stacker Electric Counterbalanced stacker Walkie balanced Stacker with PU wheels

Counterbalanced stackers are a combination of the versatility of counterbalanced stackers and the operational advantages of walk-behind stackers. The counterbalanced stackers are suitable for use in loading docks, warehouses and production plants where durability and reliability are important. The compact size of the stackers makes them suitable for use in narrow areas.

Availability:

Quantity:



Inquire Add to Basket

Model:
CPDW0930
Brand:
KAD

Product Description

1 Ton Pedestrian Pallet Stacker Electric Counterbalanced stacker Walkie balanced Stacker with PU wheels

Counterbalanced stackers are a combination of the versatility of counterbalanced stackers and the operational advantages of walk-behind stackers. The counterbalanced stackers are suitable for use in loading docks, warehouses and production plants where durability and reliability are important. The compact size of the stackers makes them suitable for use in narrow areas.

Features	1.1	Model		CPDW0930	CPDW1030	CPDW1230
	1.2	Power		Electric	Electric	Electric
	1.3	Operation mode		Walkie	Walkie	Walkie
	1.4	Rated load capacity	Q(Kg)	900	1000	1200
	1.5	Load centre distance	C(mm)	500	500	500
	1.6	Front overhang	X(mm)	71	71	85
	1.7	Wheelbase	Y(mm)	1070	1340	1312
Weight	2.1	Weight with battery	kg	~1290	~1320	~1480
Wheels	3.1	Wheel Type Front/Rear		Polyurethane/Polyurethane	Polyurethane/Polyurethane	Polyurethane/Polyurethane
	3.2	Front wheel size	∅×w(mm)	Φ140x100	Φ140x100	Φ210x85
	3.3	Rear wheel size	∅×w(mm)	Φ210x70	Φ210x70	Φ250x80
	3.4	Wheelbase, front wheel	b2(mm)	816	816	801
Dimensions	4.1	Height with gantry closed	H1(mm)	2065	2065	2115
	4.2	Free lift height	h2(mm)	0	0	0
	4.3	Lifting height	H(mm)	3000	3000	3000
	4.4	Maximum height of gantry during operation	H2(mm)	3913	3913	3913
	4.5	Fork height when gantry retracted	H3(mm)	35	35	35
	4.6	Length (without/with forks)	L(mm)	1382/2303	1650/2573	1720/2646
	4.7	Vehicle width (lifting height 3500mm)	b1(mm)	916	916	886
	4.8	Fork size	s/e/l(mm)	35/100/920	35/100/920	35/100/920
	4.9	Fork adjustment size	b5(mm)	200-580	200-580	200-580
	4.10	Minimum ground clearance (wheelbase centre)	m2(mm)	40	40	40
	4.11	Stacking aisle width, pallet 1000 x 1200	Ast(mm)	2720	2956	2846
	4.12	Stacking aisle width, pallet 1000 x 1200	Ast(mm)	2859	3094	3083
	4.13	Minimum turning radius	Wa(mm)	1257	1528	1480
Performances	5.1	Travelling speed, empty/full load	km/h	4.0/3.5	4.0/3.5	4.0/3.5
	5.2	Lifting speed, empty/full load	m/s	0.215/0.145	0.205/0.130	0.2/0.130
	5.3	Descent speed, empty/full load	m/s	0.105/0.125	0.105/0.130	0.105/0.130
	5.4	Maximum climbing capacity, unladen/fully loaded	％	5.0/4.5	5.0/4.0	5.0/4.0
	5.5	Travelling brake		Electromagnetic	Electromagnetic	Electromagnetic
Motor	6.1	Drive motor power	kw	0.75	0.75	1.5
	6.2	Lifting motor power	kw	2.2DC	2.2DC	2.2DC
	6.3	Battery type		Lead Acid Battery	Lead Acid Battery	Lead Acid Battery
	6.4	Battery voltage/capacitance	V/Ah	24/100	24/100	24/150
	6.5	Charger	v/A	24/10	24/10	24/10
Others	7.1	Drive control mode		DC	DC	AC
Others	7.2	Driver's ear noise level according to EN12053	dB(A)	70	70	70

Main Features

1. Our masts all use reinforcing ribs.It will not deform after long years’ use. 2. Using curtis original controller. Some companies uses curtis copy, it will have some problems after long time use. 3. OEM capability: able to customize colors and logos for customers. The abbreviation of the customer's name can be engraved on the covers. 4. Fast delivery time. Our factory implements a shift system, working seven days a week, with a delivery time of 10 days for a 40GP (36 units). 5. 18 month warranty. We provide an 18 month warranty for our dealers, during which we provide free accessories and send them out by express delivery. 6.The core components (drive system) are produced by ourselves and have absolute advantages in quality, price, and after-sales service.
