CDD1530
KAD

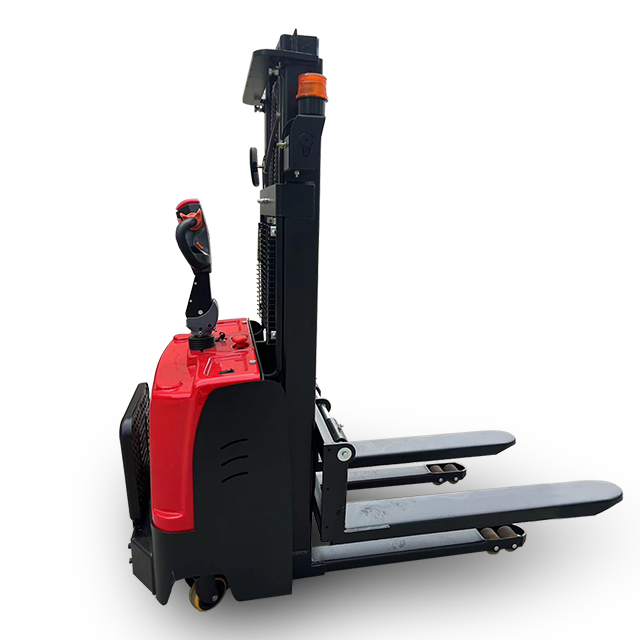

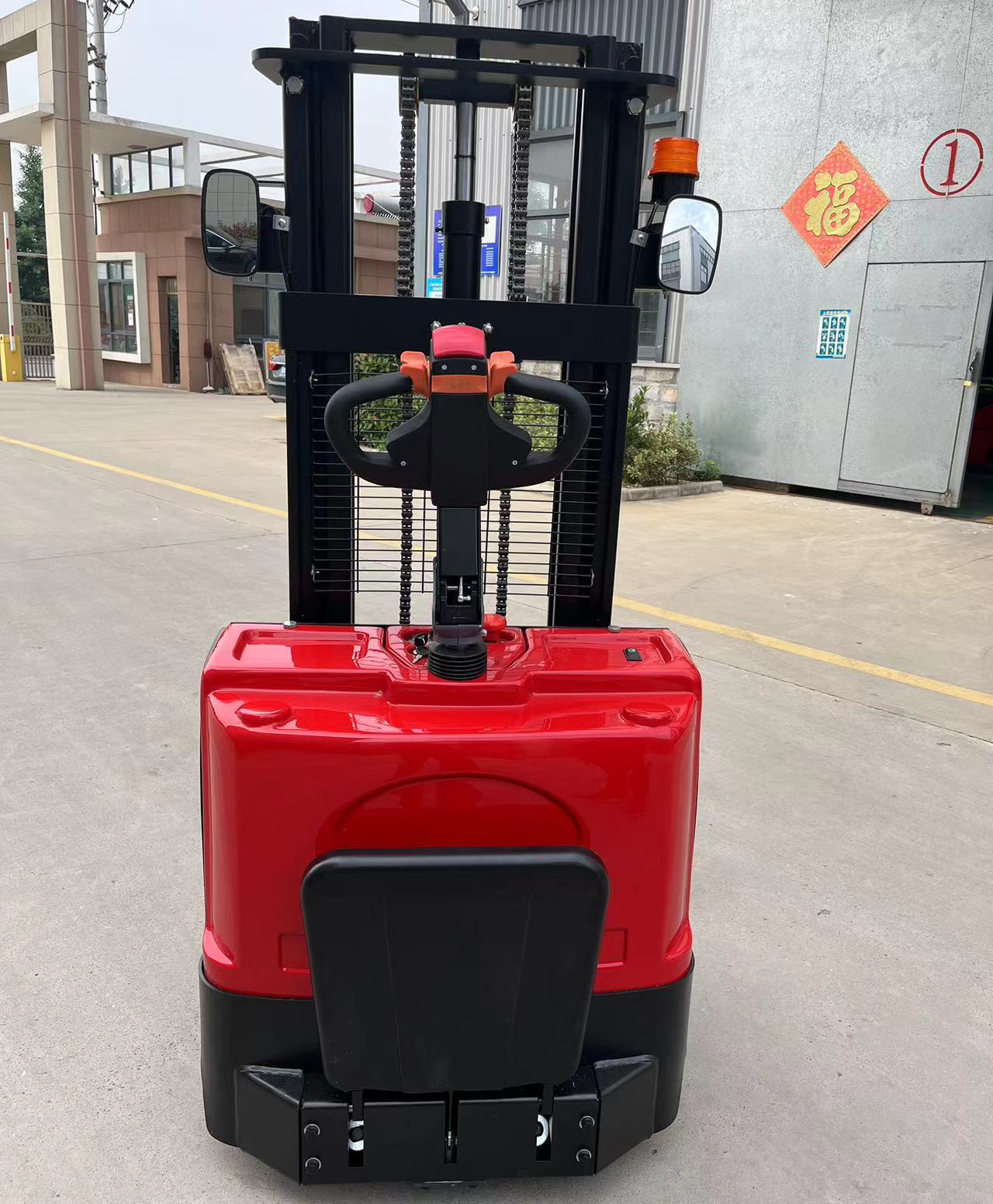

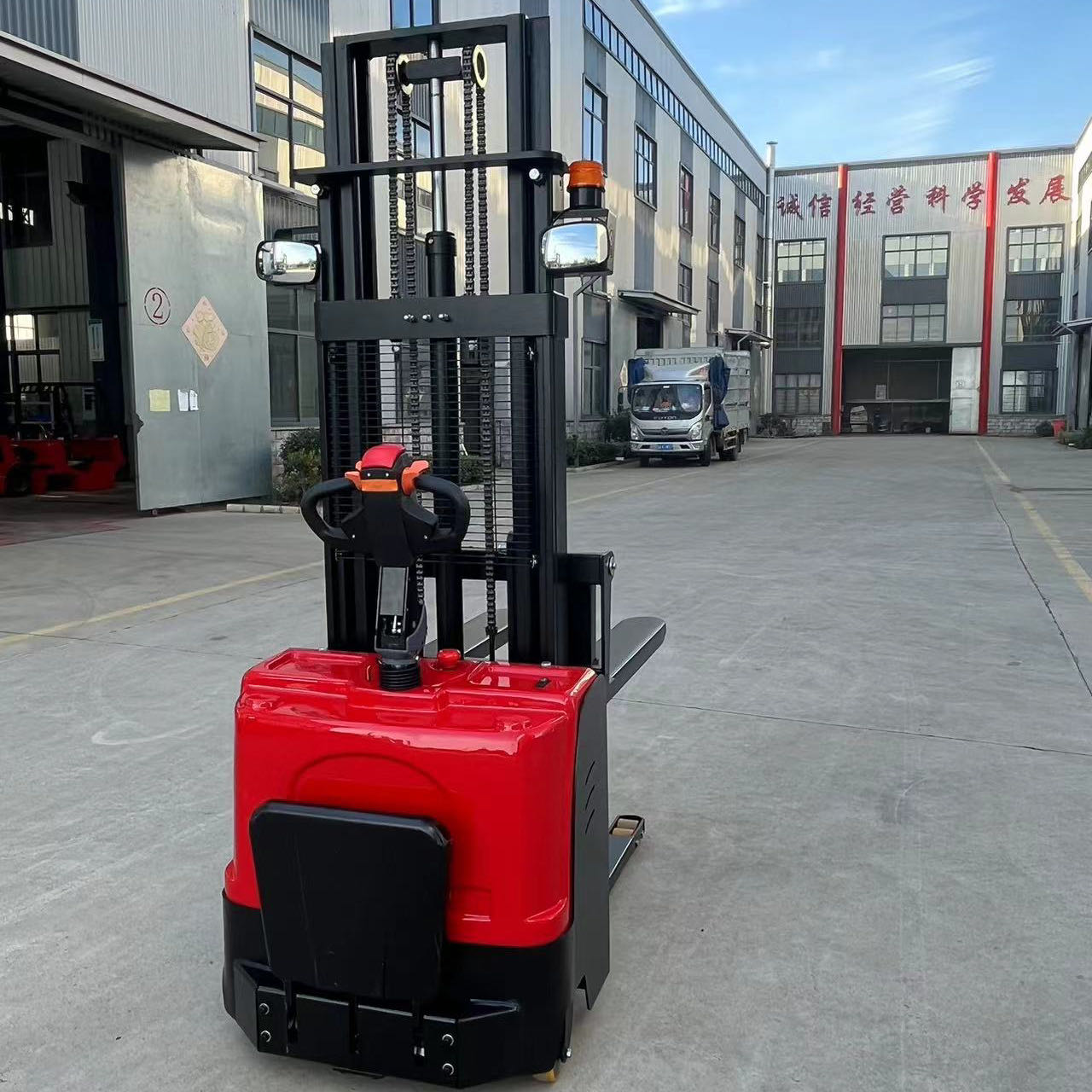

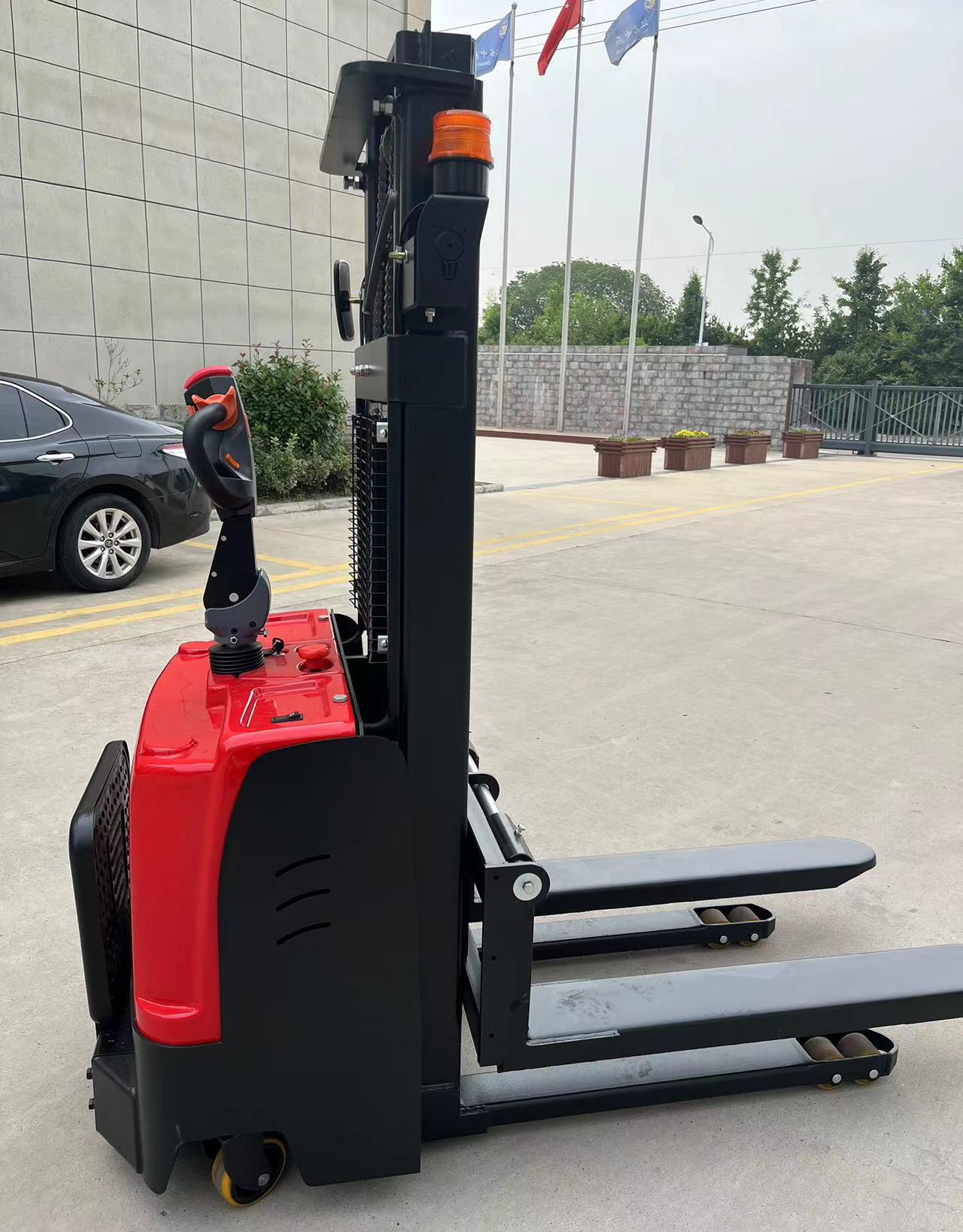

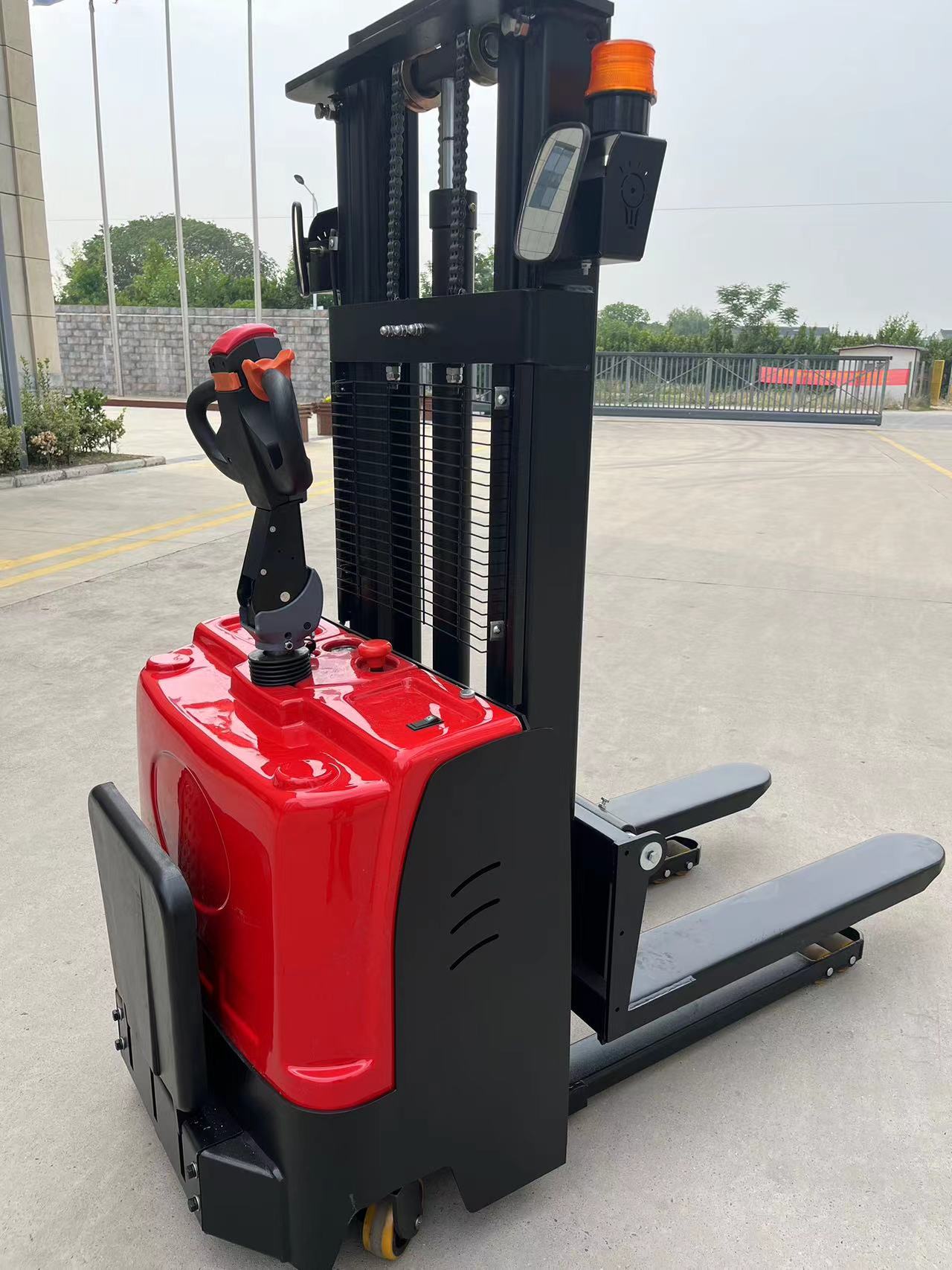

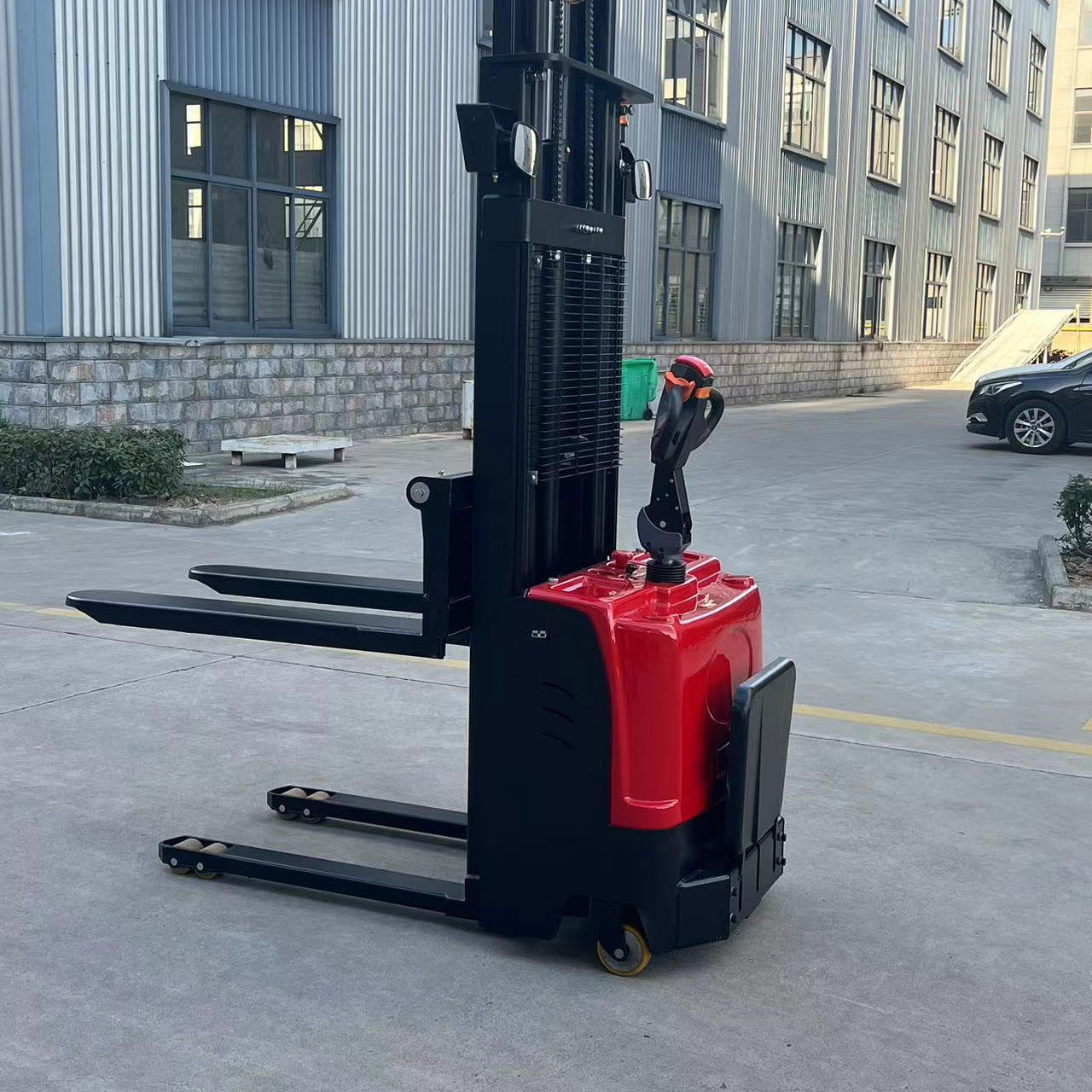

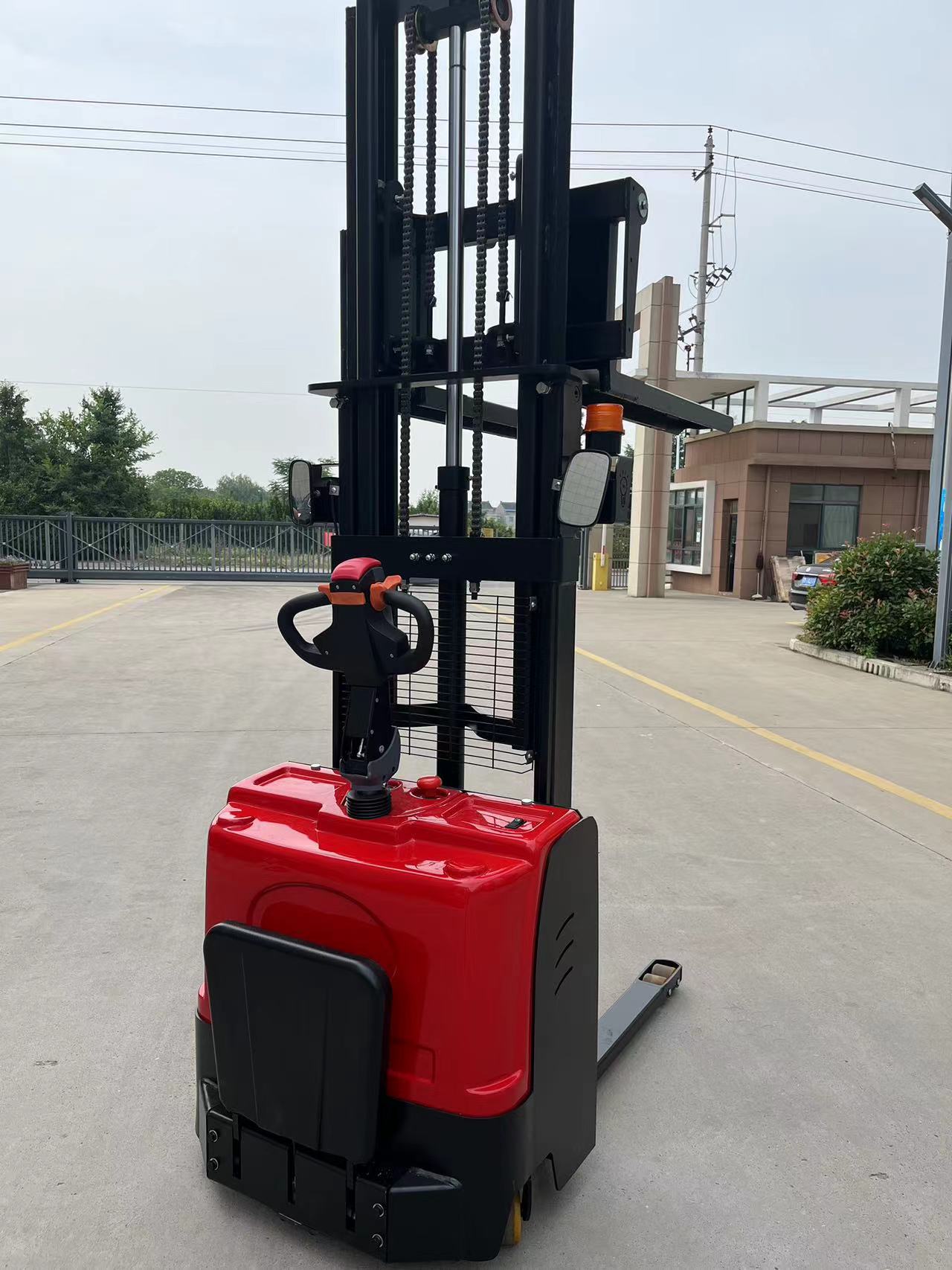

It is suitable for small tonnage and high lift cargo storage. It has a rated load of 1000kg-1500kg and a maximum lifting height of 3500mm as standard.It is a straddle stacker with the advantage of small size and small turning radius. It is suitable for large three-dimensional factories, warehouse storage, supermarkets and wharf cargo storage and handling work.



1. Medium intensity material handling, stacking and loading/unloading.
2. Designed for narrow aisles .
3. Only suitable for single-sided pallet use.
4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.
5. Folding pedals provide a comfortable working environment for operation.
6. Large-capacity battery ensures long time use.
| Model | CDD1030 | CDD1530 | |
| Load Capacity | kg | 1000 | 1500 |
| Lifting Height | mm | 3000 | 3000 |
| Load Center | mm | 500 | 500 |
| Fork size | mm | 1100*170*50 | 1100*170*50 |
| Minimum Ground Clearance | mm | 30 | 30 |
| Pedal Length | mm | 410 | 410 |
| Handler Height | mm | 1490 | 1490 |
| Outer Distance between Forks | mm | 685 | 685 |
| Inner Distance between Forks | mm | 345 | 345 |
| Tyre Type | Polyurethane | Polyurethane | |
| Control Way | Handler | Handler | |
| Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation | |
| The Min.Turning Radius | mm | 1450 | 1450 |
| Driving Speed with Full Loads | km/h | 4 | 4 |
| Maximum gradient climb with full load | ° | 3°/5° | 3°/5° |
| Battery | V/Ah | 24V/80A | 24V/80A |
| Driving Motor | kw | 0.75 | 0.75 |
| Lifting Motor | kw | 2.2 | 2.2 |
| Tyre Size | mm | 210/80 | 210/80 |
| Overall dimensions(L*W*H) | mm | 1880*860*2100 | 1880*860*2100 |
| Weight | kg | 580 | 600 |
| Reference Working Time | h | 3 | 3 |
| lncreased height each tonnage | mm | 1600/2000/2500/3000/3500 | |
| Max height | 2100/1600/1850/2100/2350 | ||
