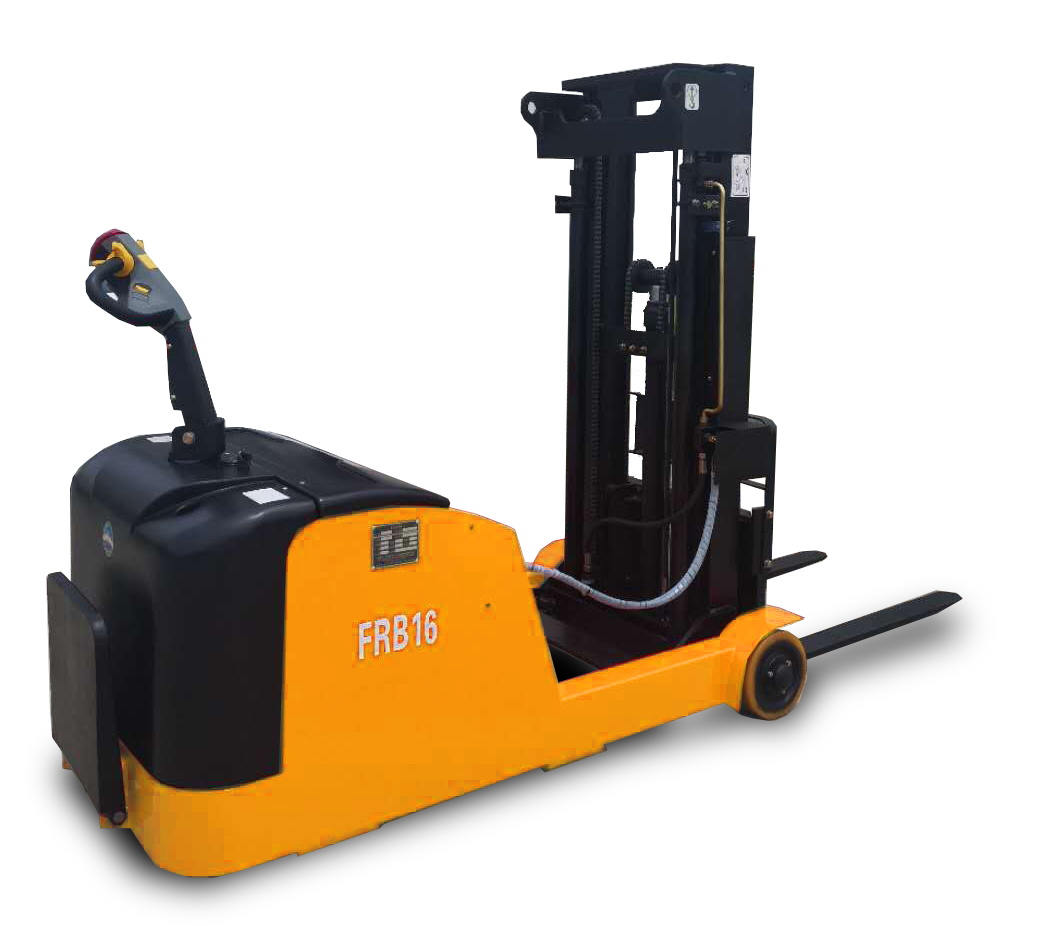

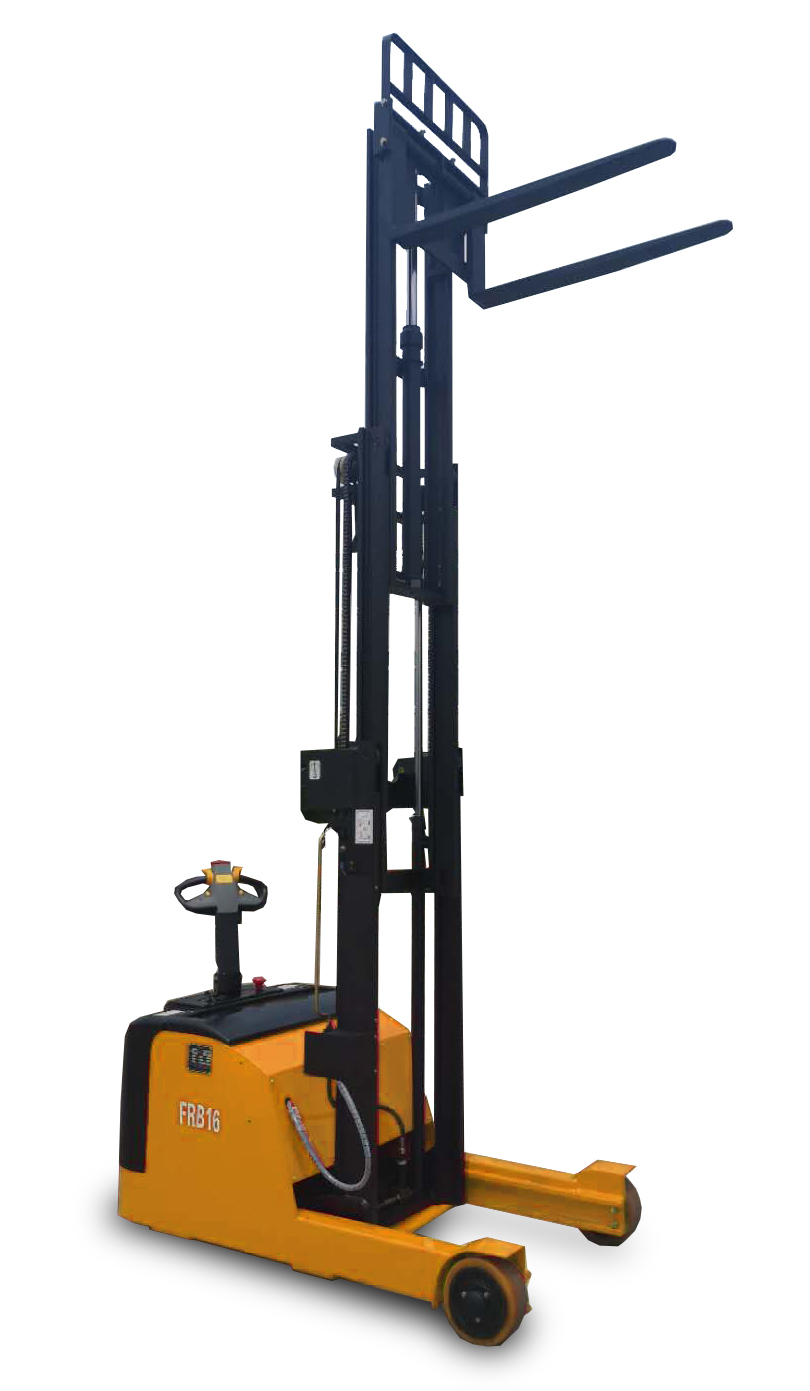

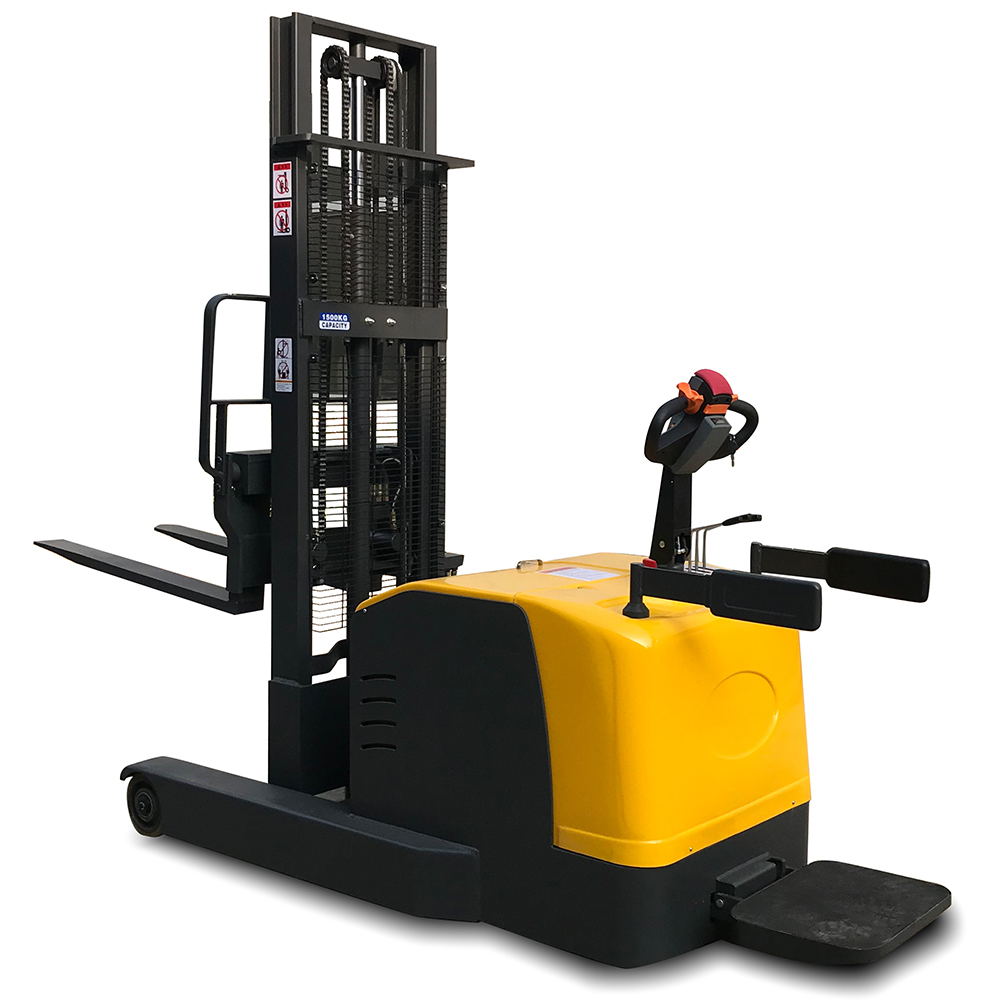

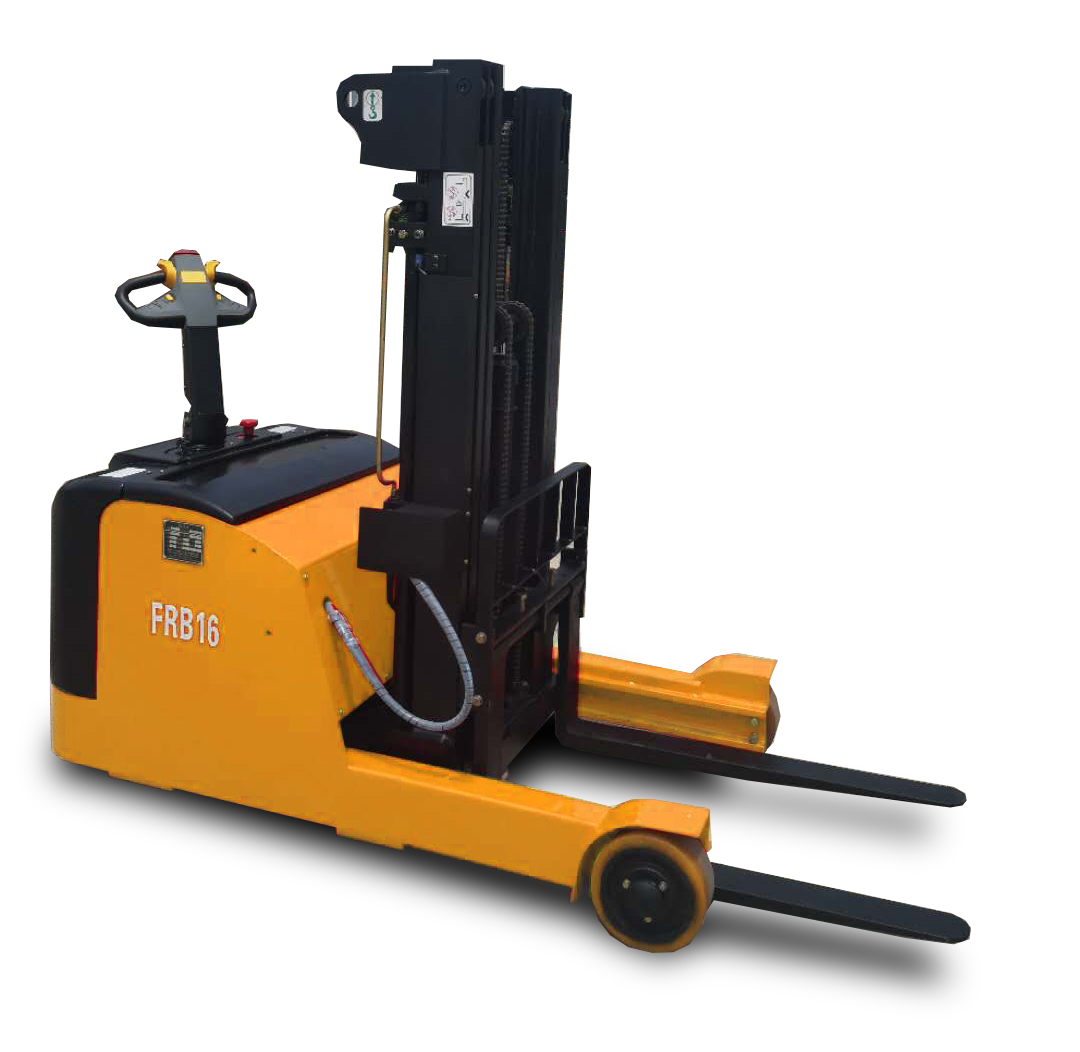

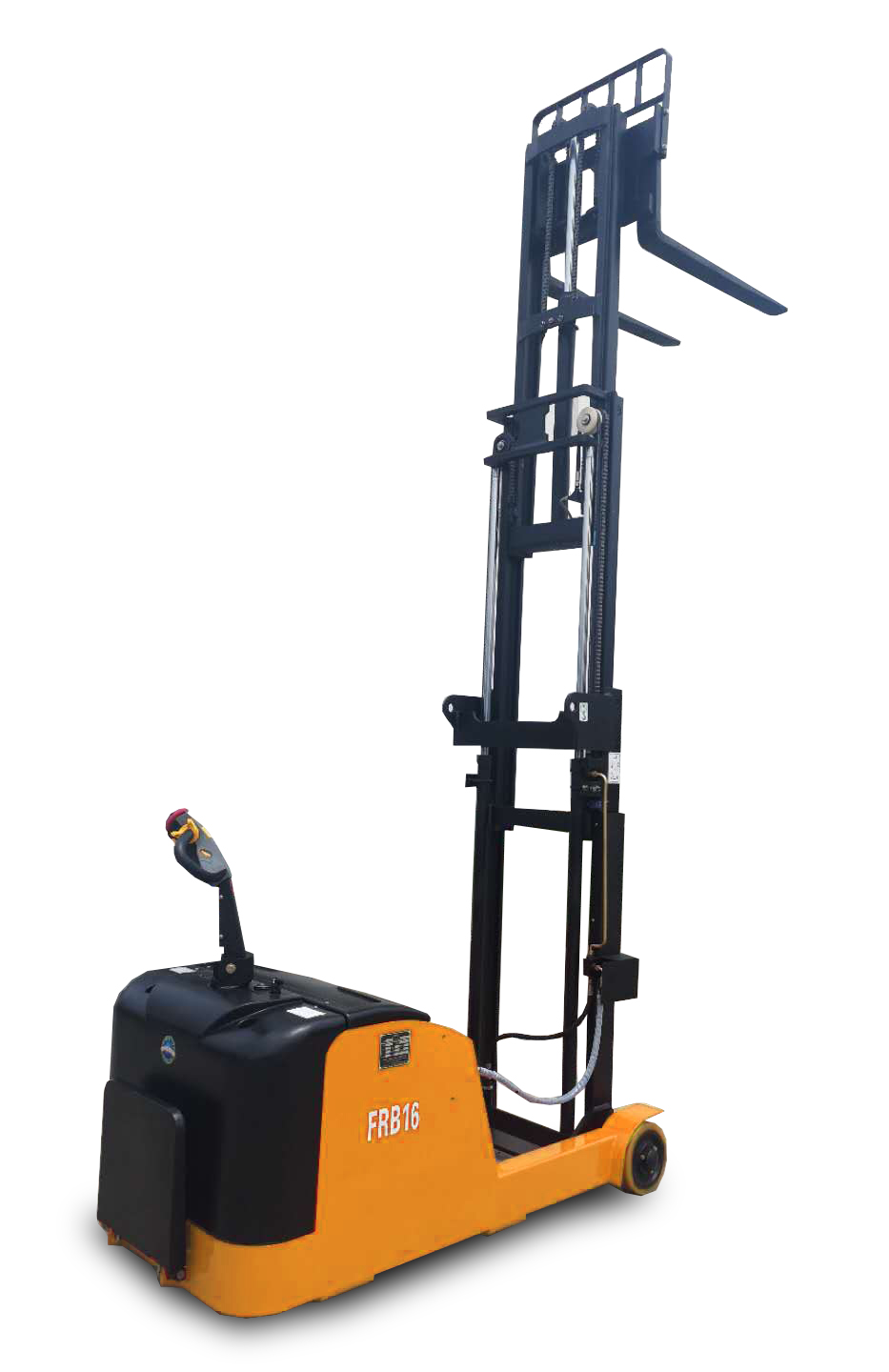

Standing Counterbalanced Electric Forklift Truck 1000kg Lifting Height 3000mm for Narrow Aisle Handling

Counterbalanced forklift truck is a special form of forklift truck, its shape is inverted "L" shape, the chassis is equipped with special counterweight to improve the stability of the whole machine. It has the advantages of height adjustment, long load fork, high loading capacity, wide working range, etc. It is especially suitable for heavy load handling, high area cargo handling and other scenarios.
Availability:
Quantity:
  • CPDS10

Product Description

Standing Counterbalanced Electric Forklift Truck 1000kg Lifting Height 3000mm for Narrow Aisle Handling

Counterbalanced forklift truck is a special form of forklift truck, its shape is inverted "L" shape, the chassis is equipped with special counterweight to improve the stability of the whole machine. It has the advantages of height adjustment, long load fork, high loading capacity, wide working range, etc. It is especially suitable for heavy load handling, high area cargo handling and other scenarios.


Main Features

1. Stability: Due to the design of low centre of gravity, moderate body width and even weight distribution, this kind of forklift truck has good stability performance when running, and can turn flexibly even in narrow space.
2. Carrying capacity: Compared with manual handling equipment, counterbalanced forklift trucks have stronger carrying capacity and can effectively cope with heavier cargo handling needs.
3. Operational Flexibility: It is electrically driven and offers forward, backward, side-to-side movement as well as lifting and landing functions, which makes it very versatile in different work scenarios.
4. Energy saving and environmental protection: As it does not rely on fuel, the counterbalanced forklift truck reduces air pollution and saves energy costs.
5. High applicability: It is designed to be suitable for a wide range of occasions, including but not limited to loading and unloading operations in ports, stations, and within enterprises, as well as the need for multiple and handling common items.

Specification


Model
CPDS1030 CPDS1530 CPDS2030
Load Capacity kg 1000 1500 2000
Lifting Height mm 3000 3000 3000
Load Center mm 500 500 500
Fork size mm 1070*100*40 1070*100*40 1070*100*40
Ground Clearance mm 80 80 80
Driving Size mm 250*80 250*80 250*80
Control Way
Handler Handler Handler
Speed Regulation Way
Stepless Speed Regulation Stepless Speed Regulation Stepless Speed Regulation
Pedal Length mm 410 410 410
Mast tilt angle (front/rear) ° 3.0 /6.0 3.0 /6.0 3.0 /6.0
The Min.Turning Radius mm 1650 1750 1850
Driving Speed with Full Loads Km/h 4.4 4.4 4.4
Maximum gradient with full load ° 8/10 8/10 8/10
Battery V/Ah 24/180 24/180 24/180
Driving Motor kw 1.2 1.2 1.5
Lifting Motor kw 2.2 2.2 3
Overall dimensions (without pedal)(L*W*H) mm 2800*860*2100 3000*860*2100 3200*860*2100
Weight kg 1560 1600 1750
Reach Distance mm 500 500 500
Reference Working Time h 6 6 6
lncreased height each tonnage mm

1600/2000/2500/

3000/3500

1600/2000/2500/

3000/3500

1600/2000/2500/

3000/3500

Max height

2100/1600/1850/

2100/2350

2100/1600/1850/

2100/2350

2100/1600/1850/

2100/2350
