CDDW1630
KAD
Product Description

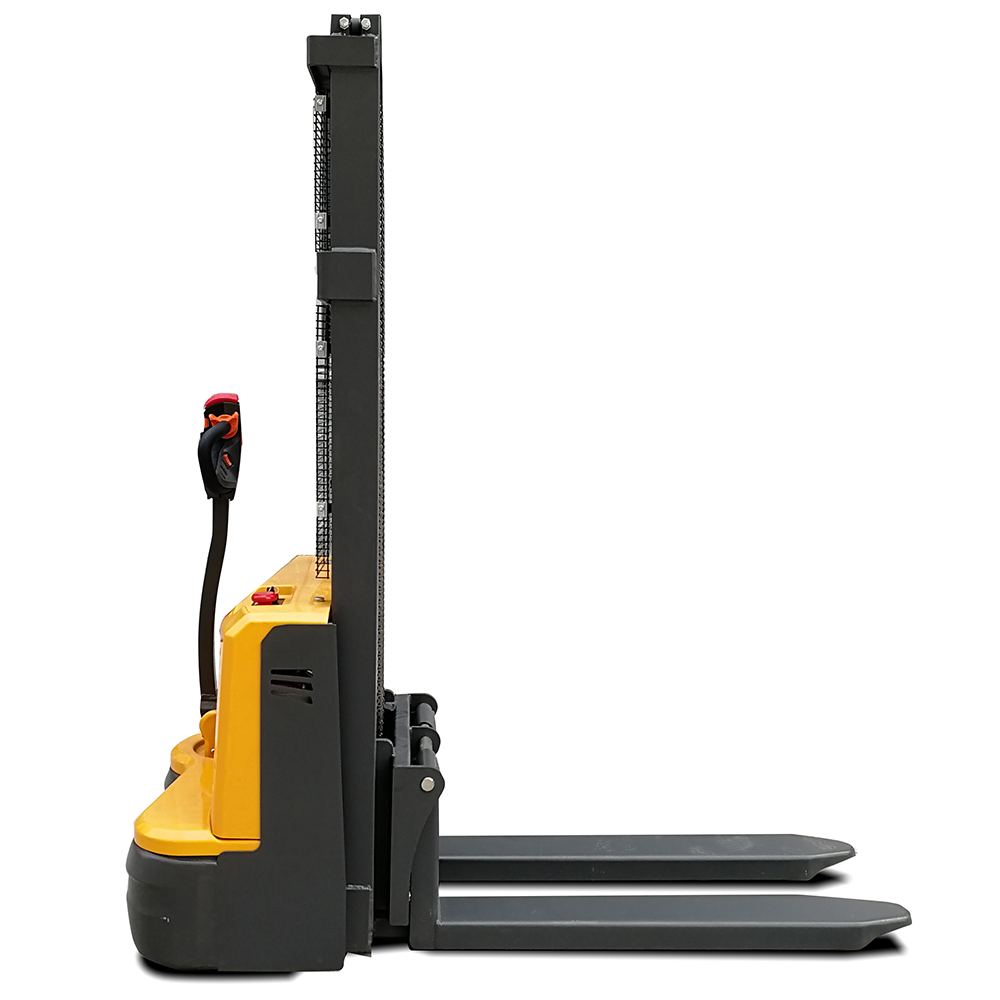

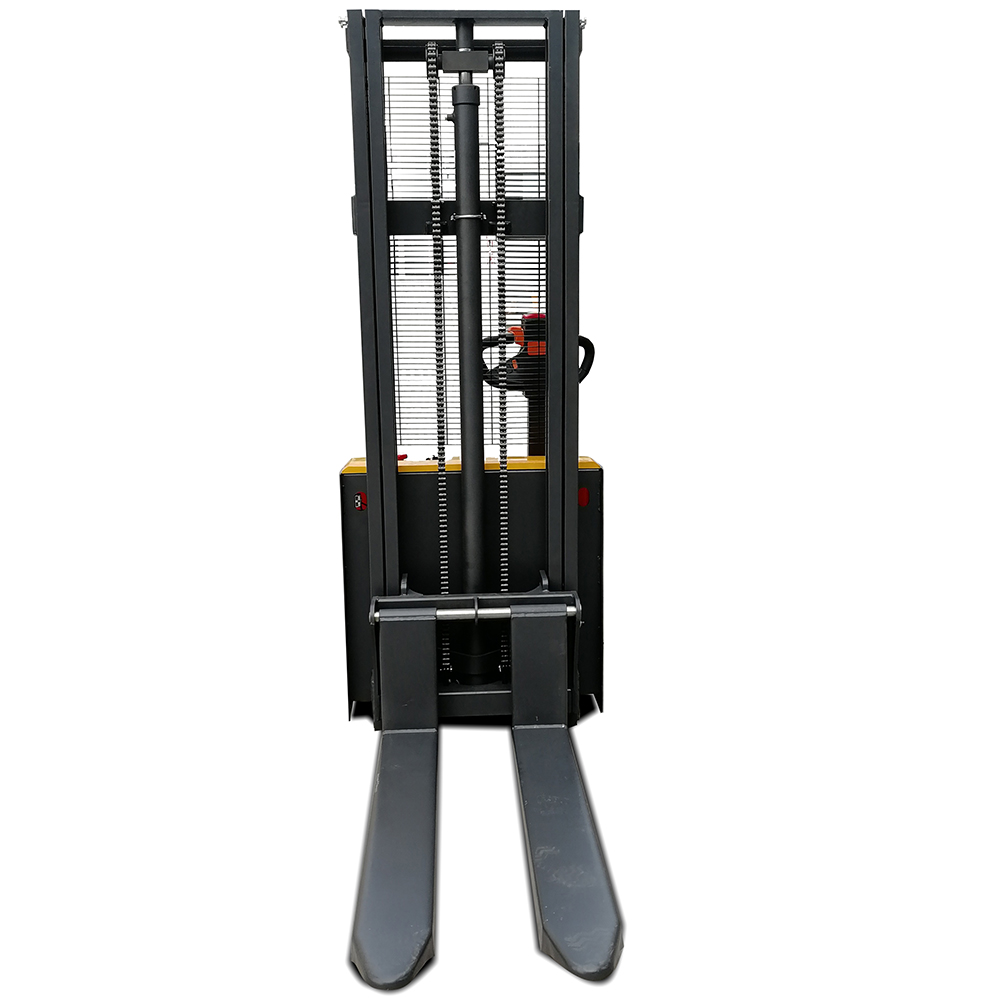

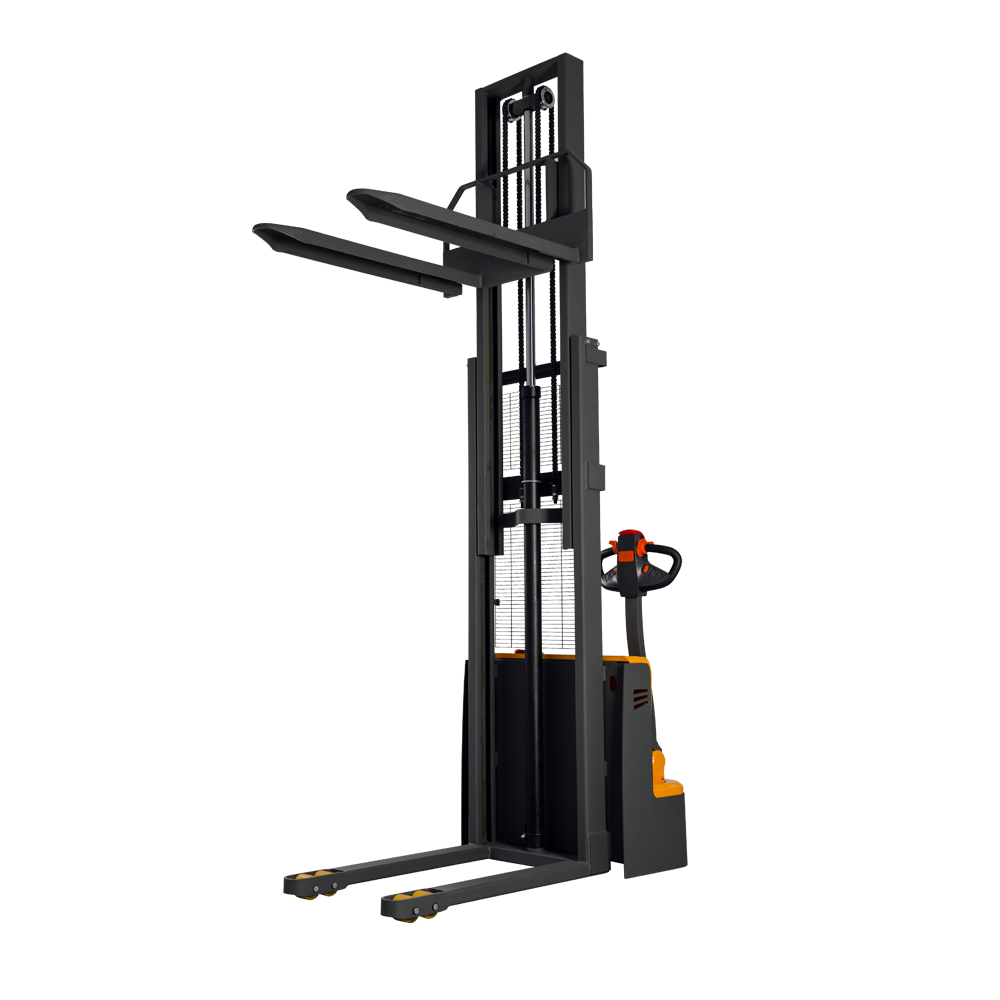

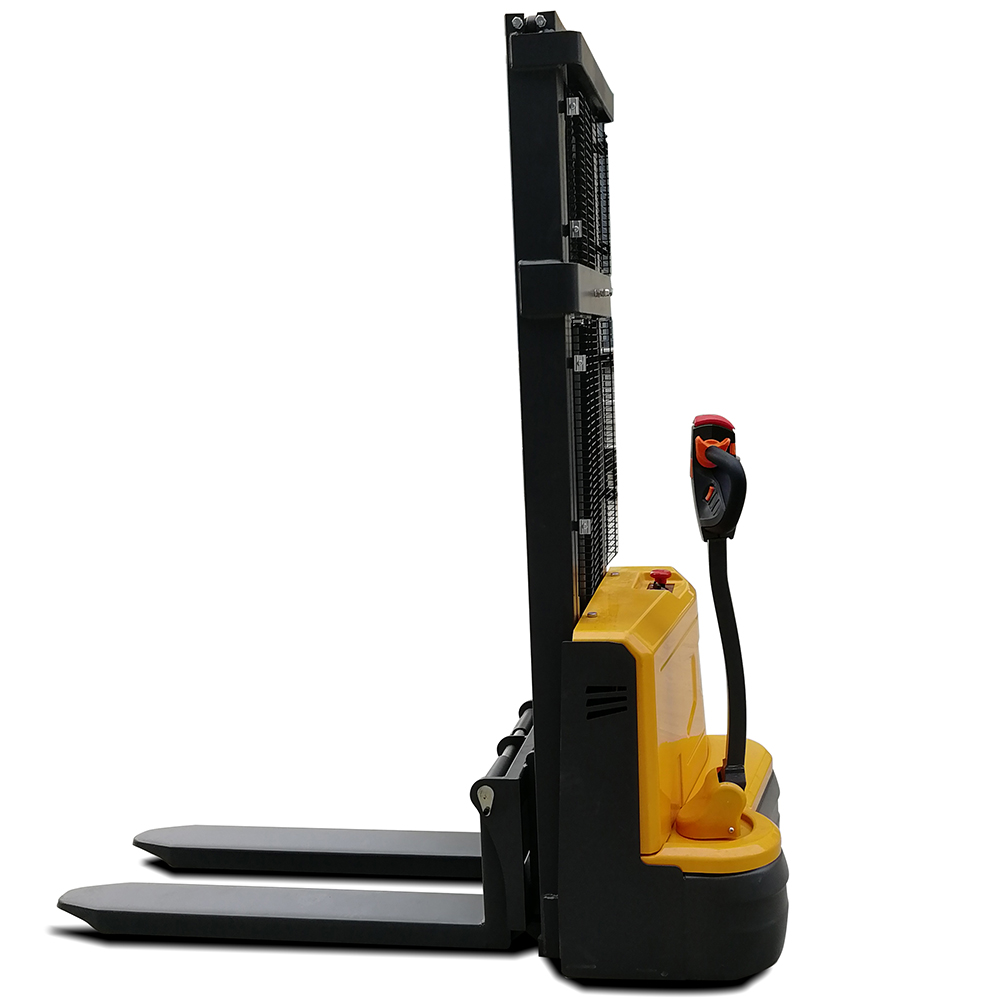

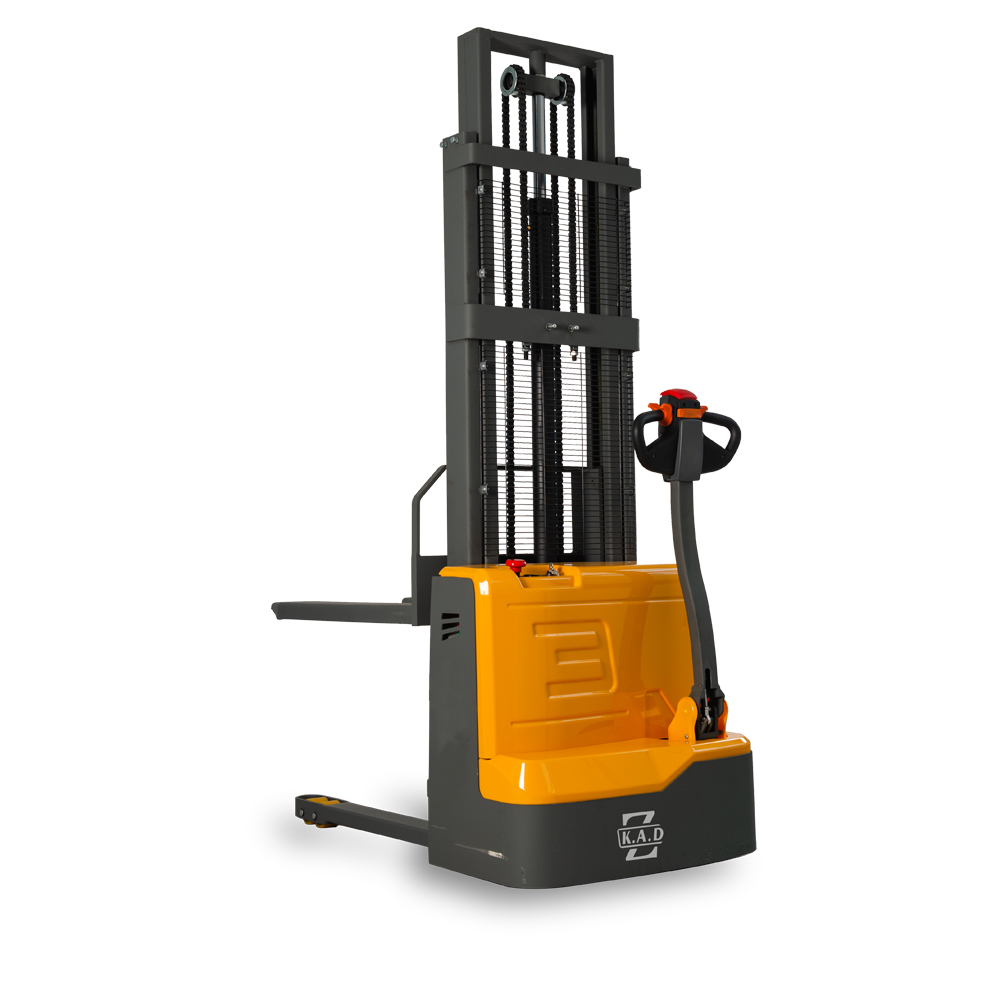

Walk-behind electric stacker cranes are used for cargo handling and stacking in warehouses or containers. It saves a lot of labor when stacking, it can go through very narrow space and easy to carry everywhere. The bottom of the cylinder is equipped with an explosion-proof valve so that the mast will not fall rapidly even if a pipe breaks. There is a fast/slow speed selection button on the back of the handle, which can control the fast/slow speed walking, the operation is more humanized.
Main Features
1.Customized length of fork and width of legs
2.Forged Fork
3.Specially used in Cold storage area
4.Free-maintenance battery
Specification
| Model | CDD l-12 CDD ll-16 | ||
| Features | Motor | Electric(Battery) | |
| Driving mode | Walkie | ||
| Load Capacity | Q(kg) | 1200/1600 | |
| Load Center | C(mm) | 500 | |
| Weight | Weight(With battery) | CDD l-12 (kg) | 470/485/505/520 |
| CDD ll-16 (kg) | 495/510/532/553 | ||
| Wheels | Material | PU | |
| Size | Lifting Height | H3(mm) | 1600/2000/2500/3000 |
| Lowered Mast Height | H1(mm) | 2080/1580/1830/2080 | |
| Max.Mast Height when operating | H4(mm) | 2080/2730/3230/3730 | |
| Lowest fork height | S(mm) | 85 | |
| Length | L(mm) | 1770 | |
| Width | B(mm) | 850 | |
| Fork Length | L1(mm) | 1070 | |
| Fork Outside Width | B1(mm) | 680 | |
| Fork Inside Width | B2(mm) | 305 | |
| Min.Turning Radius | Wa(mm) | 1390 | |
| Wheelbase | Y(mm) | 1250 | |
| Parameter | Drive Speed (Empty/Full load) | mm/s | 5.0/5.0 |
| Lift Speed (Empty/Full load) | mm/s | 140/135 | |
| mm/s | 150/155 | ||
| Maximum gradient（Empty/Full load） | % | 7/5 | |
| Service brake | Electromagnetic | ||
| Motor | Drive motor | KW | DC/0.75 |
| Lifting Motor | KW | DC/2.2 | |
| Battery | Voltage | V | DC24V |
| Capacity | Ah | 2*70/2*80 | |
| Others | Noise Level DIN 12053 | dB | <70 |
