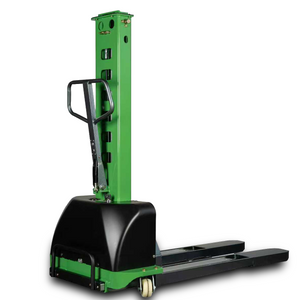

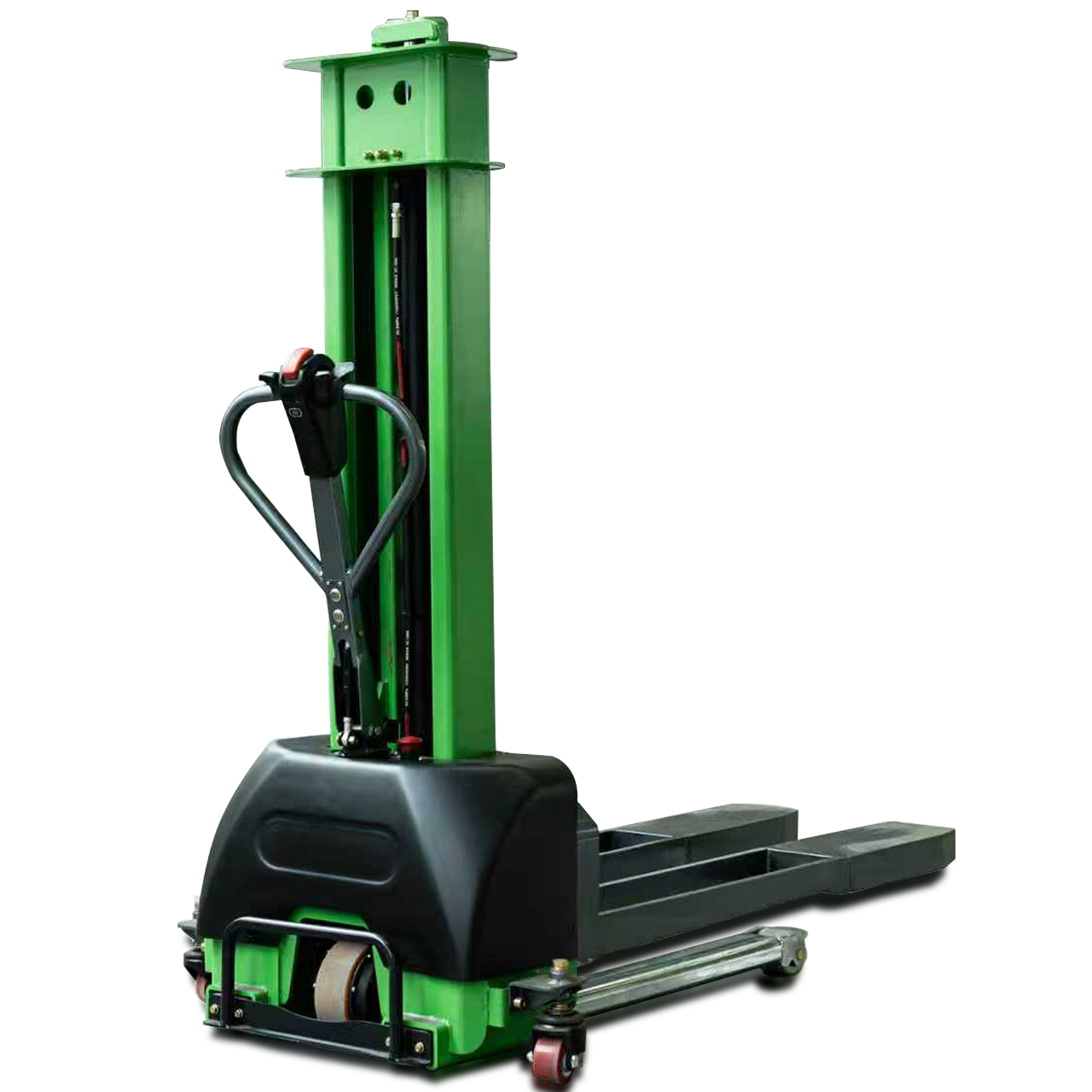

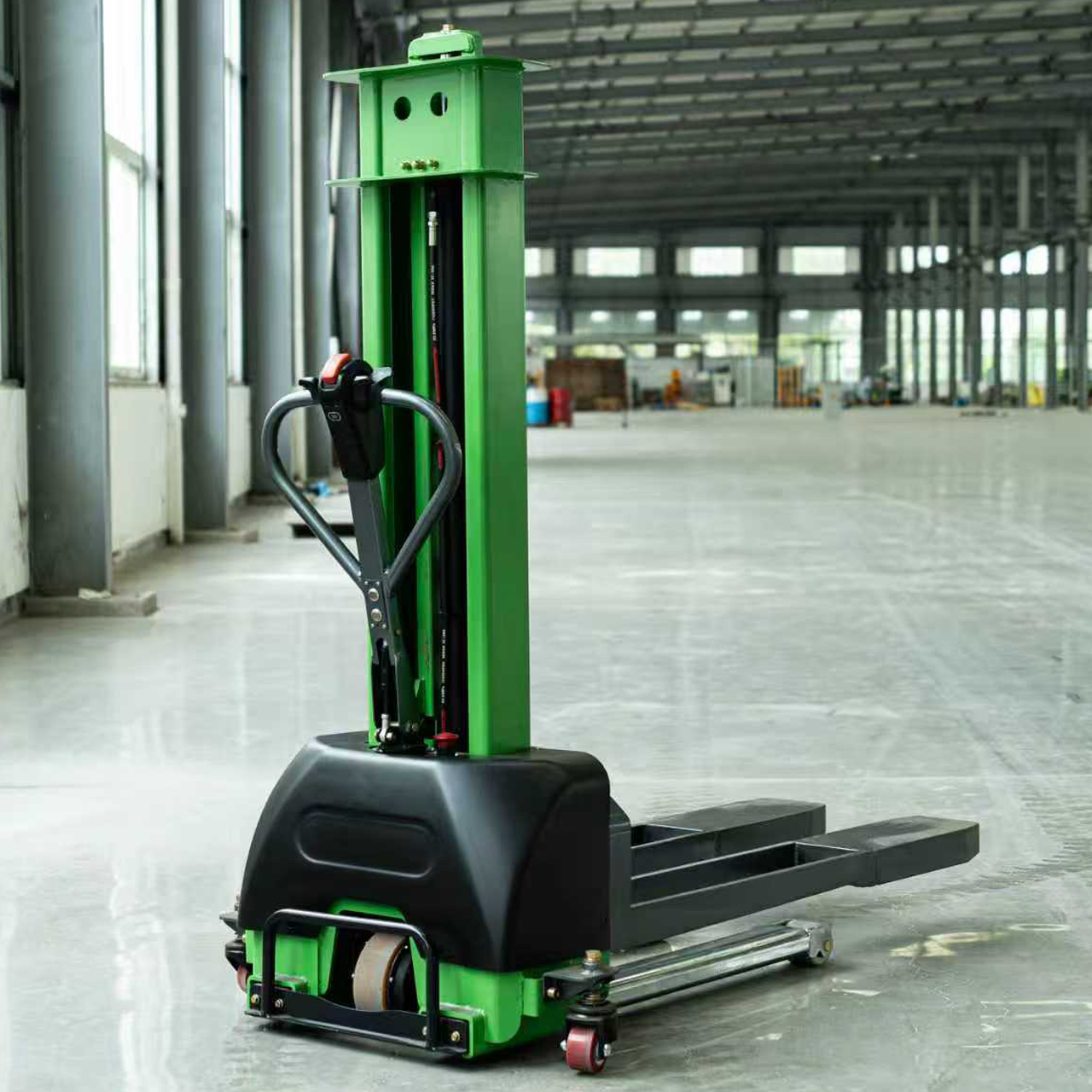

Kayond Portable Full Electric Self-loading Stacker Pallet Truck Self Loading Pallet Stacker(700kg / 1000kg / 1300kg / 1500kg)

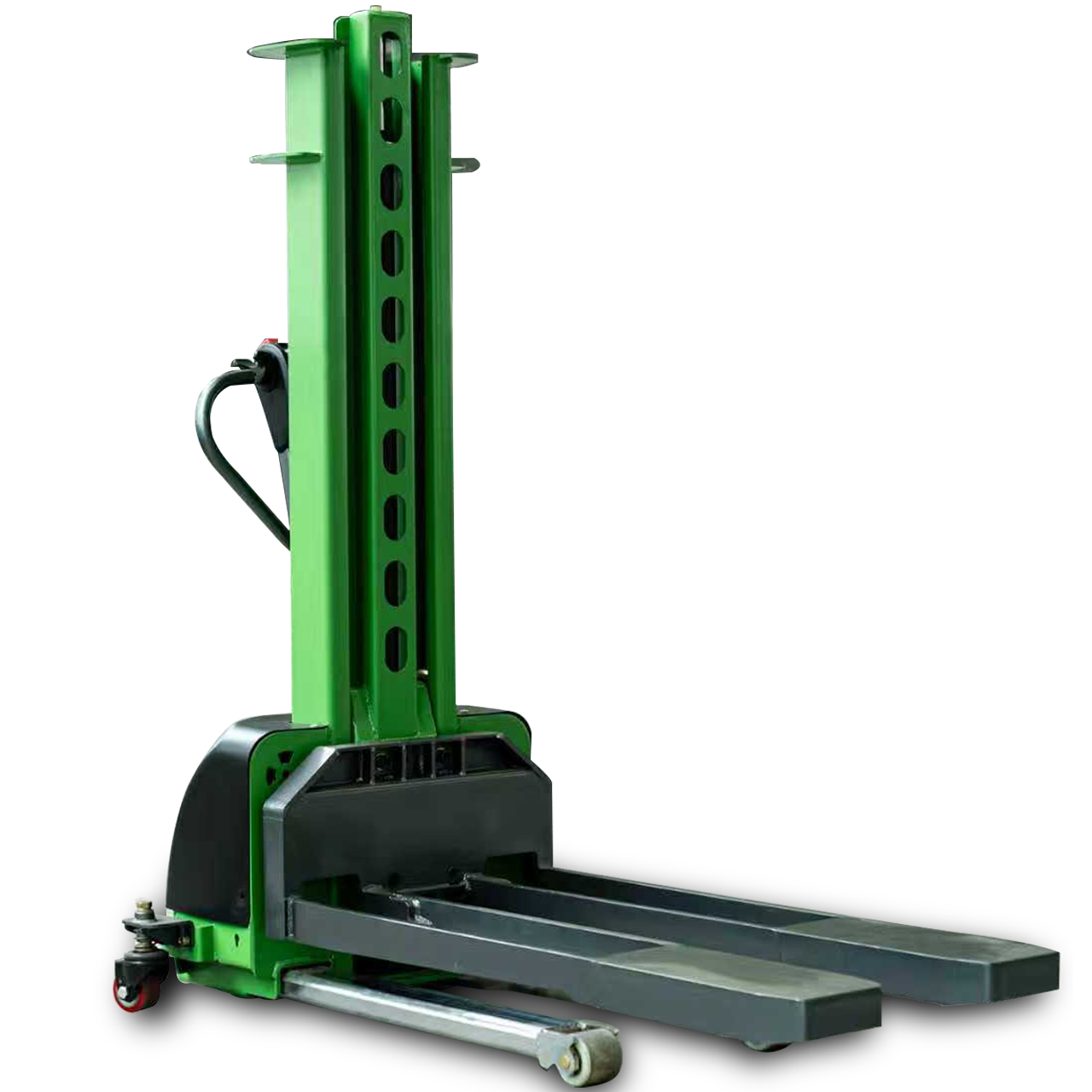

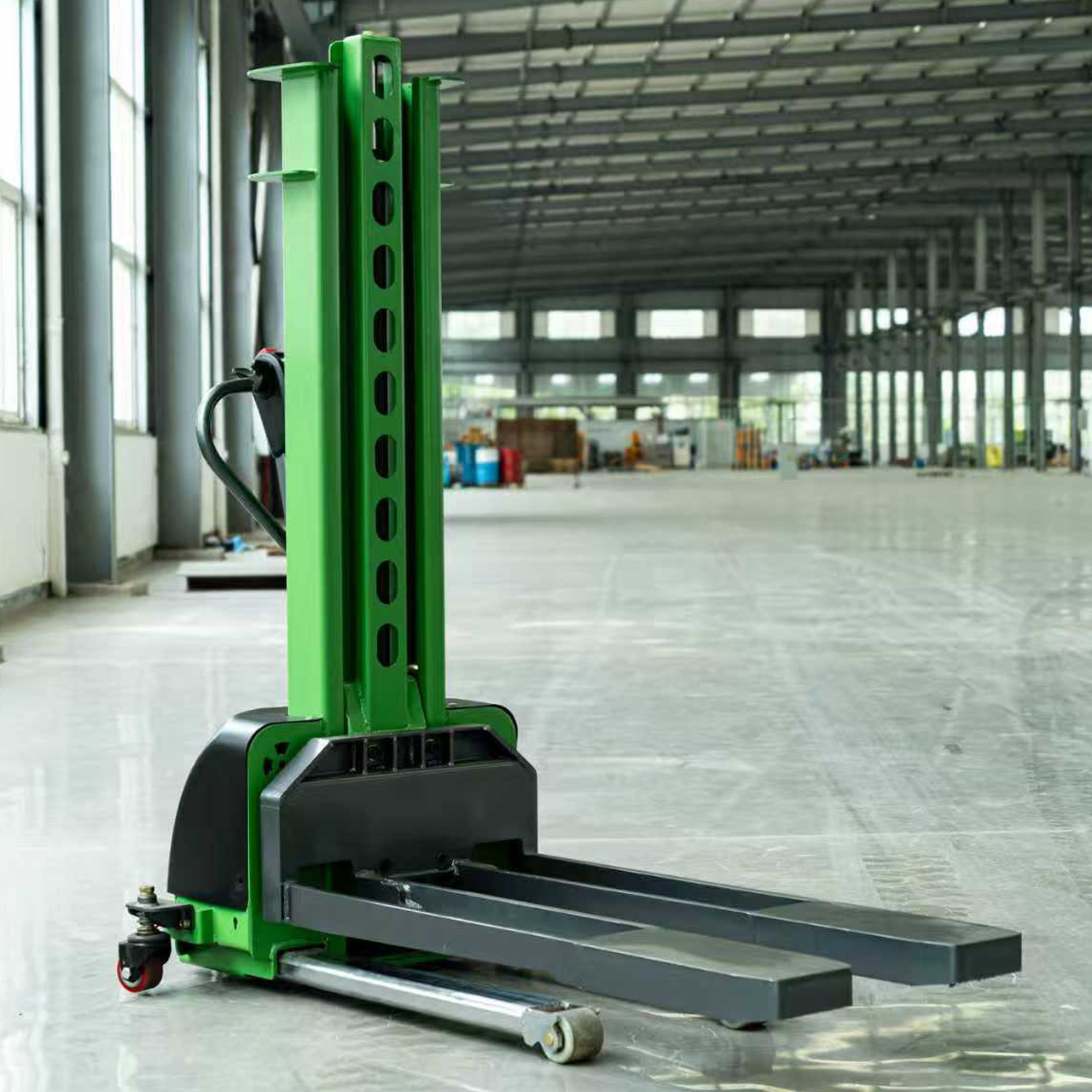

Wholesale Electric Self-Loading Stacker Truck 500/700/1000kg Multiple Capacity Choices Lithium Battery Remote Control

Share to:

Kayond Portable Full Electric Self-loading Stacker Pallet Truck Self Loading Pallet Stacker(700kg / 1000kg / 1300kg / 1500kg)

Availability:

Quantity:



Inquire Add to Basket

Model:
KLD05-H
Brand:
KAD

Product Description

Products Description

The wide-view mast and smooth vehicle shape, with multi-curved cover parts, unrestricted vision and improved working efficiency; the H-channel steel mast is resistant to bending and torsion, strong and durable, ensuring the vehicle's load capacity; the maintenance-free AC motor minimizes maintenance costs; the standard integrated handle integrates multiple functions for quick and easy operation; the front cover is easy to disassemble and various components are centrally arranged to make maintenance faster and smoother.

1(全电动)

Main Features

 1. Folding reduces the space occupied by the carriage and increases the cargo carrying capacity of the truck.
 2. It can stably lock the body of the truck when going up and down the slope, avoiding slipping and increasing the safety factor. 3. It will not increase the load burden of transportation vehicles and meets the load limit requirements of urban freight transportation.

Product parameters

Model		CDD15D	CDD07B	CDD10E	CDD13	CDD15E
Type of Power		Li-Ion Battery	Li-Ion Battery	Li-Ion Battery	Li-Ion Battery	Battery
Max. Load	kg	1500	700	1000	1300	1500
Load Center	mm	400	400	400	400	400
Wheelbase	mm	1003	922	924	916	924
Wheel Distance: FR	mm	405/525	405/525	405/525	405/525	405/525
Wheel Distance: RR	mm	642/762	802	802	802	802
Type of Operation		Walk	Walk	Walk	Walk	Walk
Front Wheel	mm	2-Φ80×70/2-Φ80×60	Φ80×70	Φ80×70	2-Φ80×70	2-Φ80×70/2-Φ80×60
Universal Wheel	mm	2-Φ50×43	Φ75×50	Φ75×45	2-Φ75×45	Φ75×45
Middle Wheel	mm		Φ45×30	Φ45×30	2-Φ45×30	Φ45×30
Driving Wheel	mm	Φ185×70	Φ185×70	Φ185×70	Φ185×70	Φ185×70
The Distance the Forks Extend	mm	256	158	158	158	158
Length of Outriggers	mm	791	770	770	772	780
Max. Fork Height	mm	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600
External Distance Between Forks	mm	565/685	565/685	565/685	565/685	565/685
Length of Fork	mm	1150	1195	1195	1250	1250
Thickness of Fork	mm	70	70	70	70	80
Width of Fork	mm	176.5	190	190	190	190
Overall Length	mm	1586
Overall Length	mm	1851	1603	1603	1655	1657
Overall Width	mm	824/944	852	852	802	852
Overall Height (Mast Closed)	mm	1250/1350/1450/1550/1650 /1750/1950/2050	1155/1255/1355/1455/1555 /1655/1855/1955	1166/1266/1366/1466/1566 /1666/1866/1966	1163/1263/1363/1463/1563 /1663/1863/1963	1163/1263/1363/1463/1563 /1663/1863/1963
Overall Height (Max. Fork Height)	mm	1867/2067/2267/2467/2667 /2867/3267/3467	1875/2075/2275/2475/2675 /2875/3275/3475	1850/2050/2250/2450/2650 /2850/3250/3450	1861/2061/2261/2461/2661 /2861/3261/3461	1861/2061/2261/2461/2661 /2861/3261/3461
Lifting speed	mm/s	55	55	55	55	55
Descent speed	mm/s	100	100	100	100	100
Lift Motor Power	kw	2.2	0.8	1.6	1.6	1.6
Driving Motor Power	kw	0.8	0.8	0.8	0.8	0.8
Max. speed(Turtle speed / full-load)	kw/h	1/3.5	1/3.5	1/3.5	1/3.5	1/3.5
Grade Ability(Full-load/NO-load)	%	5/10	5/10	5/10	5/10	5/10
Battery Voltage	V	48	48	48	48	48
Battery Capacity	Ah	Standard configuration (15) optional (30/quick change 30)	Standard configuration (15) optional (30/quick change 30)	Standard configuration (15) optional (30/quick change 30)	Standard configuration (15) optional (30/quick change 30)	25
Battery Weight	kg	10kg/2*17kg	6/10/10	6/10/10	6/10/10	25
Total Weight（Include Battery）	kg	450/354/460/463/466 /470/480/480	266/270/274/278/282 /286/295/300	302/316/320/324/328 /332/342/347	365/369/375/378/381 /385/395/400	390/394/400/403/406 /410/420/425
