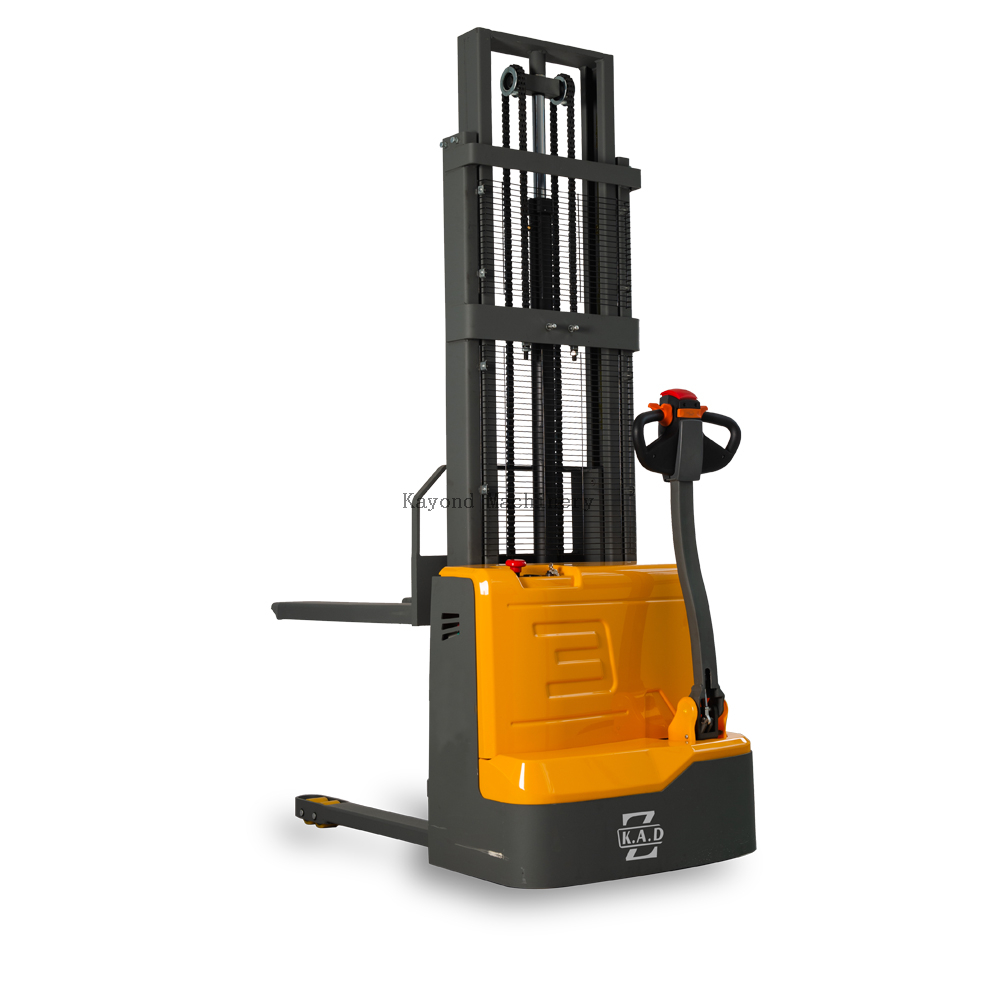

In small warehouses, production or retail environment,which is the entry level stacker you need to optimist your daily working routine. Due to its very small dimension, this stacker plays out its strengths in limited spaces.It can operate in narrow space, easy to operate and save much labor.
1) Using Curtis controller,which can be serviced by any forklift service company around the world.
2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.
3) Maintenance-free batteries,no need to add water.
4)High strength fork ,which is hard to bend over.
Our advantages
1. Contro handle
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.
2. Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
3. Machine Parts
Strong cylinder and chain make fork run smoothly. 1-stage,2-stage,3-stage mast can be selected.
4. Design
Humanized design, operation can maintain a safe distance, will not be tired after long time work.
Model | CDD10 | ||
Features | Drive system | Battery | |
Driving mode | Walkie | ||
Load Capacity | KG | 1000 | |
Load Center | MM | 500 | |
Weight | Weight(With battery) | KG | 480/495/515/535 |
Wheels | Material | PU | |
Size | Lifting Height | MM | 1600/2000/2500/3000 |
Lowest Mast | MM | 2080/1580/1830/2080 | |
Max.Height when operating | MM | 2080/2730/3230/3730 | |
Min.Height of Fork | MM | ≤90 | |
Length | MM | 1770 | |
Width | MM | 850 | |
Fork Length | MM | 1070 | |
Wheelbase | MM | 1250 | |
Fork Outside Width | MM | 680 | |
Fork Inside Width | MM | 305 | |
Min.Turning Radius | MM | 1390 | |
Performance data | Driving Speed (Empty/Full Load) | MM/S | 5.0/5.0 |
Lifting Speed (Empty/Full Load) | MM/S | 140/135 | |
Descending Speed (Empty/Full Load) | MM/S | 150/155 | |
Max.Gradient (Empty/Full Load) | ° | 7/5 | |
Brake | Electromagnetic brake | ||
Driving Motor | KW | DC/0.75 | |
Lifting Motor | KW | DC/2.2 | |
Battery | Capacity | V/Ah | 24/140 |
