Product Application

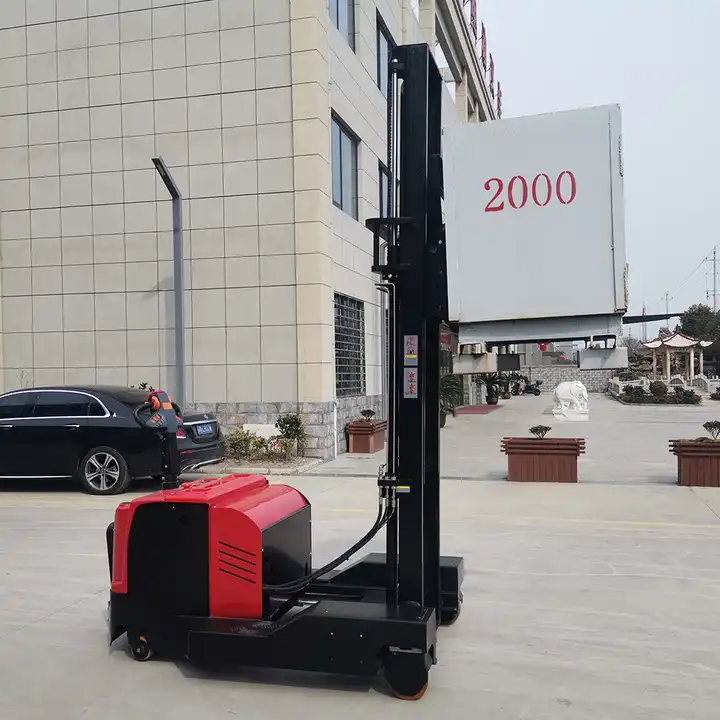

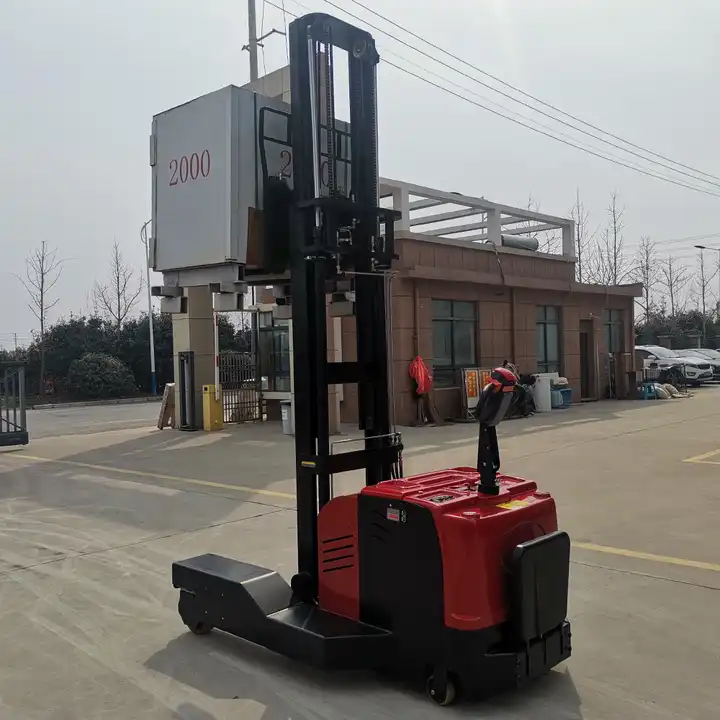

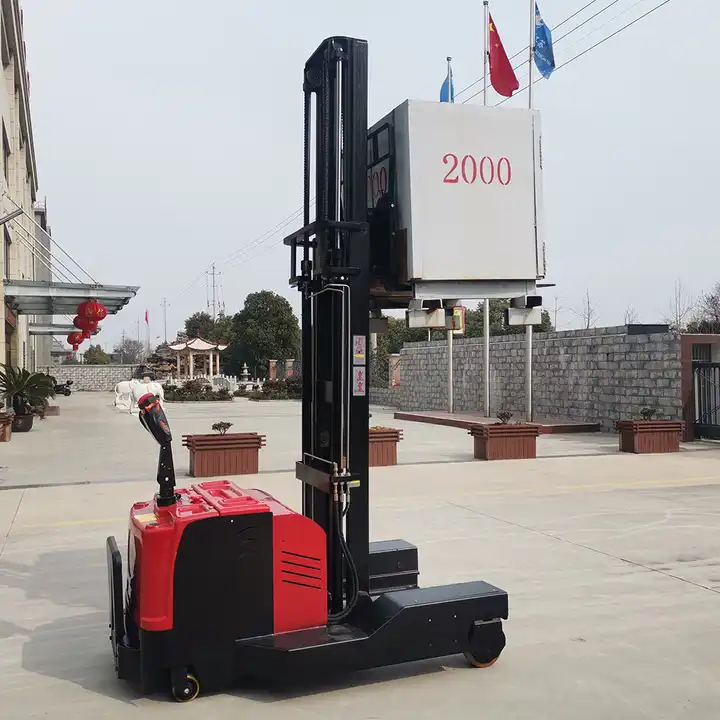

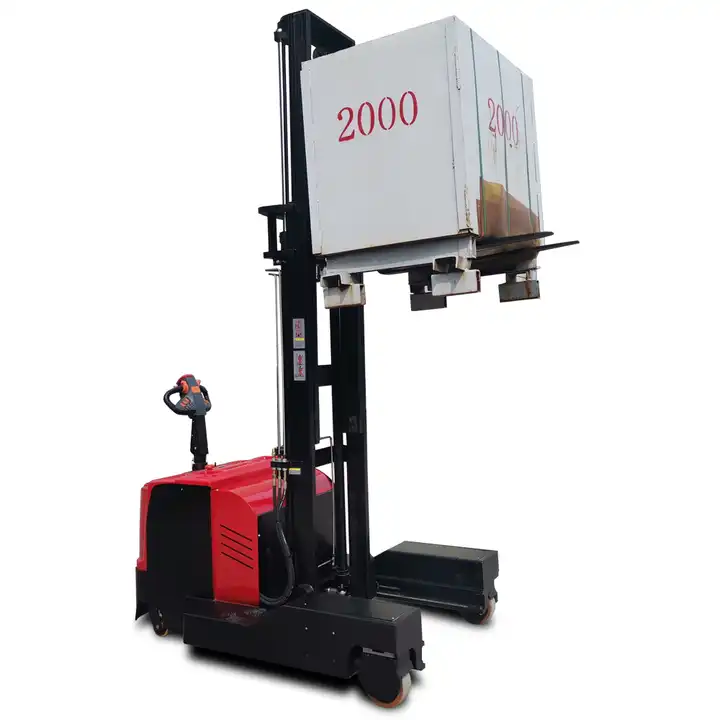

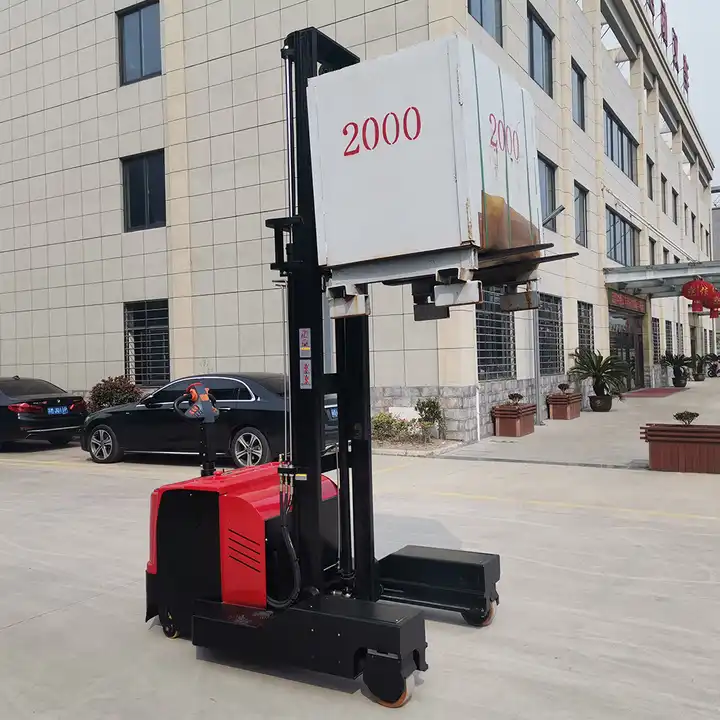

The reach stacker truck is suitable for large tonnage and high lift cargo storage applications. The rated load is 1500Kg-2000kg,and the maximum lifting height is 6m. It has the feature of moving the gantry forward as a whole, and the turning radius is small,so that the obstacles at the bottom of the shelves can be ignored. Suitable for large-scale three-dimensional factories,warehouses, supermarkets and wharves to store goods.
1. Equipped with electronic drive wheels, making the operation more flexible and convenient, with the function of turning and deceleration.
7. It can turn in place, turn round in place.
Specification
| Raise 3m | Raise 3m | Raise 3m | ||
| Rated lifting capacity | kg | 1000 | 1500 | 2000 |
| Overall curb weight | kg | 1600 | 1800 | 2000 |
| Overall length (gantry retracted) | mm | 2467 | 2467 | 2567 |
| Overall width | mm | 1317 | 1317 | 1317 |
| Static height of gantry | mm | 2080 | 2080 | 2080 |
| Maximum fork lift height | mm | 3000 | 3000 | 3000 |
| Forward distance | mm | 580 | 580 | 580 |
| Ground clearance | mm | 65 | 65 | 65 |
| Maximum lifting speed (unloaded/full load) | mm/s | 150/90 | 150/90 | 150/90 |
| Maximum descent speed (unloaded/full load) | mm/s | 115/380 | 115/380 | 115/380 |
| Full load forward speed | mm/s | 195 | 195 | 195 |
| Maximum operating speed (unloaded/full load) | km/h | 5.5/4.4 | 5.5/4.4 | 5.5/4.4 |
| Minimum outside turning radius | mm | 1600 | 1600 | 1600 |
| Maximum climb with full load | % | 5 | 5 | 5 |
| Load centre distance | mm | 500 | 500 | 500 |
| Travelling motor | kw | 1.5 | 1.5 | 1.5 |
| Lifting motor | kw | 3 | 3 | 3 |
| Battery rated power | V/Ah | 24/180 | 24/180 | 24/180 |
| Drive Wheel Size | mm | 250*80 | 250*80 | 250*80 |
| Auxiliary wheel size | mm | 125*50 | 125*50 | 125*50 |
| Drive Wheel Type | Pu | Pu | Pu |
