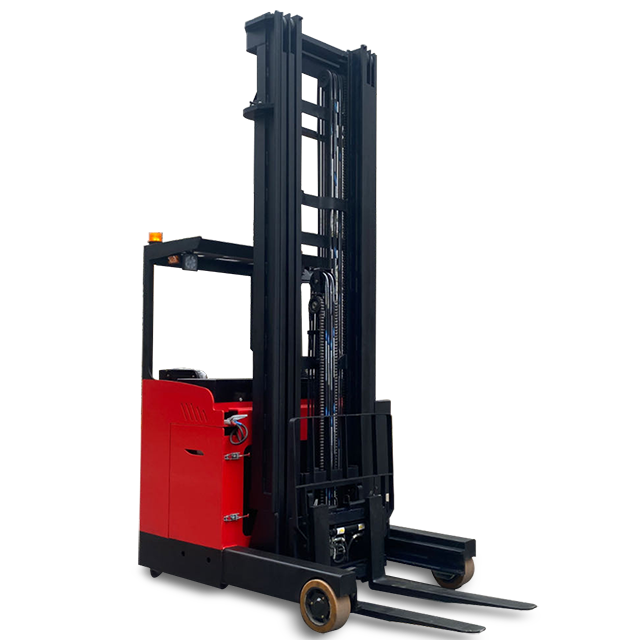

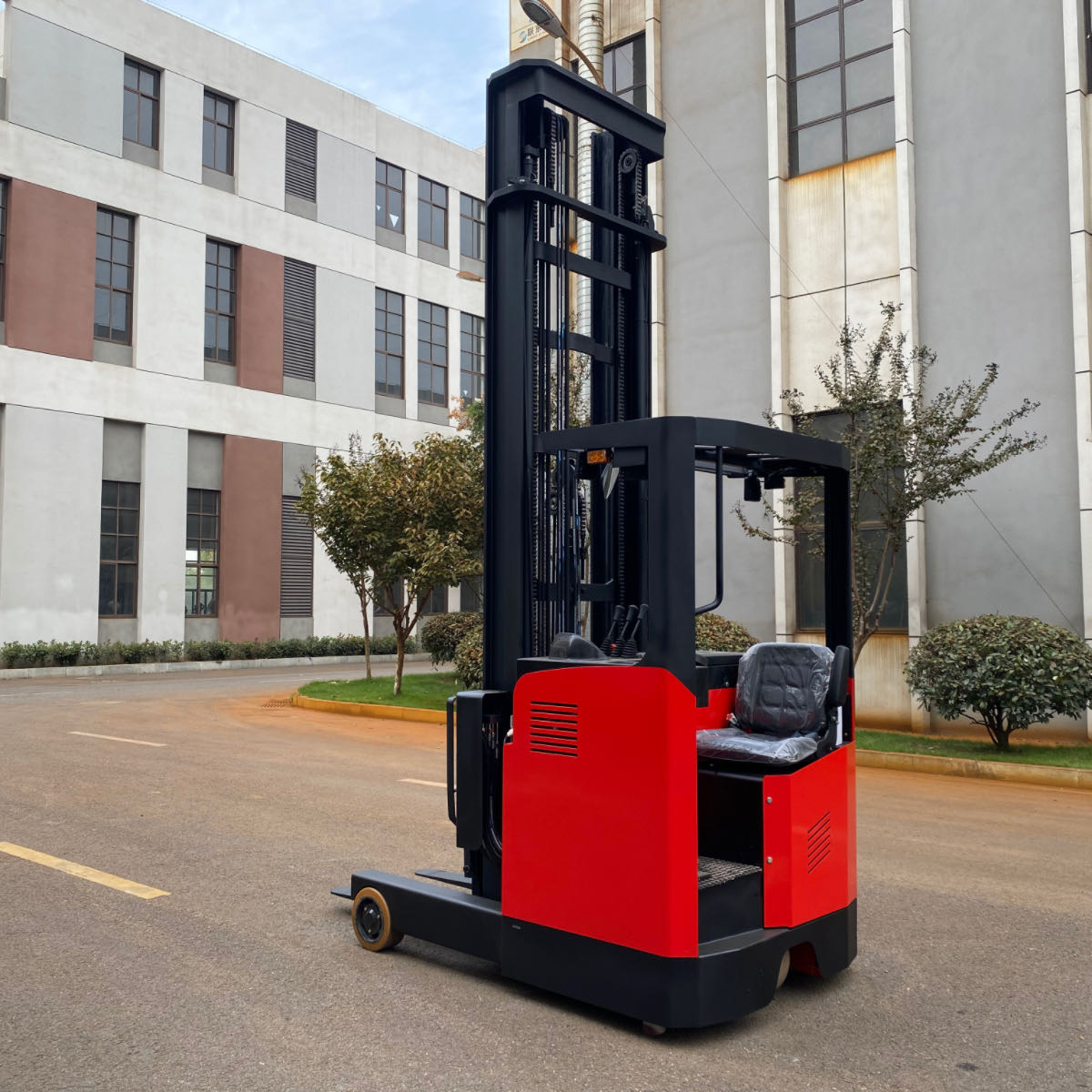

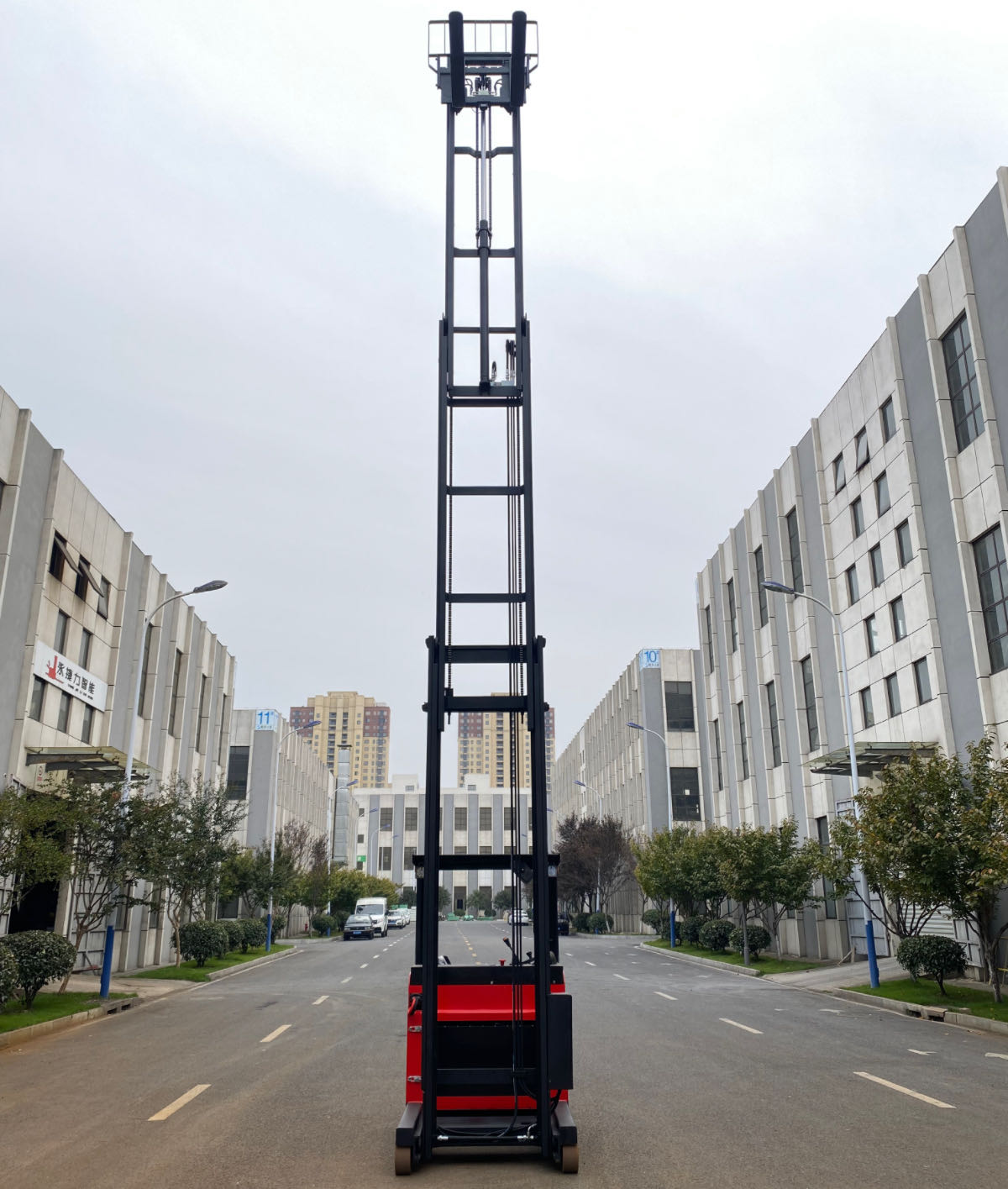

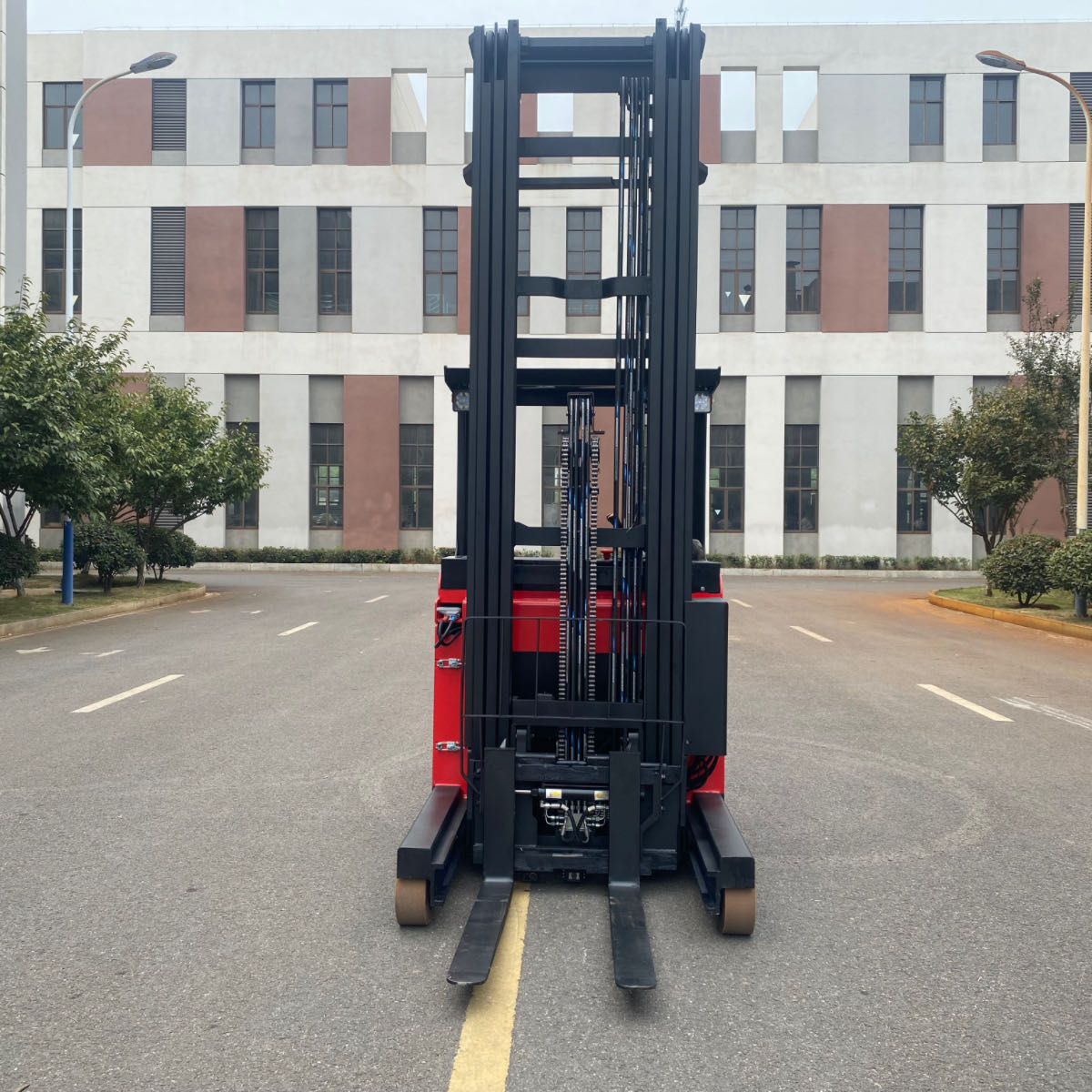

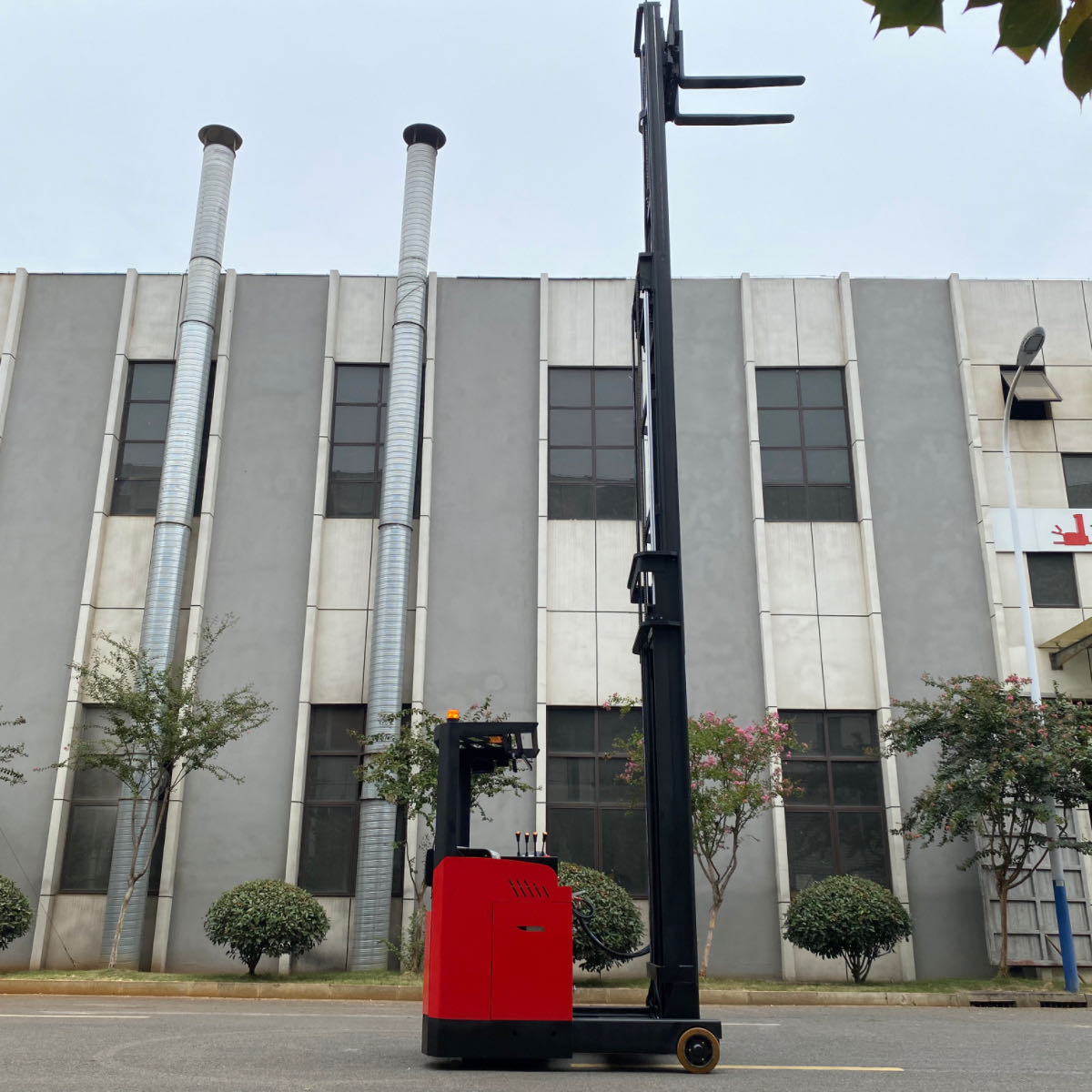

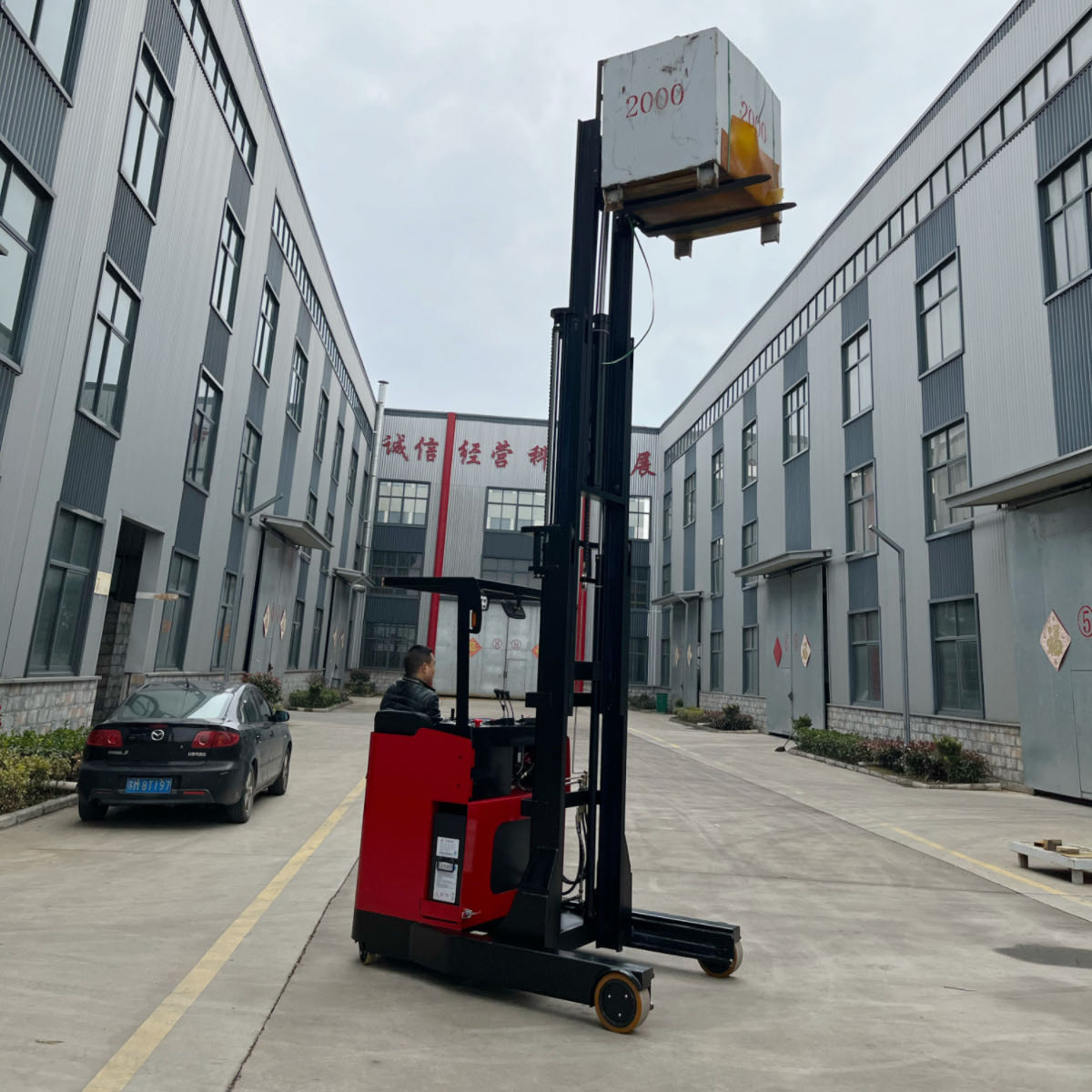

Lifting height 5 m 24 V 280 Ah battery Electric reach Truck forklift 1500 kg loading

Share to:

Lifting height 5 m 24 V 280 Ah battery Electric reach Truck forklift 1500 kg loading

CQDS series reach stacker cranes are suitable for large capacity and high lift cargo storage applications. The rated load is 1500Kg-2000kg and the maximum lifting height is 6000mm. It has the feature of moving the gantry forward as a whole, with small turning radius, so that the baffle code at the bottom of the shelves can be ignored. Suitable for large-scale three-dimensional factories, warehouses, supermarkets and wharves to store goods.

Availability:

Quantity:



Inquire Add to Basket

Model:
CQDS15
Brand:
KAD

Product Description

Product Application

Lifting height 5 m 24 V 280 Ah battery Electric reach Truck forklift 1500 kg loading

Main Features

1. Equipped with electronic drive wheels, which makes the operation more flexible and convenient, and has the function of turning and deceleration. 2.280Ah large-capacity battery can be used for long time work, and the side-pull battery can be replaced at any time. 3.One-piece forged forks with stronger load-bearing and up and down swing function. Suitable for all kinds of single-sided, double-sided, tic-tac-toe and chuan-tac-toe pallets.

4. Large oil cylinder to ensure that the whole gantry move forward gently, up and down smoothly.

Specification

Model		CQDS1030	CQDS1530	CQDS2030
Load Capacity	kg	1000	1500	2000
Lifting Height	mm	3000	3000	3000
Load Center	mm	500	500	500
Fork size	mm	107010040	107010040	107010040
Ground Clearance	mm	45	45	45
Control Way		Steering Wheel	Steering Wheel	Steering Wheel
Speed Regulation Way		Stepless Speed Regulation	Stepless Speed Regulation	Stepless Speed Regulation
Protection Guard Height	mm	2200	2200	2200
Mast Tilt Angle (front/rear)	（°）	3.0/6.0	3.0/6.0	3.0/6.0
The Min.Turning Radius	mm	1600	1600	1800
Driving Speed with Full Loads	km/h	4.4	4.4	4.4
Maximum gradient with full load	°	5	5	5
Battery	V/Ah	24/280	24/280	24/280
Driving Motor	kw	1.2	1.2	1.2
Lifting Motor	kw	4.5	4.5	4.5
Overall dimensions(LWH)	mm	237010202200	237010202200	237010202200
Weight	kg	2000	2100	2200
Reference WorkingTime	h	6	6	6
Reach Distance	mm	500	500	500
lncreased height each tonnage	mm	1600/2000/2500/ 3000/3500	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
Max height	mm	2100/1600/1850/ 2100/2350	2100/1600/1850/2100/2350	2100/1600/1850/2100/2350
