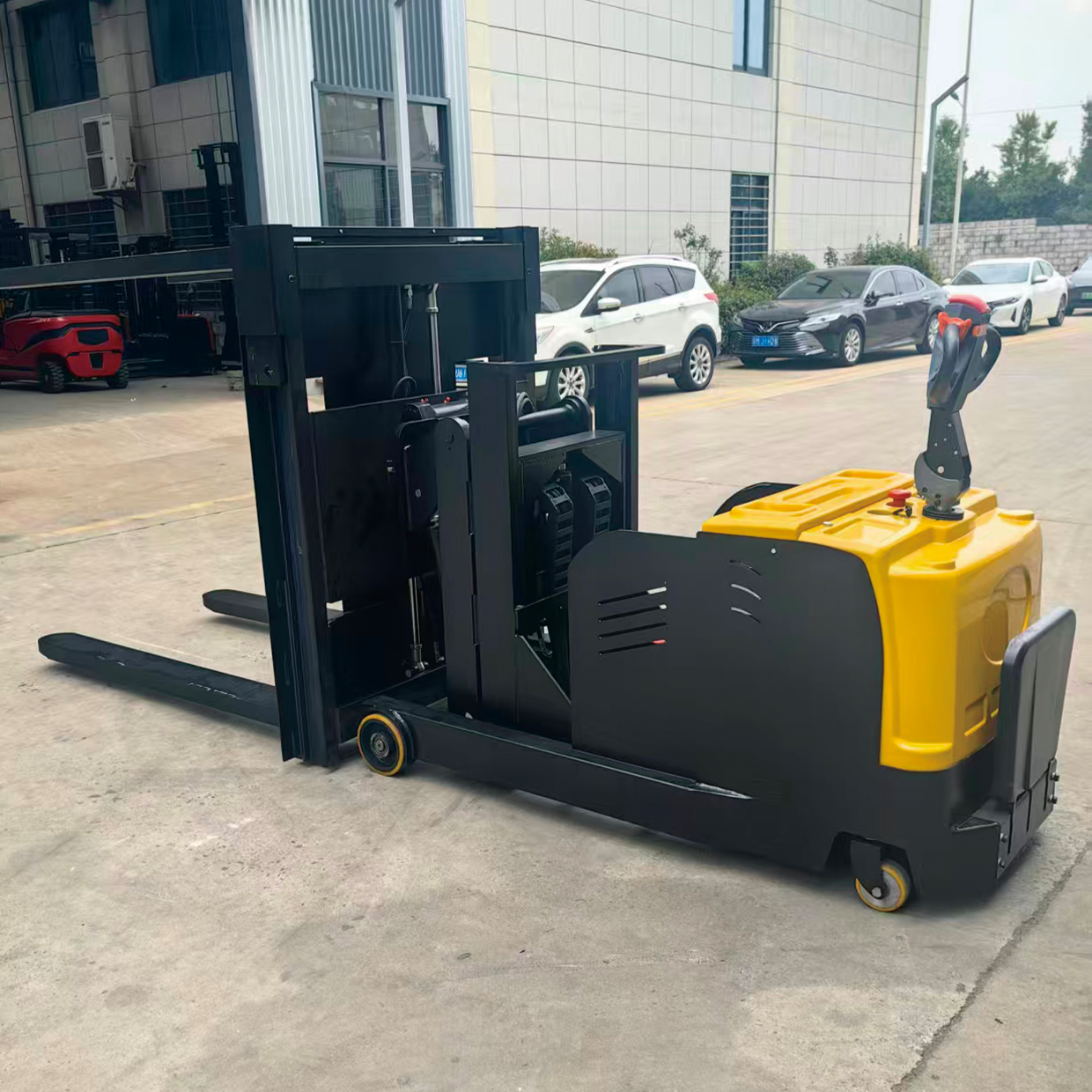

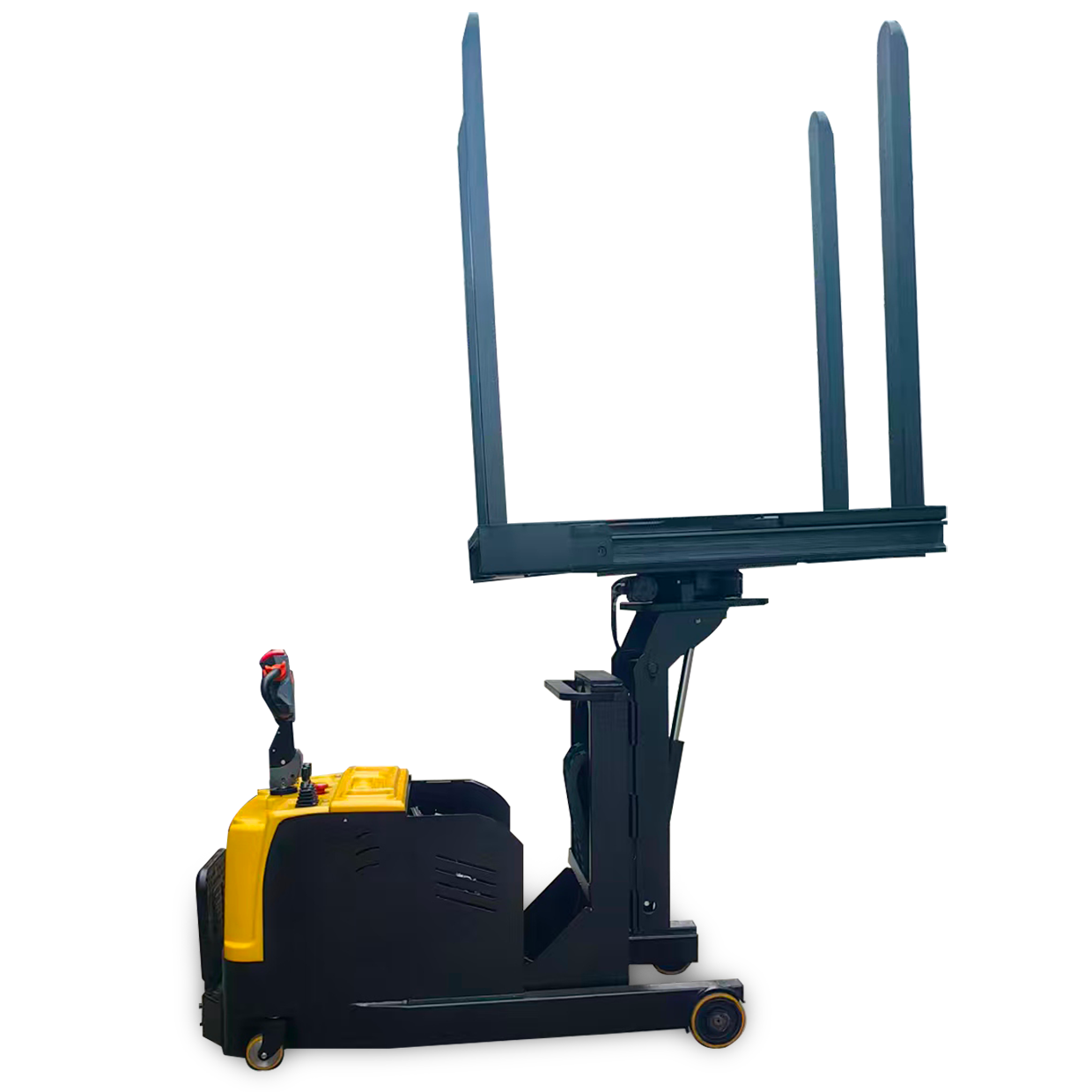

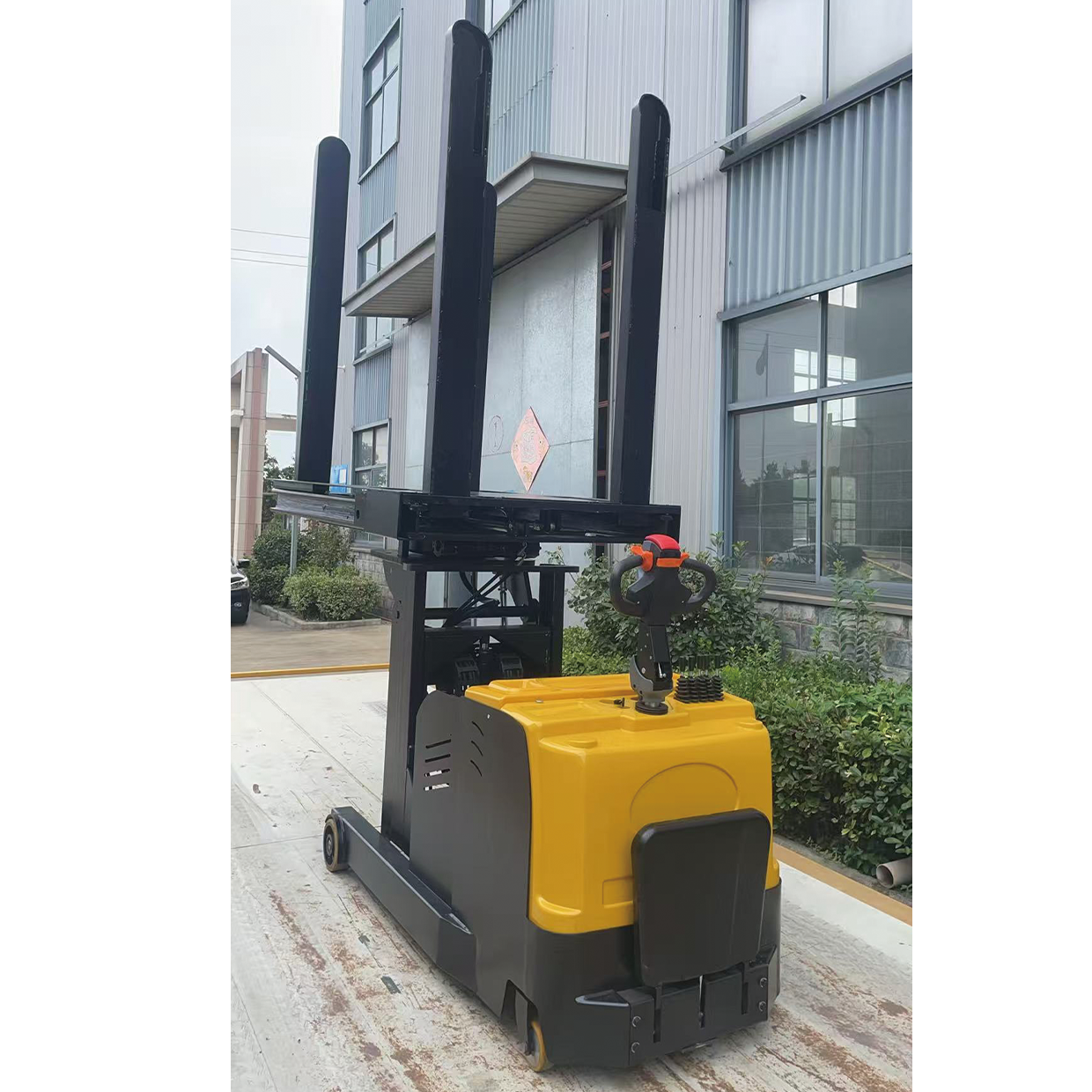

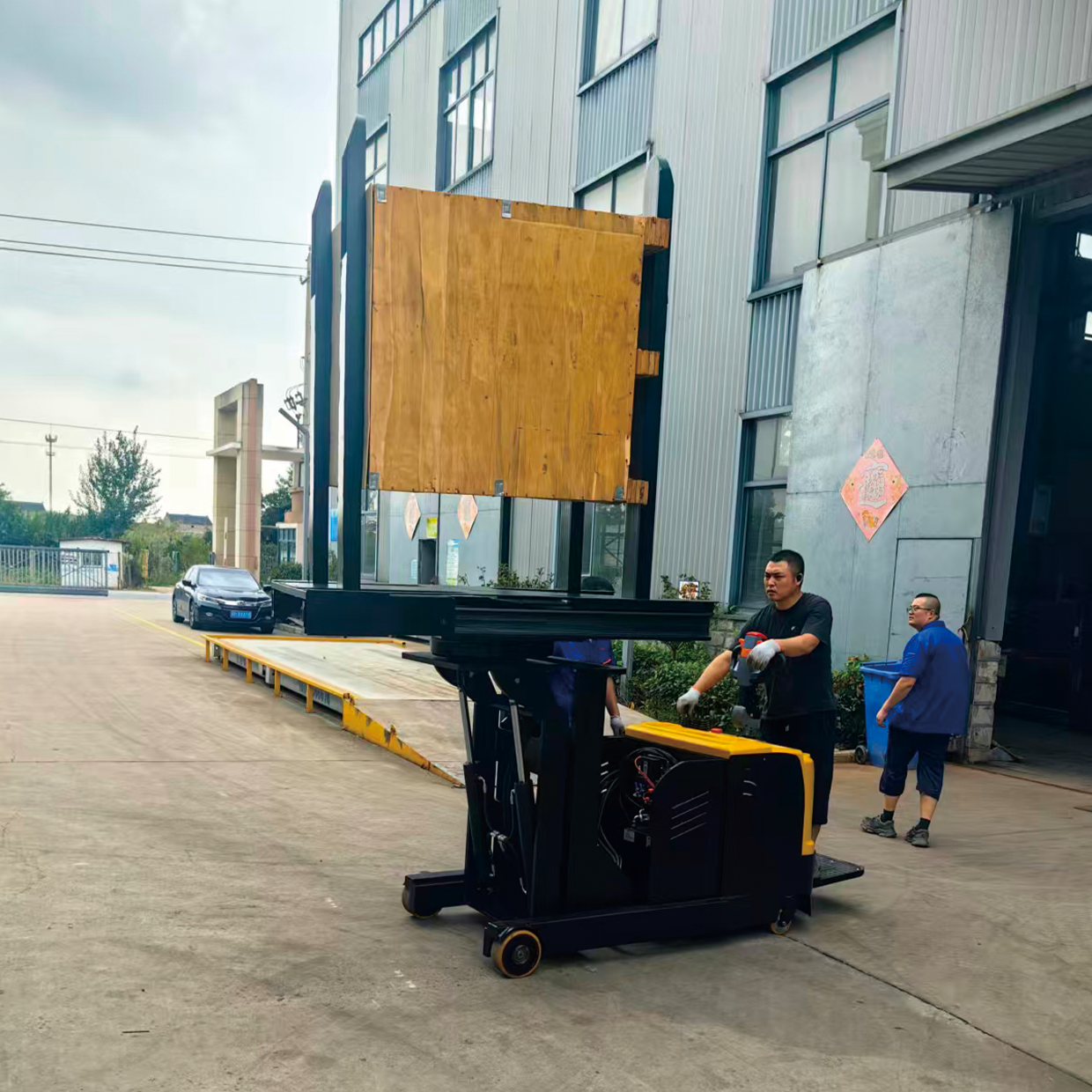

CE Certificated Full Electric Pile Turner Stacker 1Ton 1000kg 1000mm Lift With Rotation 360 Degree
Our electric paper-flipping transport vehicle is an ideal solution for simplifying production processes and enhancing
transportation efficiency. Integrating paper pile flipping and handling functions, it adopts a fully electric drive mode and is a new type of flipping, handling, lifting, loading, and unloading equipment specially designed and developed for printing and packaging enterprises to handle printing paper. The vehicle is equipped with an advanced electronic stepless speed regulation system, featuring stable performance and easy operation.
1. Features a dedicated paper-flipping function: It is far more efficient than manual flipping, eliminating the need for manual stacking and preventing paper damage caused by human operation.
2. High flipping efficiency: It only takes one minute to complete the flipping of a paper pile.
3. Multi-functional usability: It can also serve as a forklift to transport paper piles to any desired location.
| Model | DFZ-570/685 | |
| Rate capacities | kg | ＜1000/1250 |
| Max.height of pallet fork | mm | 1200/1370 |
| Min.height of pallet fork | mm | 810/900 |
| Min.fork terrain clearance | mm | 85 |
| Fork outside distance | mm | 570/685 |
| Machine length | mm | 2480/2540 |
| Machine width | mm | 790 |
| Machine height | mm | 1360/1530 |
| Radius of turning circle | mm | 2150 |
| Hydraulic motor | DC24/2.0 | |
| Drive motor | DC24/1.2 | |
| Battery | v/Ah | 3+DC12V/210Ah(Optional) |
| Charger | V/A | 24v/30A |
