CPD2030
KAD

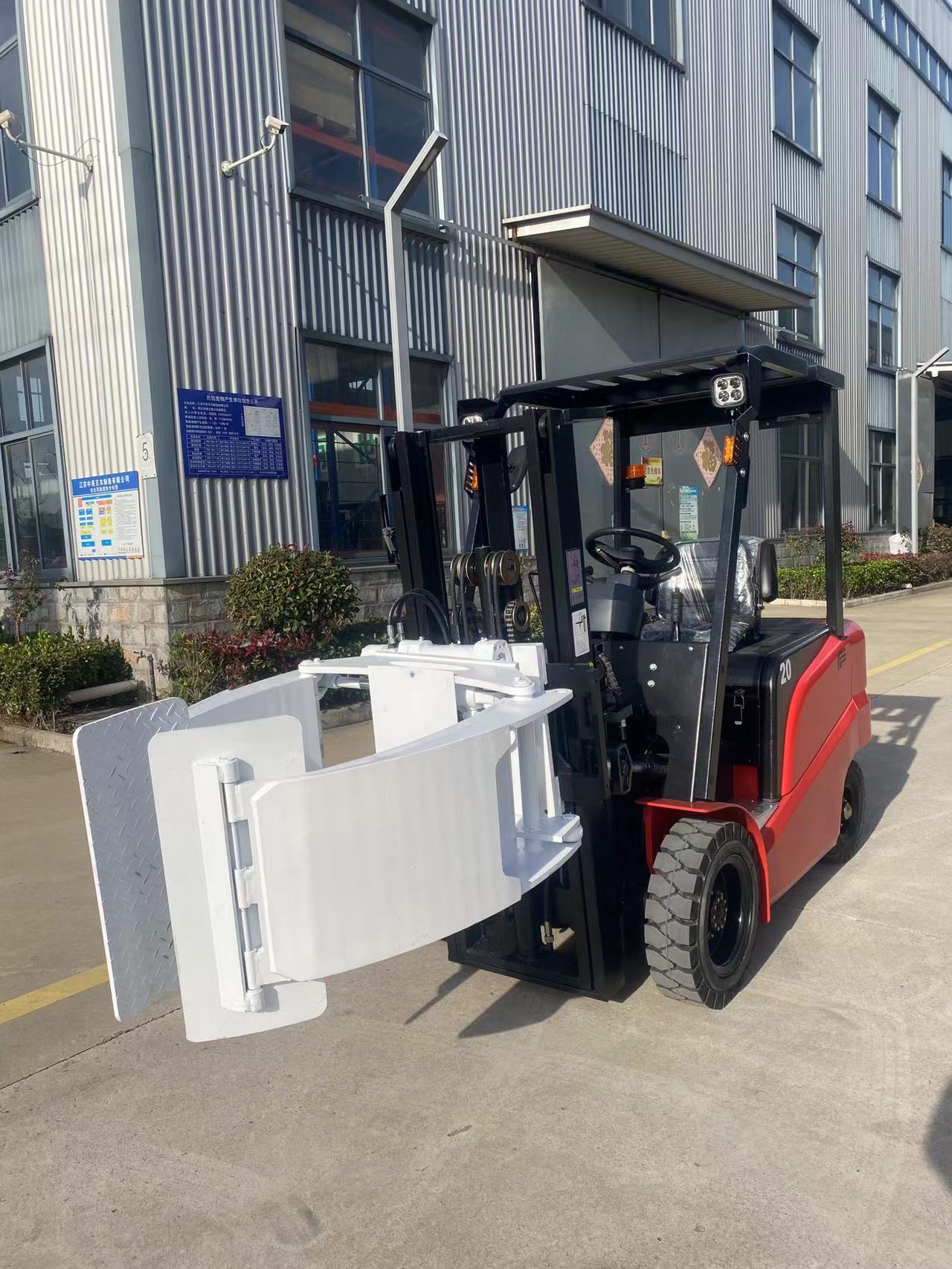

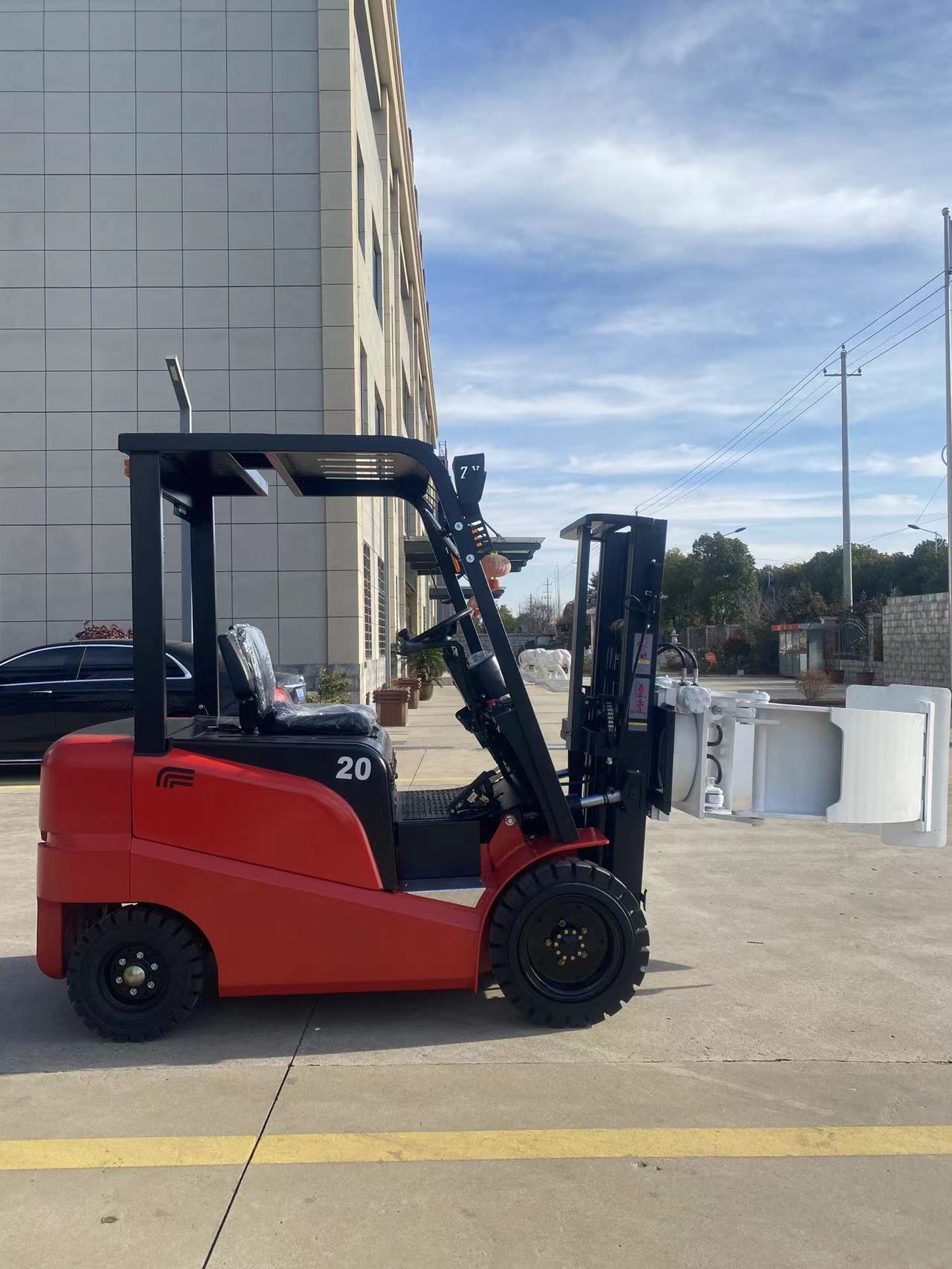

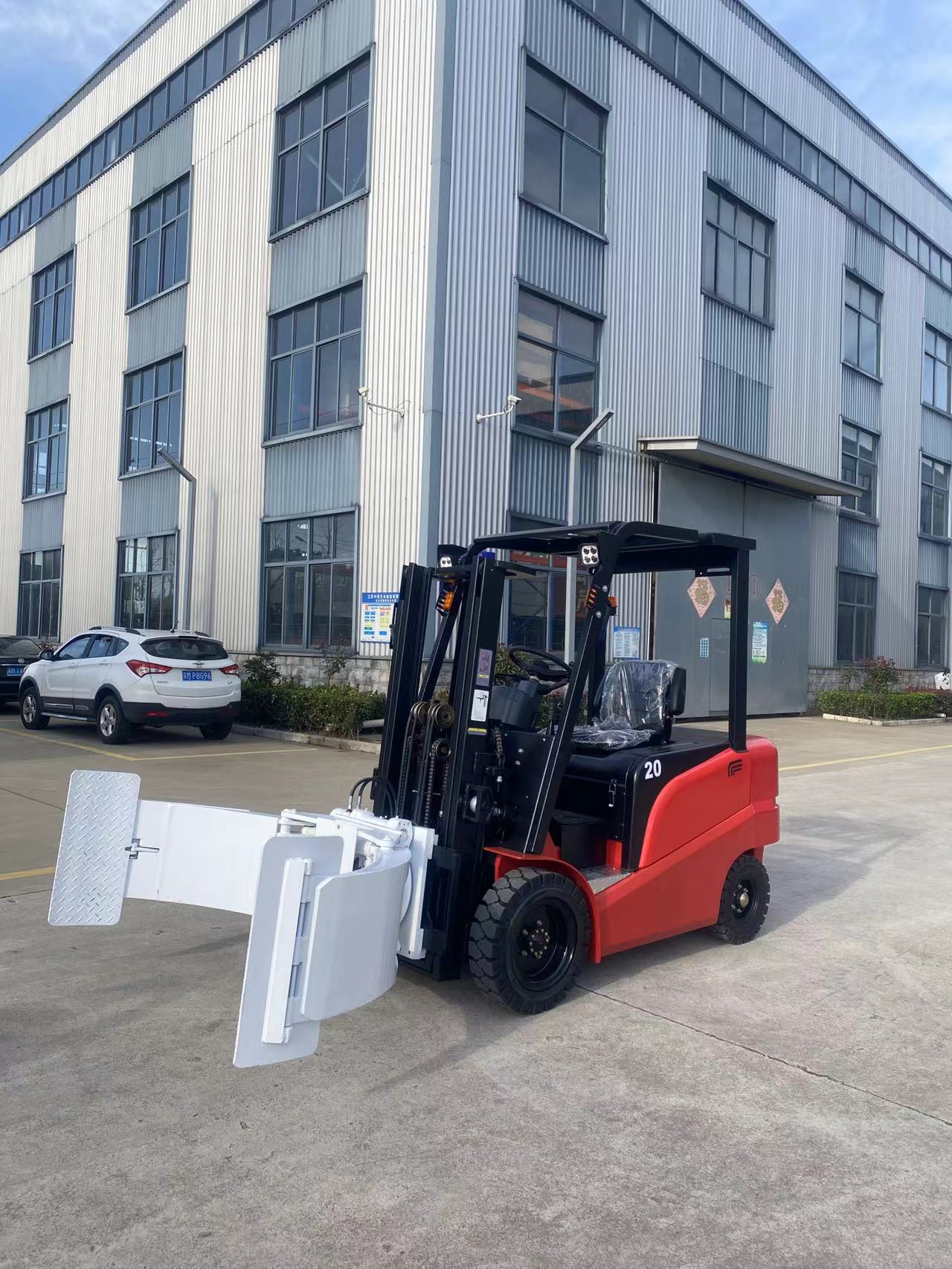

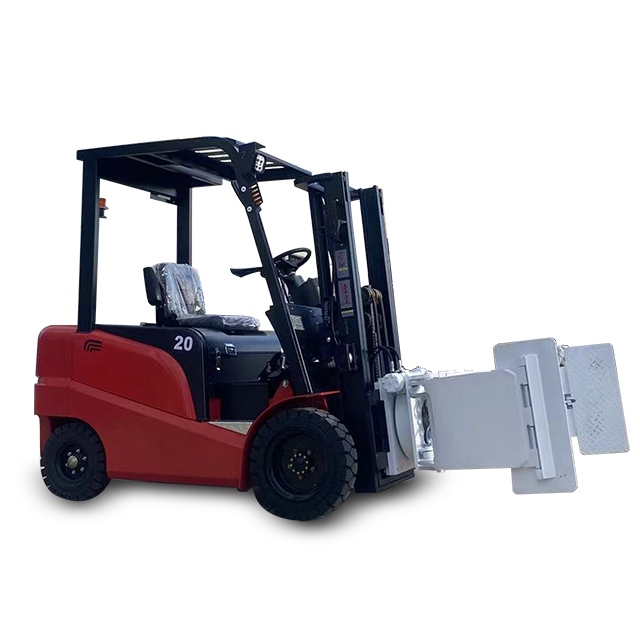

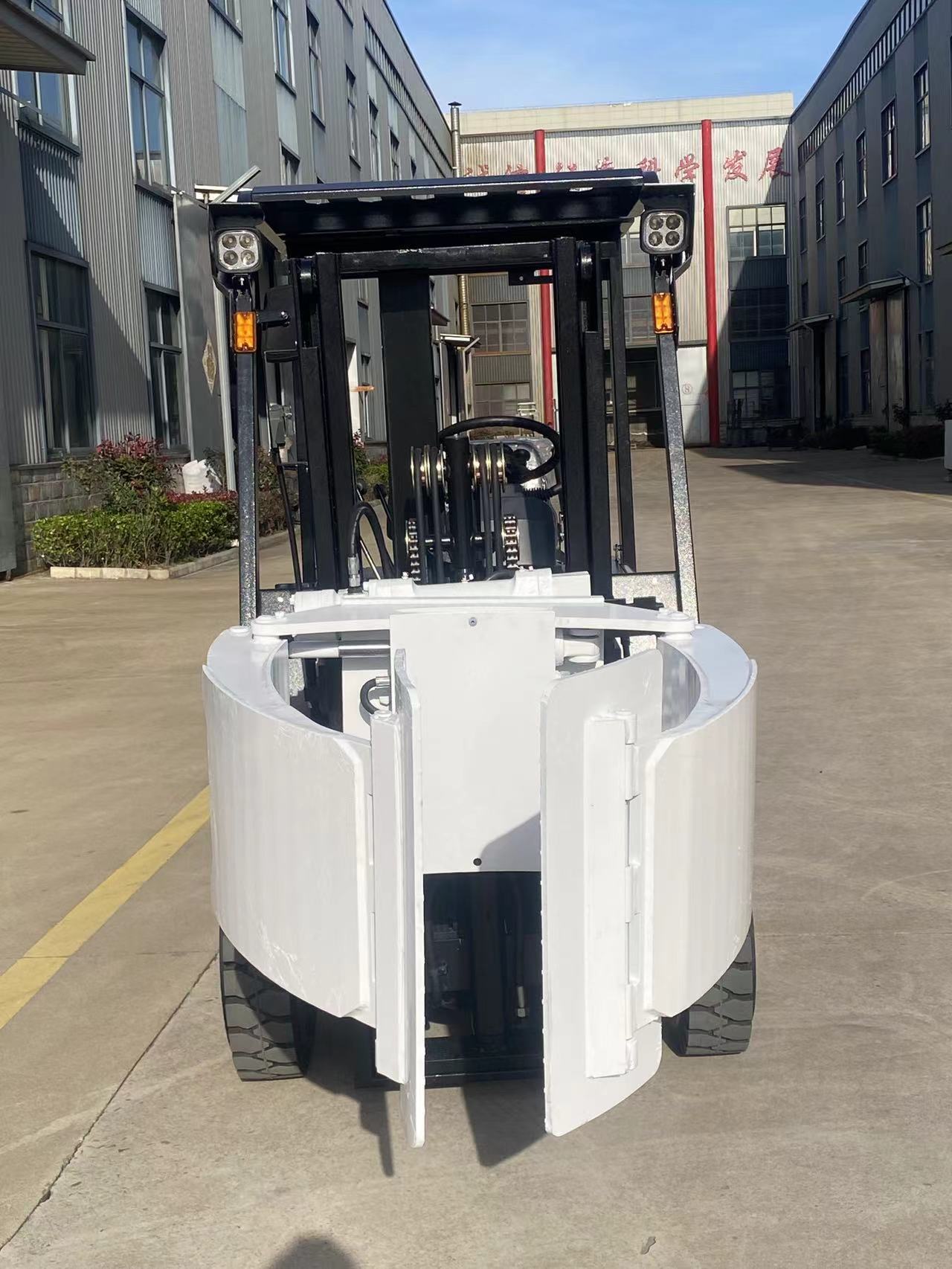

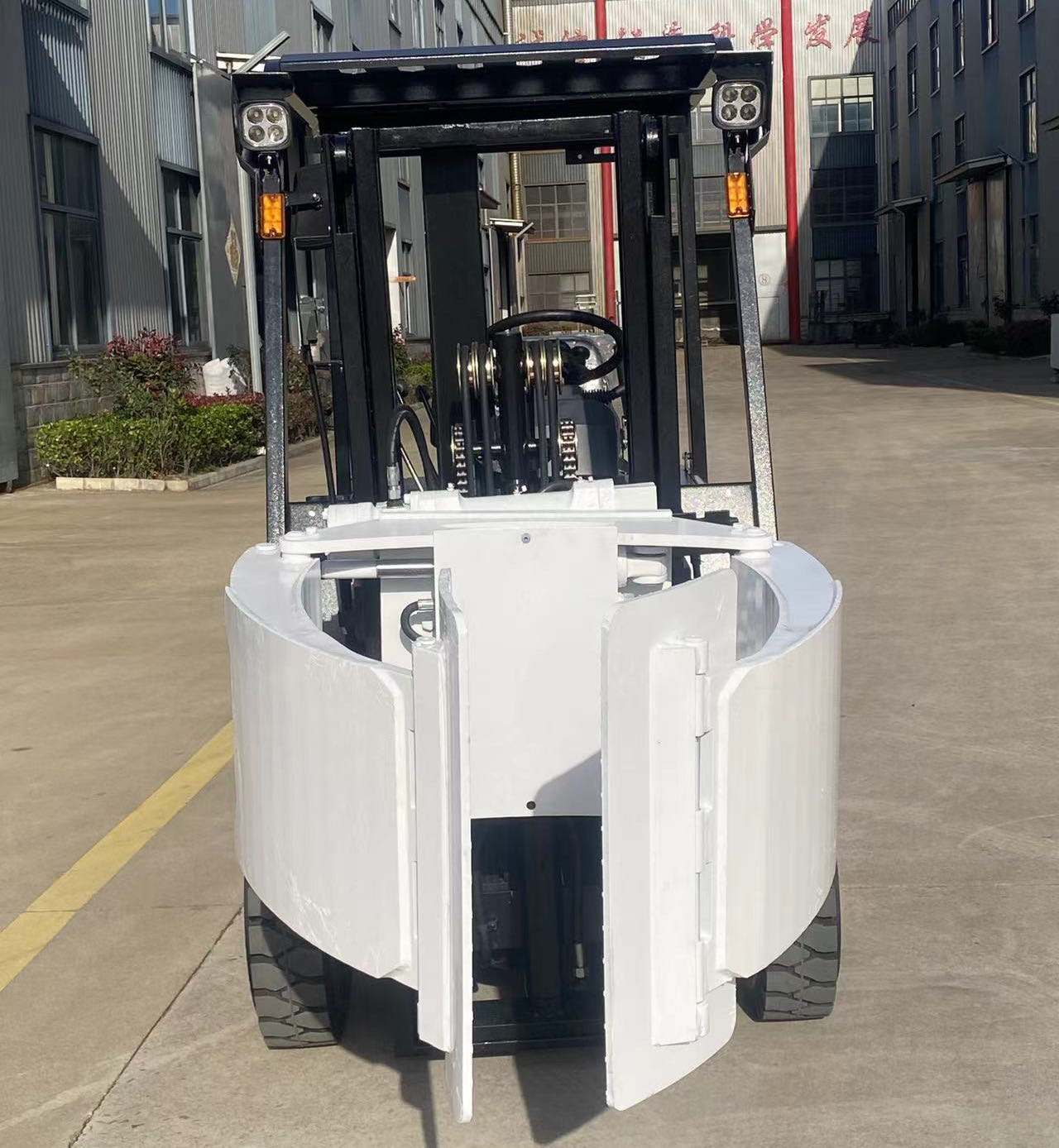

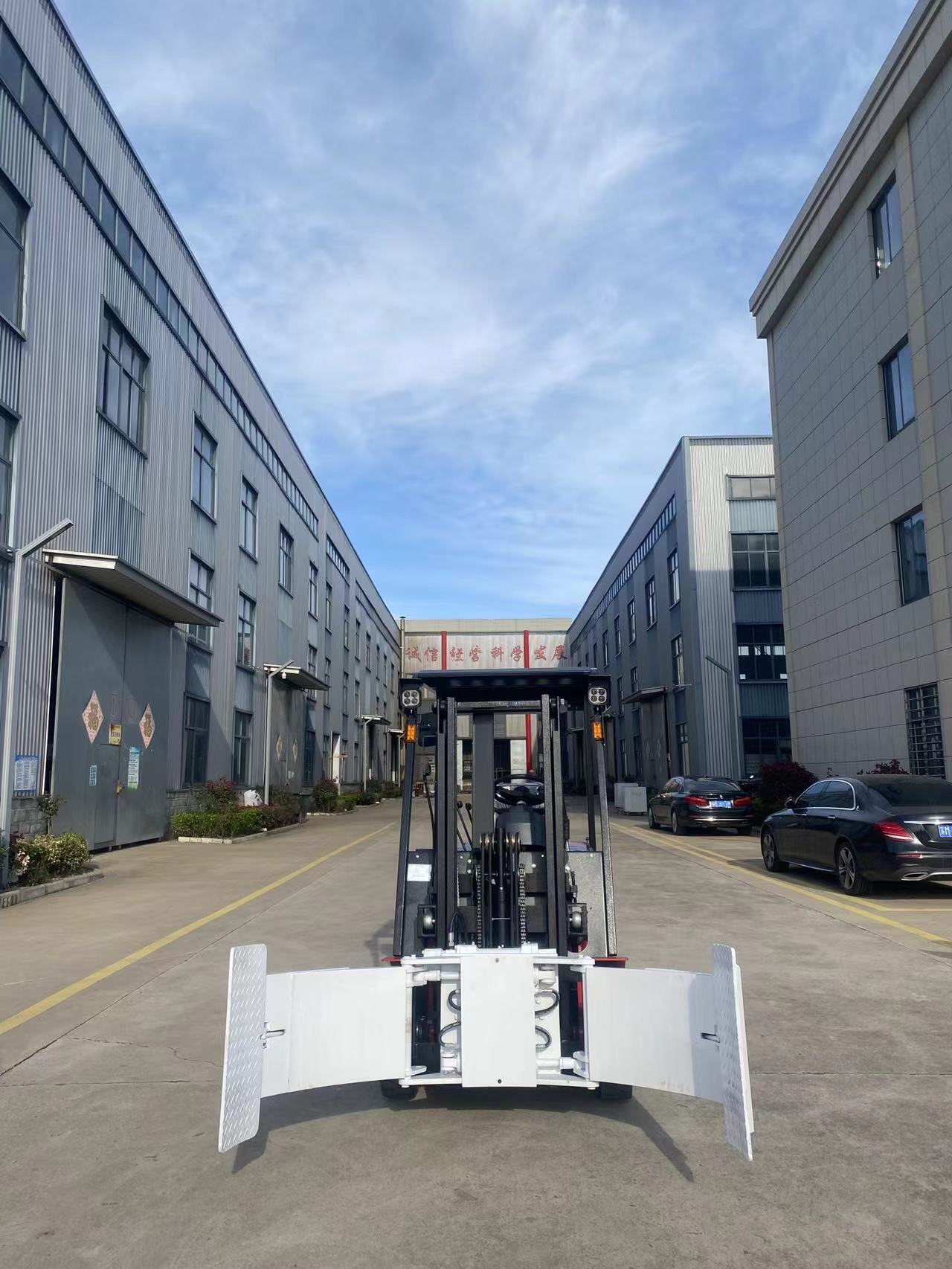

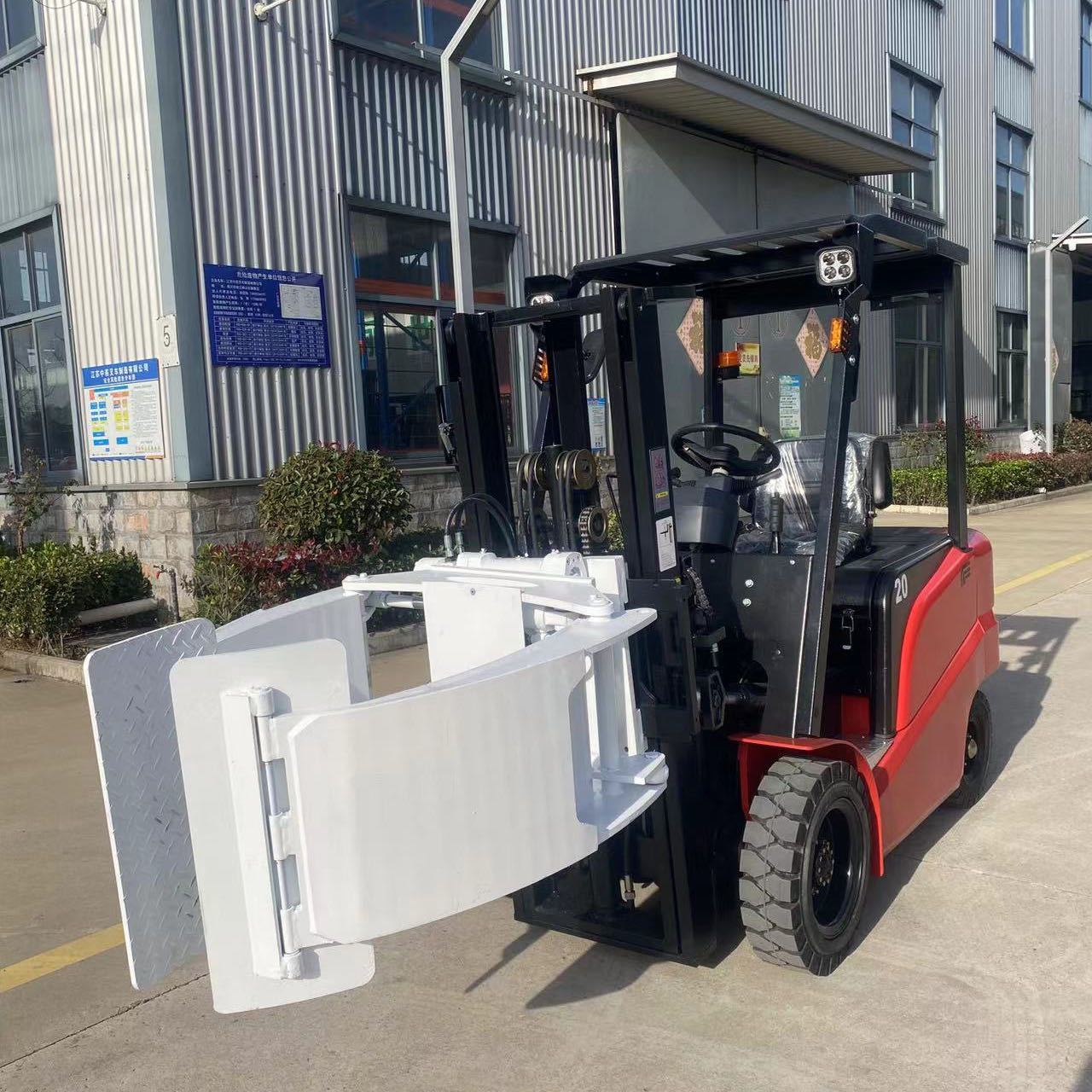

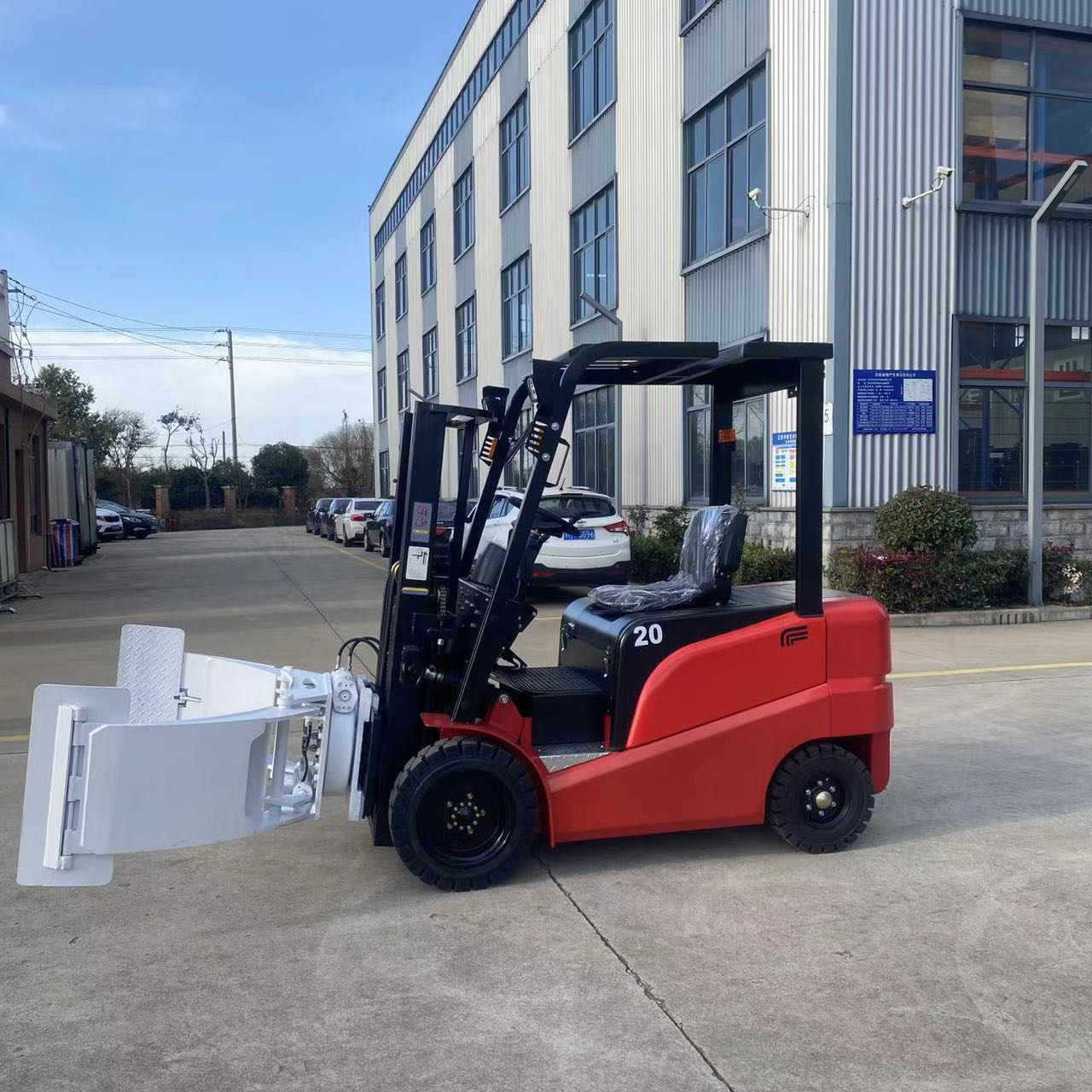

CPD 4-wheel forklift truck with clamps is suitable for large tonnage and high lift cargo storage applications. Rated load 1500Kg-3000kg, it is equipped with heavy duty forklift trucks, characterized by heavy load bearing and flexible direction, small turning radius, and can ignore the obstacles at the bottom of the shelves. It is suitable for the storage and transportation of goods in large three-dimensional factories, warehouses, supermarkets and wharves.
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
Model | CPD1530 | CPD2030 | CPD3030 | |
Load Capacity | kg | 1500 | 2000 | 3000 |
Lifting Height | mm | 3000 | 3000 | 3000 |
Load Center | mm | 500 | 500 | 500 |
Fork size | mm | 1070*100*40 | 1220*120*60 | 1220*120*60 |
Ground Clearance | mm | 60/130 | 80/130 | 80/130 |
Tyre Type | solid Tyres | solid Tyres | solid Tyres | |
Control Way | Steering Wheel | Steering Wheel | Steering Wheel | |
Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation | Stepless Speed Regulation | |
Protection Guard Height | mm | 2000 | 2100 | 2100 |
Mast Tilt Angle (Front/Rear) | (°) | 3.0/6.0 | 3.0/6.0 | 3.0/6.0 |
The Min.Turning Radius | mm | 1750 | 2100 | 2150 |
Driving Speed with Full Load | km/h | 6 | 15 | 15 |
Maximum Gradient with full load | ° | 5°/8° | 15 | 15 |
Battery | V/Ah | 48/140 | 60/280 | 48/420 |
Driving Motor | kw | 3 | 5 | 5 |
Lifting Motor | kw | 3 | 5 | 5.5 |
Tyre Size (Front/ Rear) | mm | 400/400 | 22x7-12/18x7-8 | 22x7-12/18x7-8 |
Overall dimensions(L*W*H) | mm | 3000*1030*2100 | 3450*1100*2100 | 3750*1160*2100 |
Weight | kg | 2200 | 3000 | 3800 |
Reference Working Time | h | 4/6 | 4/6 | 4/6 |
Increased height each tonnage | mm | 1600/2000/2500/3000/3500 | ||
Max height | mm | 2100/1600/1850/2100/2350 |
