Forklift Trucks 3m-7m Height Battery Operated Electric 1.5 ton 2 ton 3 Way Pallet Stacker VNA Forklift

Share to:

Forklift Trucks 3m-7m Height Battery Operated Electric 1.5 ton 2 ton 3 Way Pallet Stacker VNA Forklift

1. It has a very high lifting height up to 7m.
2. Can be used for narrow road handling, the fork can be moved forward to the left and right, the body does not have to move.

Availability:

Quantity:



Inquire Add to Basket

Model:
VNA
Brand:
KAD

Product Description

Product Description

Forklift Trucks 3m-7m Height Battery Operated Electric 1.5 ton 2 ton 3 Way Pallet Stacker VNA Forklift

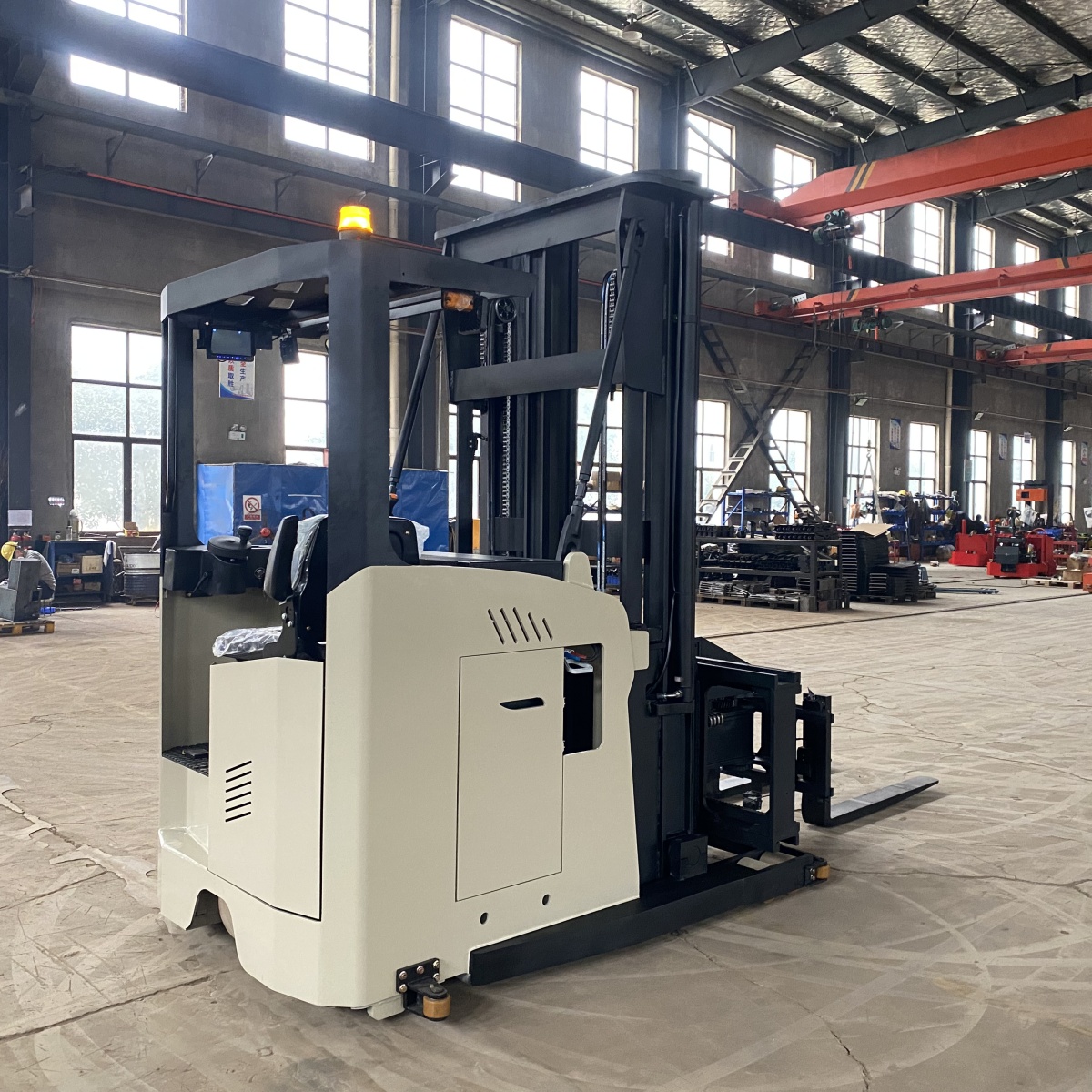

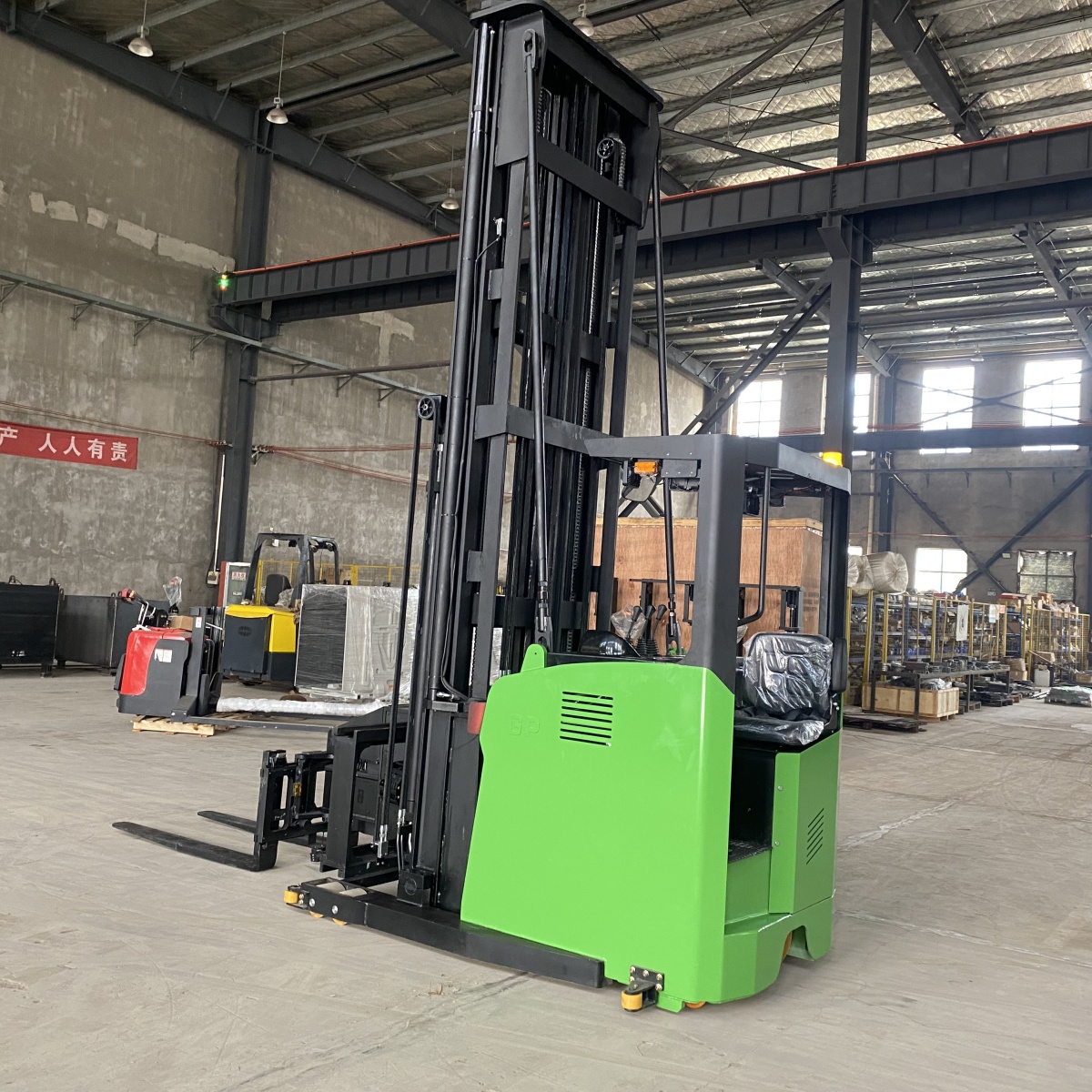

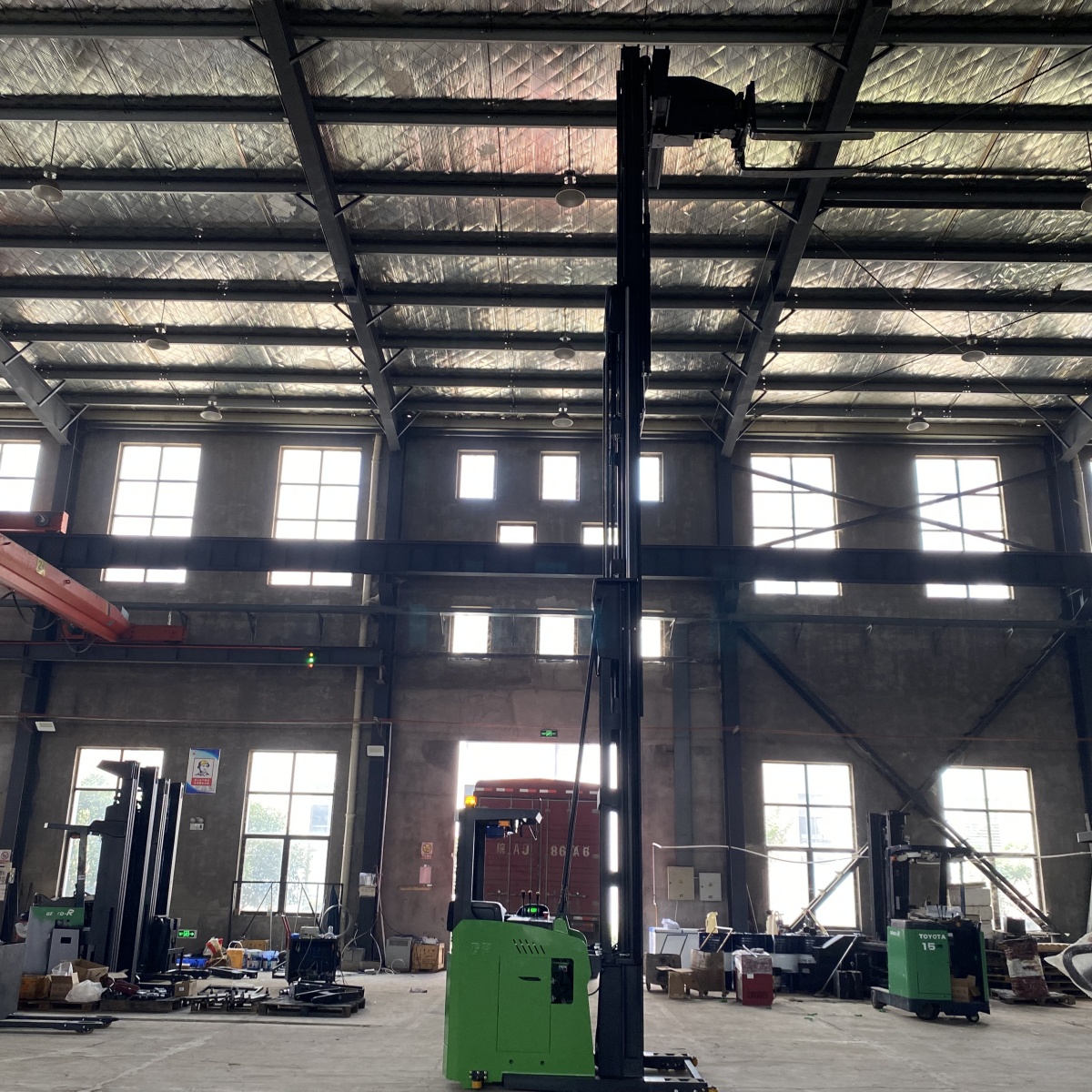

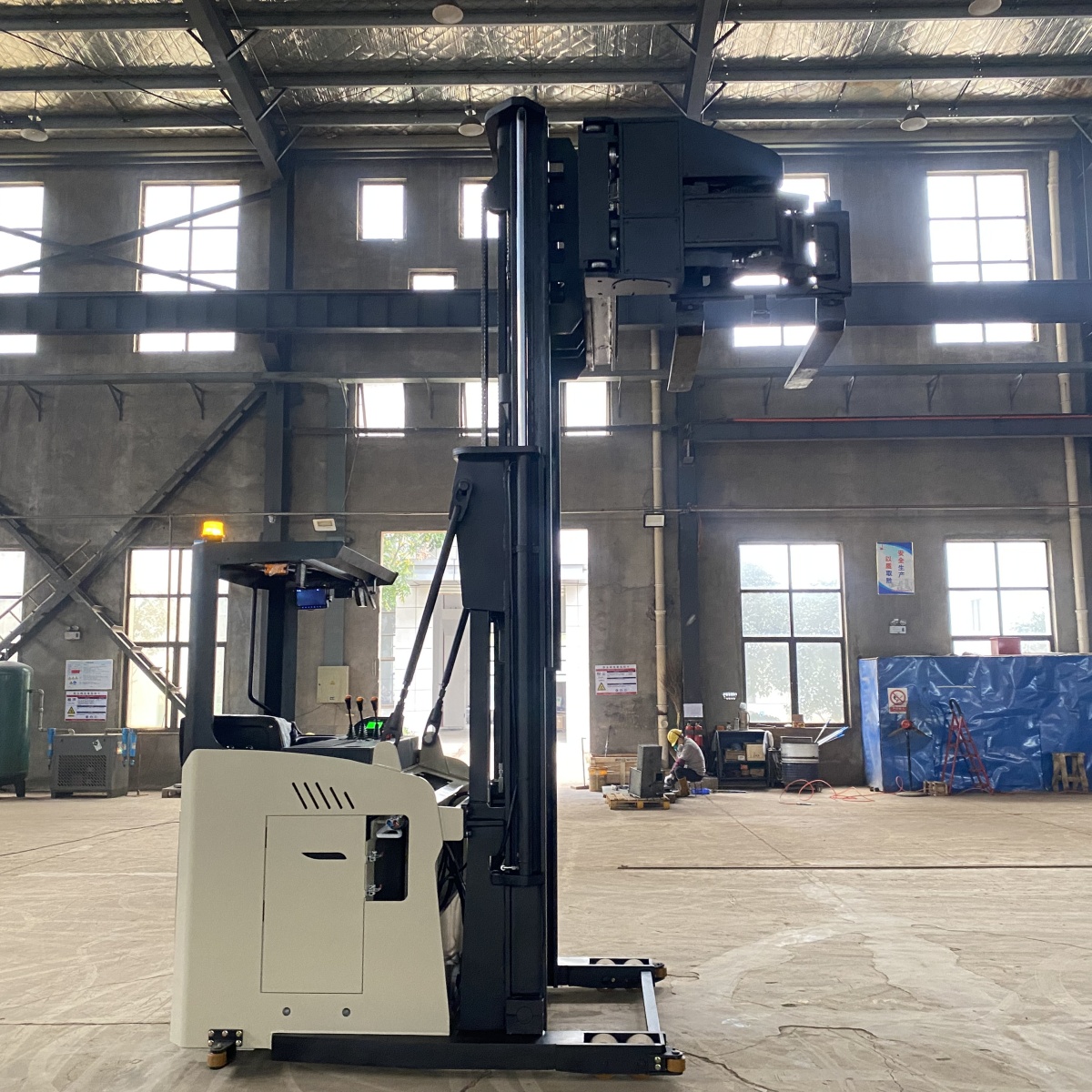

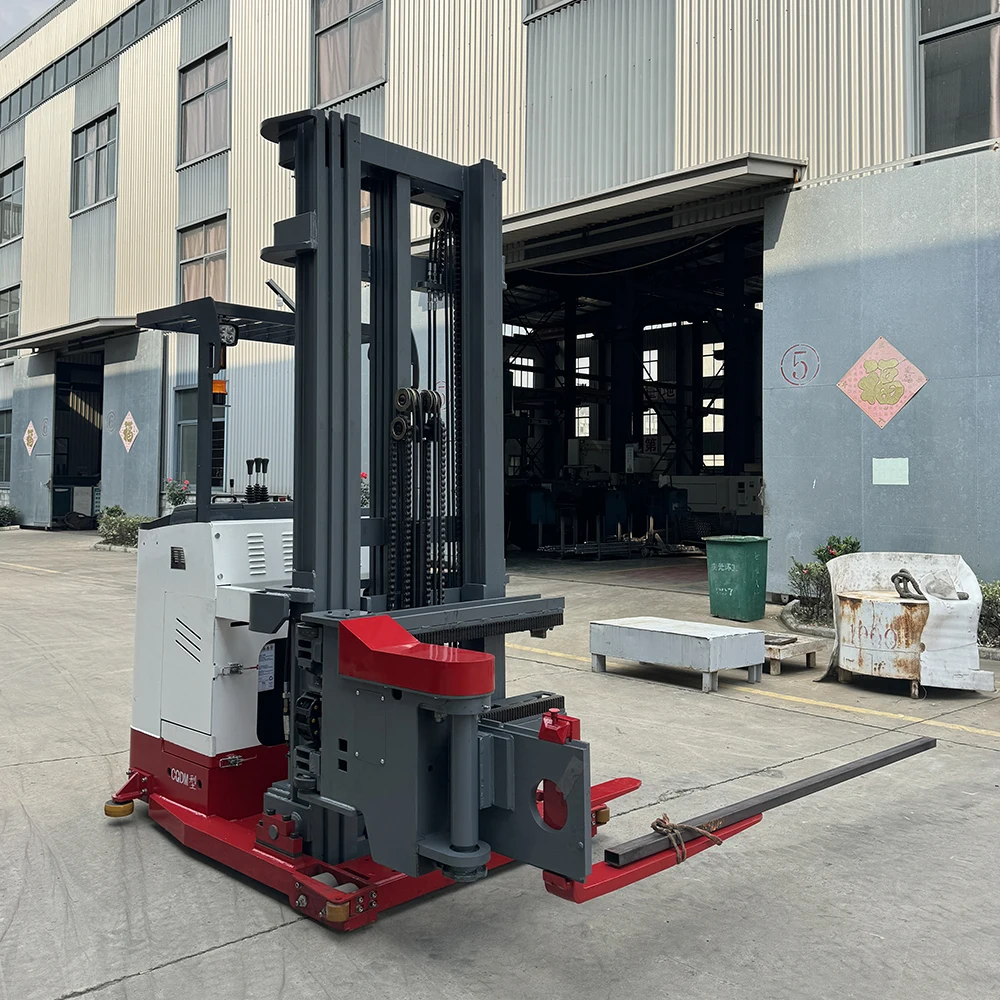

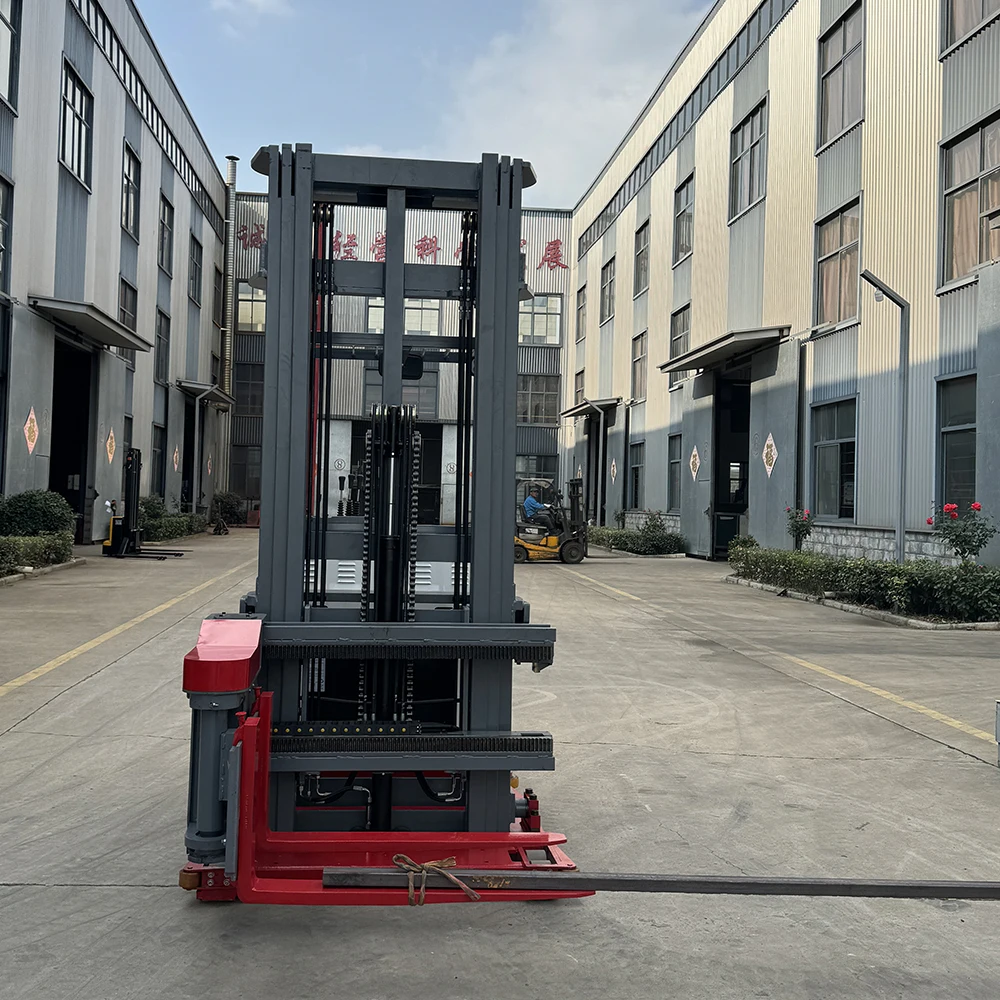

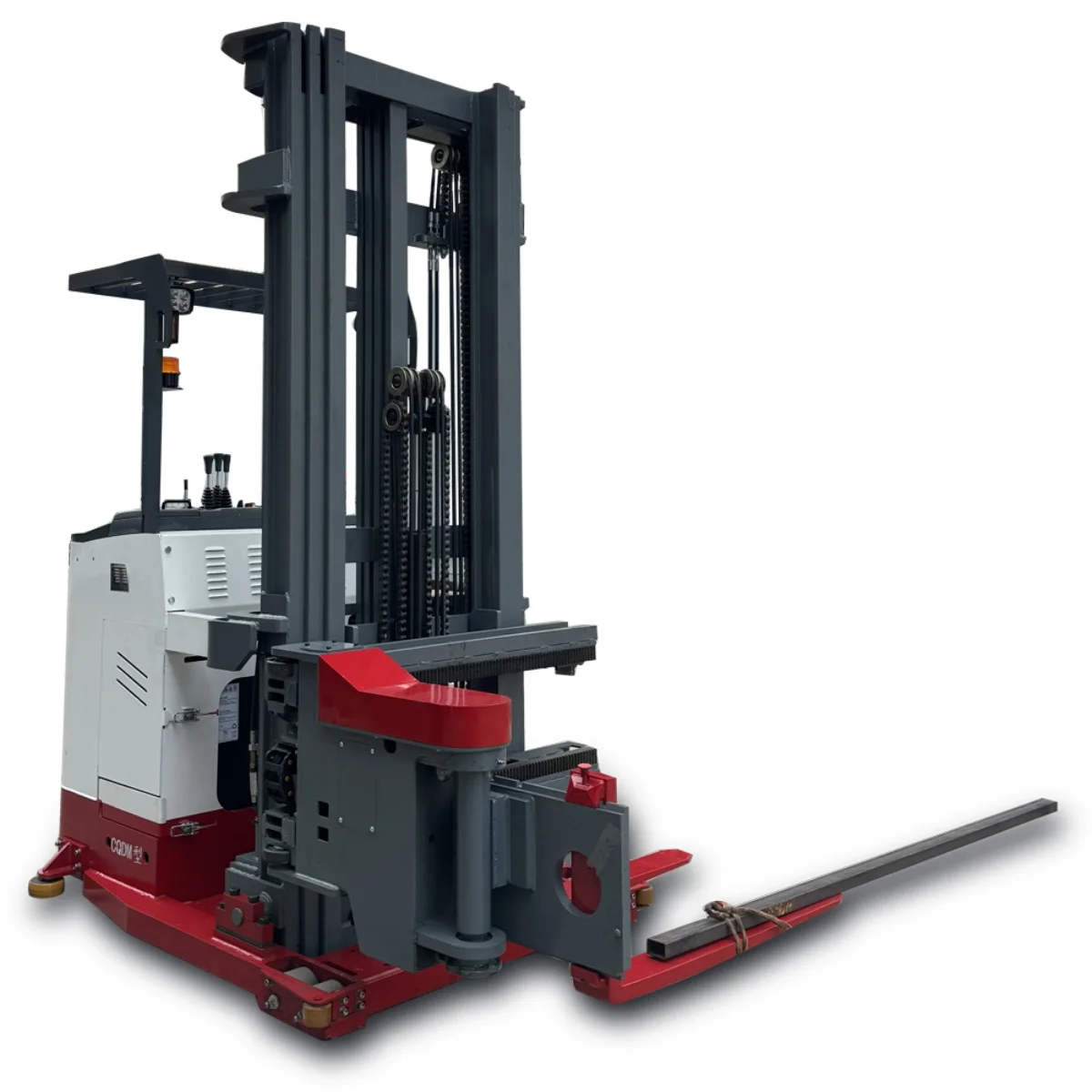

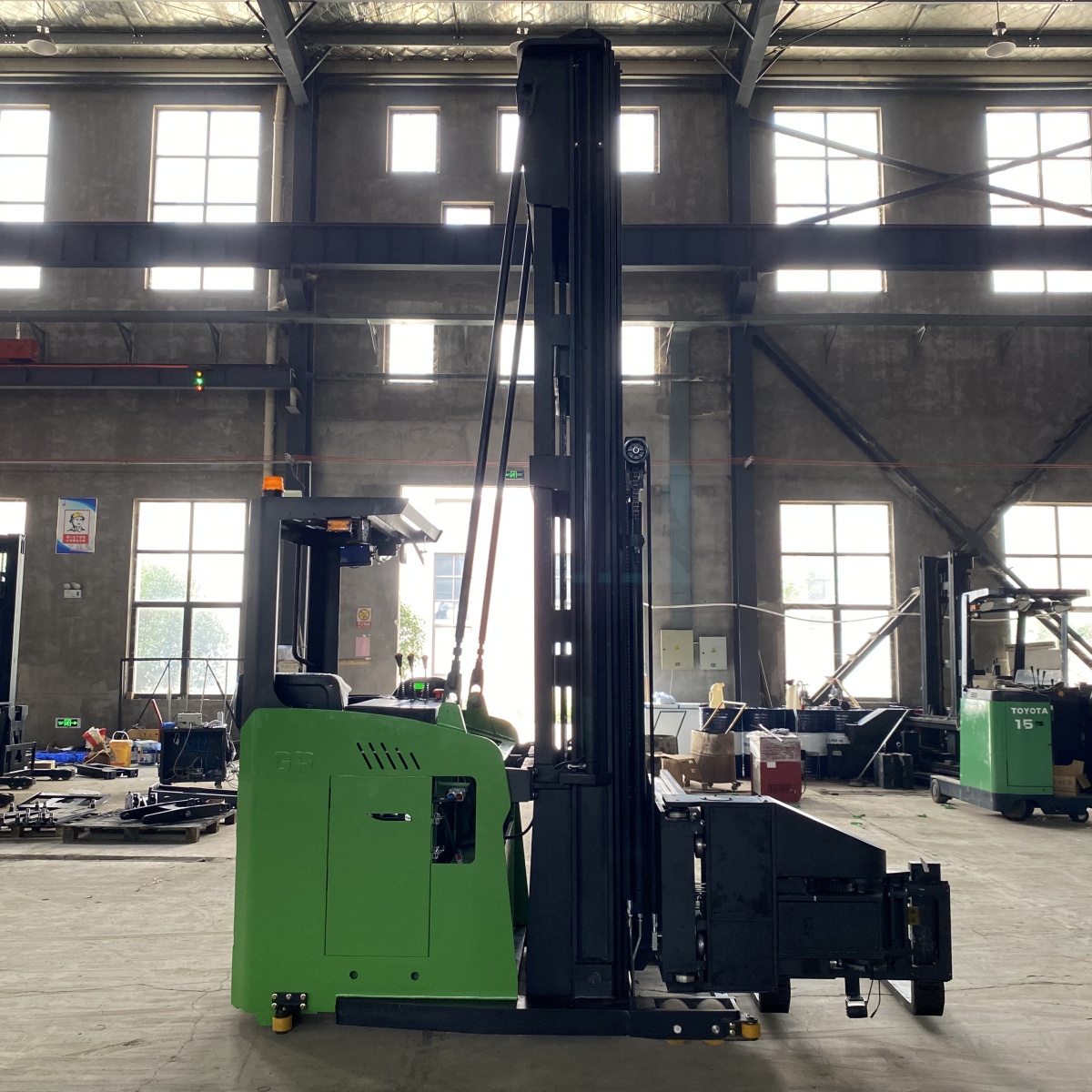

This series of forklift trucks is a station-driven three-way stacker truck for high level storage in narrow aisles, with a lifting height of 3m-7m; the body does not need to be steered, and the stacking and loading and unloading of goods on both sides of the aisle is realized by fork rotation and left and right side shifts.

Main Features

1. It has a very high lifting height up to 7m.

2. Can be used for narrow road handling, the fork can be moved forward to the left and right, the body does not have to move.

Specification

Standard
1.1	Manufacturer		KAD
1.2	Model		VNA10 VNA15 VNA20
1.3	Power type		Battery
1.4	Operation type		Sit-down
1.5	Rated capacity	Q(kg)	1000
1.6	Load center	c(mm)	600
1.7	Front overhang	x(mm)	670
1.8	Wheelbase	y(mm)	1700
Weight
2.1	Service weight(incl. battery)		5520
Tire
3.1	Wheel type,drive side/load side		PU
3.2	Tyre size,load side	mm	140 ×127
3.3	Tyre size,drive side	mm	p380 ×165
3.4	Balance wheel size	mm	$204×76
3.5	Wheel quantity,front/rear(x= drive)		4/1x+2
3.6	Wheel tread,drive side	b10(mm)	726
3.7	Wheel tread,load side	b11(mm)	1280
Dimension
4.1	Height of mast closed	h1(mm)	4318
4.2	Full free lifting height	h2(mm)	3255
4.3	The Max. lifting height	h3(mm)	7500
4.4	Height of mast with backrest	h4(mm)	8550
4.5	Overhead guard height	h6(mm)	2300
4.6	Station board height	h7(mm)	355
4.7	Overall length	l1(mm)	2985
4.8	Overall width	b1(mm)	1550
4.9	fork dimentions	l/e/s(mm)	1200/125/50
4.10	Installation level		ll Level A Model
4.11	Width across forks	b5(mm)	265~760
4.12	minimum guound clearance	m1(mm)	40
4.13	Stacking channel width (pallet 1000x1000)	Ast(mm)	1600
4.14	Stacking channel width (pallet 1000x1200)	Ast(mm)	1650
4.15	Spacing of rack beams	mm	1700
4.16	Width of main aisle	mm	3800
4.17	Turning radius	Wa(mm)	1980
Function
5.1	Drive speed, load/unload	km/h	7.5/8
5.2	Lift speed, load/unload	mm/s	200/250
5.3	Lower speed, load/unload	mm/s	340/340
5.4	Brake type		Mechanical
Driving
6.1	Driving motor power(S2-60min)	kw	5.5 AC
6.2	Lifting motor power(S315%)	kw	8.6 AC
6.3	Battery voltage/capacity	V/Ah	24/560
6.4	Battery weight	kg	740
6.5	Steering system		EPS
Other
7.1	Battery replace method		Side pull type
