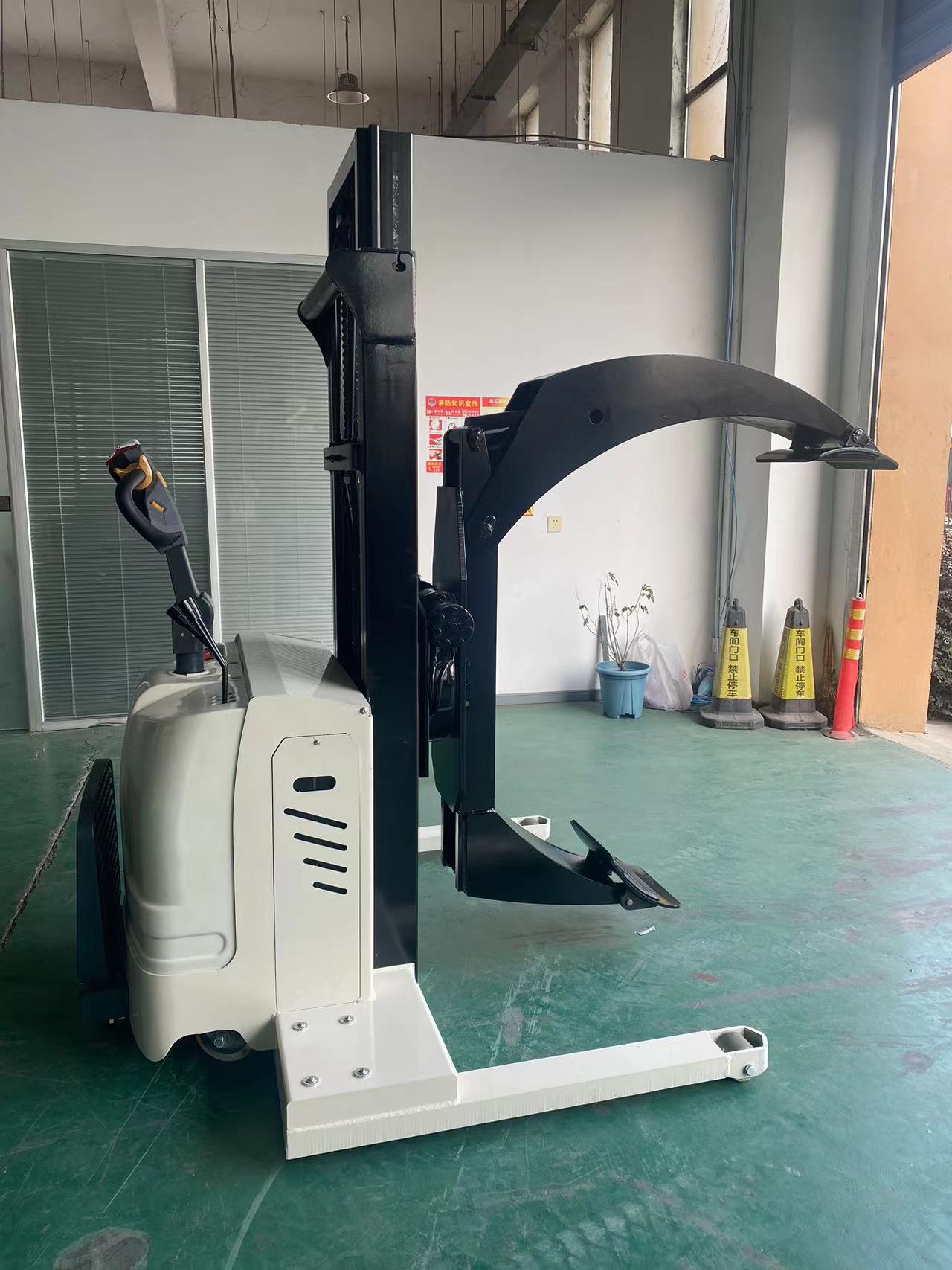

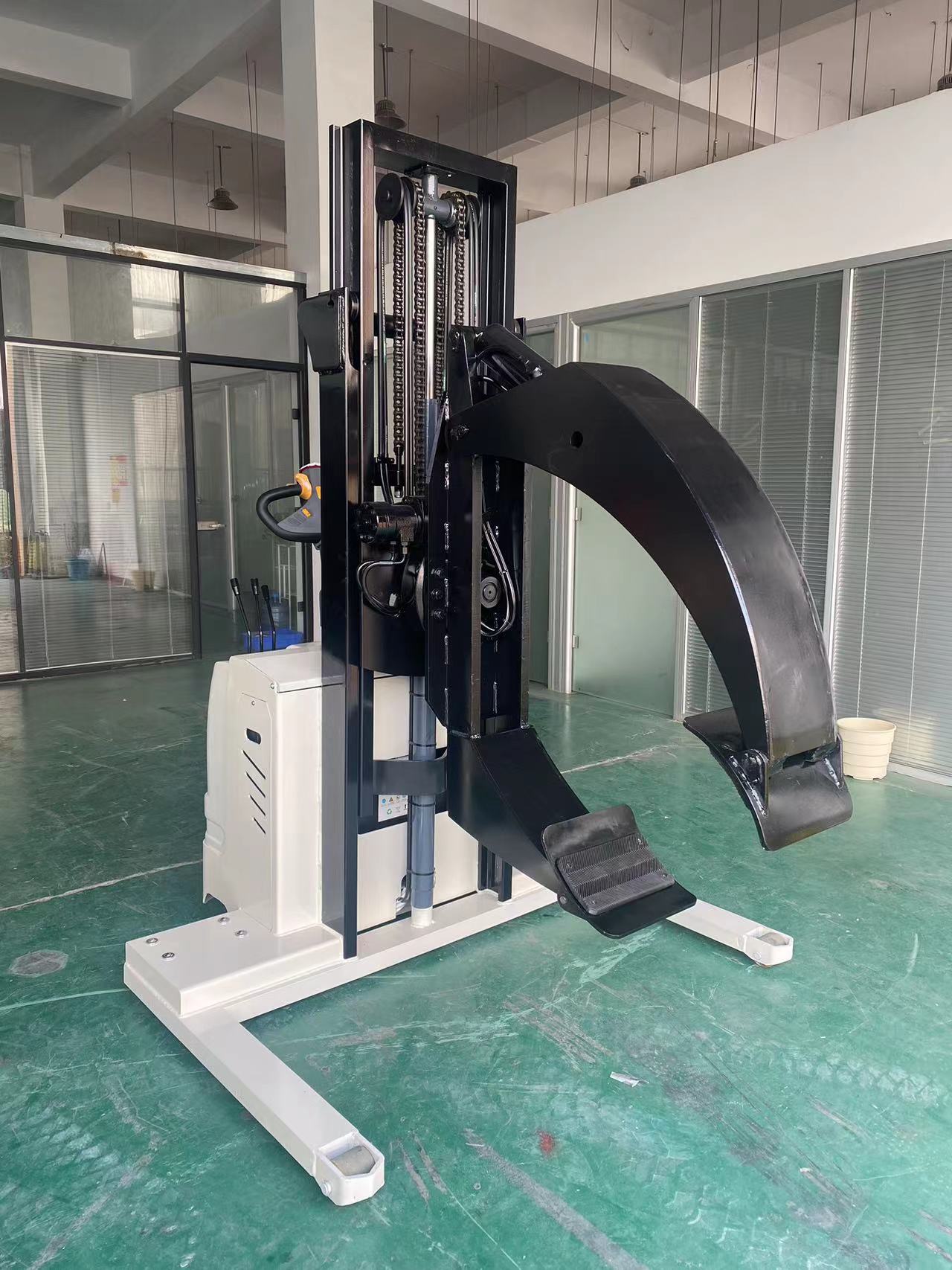

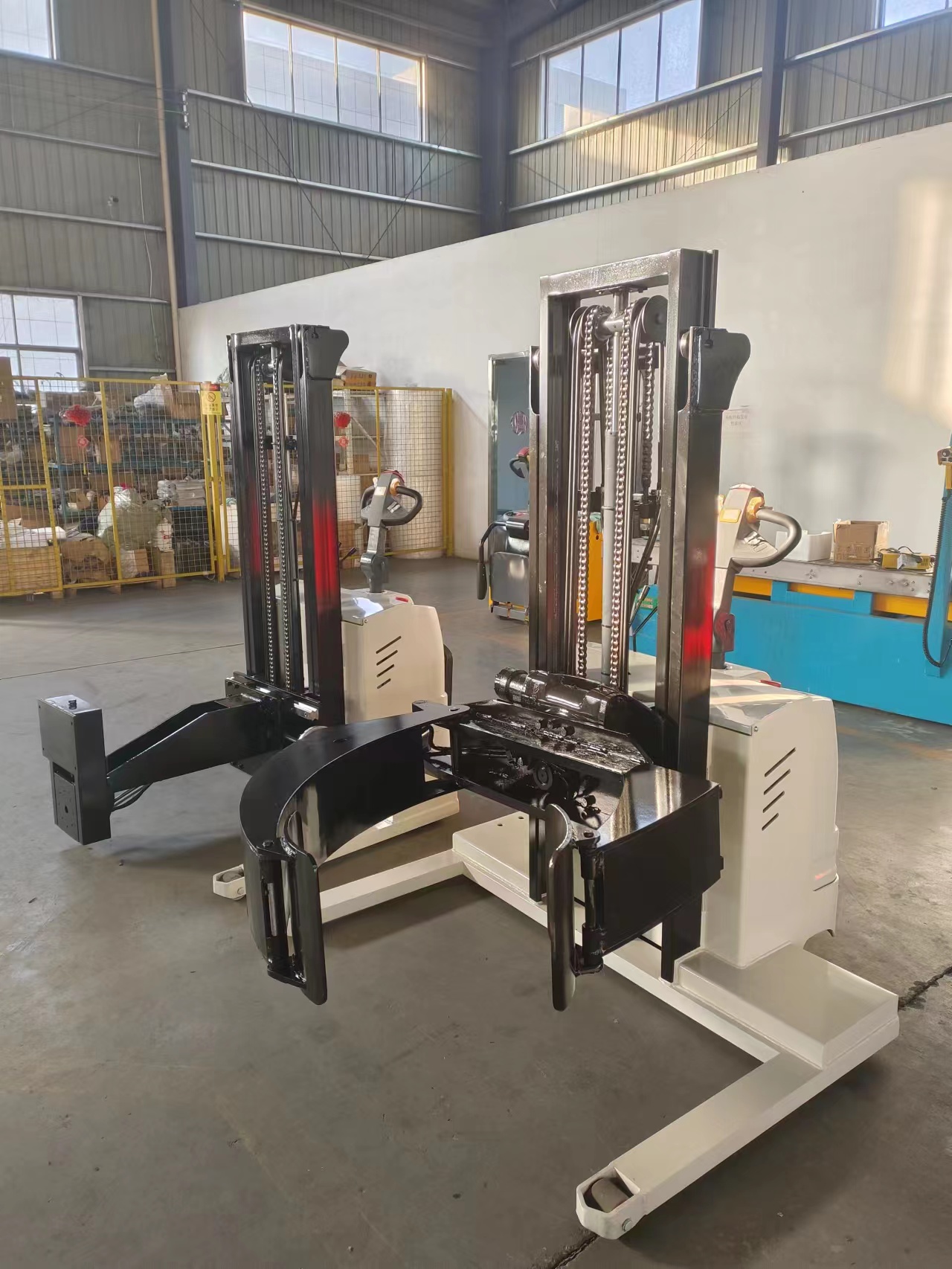

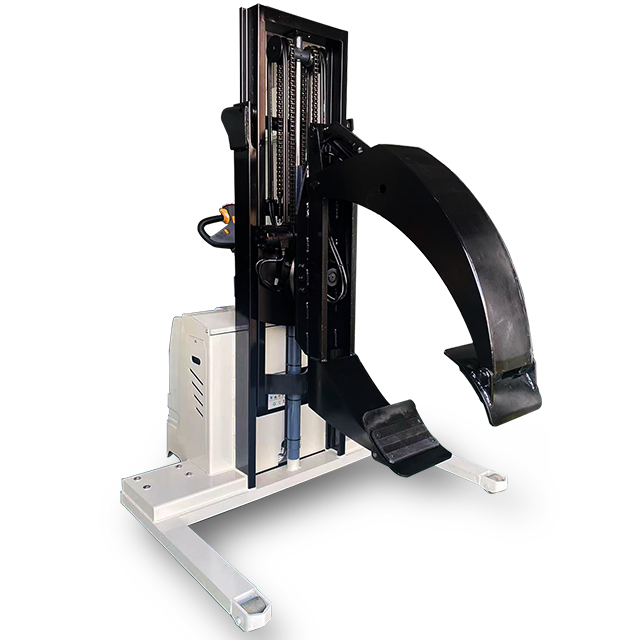

KAD Electric Paper Roll Clamping Stacker 500KG 1000 kg 0.5T 1T Paper Roll Reel Stacker with 360 Degree Rotation

Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.
Availability:
Quantity:
  • RD050BJ-15

  • KAD

Product Description

KAD Electric Paper Roll Clamping Stacker 500KG 1000 kg 0.5T 1T Paper Roll Reel Stacker with 360 Degree Rotation

Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.



Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.


Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way

Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast

1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode

Electronic brake
Tyres,material

Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/210Ah
Charger
v/a
24v/30
Weight
kg
1000
