CDS1530
KAD

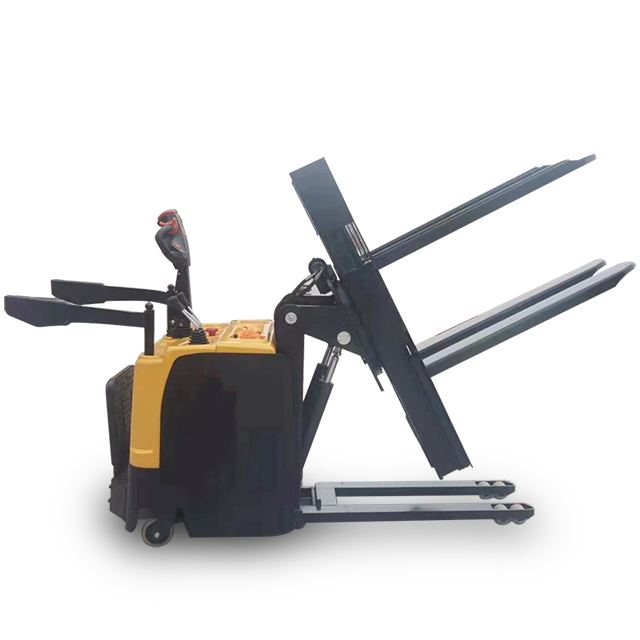

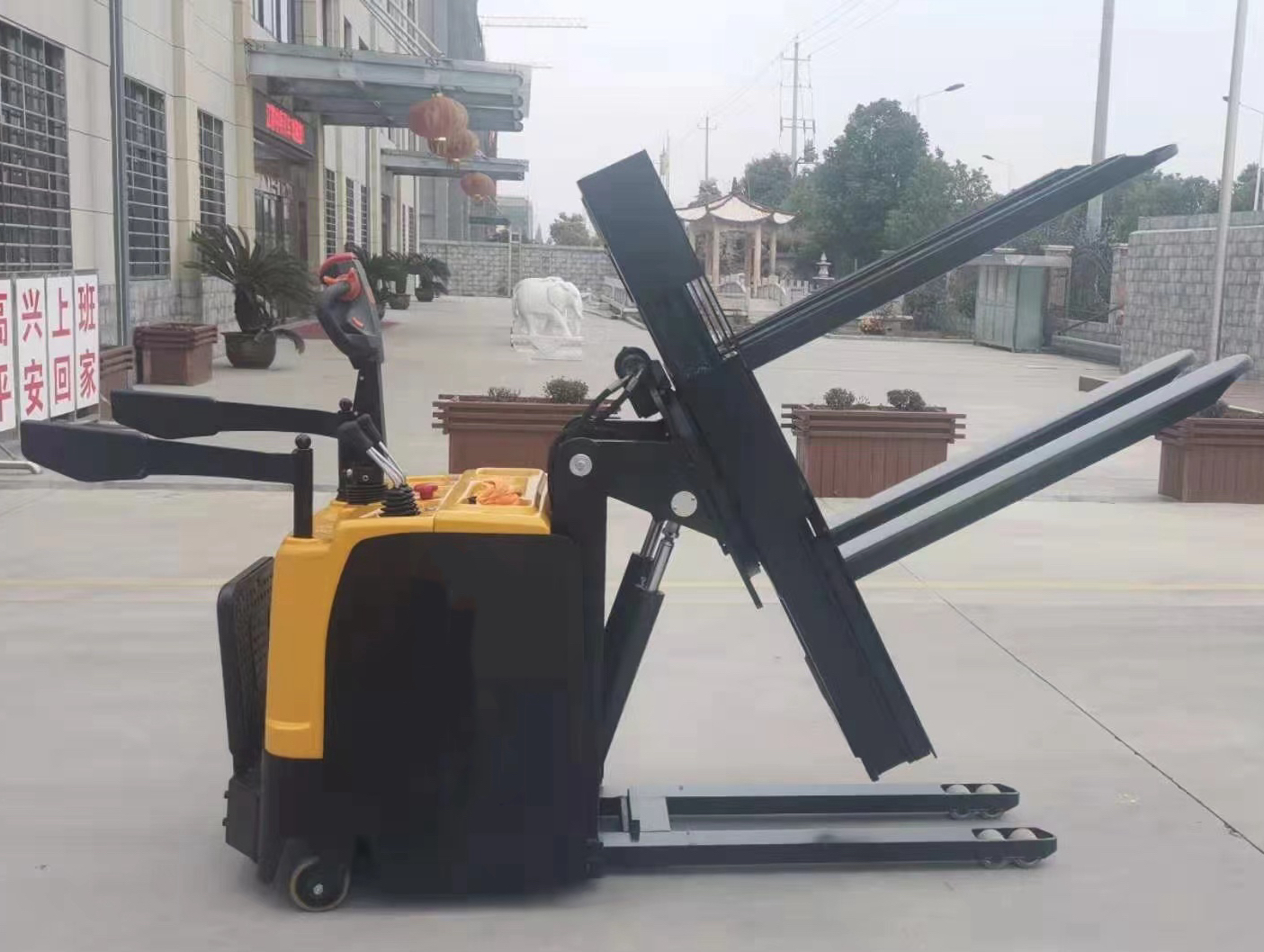

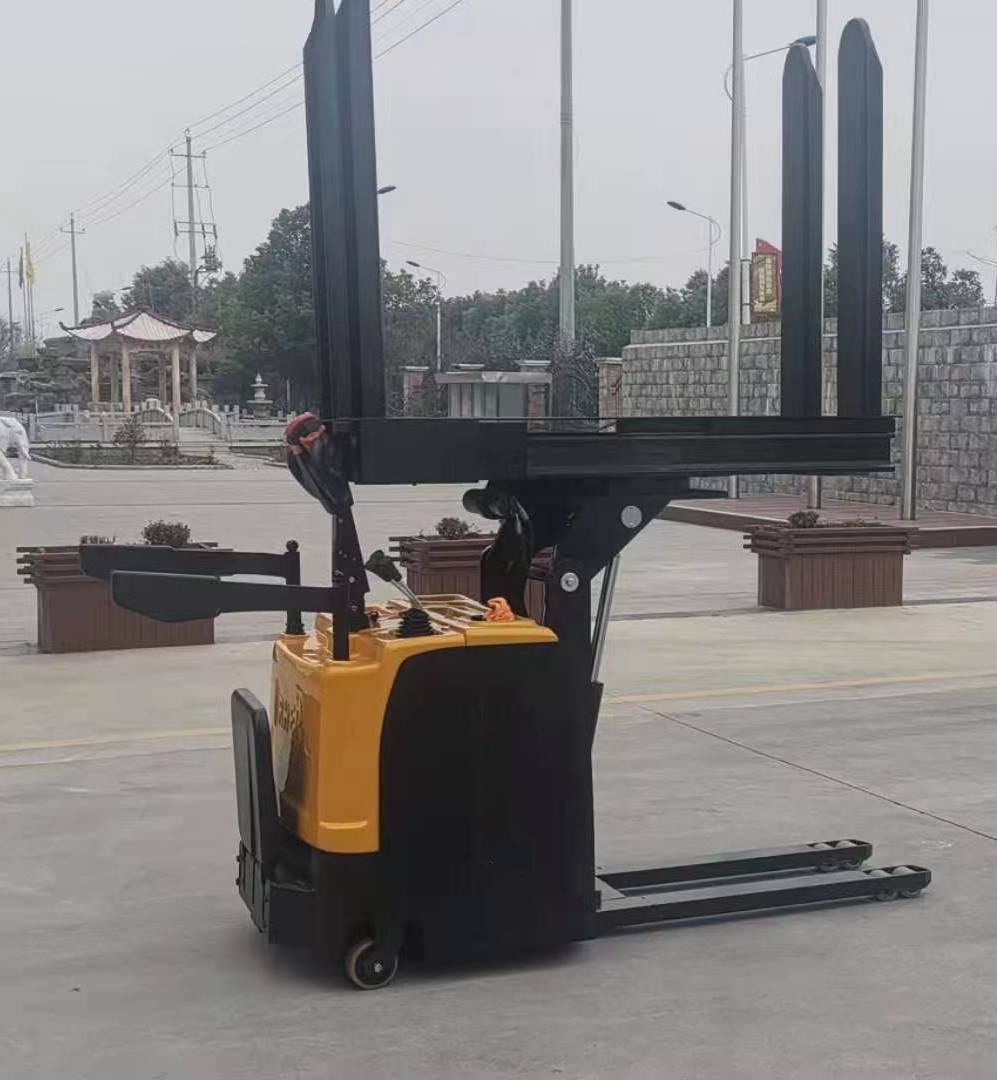

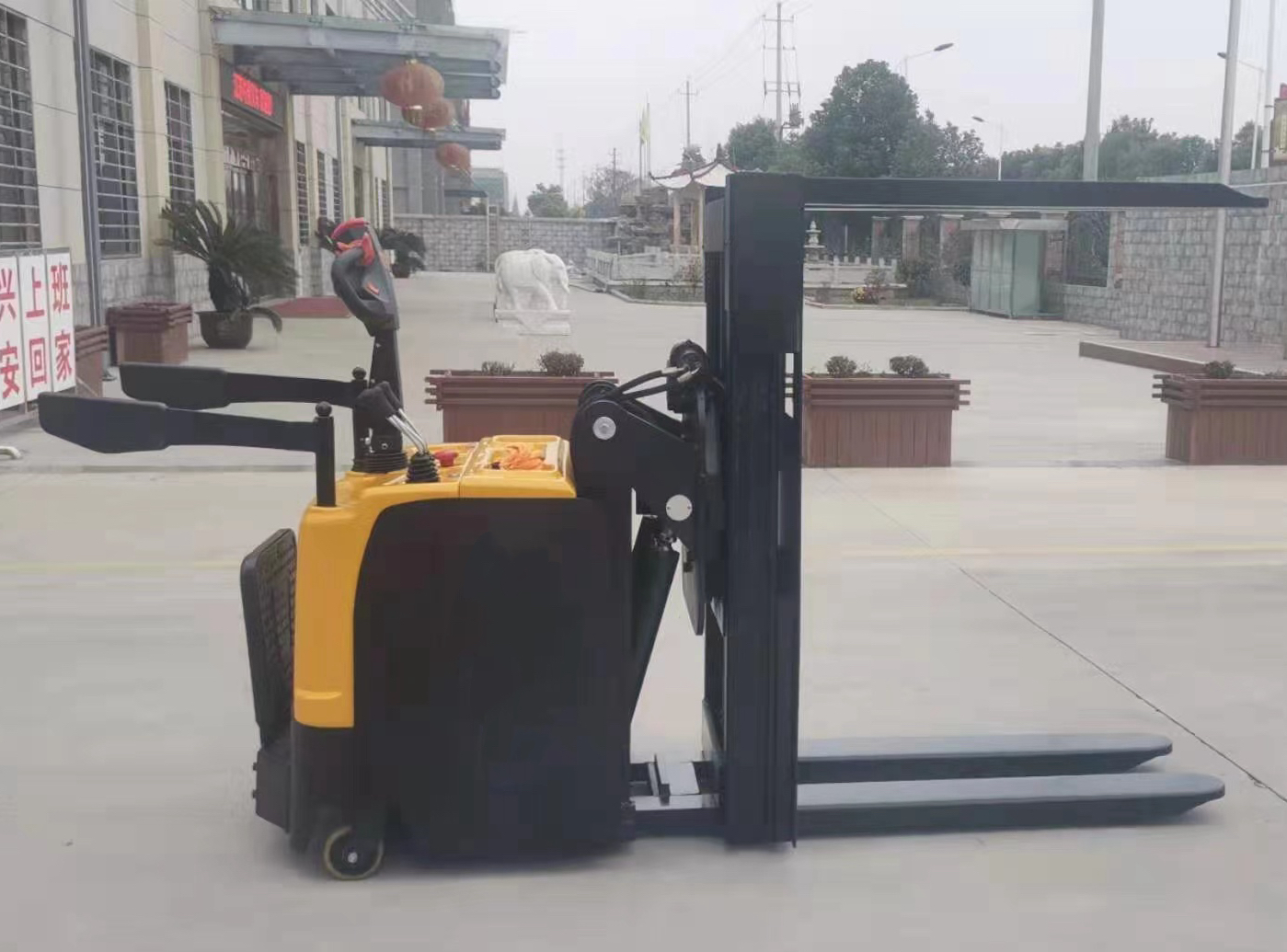

1500kg electric rotating stacker straddle lift with pallet rotator for warehouse handling
Electric pallet stacker, is the perfect combination of forklift and pallet tipping in one piece of equipment. It is a device that provides convenience for use in limited spaces and is suitable for a variety of industries. This electric pallet stacker helps operators handle pallet loads safely and efficiently during tilts and rotations, with the ability to transfer loads between workstations. With double forks on both the top and bottom, the pallet can be clamped at the click of a button.
1. Combining the three functions of material handling, tilting and lifting in one, making the forklift truck multi-purpose and cost-effective.
2. Medium-intensity material handling, stacking and loading/unloading.
3. Designed for narrow aisles.
4. Only suitable for single-sided pallet use.
5. Forks can be tilted up to 90°, it is convenient and quick when picking up parts, effectively reducing the work intensity of the operator.
6. Suitable for warehouses, production lines and other workplaces.
| Model | CDS1530 | |
| Load Capacity | Kg | 1500 |
| Lifting Height | mm | 1400 |
| Load Centre | mm | 500 |
| Fork Size | mm | 1150*180*70 |
| Outer Distance between Forks | mm | 685 |
| Inner Distance between Forks | mm | 345 |
| Minimum Ground Clearance | mm | 85 |
| Tyre Type | Polyurethane | |
| Control Way | Handler | |
| Speed Regulation Way | Stepless Speed Regulation | |
| Handler Height | mm | 1490 |
| Pedal Length | mm | 410 |
| The Min.Turning Radius | mm | 1250 |
| Driving Speed with Full Loads | km/h | 5 |
| Maximum Climbing Gradient with Full Loads | ° | 10° |
| Battery | V/Ah | 24/180 |
| Driving Motor | kw | 1.5 |
| Lifting Motor | kw | 3 |
| Tyre Size (Front/ Rear) | mm | 250/80 |
| Overall Dimension(L*W*H) | mm | 2350*860*1600 |
| Weight | Kg | 1300 |
| Reference Working Time | h | 6 |
| Hydraulic Over-turning Angle | ° | 0-90 |
| Hydraulic Rotation Angle | ° | 0-180 |
| Charger | V/Ah | 24/30 |
1500kg electric rotating stacker straddle lift with pallet rotator for warehouse handling
Electric pallet stacker, is the perfect combination of forklift and pallet tipping in one piece of equipment. It is a device that provides convenience for use in limited spaces and is suitable for a variety of industries. This electric pallet stacker helps operators handle pallet loads safely and efficiently during tilts and rotations, with the ability to transfer loads between workstations. With double forks on both the top and bottom, the pallet can be clamped at the click of a button.
1. Combining the three functions of material handling, tilting and lifting in one, making the forklift truck multi-purpose and cost-effective.
2. Medium-intensity material handling, stacking and loading/unloading.
3. Designed for narrow aisles.
4. Only suitable for single-sided pallet use.
5. Forks can be tilted up to 90°, it is convenient and quick when picking up parts, effectively reducing the work intensity of the operator.
6. Suitable for warehouses, production lines and other workplaces.
| Model | CDS1530 | |
| Load Capacity | Kg | 1500 |
| Lifting Height | mm | 1400 |
| Load Centre | mm | 500 |
| Fork Size | mm | 1150*180*70 |
| Outer Distance between Forks | mm | 685 |
| Inner Distance between Forks | mm | 345 |
| Minimum Ground Clearance | mm | 85 |
| Tyre Type | Polyurethane | |
| Control Way | Handler | |
| Speed Regulation Way | Stepless Speed Regulation | |
| Handler Height | mm | 1490 |
| Pedal Length | mm | 410 |
| The Min.Turning Radius | mm | 1250 |
| Driving Speed with Full Loads | km/h | 5 |
| Maximum Climbing Gradient with Full Loads | ° | 10° |
| Battery | V/Ah | 24/180 |
| Driving Motor | kw | 1.5 |
| Lifting Motor | kw | 3 |
| Tyre Size (Front/ Rear) | mm | 250/80 |
| Overall Dimension(L*W*H) | mm | 2350*860*1600 |
| Weight | Kg | 1300 |
| Reference Working Time | h | 6 |
| Hydraulic Over-turning Angle | ° | 0-90 |
| Hydraulic Rotation Angle | ° | 0-180 |
| Charger | V/Ah | 24/30 |
