PRT0516
KAD

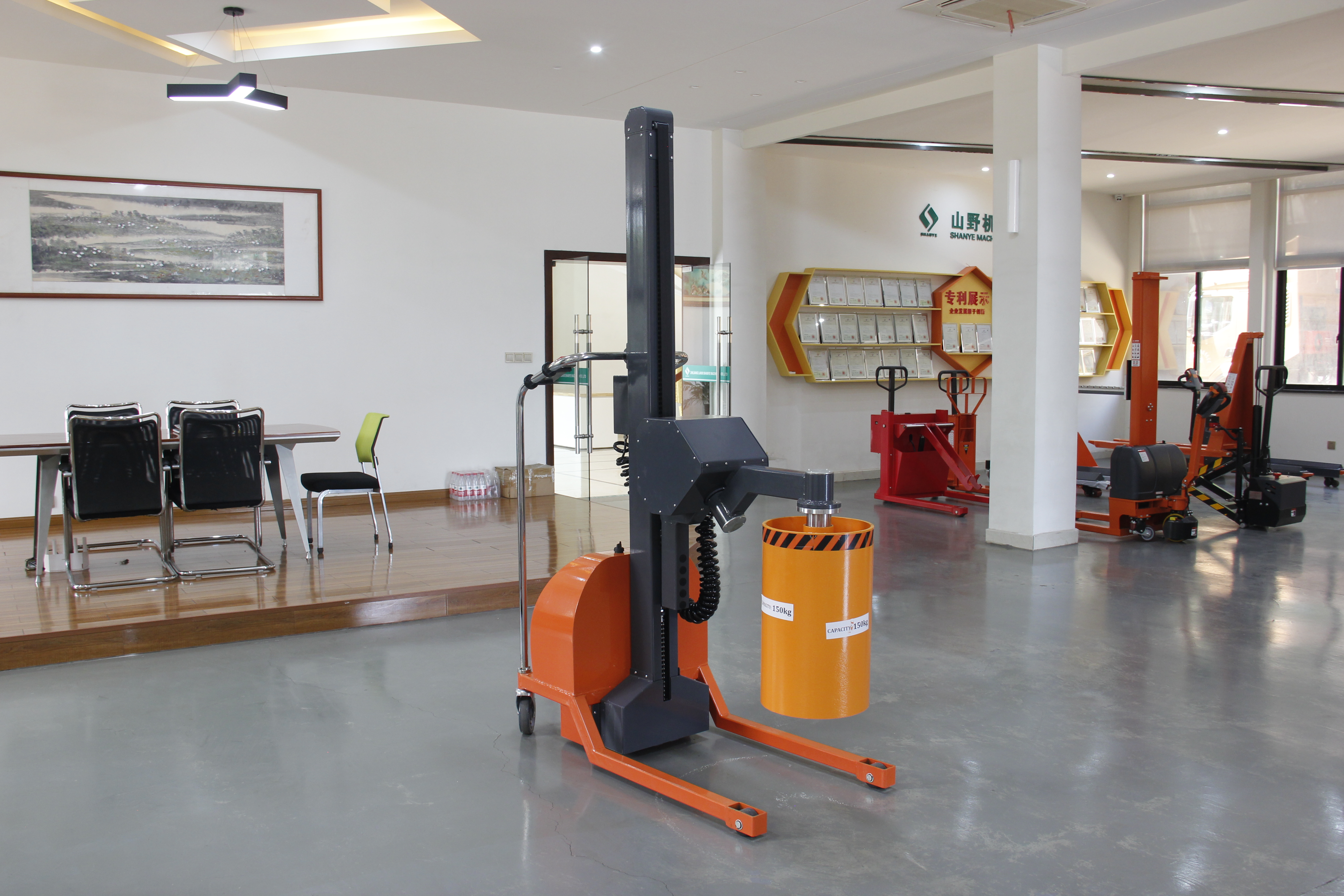

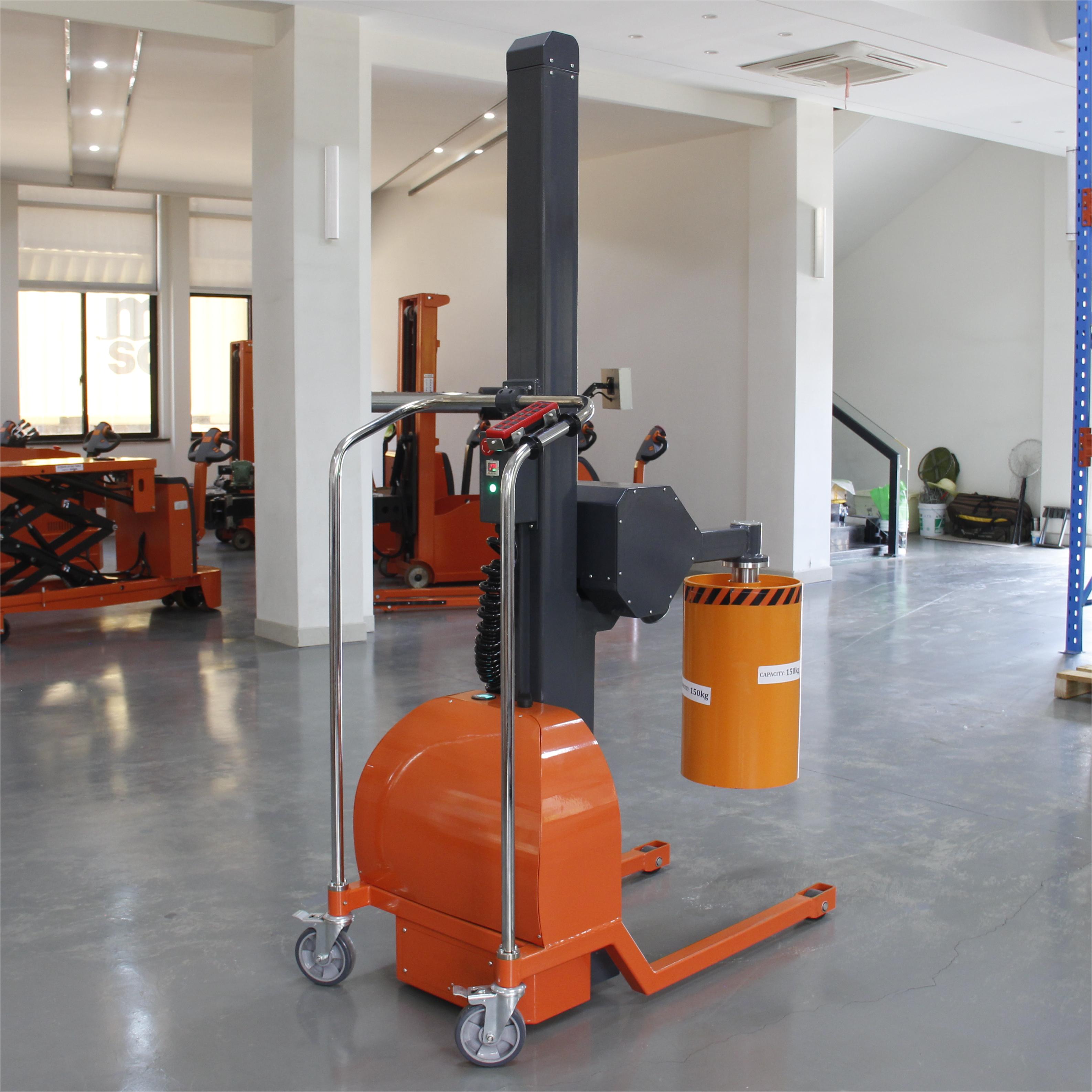

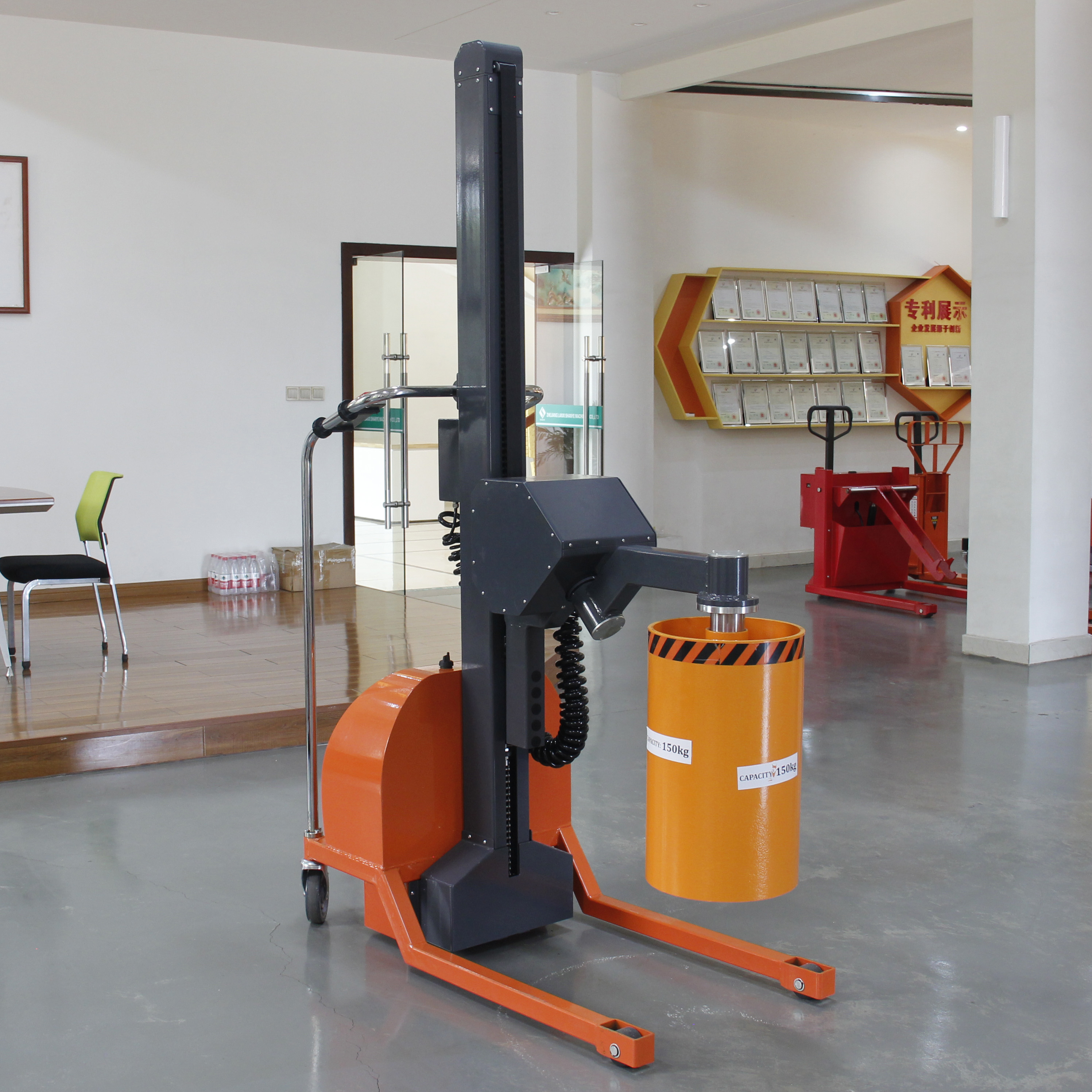

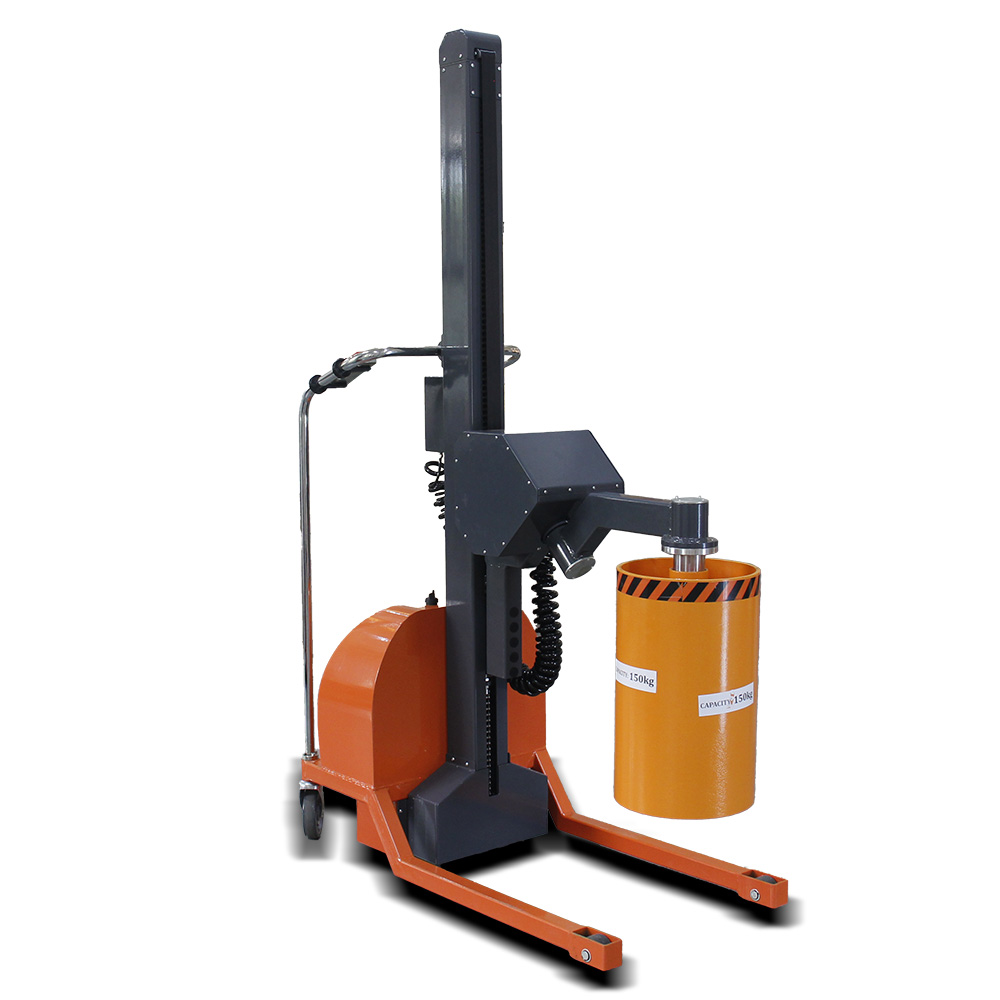

CE approved semi Electric Pneumatic Roll turner Stacker with Electric Lifting and Rotation
Introducing a state-of-the-art electric trolley, augmented with a robust hydraulic roll manipulator. This system adeptly tackles a broad spectrum of roll and coil weights, with a ceiling limit of 500kg. The lifting and lowering functions operate seamlessly via touch-sensitive controls, granting operators the ability to attain remarkable heights swiftly and hassle-free. The hydraulic roll manipulator, as its cornerstone, ensures seamless rotation of loads, catering to the diverse needs of any industrial setting.
| power source | Battery | |
| rated load | kg | 250 |
| load center | mm | 500 |
| operation way | Standing operation,electric lifting,electric gripper,electric rotating,manual moving | |
| turning radius | mm | 1050 |
| aisle width | mm | 1900 |
| length | mm | 1500 |
| width | mm | 760 |
| height | mm | 2100 |
| mast | 1-stage mast | |
| adjustable extent of turning | mm | 200~1250 |
| max height of forks | mm | 1500 |
| min height of forks | mm | 200 |
| rotation angle | ° | 90°(left and right) |
| running speed(load/unload) | km/h | manual |
| hoisting speed(load/unload) | mm/s | 110/160 |
| descent speed(load/unload) | mm/s | 150/130 |
| climbing capability | % | 3,5 |
| braking mode | Wheel brake | |
| tyres,material | Nylon | |
| load wheel dimensions | mm | 85*80,2pcs |
| steering wheel dimensions | mm | 180*50,2pcs |
| hydraulic motor | kw | 12v/2.2kw |
| battery | v/ah | 12/100 |
| charger | v/a | 12/15, |
| weight | kg | 450 |
| Mandreal diameter | 3''/6''/customized |
High Load Capacity: This electric trolley boasts exceptional load-bearing capabilities, effortlessly handling rolls and coils weighing up to 300kg, catering to the demands of heavy-duty material handling in industrial settings.
Intelligent Lifting System: Equipped with an advanced intelligent lifting mechanism, it achieves seamless lifting and lowering operations through touch-sensitive controls. Operators can quickly and accurately adjust the height of materials with simple manipulations, significantly enhancing work efficiency and operational convenience.
Precise Hydraulic Control: The hydraulic roll manipulator utilizes precise hydraulic control technology, ensuring smooth and stable rotation of loads. Whether for subtle adjustments or large-scale rotations, it provides precise control to meet various operational requirements in different working conditions.
Versatile Adaptability: Designed with flexibility in mind, it can accommodate a wide range of roll and coil sizes and shapes, offering robust support for diverse material handling tasks in industrial production.
Safety and Reliability: The entire system undergoes rigorous safety design and testing to ensure the safety of operators and materials during operation. Its stability and durability have been proven through extensive use, providing users with a reliable experience.
Environmentally Friendly and Energy-Efficient: Powered by an electric motor, it consumes less energy and produces lower noise pollution compared to traditional mechanical or hydraulic drive systems. This aligns with modern industrial requirements for green and eco-friendly production.
Easy Maintenance: The system's structural design is rational, facilitating routine maintenance and upkeep. Additionally, a comprehensive after-sales service system is in place to ensure users receive timely technical support and assistance during operation.
