RD150BJ-15
KAD

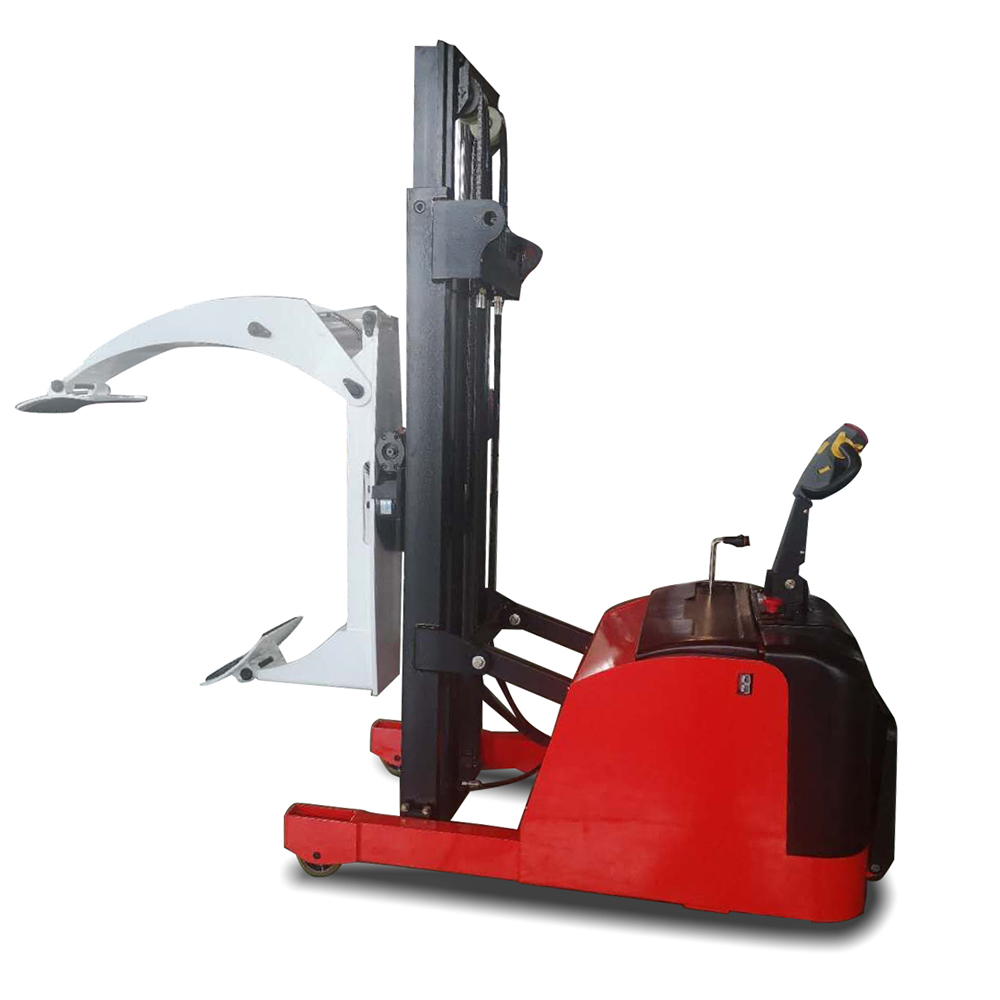

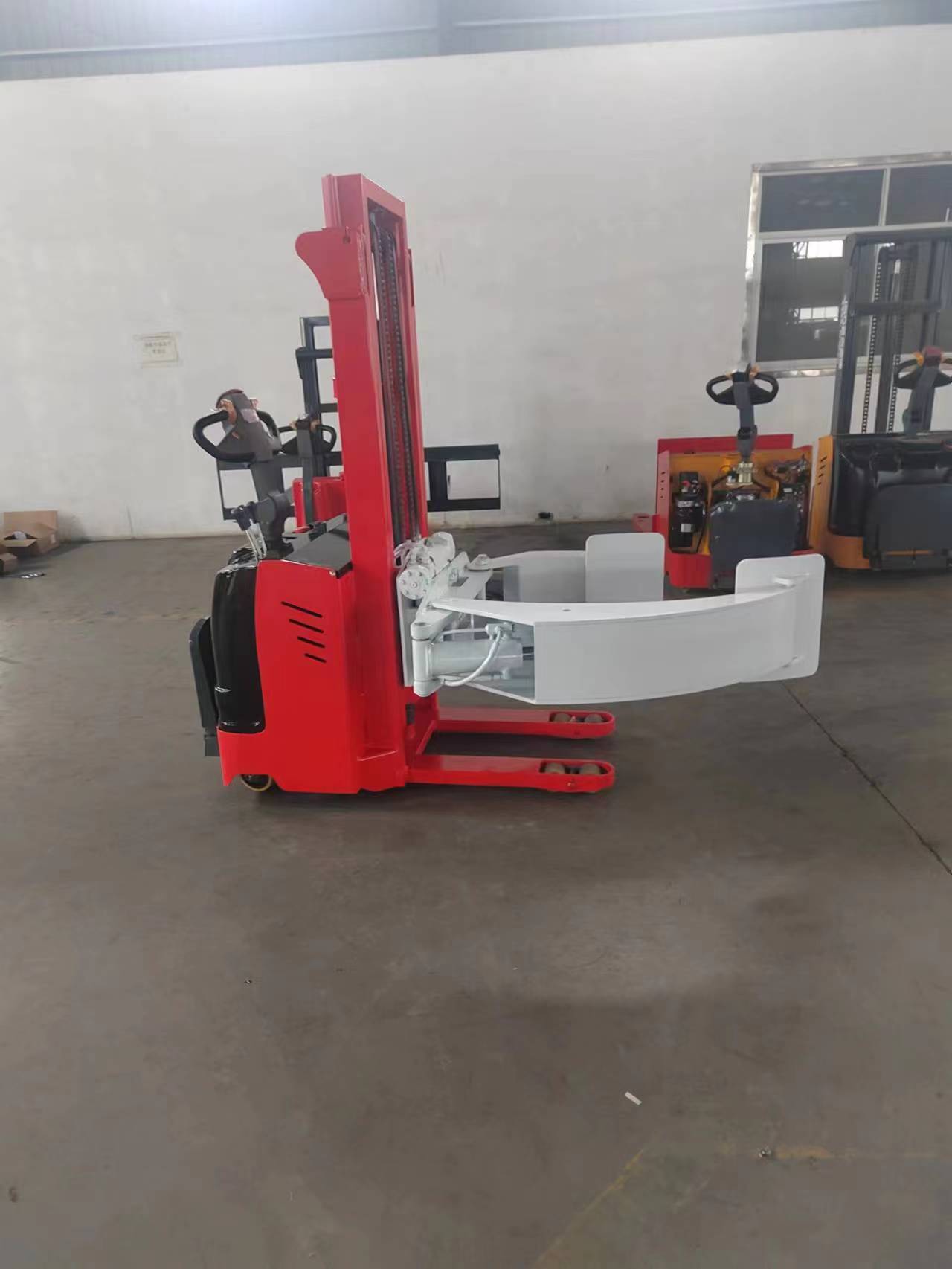

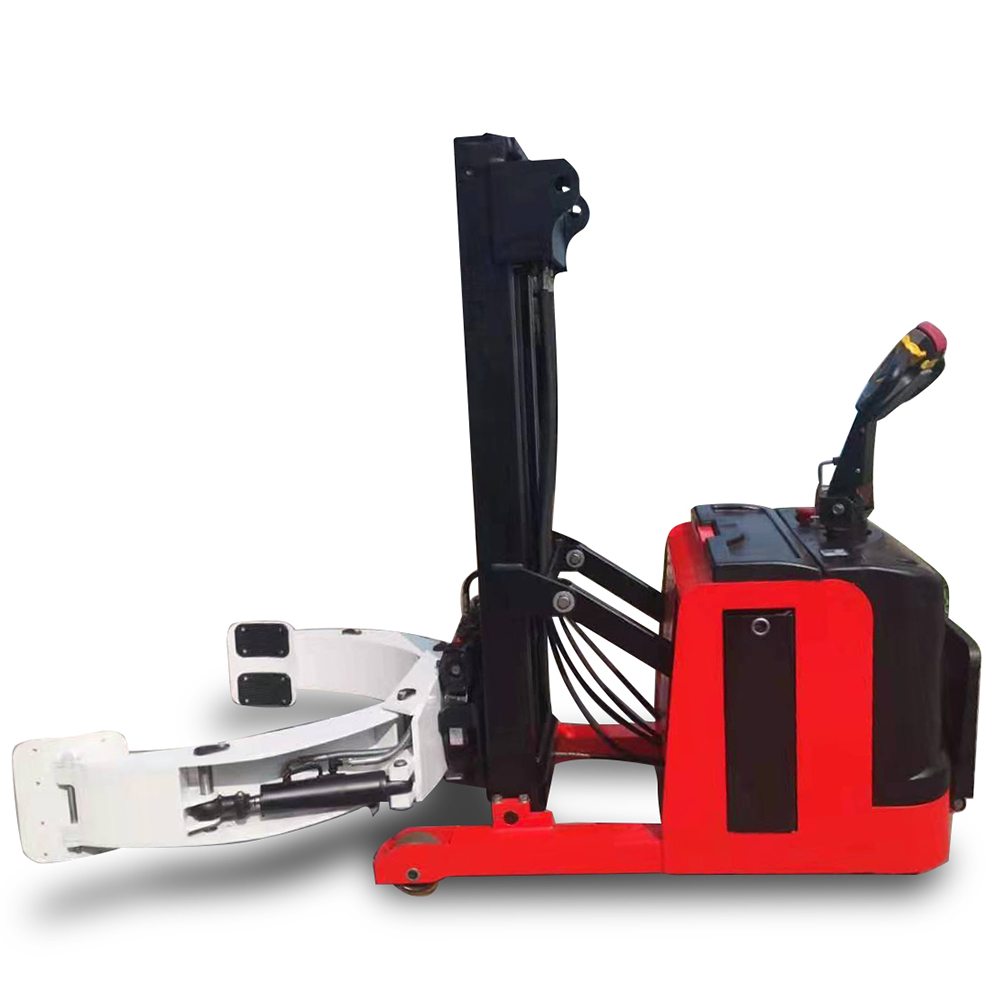

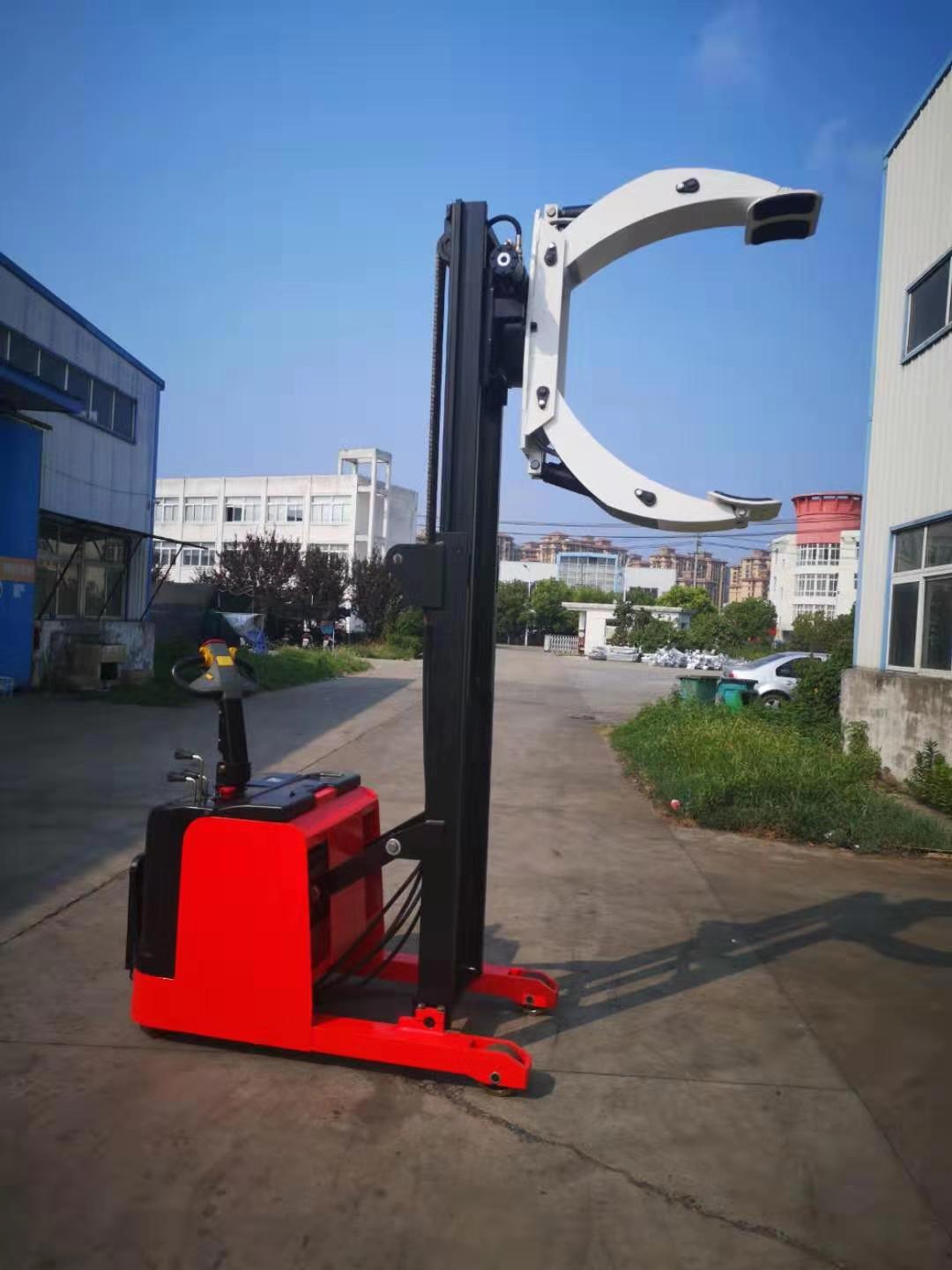

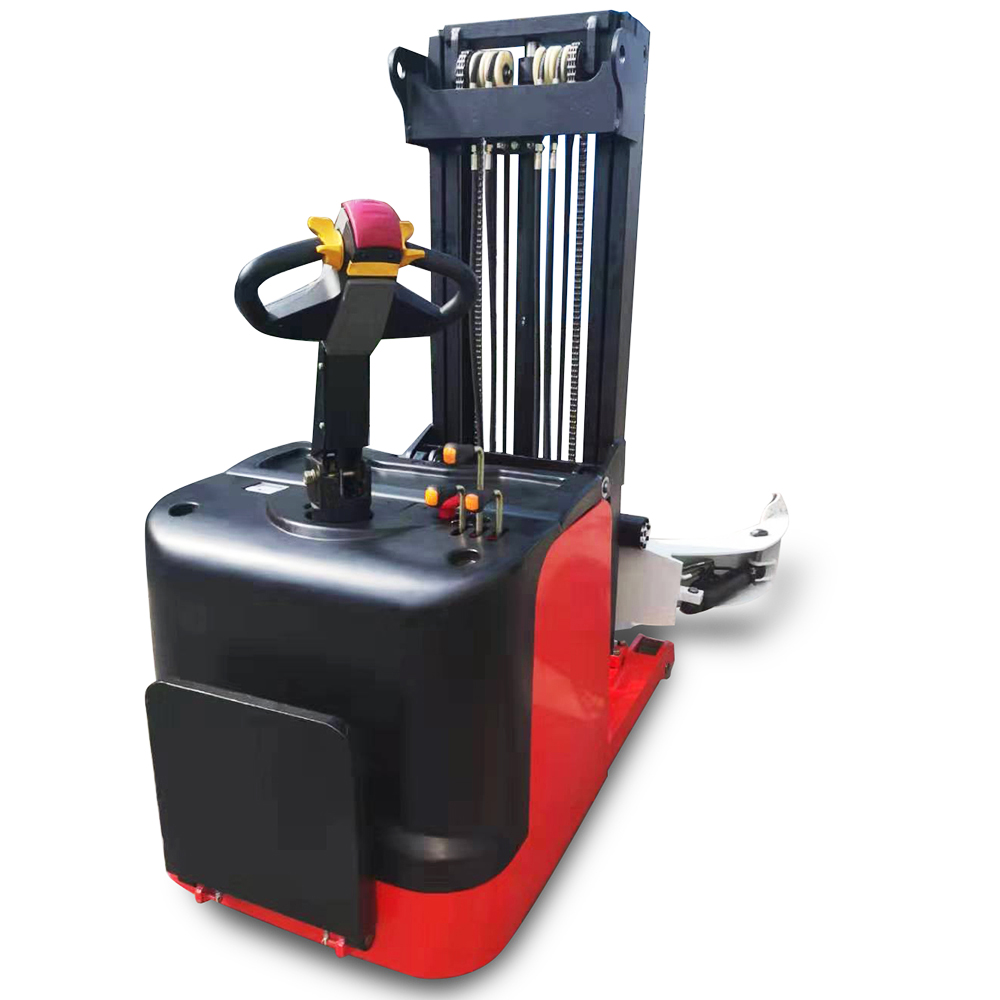

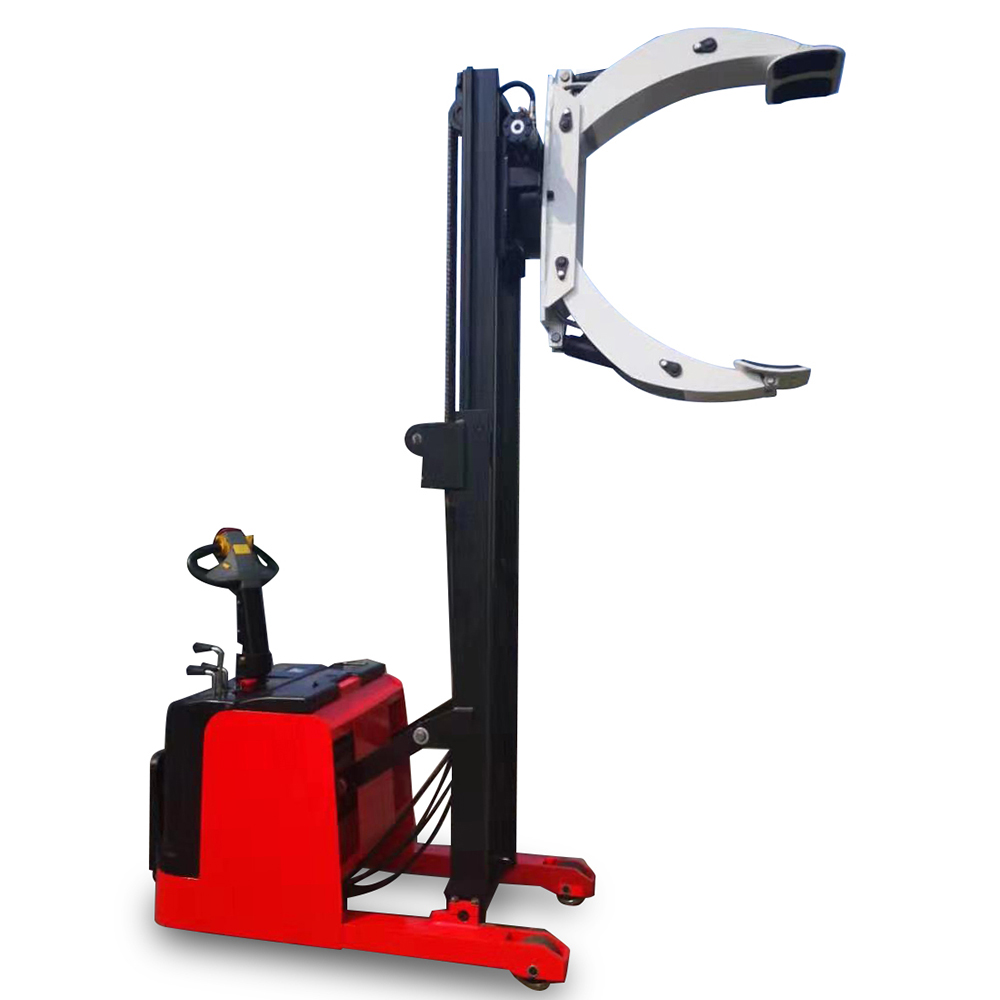

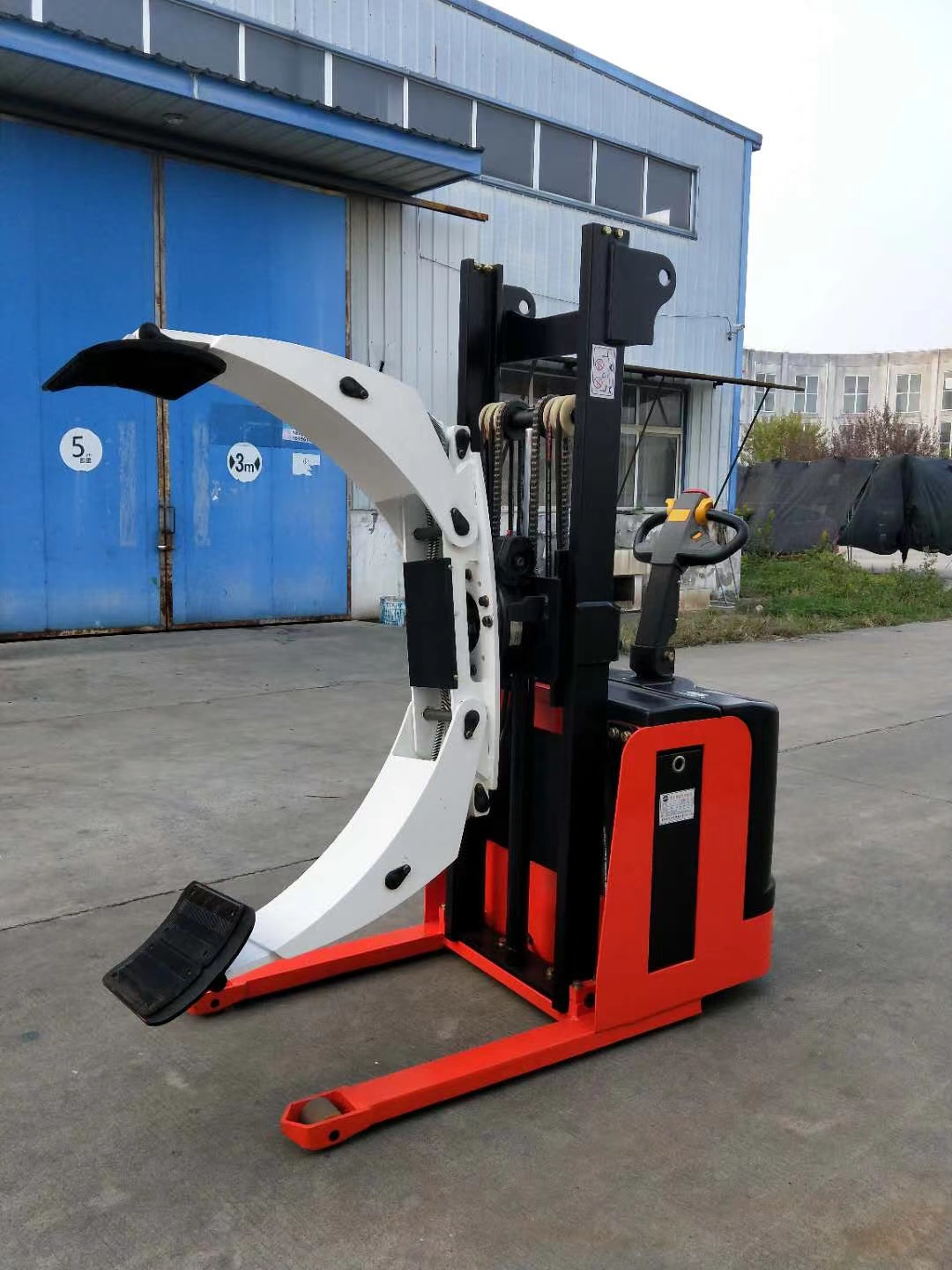

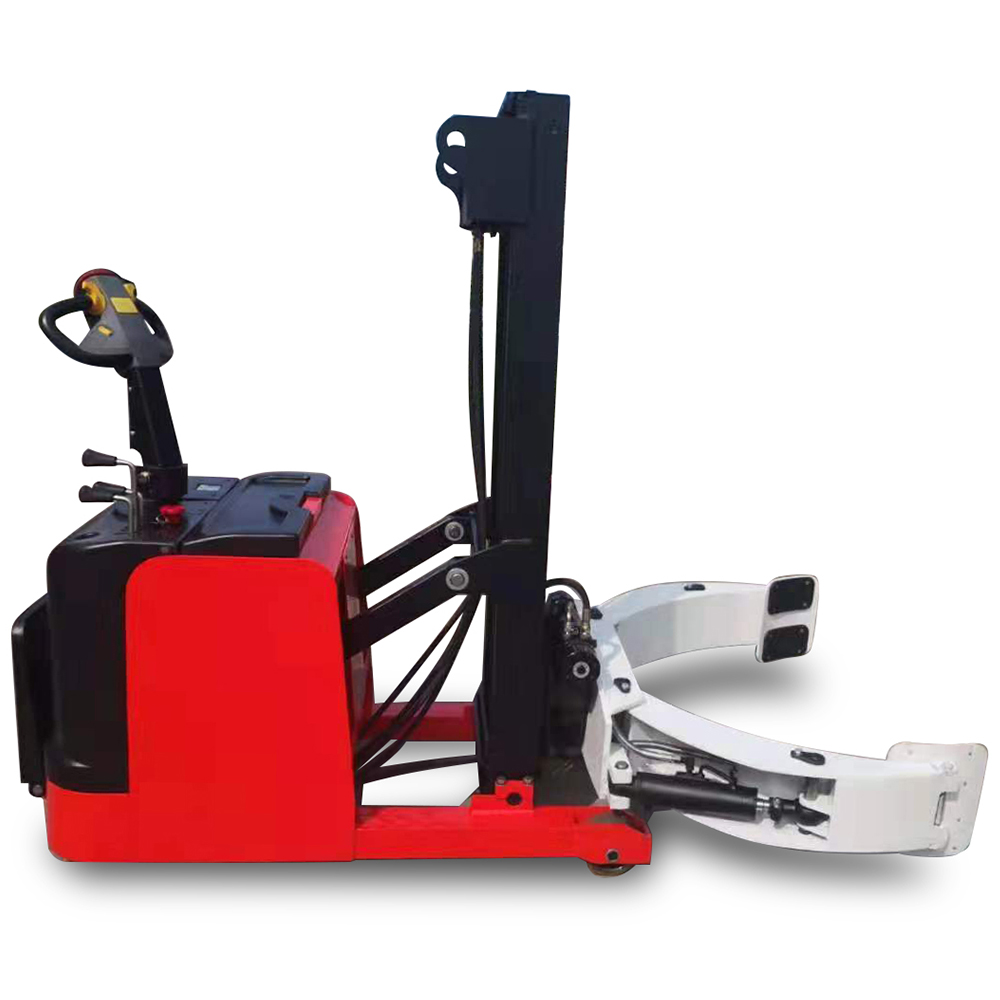

1500 Kg Electric Roll Lifter Stacker 180 360 Degree Roll Clamp Convenient Storage Moving Equipment
Electric roll Stacker is a kind of fixture equipment installed on forklift trucks, which is mainly used for material handling, loading, unloading and stacking. It can fix the goods on the fixture to ensure the safety and stability of the goods in the transport process. For some products with irregular shape or large weight, it is often necessary to use the holding clamp truck for handling in the stacking warehouse. Some goods packaging is particularly complex, can not use the traditional loading and unloading methods for loading and unloading, the need to use the clamping truck for operation. In the industrial production process, the clamping truck is also widely used, such as the coil, steel and other items handling operations.
1. Efficient and quick: clamping truck is easy to operate, loading and unloading goods quickly and efficiently, saving the cost of manpower and time costs;
2. Safe and reliable: the design of the clamping truck takes into account the protection and safety of the goods, which can avoid problems such as damage and loss of goods in the transport process;
3. Cost saving: the clamping truck can reduce the labour intensity of manpower, avoid the problem of misuse and damage caused by human factors, thus saving the transportation cost.
Rated load | kg | 500/1000/1500 |
Max height of clamp | mm | 1500/3000/customized |
Min height of clamp | mm | 100 |
Load center | mm | 500 |
Operation way | Electric moving, lifting, rotating, graping | |
Turning radius | mm | 1520 |
Aisle width | mm | 2500 |
Length | mm | 1900 |
Width | mm | 810 |
Height | mm | 1900 |
Mast | 1-stage/2 stage | |
Adjustable extent of clamp | mm | 700-1200 |
Rotation angle | ° | 90/180/360 |
Running speed (load/unload) | km/h | 4.3/4.5 |
Hoisting speed(load/unload) | mm/s | 110/160 |
Descent speed(load/unload) | mm/s | 150/130 |
Climbing capability (load/unload) | % | 5/8 |
Braking mode | Electronic brake | |
Tyres,material | Pu | |
Hydraulic motor | kw | 2.5kw |
Battery | v/ah | 24/210Ah |
Charger | v/a | 24v/30 |
Weight | kg | 1000 |
