SW100BJ-25
KAD

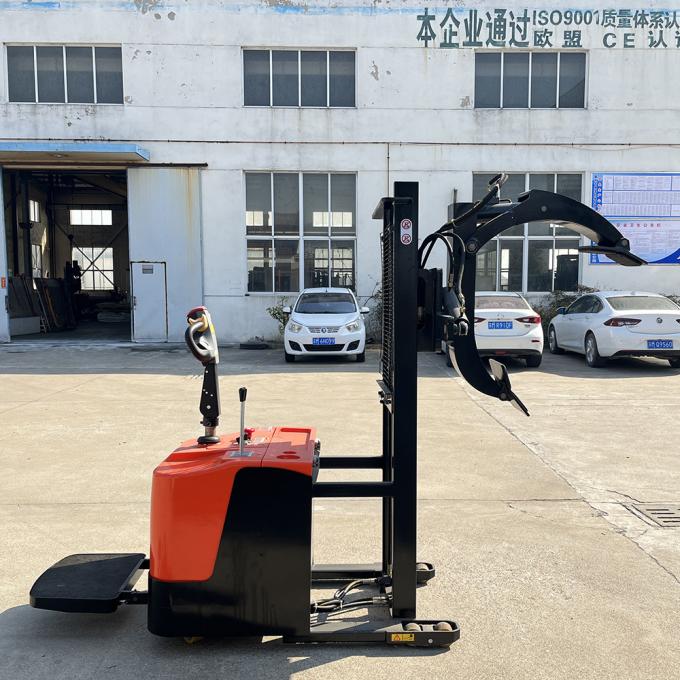

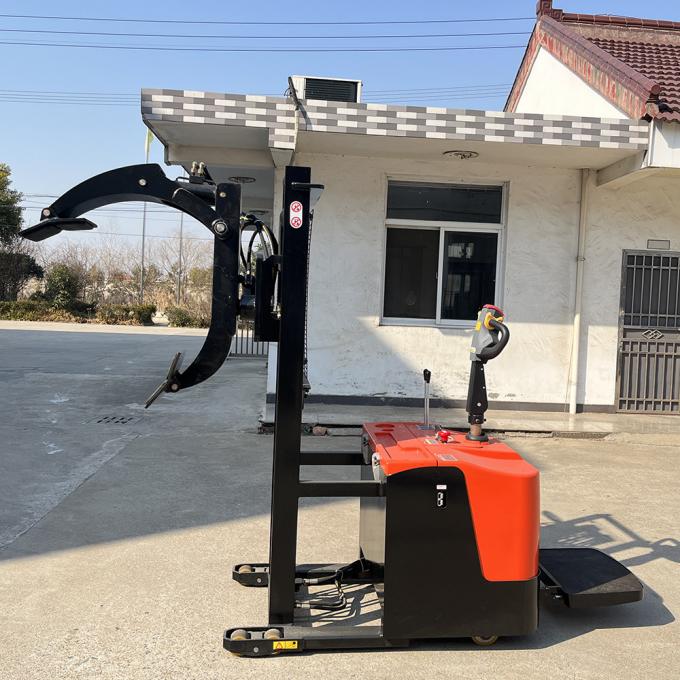

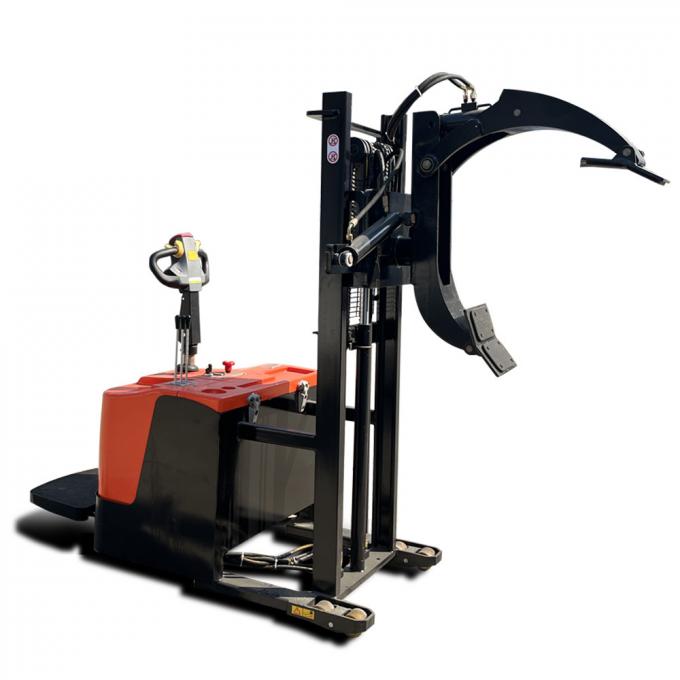

The roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
The roll clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.
The roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
The roll clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.
| Power source | Battery | |
| Rated load | kg | 700kg/customized |
| Load center | mm | 500 |
| Operation way | Standing operation,electric lifting,electric gripper,electric rotating,electric moving | |
| Turning radius | mm | 1050 |
| Aisle width | mm | 1900 |
| Length | mm | 1500 |
| Width | mm | 760 |
| Height | mm | 2100/customized |
| Mast | 1-stage mast | |
| Adjustable extent of clamp | mm | 200~1250 |
| Max height of forks | mm | 1500 |
| Min height of forks | mm | 200 |
| Rotation angle | ° | 90°(left and right)/360 degree |
| Hoisting speed(load/unload) | mm/s | 110/160 |
| Descent speed(load/unload) | mm/s | 150/130 |
| Climbing capability | % | 3,5 |
| Braking mode | Wheel brake | |
| Tyres,material | Nylon | |
| Load wheel dimensions | mm | 85*80,2pcs |
| Steering wheel dimensions | mm | 180*50,2pcs |
| Hydraulic motor | kw | 24v/2.2kw |
| Battery | v/ah | 24/210 |
| Weight | kg | 1100 |
