CPDE1030
KAD
Electric forklift truck adopts electric drive, compared with the internal combustion forklift truck, it is pollution-free, easy to operate, energy-saving and efficient. With the development of economy and the improvement of environmental protection and energy saving, electric forklift truck develops rapidly. Market sales are increasing year by year. Especially in the port, storage and tobacco, food, textile and other industries, electric forklifts are gradually replacing the internal combustion forklifts.

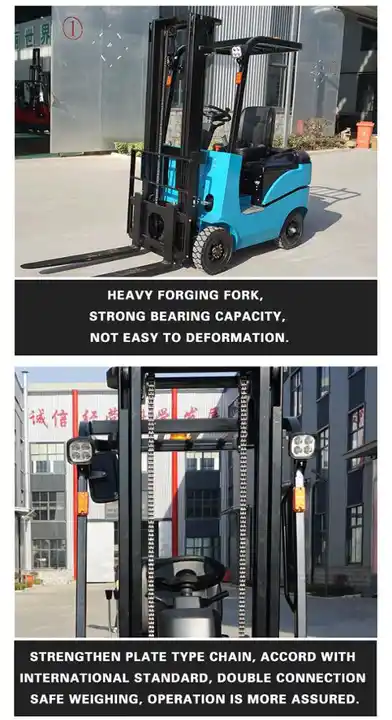

1.Thickened fork, thickened load bearing, not easy to deformation, thickened baking paint, not easy to fade.

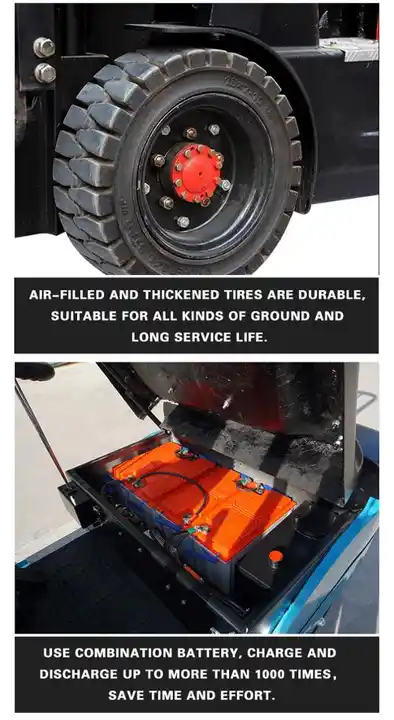

2.Solid rubber tires, suitable for all kinds of ground, wear - resistant and good shock - absorbing effect.

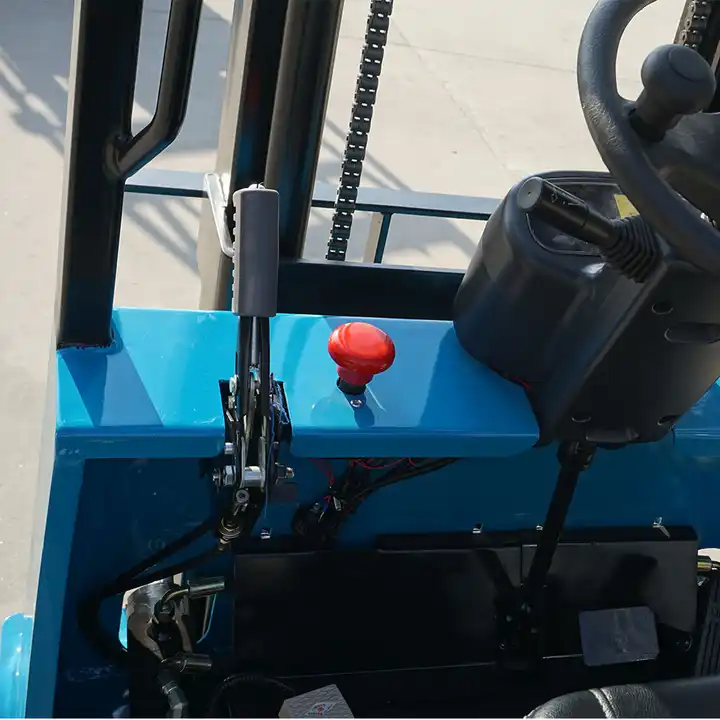

3.The console is easy to operate and easy to understand.
4.Side shifter can be installed, the fork can be moved left and right side, more convenient to operate.
5.High strength gate frame channel steel body,no deformation, stable lifting, bearing capaciy and set reinforcement between the gate frame .
6.Economical and durable double cylinder door frame with wide field of vision.
Specification
| Model | CPDE1030 | CPDE1530 |
| Load capacity (kg) | 1000 | 1500 |
| Lift height (mm) | 3000 | 3000 |
| Load centre (mm) | 500 | 500 |
| The goods fork length (mm) | 1070 | 1070 |
| Lower height (mm) | 100 | 100 |
| Manipulation | steering wheel | steering wheel |
| Tyres | Solid core tire | Solid core tire |
| Driving wheel | 350x100 | 350x100 |
| Travel speed ( km/h) | 8 | 8 |
| Lifting speed(mm/min) | 80 | 80 |
| Type of driver | Stepless speed regulation | Stepless speed regulation |
| Door trame angle | 3--6 | 3--6 |
| Gradient | 10 | 8 |
| Battery (v/Ah) | 48/120 | 48/120 |
| Reference time ( h) | 4 | 3.5 |
| Driving motor (kw) | 2.2 | 2.2 |
| Lifting motor (kw) | 3 | 3 |
| The minimum bending racfius (mm) | 1750 | 1800 |
| Length (mm) | 3100x1050 x 2080 | 3100x1050 x 2080 |
| Weight (kg) | 1600 | 1700 |
| Increased height of each tonnage | 1600mm/2000mm/2500mm/3000mm/3500mm | |
| Max. height | 2080mm/1600mm/1850mm/2080mm/2350mm | |
