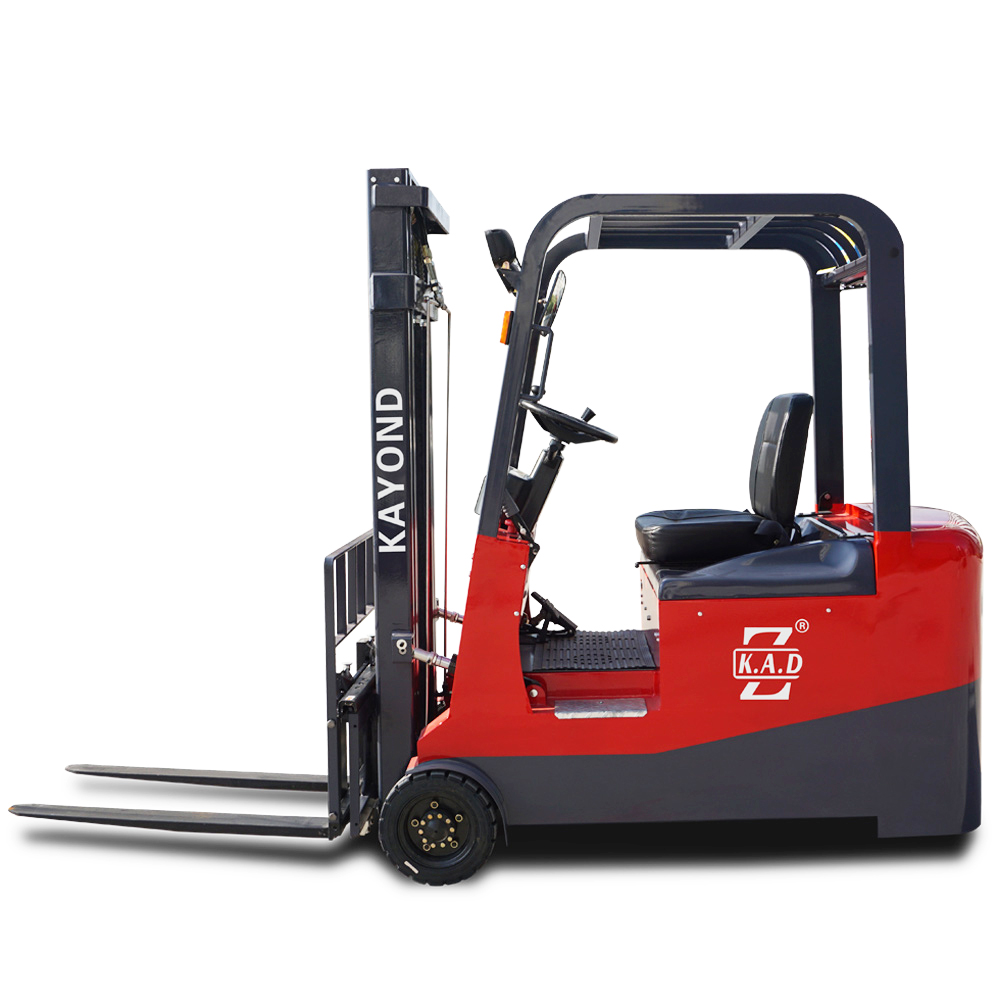

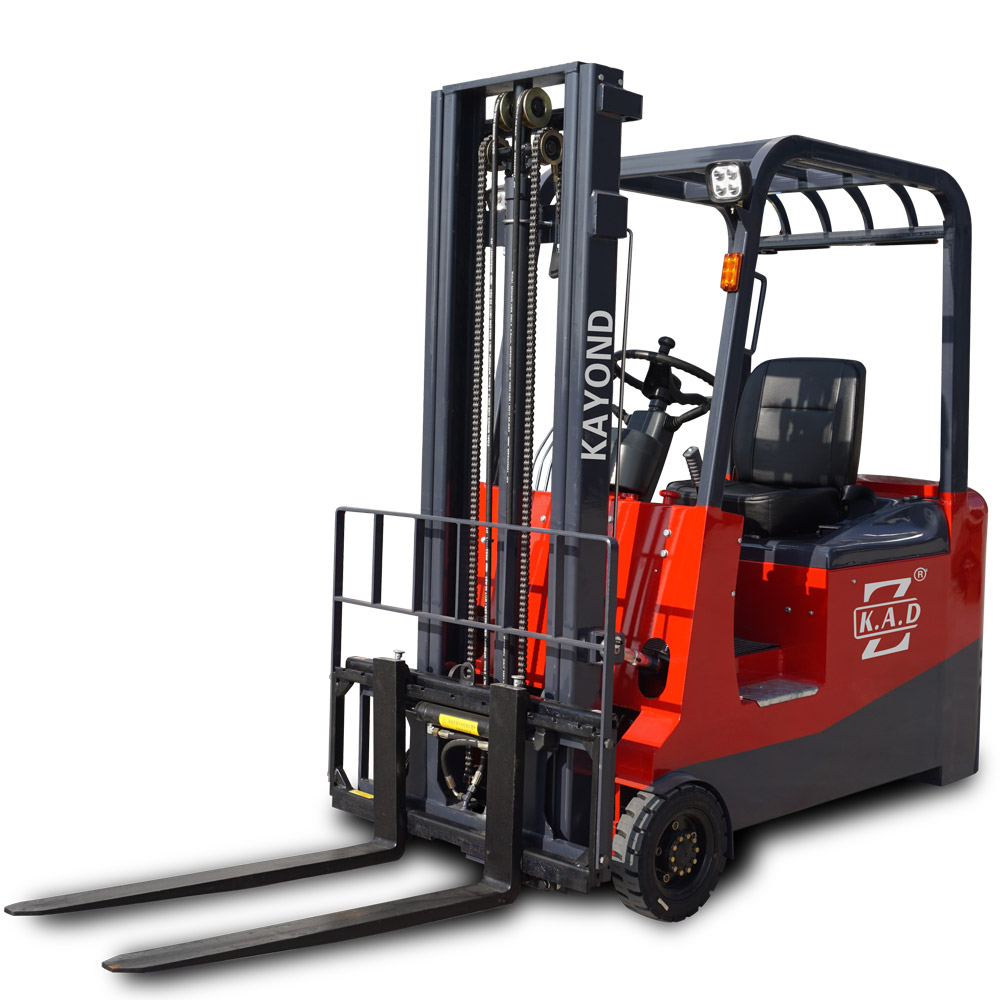

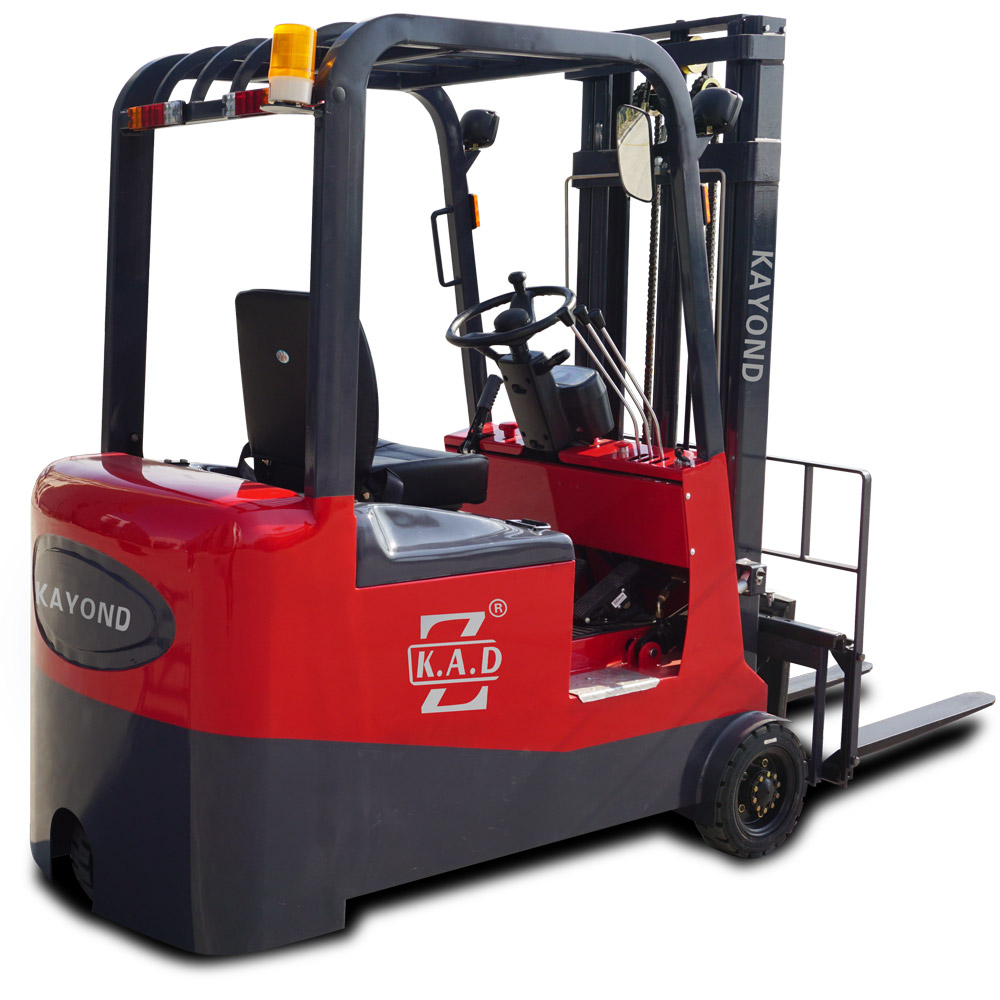

CPD1030-3
KAD
Product Application
Electric forklift truck adopts electric drive, compared with the internal combustion forklift truck, it is pollution-free, easy to operate, energy-saving and efficient. With the development of economy and the improvement of environmental protection and energy saving, electric forklift truck develops rapidly. Market sales are increasing year by year. Especially in the port, storage and tobacco, food, textile and other industries, electric forklifts are gradually replacing the internal combustion forklifts.
Main Features:

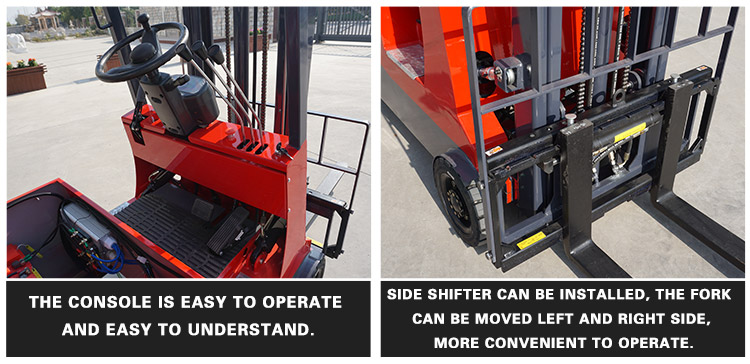

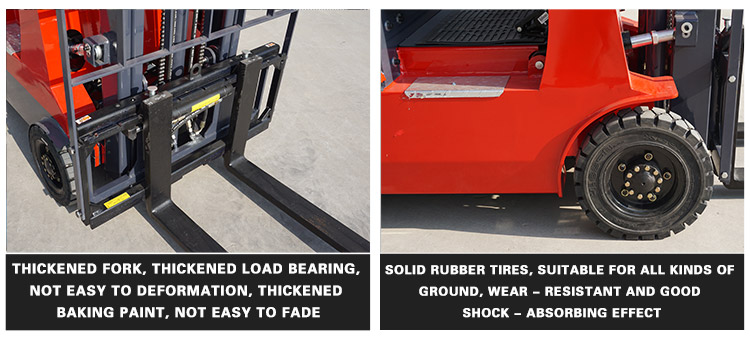

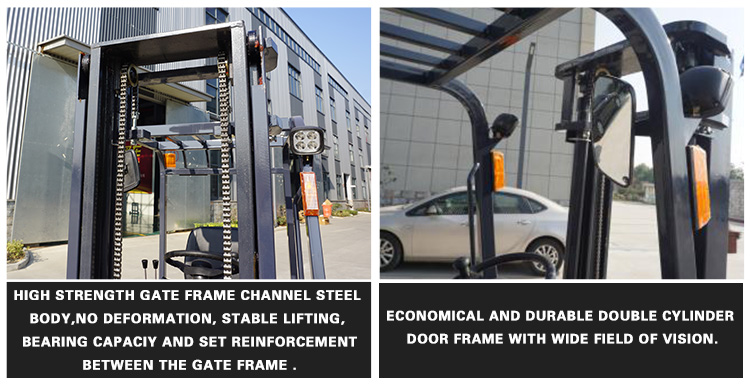

1.Thickened fork, thickened load bearing, not easy to deformation, thickened baking paint, not easy to fade 2.Solid rubber tires, suitable for all kinds of ground, wear - resistant and good shock - absorbing effect 3.The console is easy to operate and easy to understand. 4.Side shifter can be installed, the fork can be moved left and right side, more convenient to operate. 5.High strength gate frame channel steel body,no deformation, stable lifting, bearing capaciy and set reinforcement between the gate frame . 6.Economical and durable double cylinder door frame with wide field of vision.
Specification:
| Model | CPD1030-3 | CPD1530-3 | CPD1545-3 | ||
| Drive type | Battery | ||||
| Load capcity/rated load | Q | kg | 1000 | 1500 | 1500 |
| Load center distance | C | mm | 500 | ||
| Lift height | H3 | mm | 3000 | 3000 | 4500 |
| Free lift | H2 | mm | 120 | 120 | 1600 |
| Mast/fork carriage tilt forward/backward | α/β | ° | 3/6 | ||
| Overhead load guard height | H5 | mm | 2000 | 2000 | 2000 |
| Ground clearance, center of wheelbase | m2 | mm | 150 | 150 | 150 |
| Length to face of forks | L2 | mm | 2020 | 2020 | 2020 |
| Overall width | B1 | mm | 1020 | 1020 | 1020 |
| Fork lengrg | mm | 1070 | 1070 | 1070 | |
| Load distance, center of drive axle to fork | X | mm | 310 | 310 | 310 |
| Turning radius | Wa | mm | 2050 | 2050 | 2050 |
| Lowered mast height | mm | 2080 | 2080 | 2120 | |
| Extended mast height | H1 | mm | 3600 | 3600 | 4030 |
| Extended safe guard height | H4 | mm | 4050 | 4050 | 5480 |
| Travel speed,laden/unladen | km/h | 7.0/6.5 | 7.0/6.5 | 7.0/6.5 | |
| Lift speed laden/unladen | mm/s | 120/80 | 120/80 | 120/80 | |
| Drop speed,laden/unladen | mm/s | 450/150 | 450/150 | 450/150 | |
| Max gradient performance laden/unladen | % | 7 | 7 | 7 | |
| Service brake | Electromechanical Brake | ||||
| Track width,front | mm | 910 | 910 | 910 | |
| Wheelbase | mm | 1255 | 1255 | 1255 | |
| Service weight incl.battery | kg | 1750 | 1800 | 1950 | |
| Drive motor | kw | 2.2 | 2.2 | 2.2 | |
| Lift motor | kw | 3 | 3 | 3 | |
| Battery voltage/Capacity | V/Ah | 48v/140Ah | 48v/140Ah | 48v/140Ah | |
| Type of drive control | DC | DC | DC | ||
