CPC30
KAD

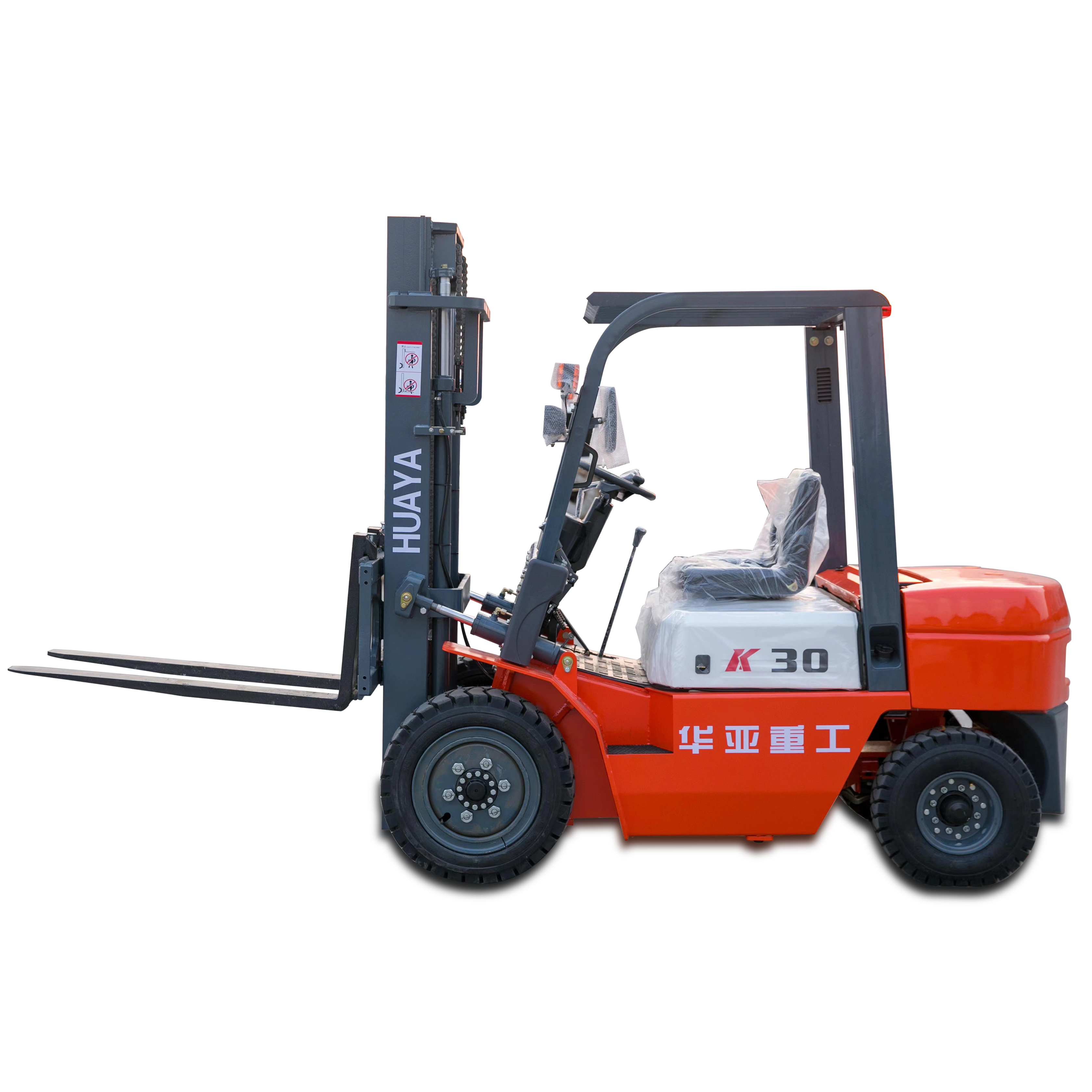

Safe and Reliable Forklift 3 Ton Diesel Forklift Electric 4 Wheel Forklift for Warehouses
A diesel forklift is a type of forklift that uses a diesel engine as its power source and is usually used in heavy-duty industrial and logistics scenarios. It has a large load capacity and a long service life.Diesel forklifts are usually used in outdoor environments and situations that require long hours of use, as diesel engines are more suitable for heavy duty and intensive use than electric or liquefied petroleum gas engines. It can be recharged quickly and can work in harsh environmental conditions such as high temperatures or high humidity. Diesel forklifts are typically used in metalworking, construction and manufacturing industries where heavy materials and equipment need to be moved. Large logistics centers, freight stations and large warehouses where large quantities of goods need to be handled and stacked. Diesel forklifts should be regularly maintained and serviced to ensure stable and efficient operation.
1. large load capacity: diesel forklifts are usually designed to handle heavy loads, with relatively large load capacity and stability, suitable for handling items of larger weight.
2. efficient working time: diesel forklifts have a strong fuel range and can work continuously for hours after refueling, which is suitable for occasions that require long working hours.
3. Suitable for outdoor environment: diesel forklift trucks are suitable for outdoor environment, able to work in different climate and terrain conditions.
4. fast refueling: compared with electric forklifts, diesel forklifts can be refueled quickly, reducing downtime during operation.
5. Suitable for Heavy Industry: Diesel forklifts are suitable for heavy industry, such as steel, construction and manufacturing, and are able to cope with different kinds of weight cargo handling and stacking needs.
Model | - | CPC30 |
Rated capacity | Kg | 3000 |
Load center | mm | 500 |
Max.lifting height | mm | 3000-6000mm |
Free lifting height | mm | 100 |
Fork size L*W*H | mm | 1070*122*40 |
Mast tilting angle forward/backward | ° | 6/12 |
Min. turning radius | mm | 2400 |
Min. ground clearance (mast) | mm | 135 |
Overhead guard height | mm | 2160 |
Height from seat to overhead guard | mm | 1005 |
Max. traveling speed (loaded) | Km/h | 20 |
Max. lifting speed (loaded/unloaded) | mm/s | 450/480 |
Max. traction/gradeability (loaded) | kN/° | 13.5/20 |
Win. right angle stacking aisle width | mm | 4280 |
Overall length (without fork) | mm | 2682 |
Overall width | mm | 1225 |
Mast lowered height | mm | 2090 |
Mast extended height | mm | 4225 |
Tyre(front) | - | 28*9-15PR |
Tyre(rear) | - | 6.50-10PR |
Wheelbase | mm | 1700 |
Tread(front/rear) | mm | 1000/970 |
Curb weight(none-load) | kg | 4350 |
Battery(voltage/capacity) | V/Ah | 12/80 |
Engine(model) | - | C490 |
Engine(rated power) | kW/r.p.m | 37/2500 |
Engine(rated torque) | Nm/r.p.m | 156/1700-1900 |
Engine(cylinder amount) | - | 4 |
Engine(bore*stroke) | mm | 90*105 |
Engine(displacement) | L | 2.54 |
Fuel tank capacity | L | 70 |
Transmission | - | Manual machinery |
Working pressure | MPa | 17.5 |
