CPD1030
KAD

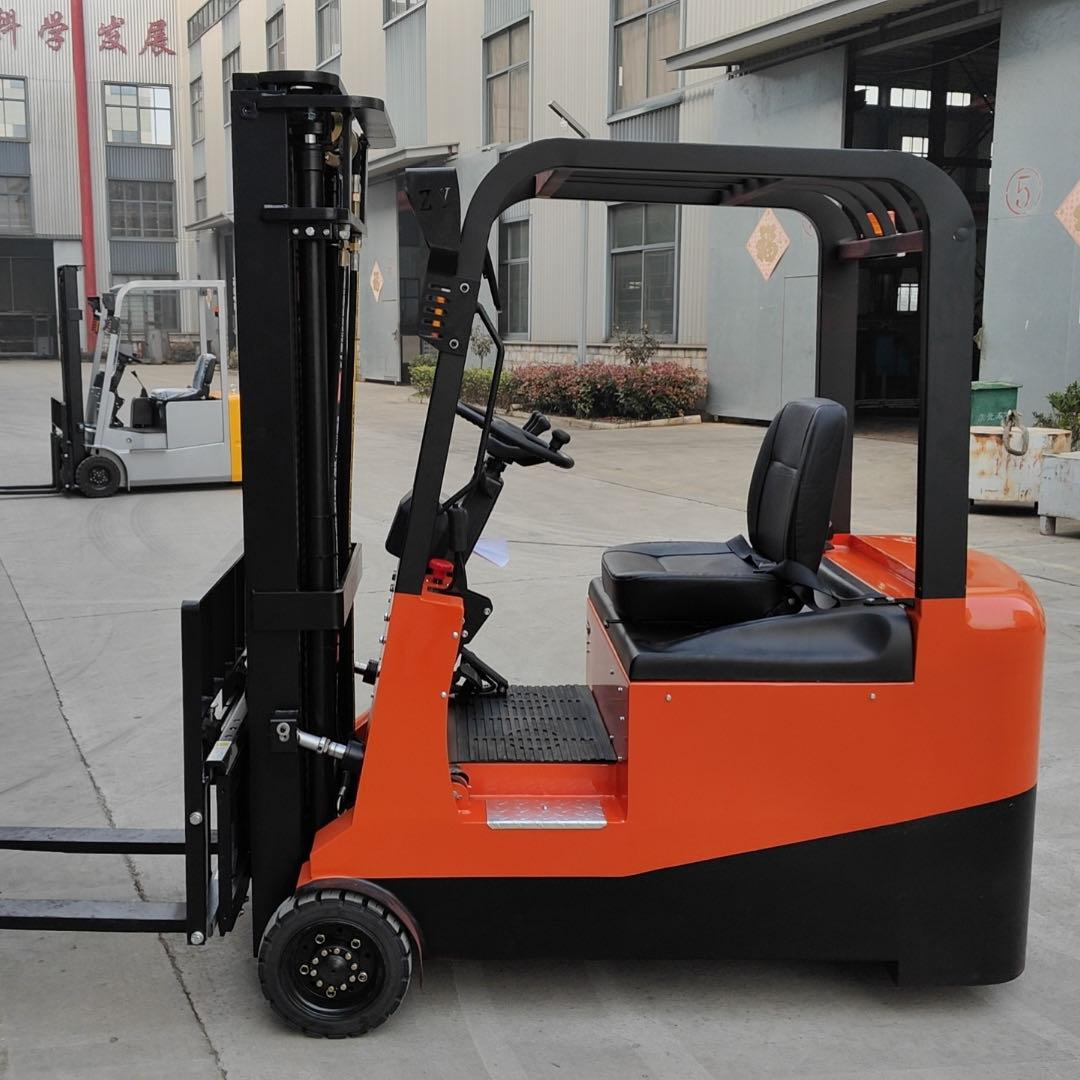

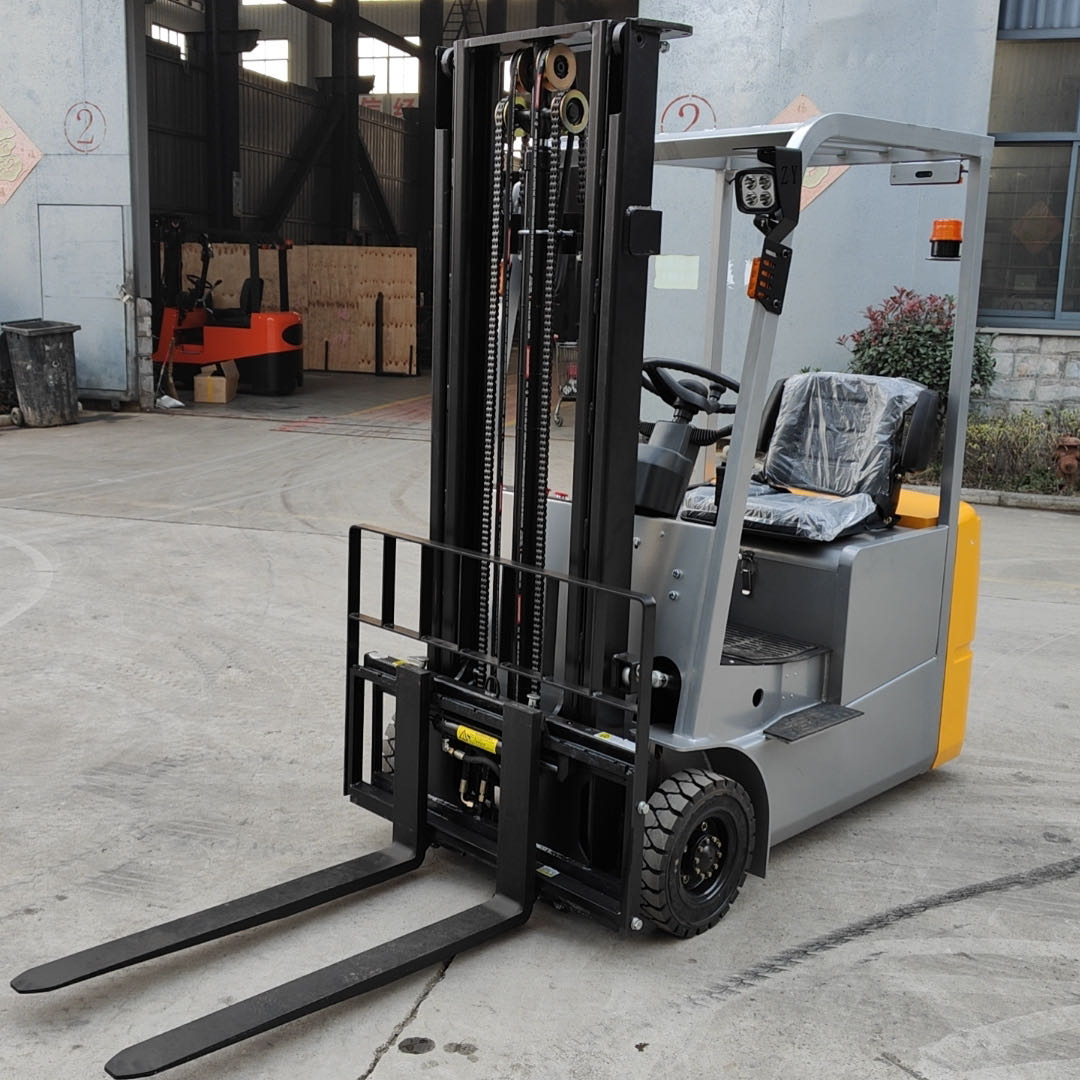

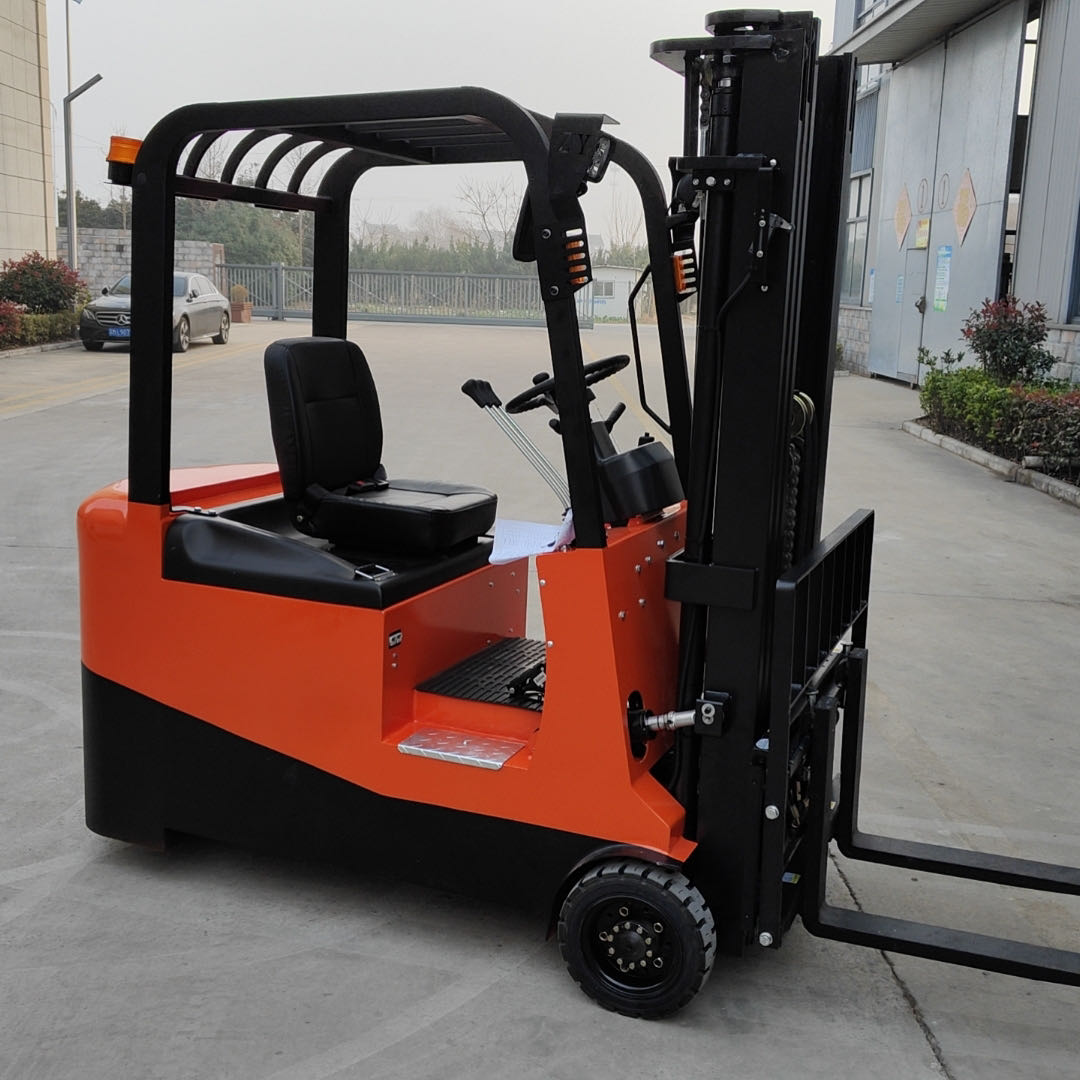

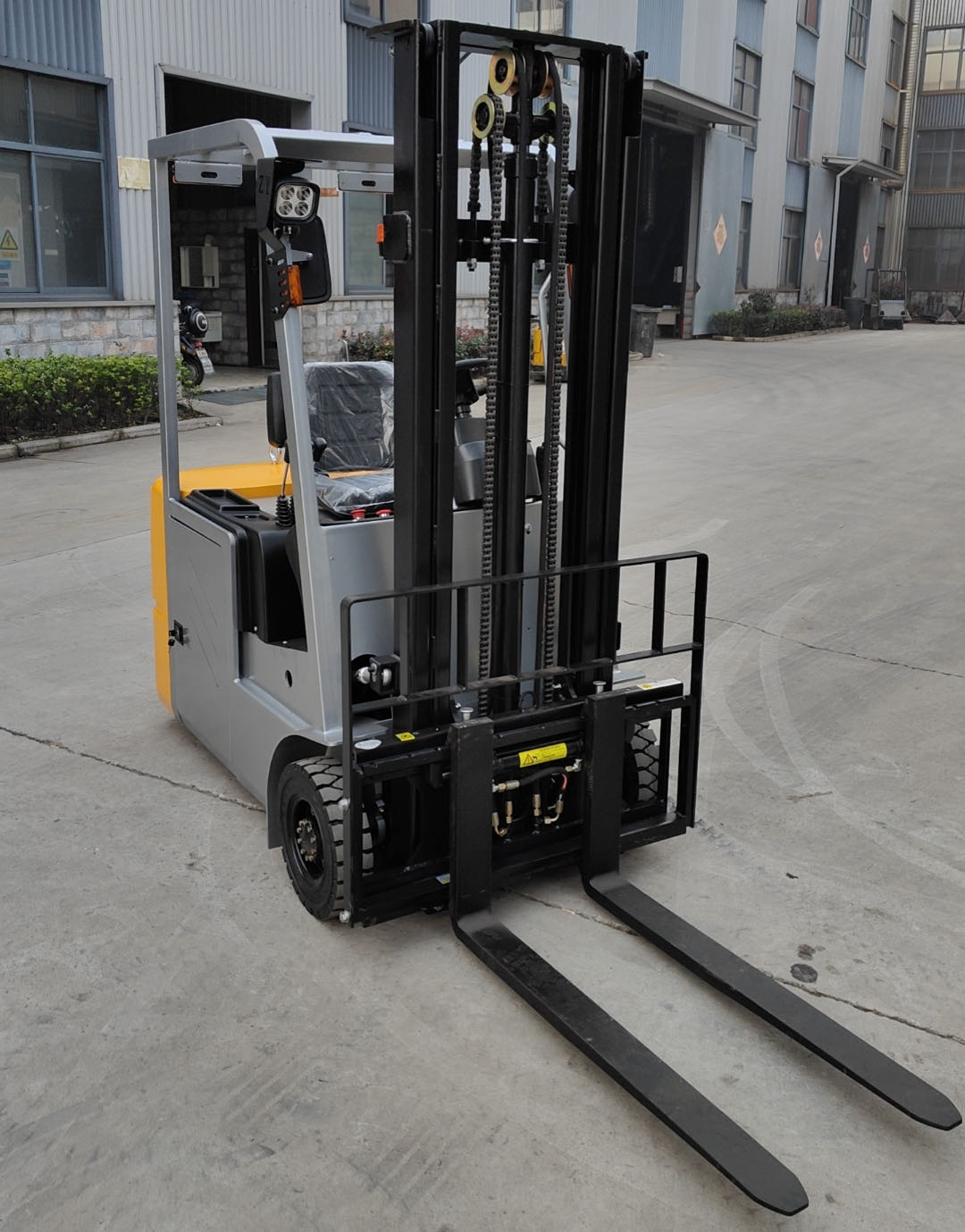

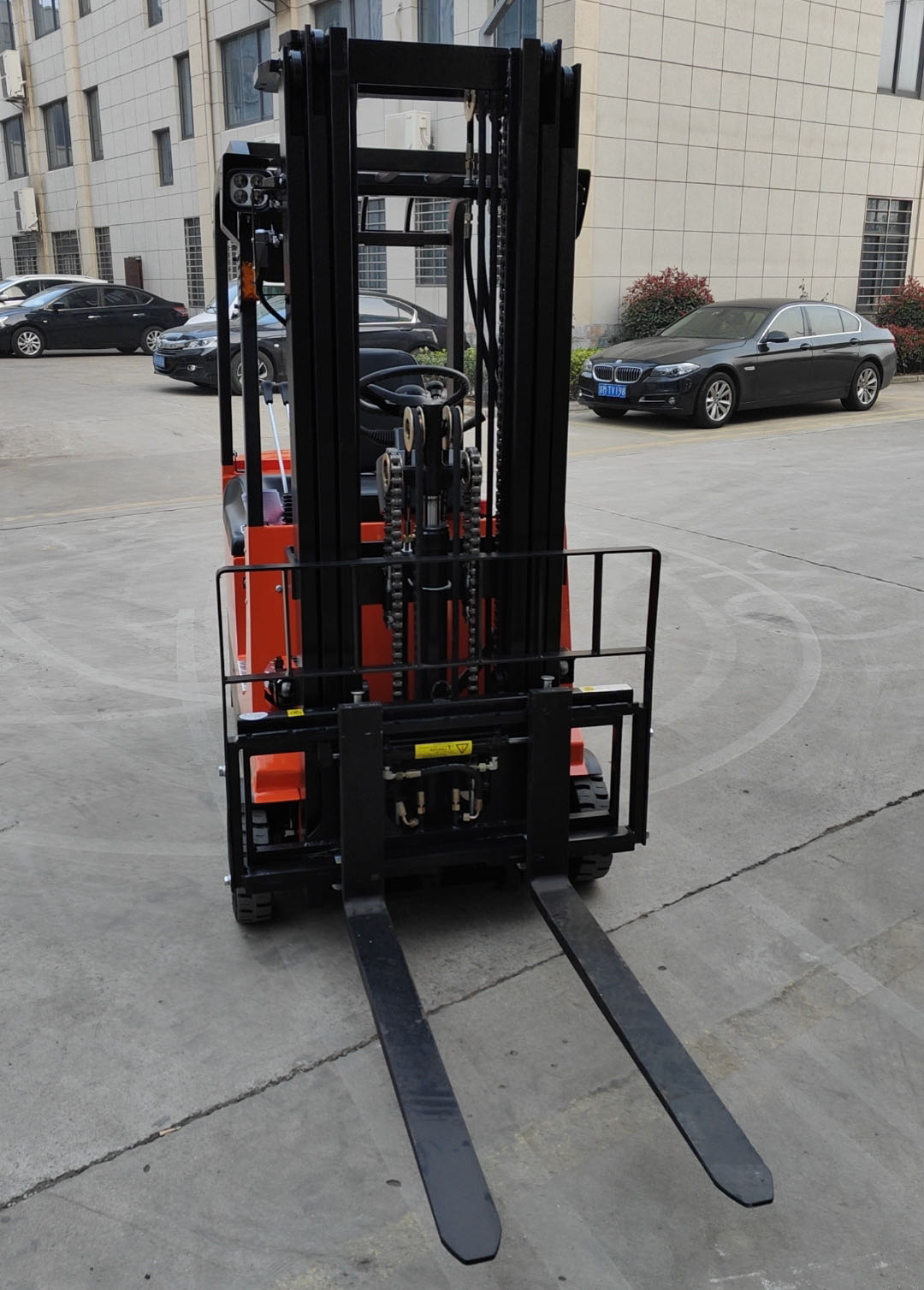

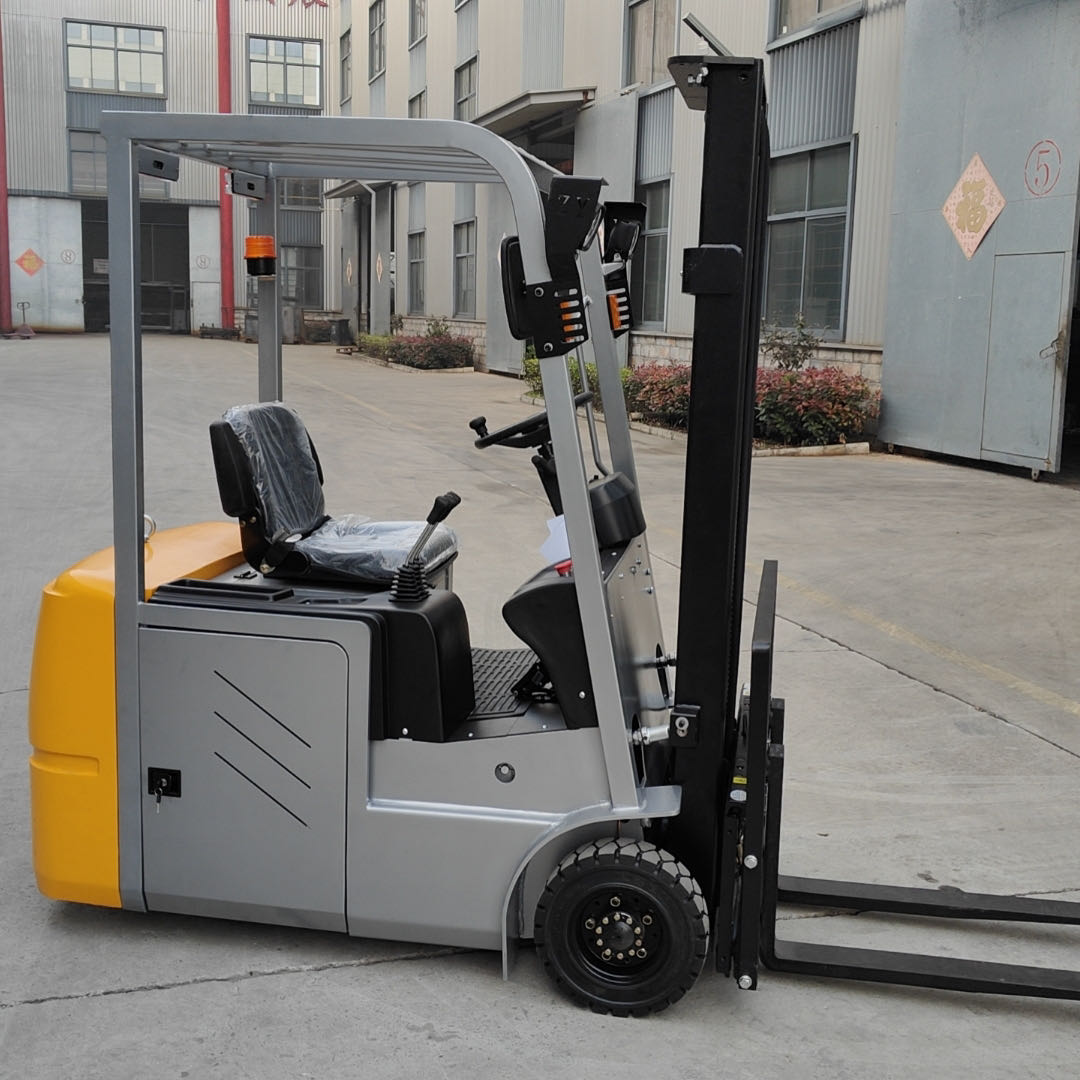

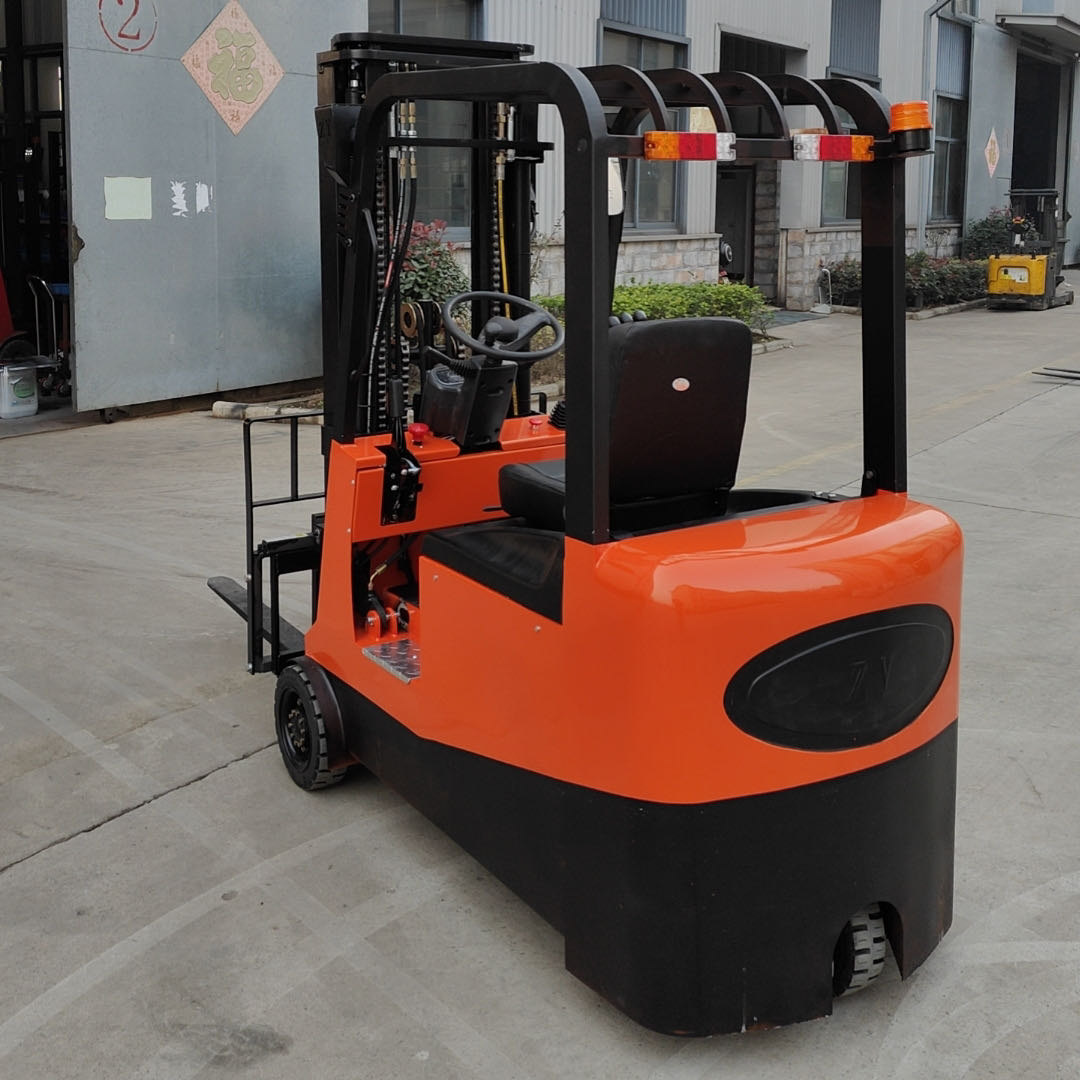

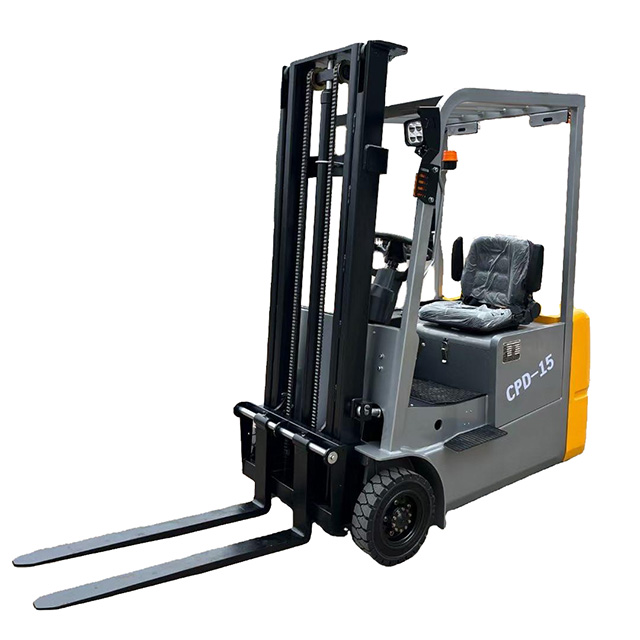

Counterbalanced 3-wheel front drive electric forklift truck with CE certificate for narrow aisles
Three-wheel front drive electric forklift is a type of forklift that uses an electric drive system to provide power and is designed with front wheel drive. This type of forklift is usually equipped with three wheels, two at the front of the forklift and one at the rear to provide better maneuverability and stability. This type of forklift is usually easier to control when operating as the front wheel drive provides better steering performance, allowing for more maneuverability when operating in confined spaces Overall, it is suitable for cargo handling and stacking operations in industries such as warehousing, logistics, and manufacturing.
1.Front wheel drive design makes the forklift easier to operate, with better steering performance and maneuverability, suitable for operation in narrow space.
2.Medium duty material handling, stacking and loading/unloading.
3. Single-sided and double-sided pallets can be used.
4. The drive motor and drive axle adopt the unique gear parallel shaft design arrangement. Improves transmission efficiency and reduces transmission noise.
5. Spacious operating space and adjustable seat provide a comfortable working environment for all operators.
6. Large-capacity battery, to ensure the stability and reliability of long-time use.
Model | CPD1030 | CPD1530 |
Load capacity (kg) | 1000 | 1500 |
Lift height (mm) | 3000 | 3000 |
Load centre (mm) | 500 | 500 |
Fork size (mm) | 1070*100*40 | 1070*100*40 |
Ground Clearance (mm) | 55/150 | 55/150 |
Tyre Type | Solid Tyres | Solid Tyres |
Control Way | Steering Wheel | Steering Wheel |
Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation |
Protection Guard Height(mm) | 2000 | 2000 |
Mast Tilt Angle (Front/Rear)(°) | 3.0/6.0 | 3.0/6.0 |
The Min.Turning Radius(mm) | 1750 | 1750 |
Driving Speed with Full Load(km/h) | 6.5 | 6.5 |
Maximum Gradient with full load(°) | 3/5 | 3/5 |
Battery(V/Ah) | 48/140 | 48/140 |
Reference Working Time(h) | 4/6 | 4/6 |
Driving Motor(kw) | 3 | 3 |
Lifting Motor(kw) | 3 | 3 |
Tyre Size (Front/ Rear)(mm) | 350/300 | 350/300 |
Overall Dimension(L*W*H)(mm) | 2970*1020*2100 | 3100*1020*2100 |
Weight(kg) | 1600 | 1700 |
Increased height each tonnage(mm) | 1600/2000/2500/3000/3500 | |
Max height(mm) | 2100/1600/1850/2100/2350 |
