CPD1530
KAD

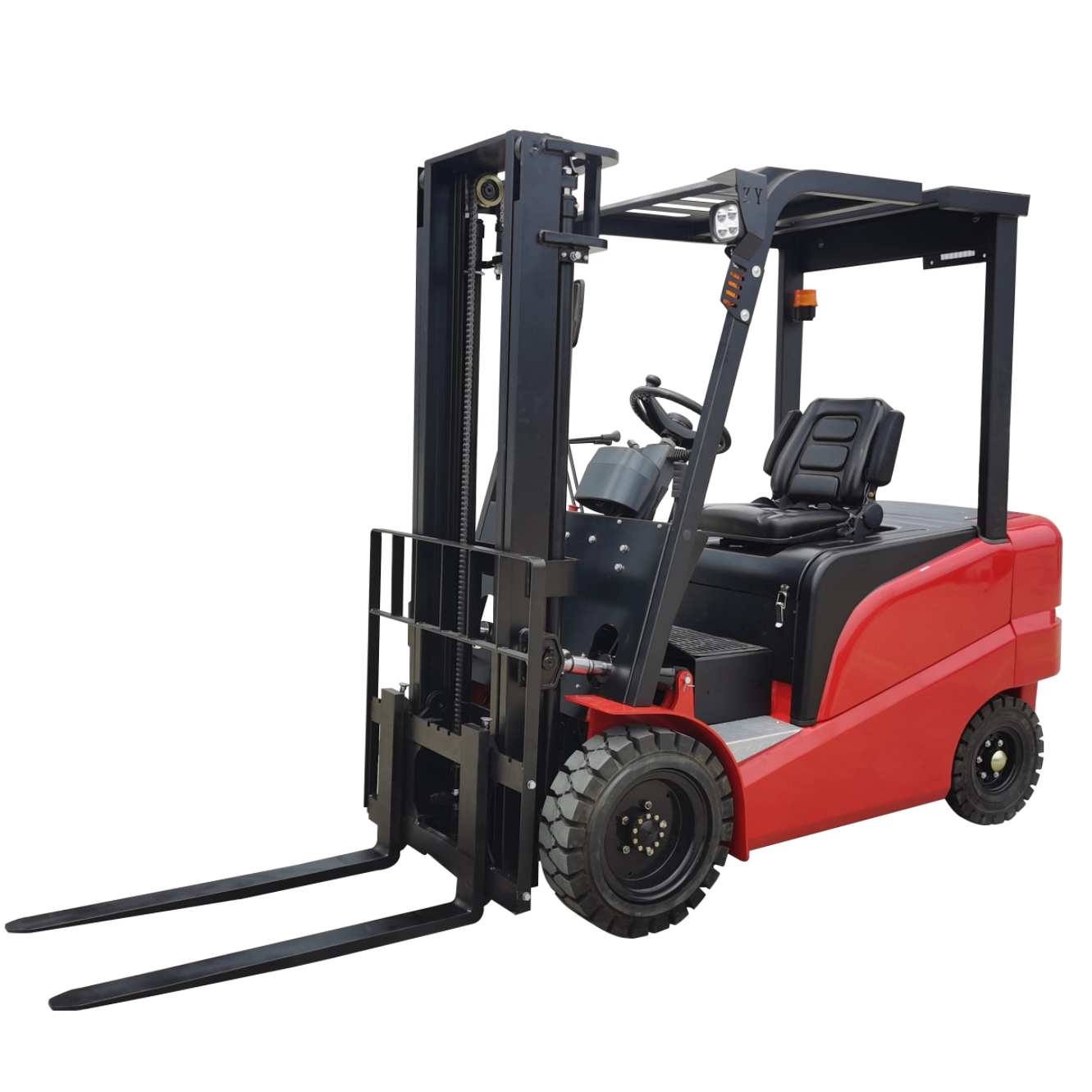

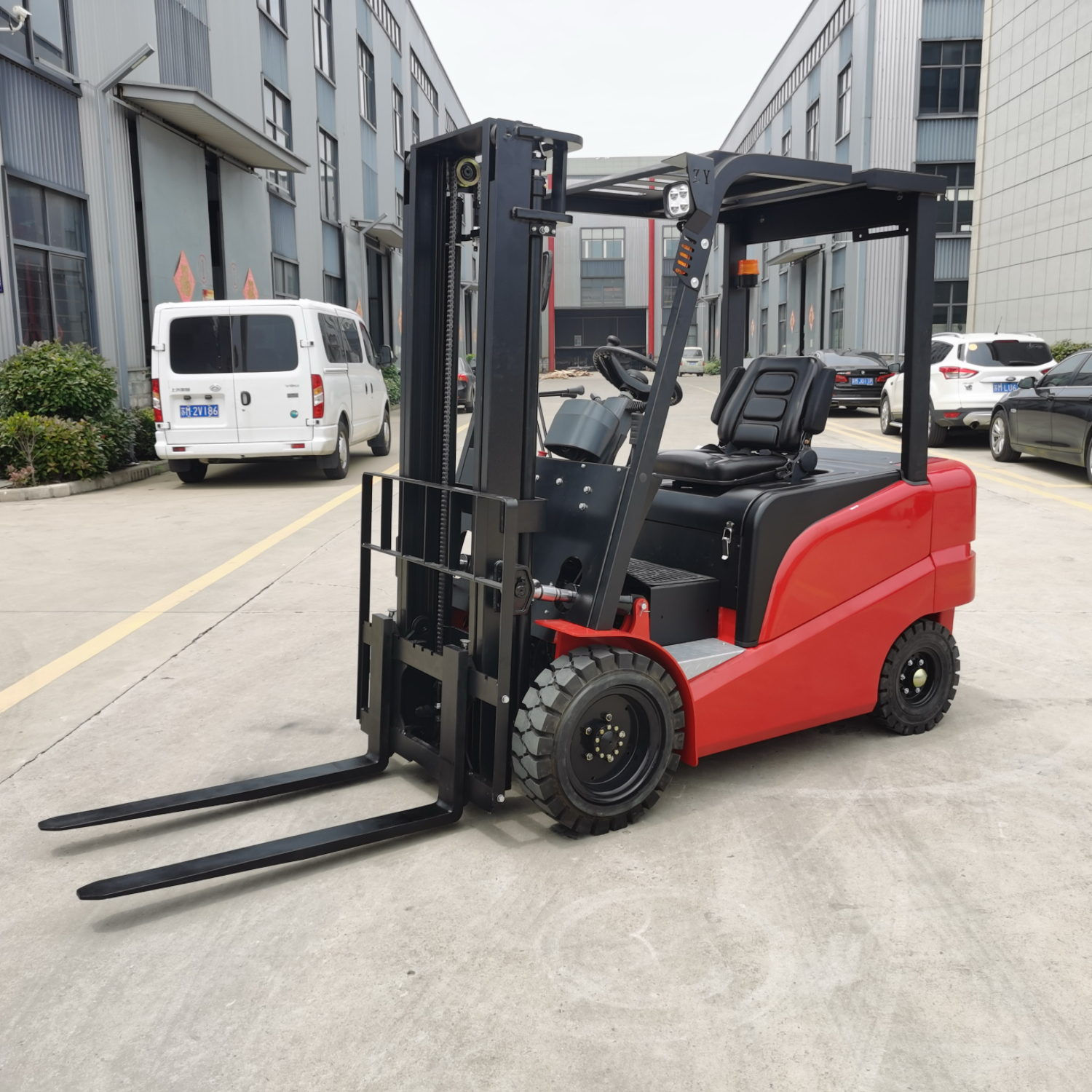

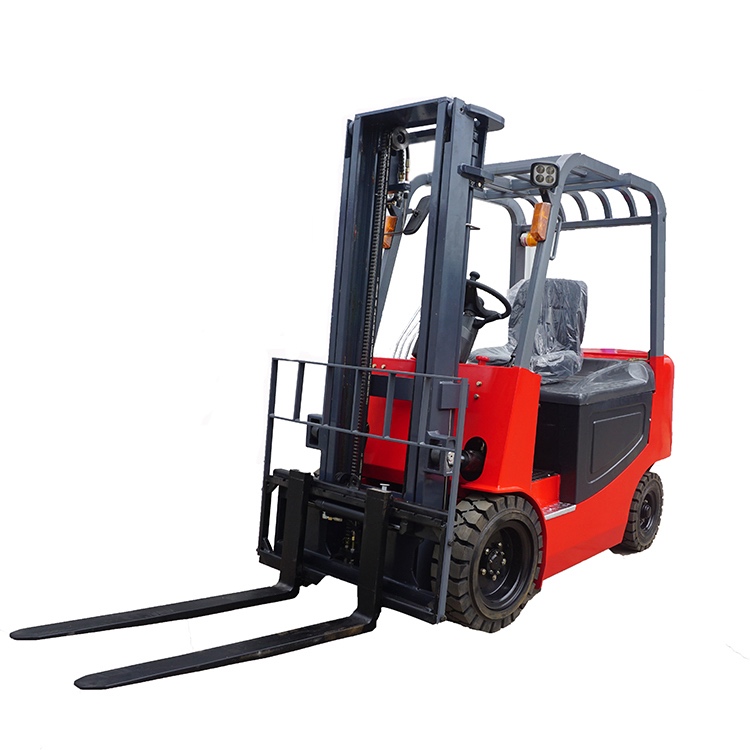

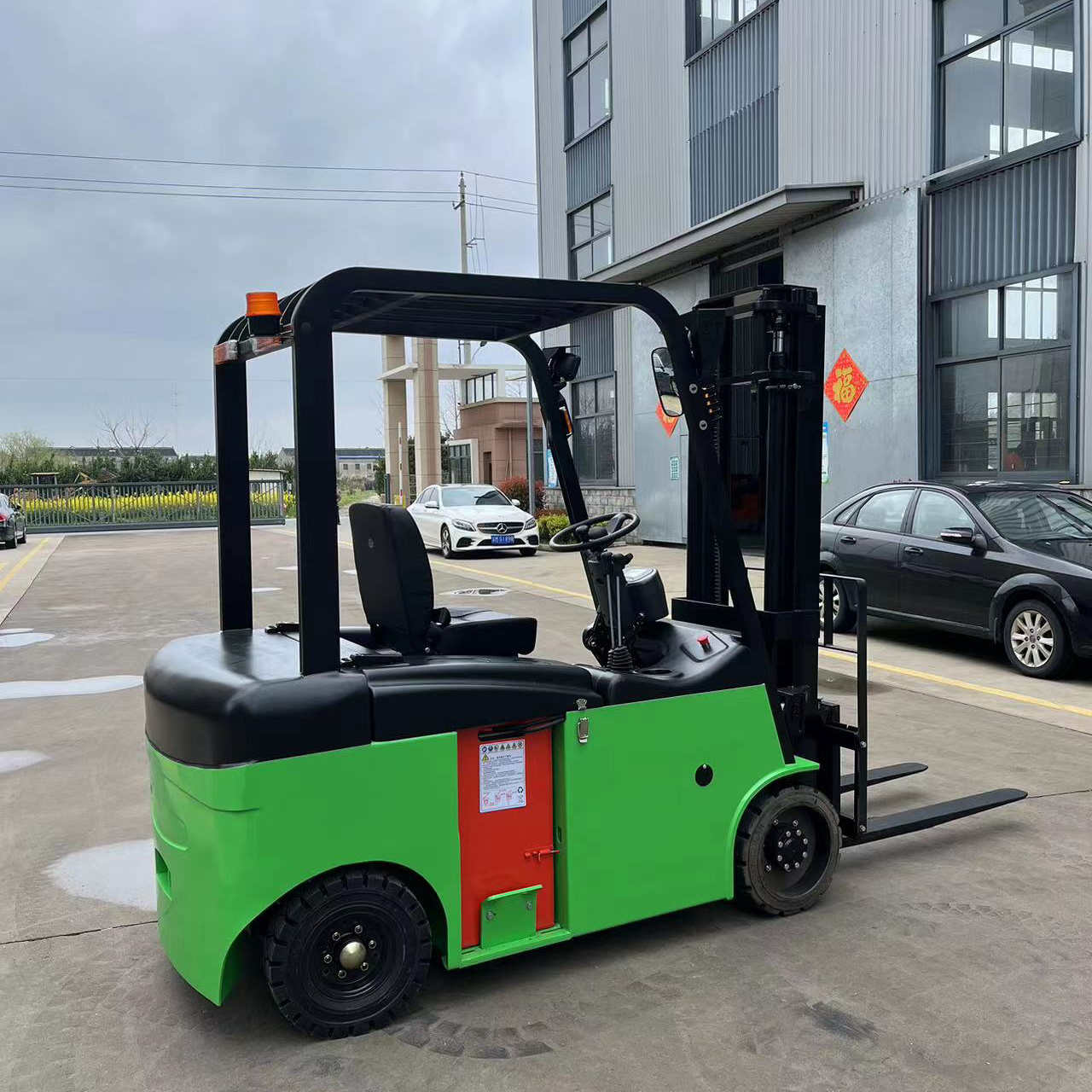

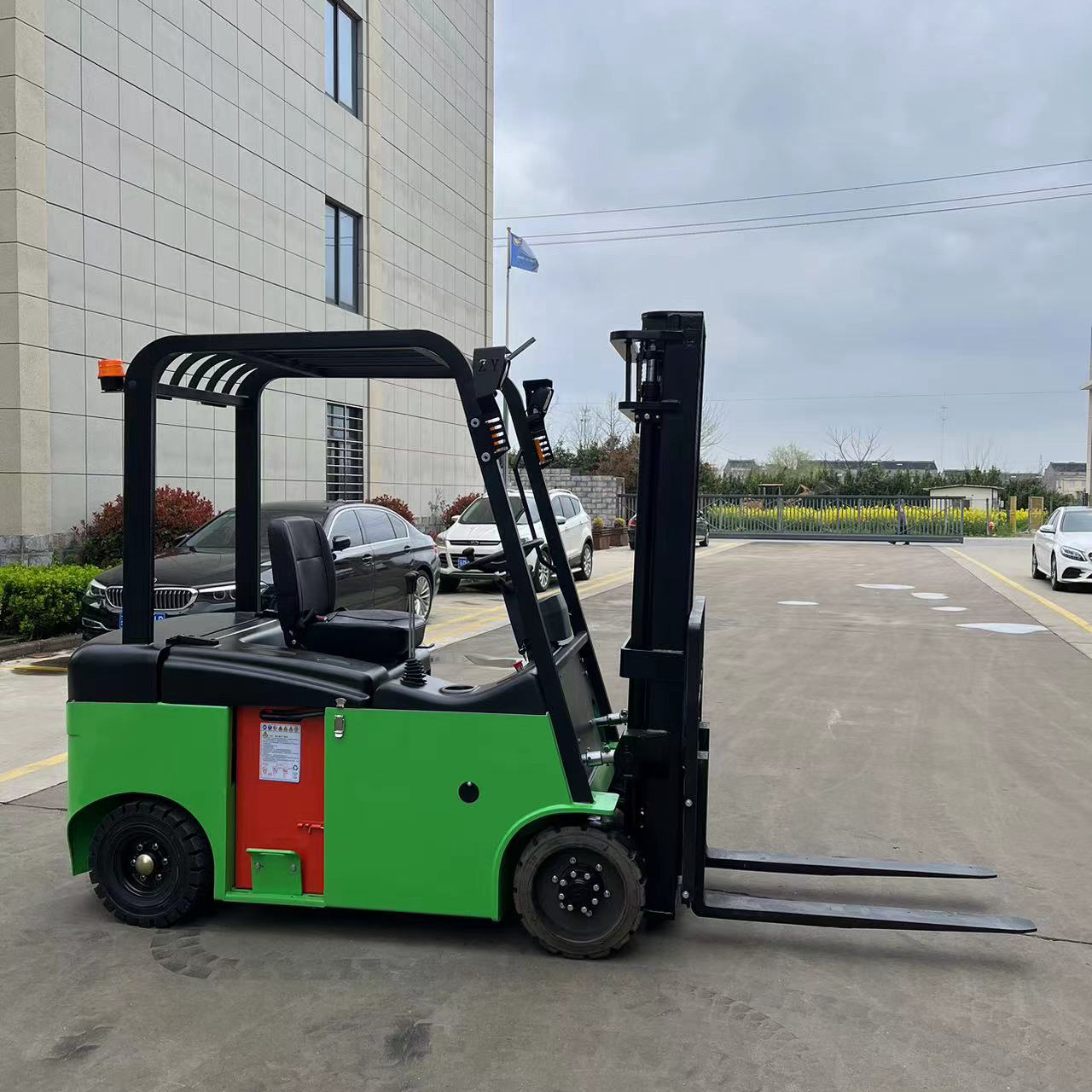

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality
Four-wheel electric forklifts are forklifts that use an electric drive system to provide power, and they are typically more environmentally friendly and quieter than traditional internal combustion engine forklifts, as well as being easier to maintain. Four-wheel drive makes these forklifts more stable, with better traction and maneuverability, and they are suitable for a wide range of different surfaces and work environments. Four-wheel electric forklifts typically have better maneuverability and can be operated and steered more easily, making them suitable for cargo handling and stacking in tight spaces. Electric forklifts typically have a longer range and can run continuously for longer periods of time, which increases efficiency. They can also be recharged for power, reducing reliance on liquid fuels and therefore being more energy efficient and environmentally friendly. Four-wheel electric forklifts are usually used in warehousing, logistics and manufacturing for cargo handling and stacking operations.
1. Adopting ZAPI, the electronic control system is mature and reliable; AC AC brushless maintenance-free motor saves the time and cost of maintenance.
2. Adopting MOSFET traveling and lifting controller, the forklift traveling and lifting control is precise and smooth, with regenerative braking, reverse braking, ramp anti-slip and other functions, excellent maneuvering performance.
3. The voltage output of DC/DC converter is more stable, which prolongs the service life of electrical components, especially improves the service life of battery.
4. The whole vehicle circuit system has overheating protection, reverse connection protection, anti-short-circuit function, and strengthen the electrical surface waterproof and dustproof measures.
5. Wide field of vision design of the gantry, high operating sensitivity and lifting balance, flexible steering and small turning radius. Ensure the whole machine is controllable, flexible, lightweight and efficient operation.
6. Lifting cylinder with buffer device, pipeline system set up safety devices, even if the pipeline rupture will not cause the gantry or cargo out of control.
Model | CPD1530 | CPD2030 | CPD3030 | |
Load Capacity | kg | 1500 | 2000 | 3000 |
Lifting Height | mm | 3000 | 3000 | 3000 |
Load Center | mm | 500 | 500 | 500 |
Fork size | mm | 1070*100*40 | 1220*120*60 | 1220*120*60 |
Ground Clearance | mm | 60/130 | 80/130 | 80/130 |
Tyre Type | solid Tyres | solid Tyres | solid Tyres | |
Control Way | Steering Wheel | Steering Wheel | Steering Wheel | |
Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation | Stepless Speed Regulation | |
Protection Guard Height | mm | 2000 | 2100 | 2100 |
Mast Tilt Angle (Front/Rear) | (°) | 3.0/6.0 | 3.0/6.0 | 3.0/6.0 |
The Min.Turning Radius | mm | 1750 | 2100 | 2150 |
Driving Speed with Full Load | km/h | 6 | 15 | 15 |
Maximum Gradient with full load | ° | 5°/8° | 15 | 15 |
Battery | V/Ah | 48/140 | 60/280 | 48/420 |
Driving Motor | kw | 3 | 5 | 5 |
Lifting Motor | kw | 3 | 5 | 5.5 |
Tyre Size (Front/ Rear) | mm | 400/400 | 22x7-12/18x7-8 | 22x7-12/18x7-8 |
Overall dimensions(L*W*H) | mm | 3000*1030*2100 | 3450*1100*2100 | 3750*1160*2100 |
Weight | kg | 2200 | 3000 | 3800 |
Reference Working Time | h | 4/6 | 4/6 | 4/6 |
Increased height each tonnage | mm | 1600/2000/2500/3000/3500 | ||
Max height | mm | 2100/1600/1850/2100/2350 |
