The control handle can be used on many applications in electric vehicles; for example, with pedestrian fork lift trucks, cleaning machines, burden carriers, etc.

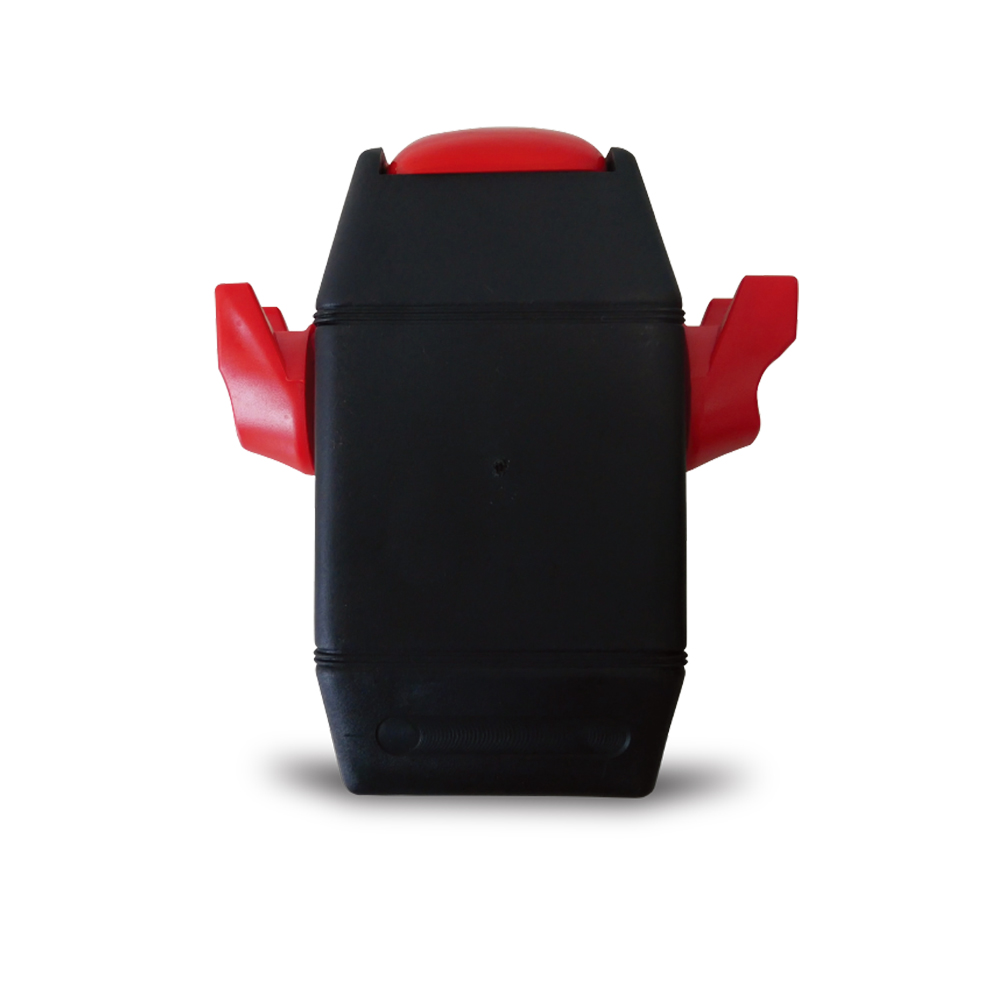

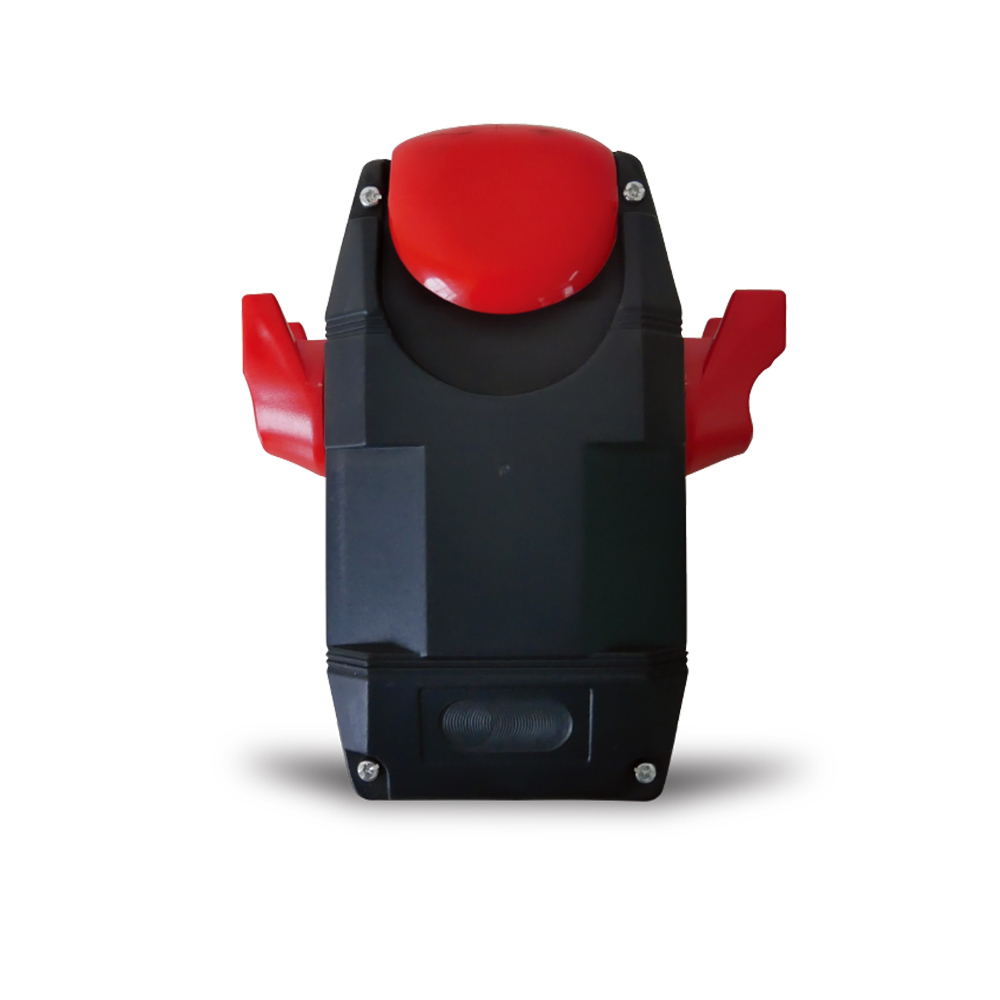

The essential components of the tiller head are the tiller head housing with the grips, various kinds of buttons, one belly button switch and a traction switch. We can offer different traction switches, which are designed for control systems from well known manufacturers (Curtis, DMC, Zapi and so on). The symbols are etched by a laser and consequently resistant against environmental influences.
Operation Elements | ||
按钮button 翘板开关rocker switch 开关switches | Max. breaking capacity | 48 VDC / 1 A
|
Min. breaking capacity | 24 VDC / 10 mA | |
模拟开关 Analogue switches | Max. breaking capacity | 48 VDC / 4 mA |
弧刷电流 Wiper current | < 0.1 mA | |
龟速（选配） Rabbit / turtle (optional) Optimum range of application | 微动开关Micro-switch 连接器Connector | NO 2-pin |
5 mA / 3 V – 50 mA / 24 V | ||
牵引开关 Traction switch | 适用于不同系统 For different control systems | |
安装支架 Mounting bracket | Max. 40 x 70 mm | |
标准颜色Standard Colours | ||
操作部件（按钮） Operation elements(buttons) | RAL2011深橘 RAL 2011 deep orange | |
带手柄的底下部件 Lower part with handle | RAL 9005 深黑 RAL 9005 jet black | |
盖顶 Cover top and under | RAL 7015 灰色 RAL 7015 slate grey | |
肚脐开关 Belly button switch | RAL3000火红 RAL 3000 flame red | |
连接器 Connectors | Molex Mini-Fit Jr.™ 莫仕 | |
操作条件Operating Conditions | ||
操作温度 Operating temperature | -40°C to +85°C | |
Vibration test: | According to IEC 68-2-6 | |
防护等级 Protection class (DIN 40050) | 操作手柄 IP40 Tiller head IP 40 操作元件和牵引开关 IP54以上 Operation elements and traction switch minimum IP 54 | |
