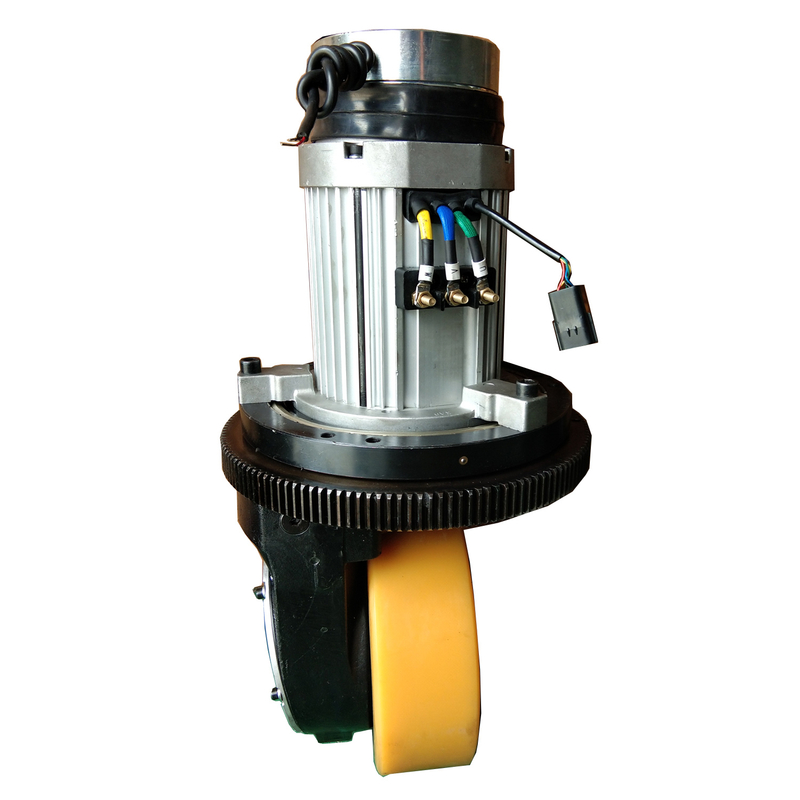

24V 1.5kw AC vertical drive wheel assembly

AC vertical drive wheel is well applicated in material handling equipments. There is no carbon and free-maintenance. It saves much energy when opearting
Size:
power:
Voltage:
Availability:
Quantity:
  • KAD15-ACL

  • KAD

Application:

AC vertical drive wheel is well applicated in material handling equipments. There is no carbon and free-maintenance. It saves much energy when opearting.

Integrating power, transmission and driving; with compact structure, easy installation, smooth transmission, small turning radius and low noise.

Model

KAD15-ACL
Motor Rated Powekw1.5
Battery voltagev24
Motor Currenta76
Motor Rated Speedr/min2590
Max.wheel speedr/min180
Speed Ratioi1:22
MaTurning Radiusmin138
Max.Wheel load
kg1000
Wheel diametermm250*80
Brake TorqueNm16

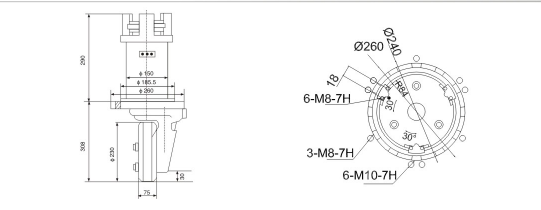

微信截图_20190803172158
