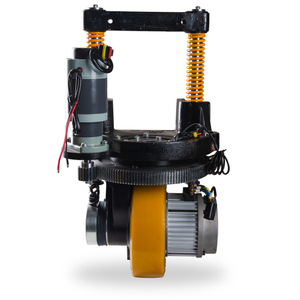

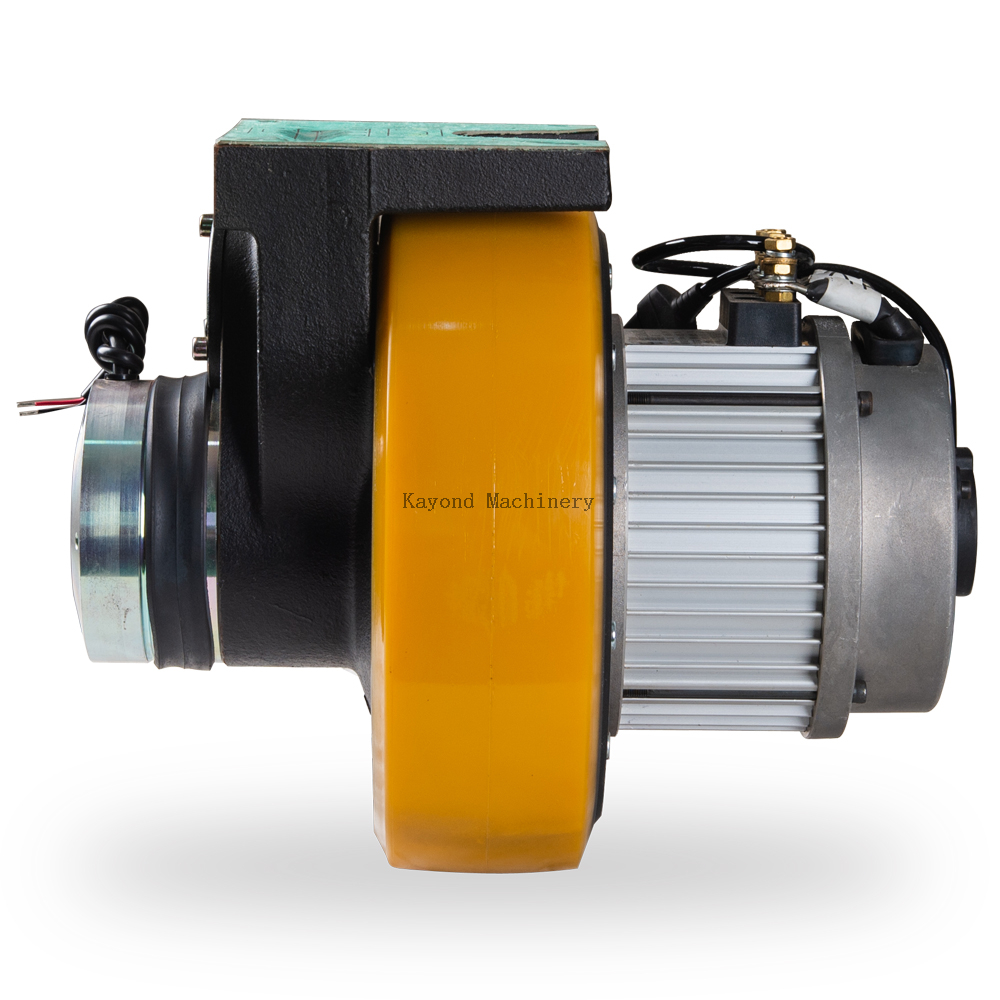

1.5kw BLDC brushless horizontal drive wheel

1. The application of brushless motor reduces friction during operation, makes operation smoother, has low failure rate and longer service life of motor.
2. It has excellent linear mechanical characteristics of DC motor and wide speed regulation range. It can realize stepless speed regulation and wide speed regulation range.
3. Brushless motor has small size, light weight and high efficiency; no need to replace carbon brushes, free maintenance cost.
motor-rated power:
battery voltage:
motor current:
motor rated speed:
max.wheel speed:
Availability:
Quantity:
  • KAD15-BLDC

  • kad


model KQ-AC/1.5-2
motor-rated power kw 1.5
battery voltage v 24
motor current A 78
motor rated speed r/min 2650
max.wheel speed  r/min 130
speed ratio i 1:32
max tyuning radius mm 176
max.wheel load kg 1000
wheel diameter mm 250*80
brake torque N*m

8
