Performance
进口柯蒂斯电控
深度放电保护
加强加厚叉腿
驱动轮防护罩
Curtis Controller
Deep discharge protection
Strengthen and Thicken fork
Protection cover for drive wheel

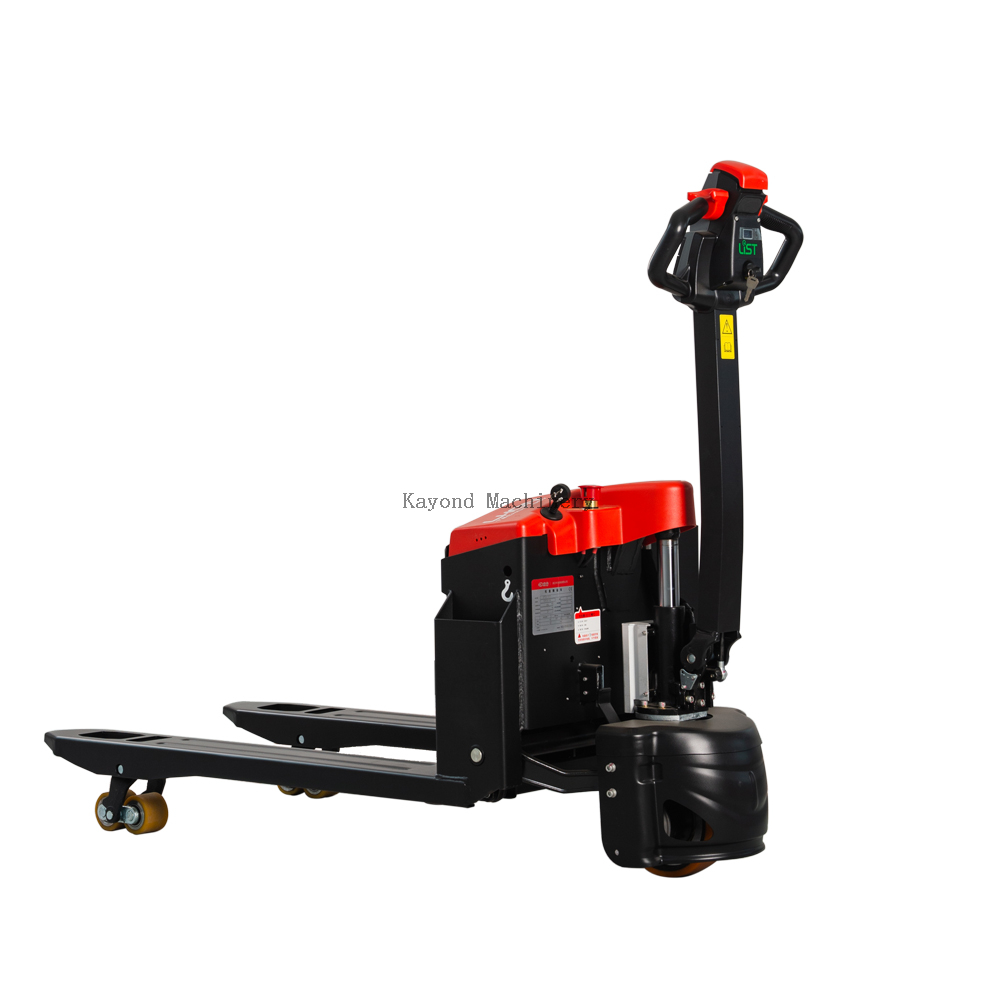

Model | EPT20 | ||
Features | Drive system | Battery | |
Driving mode | Standing | ||
Load Capacity | Q(kg) | 2000 | |
Load Center | C(mm) | 600 | |
Weight | Weight(With battery) | kg | 164 |
Wheels | Material | PU | |
Size | Lifting Height | H3(mm) | 115 |
Min/max.height of handle when operating | H4(mm) | 750/1170 | |
Min.Height of Fork | S(mm) | 80 | |
Length | L(mm) | 1638 | |
Width | B(mm) | 560/685 | |
Fork Length | L2(mm) | 11150 | |
Wheelbase | Y(mm) | 1202/1261 | |
Fork Outside Width | B1(mm) | 550/680 | |
Min.Turning Radius | Wa(mm) | 1485 | |
Performance data | Driving Speed （Empty/Full Load） | Mm/s | 4/4.5 |
Lifting Speed （Empty/Full Load） | Mm/s | 0.027/0/038 | |
Descending Speed （Empty/Full Load） | Mm/s | 0.059/0.039 | |
Max.Gradient （Empty/Full Load） | % | 5/16 | |
Brake | Electromagnetic brake | ||
Driving Motor | KW | DC/0.65 | |
Lifting Motor | KW | DC/0.84 | |
Battery | Capacity | V/Ah | 24//65 |
Performance
进口柯蒂斯电控
深度放电保护
加强加厚叉腿
驱动轮防护罩
Curtis Controller
Deep discharge protection
Strengthen and Thicken fork
Protection cover for drive wheel
Model | EPT20 | ||
Features | Drive system | Battery | |
Driving mode | Standing | ||
Load Capacity | Q(kg) | 2000 | |
Load Center | C(mm) | 600 | |
Weight | Weight(With battery) | kg | 164 |
Wheels | Material | PU | |
Size | Lifting Height | H3(mm) | 115 |
Min/max.height of handle when operating | H4(mm) | 750/1170 | |
Min.Height of Fork | S(mm) | 80 | |
Length | L(mm) | 1638 | |
Width | B(mm) | 560/685 | |
Fork Length | L2(mm) | 11150 | |
Wheelbase | Y(mm) | 1202/1261 | |
Fork Outside Width | B1(mm) | 550/680 | |
Min.Turning Radius | Wa(mm) | 1485 | |
Performance data | Driving Speed （Empty/Full Load） | Mm/s | 4/4.5 |
Lifting Speed （Empty/Full Load） | Mm/s | 0.027/0/038 | |
Descending Speed （Empty/Full Load） | Mm/s | 0.059/0.039 | |
Max.Gradient （Empty/Full Load） | % | 5/16 | |
Brake | Electromagnetic brake | ||
Driving Motor | KW | DC/0.65 | |
Lifting Motor | KW | DC/0.84 | |
Battery | Capacity | V/Ah | 24//65 |
