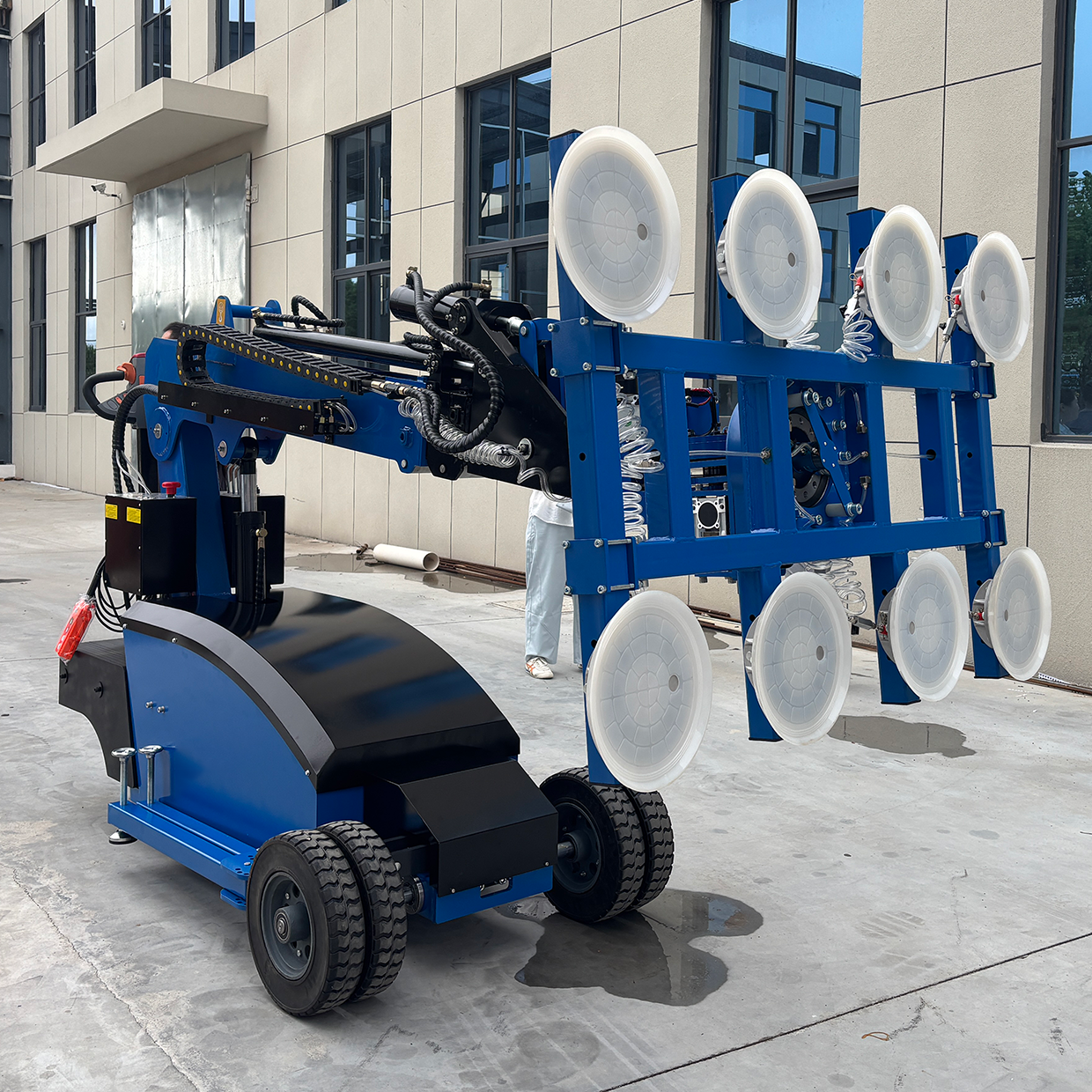

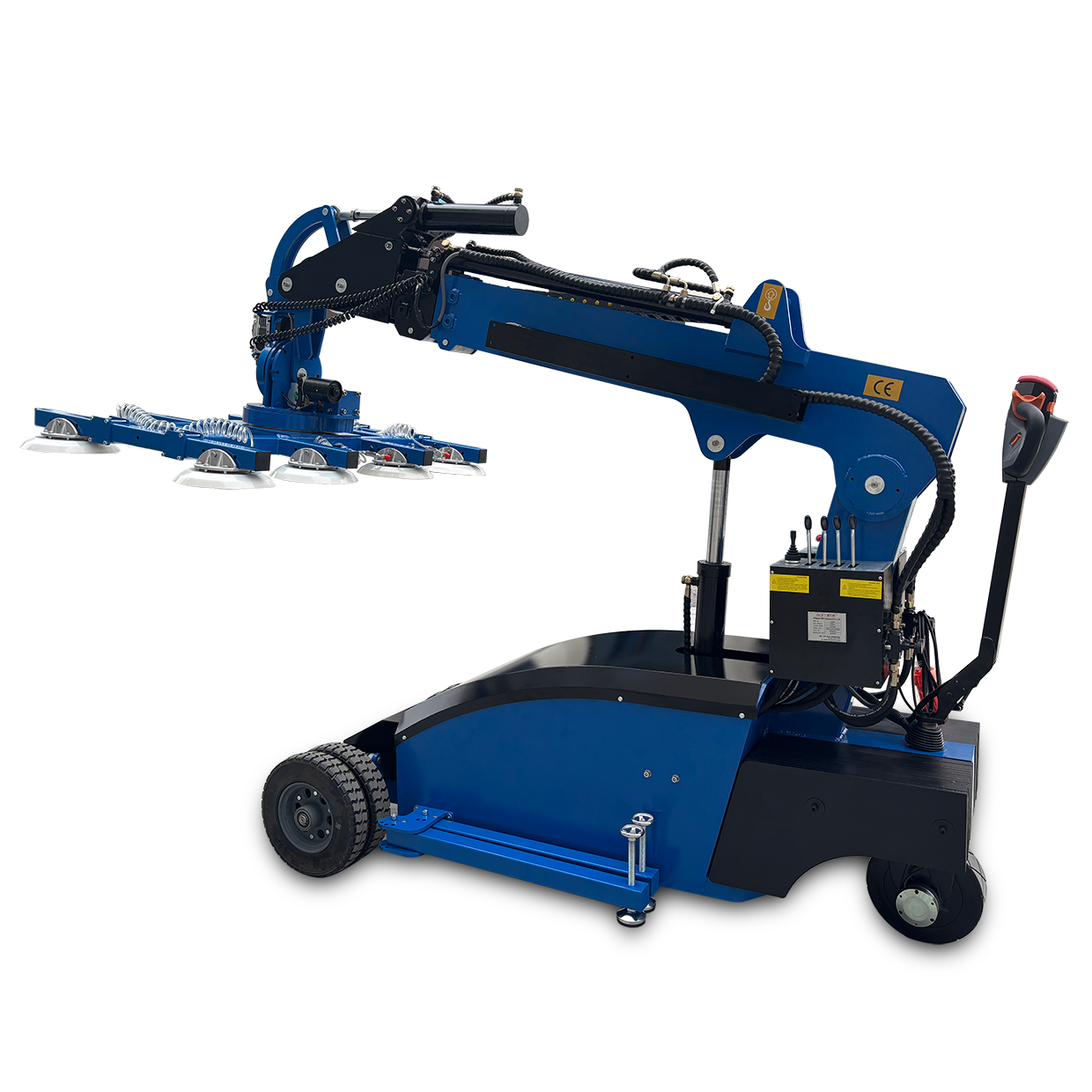

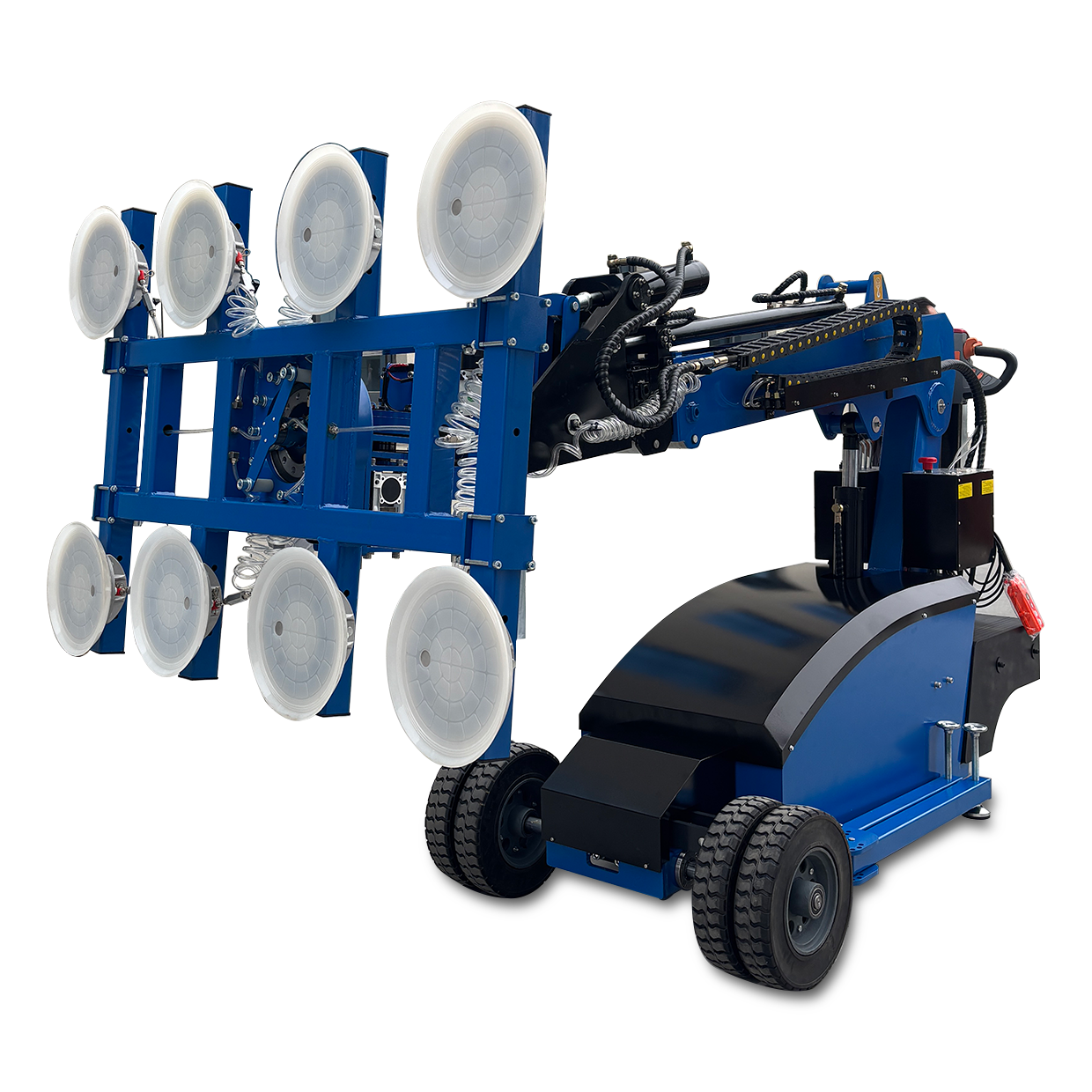

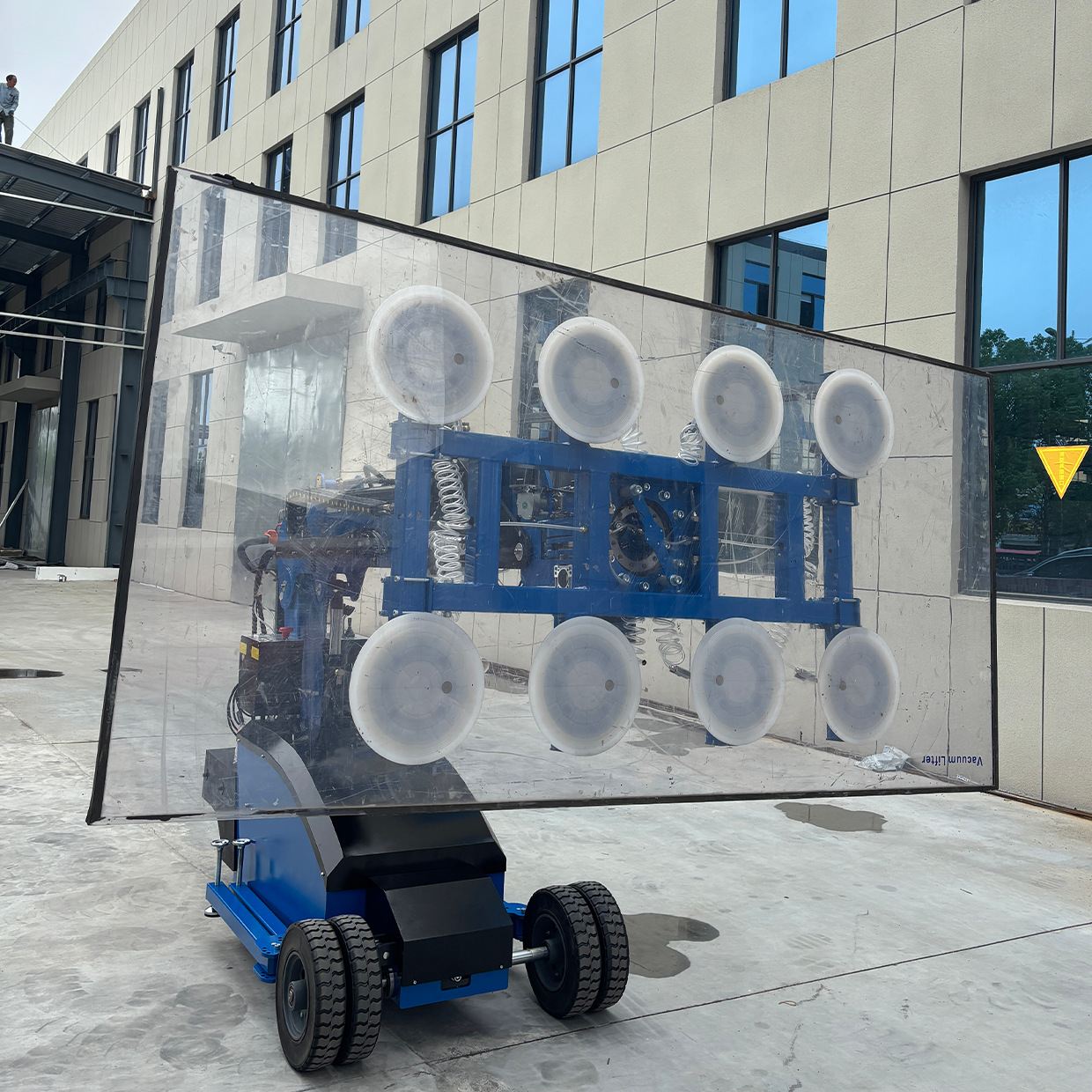

KAD 600kg 800kg Electric Glass Installation Suction Cup Car Robot Lift with CE Certificate

Our glass robotic arm is an ideal way to make the production process and transportation easier. Whether you want to transport steel, glass components, stones, or wood, you will find the perfect solution here.
To ensure safety, equipped with vacuum alarm, charging protection, automatic braking, emergency stop, counterweight, support legs, etc. Also known as glass lifter, vacuum glass lifter robot, robot glazing tool, electric suction cup car, etc.
Availability:
Quantity:
  • CDD

  • KAD

Product Description

Our glass robotic arm is an ideal way to make the production process and transportation easier. Whether you want to transport steel, glass components, stones, or wood, you will find the perfect solution here. To ensure safety, equipped with vacuum alarm, charging protection, automatic braking, emergency stop, counterweight, support legs, etc. Also known as glass lifter, vacuum glass lifter robot, robot glazing tool, electric suction cup car, etc.

32


Main Features

1.Front Axle driven, rough terrain wheels can walk on bad situation road.
2.Strong power, steady lifting and lowering
3.Dual Vacuum System. One for normal operation and the other as spare system


Specification
Model
/
GL600/800
Driving mode
/
Front Axle Drive
Max.Load
kg
600 /800
Rotating
°
Manual 360° (Automatic type for optional)
Turn to side
°
Manual 90° (Automatic type for optional)
Lifting Height
mm
3700 /4500/ 5000
Manipulation
/
Walkie Type
Power
/
Tractive-type Free Maintence Battery
Controling type
/
Stepless adjusting speed
Battery
V/Ah
2*12/120
Charger
V/A
24/18
Climbing gradient
%
15
Braking type
/
Electromagnetic braking
Driving Motor
V/W
24/2200 / 24/2500
Lifting Motor
V/W
24/2200
Packing Size
mm
2780*990*1750 / 3180*1100*1780
Packing Weight
kg
1850 / 2080
Front Wheel Size
mm
Φ466*195 (Pneumatic Tires)
Front Wheel Qty
pcs
2 ( 2+2 Dual wheel optional)
Rear Wheel Size
mm
Solid Φ400*100 ( Pneumatic tires for optional)
Rear Wheel Qty
pcs
2
Pads Size
mm
Φ300
Pads Qty
pcs
6/8
