MS2016
KAD

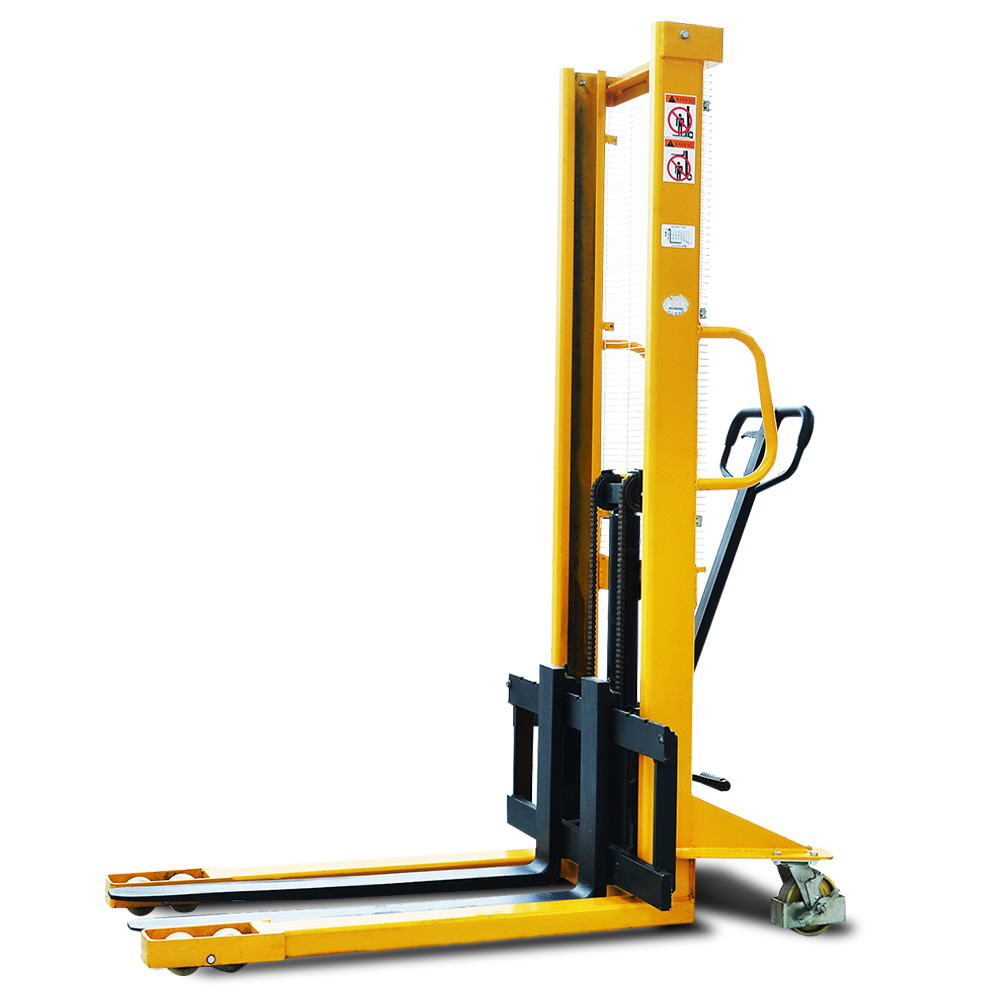

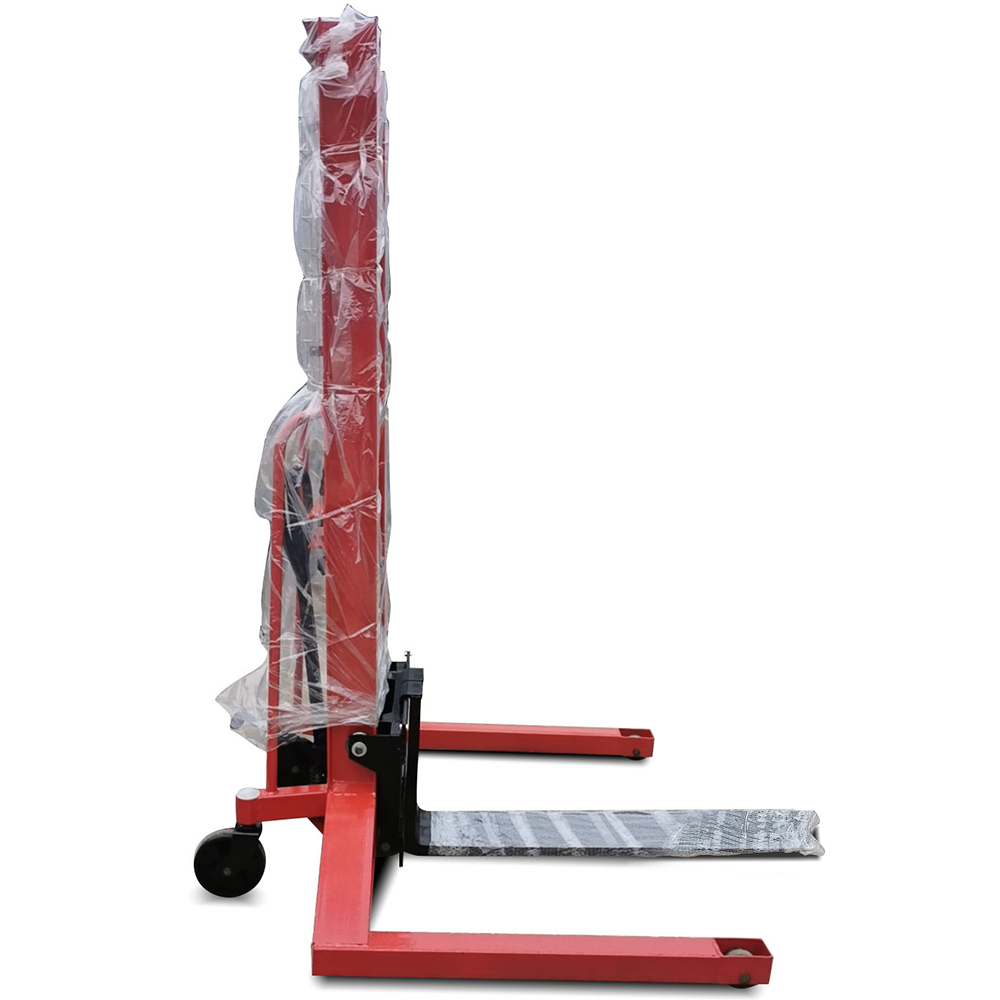

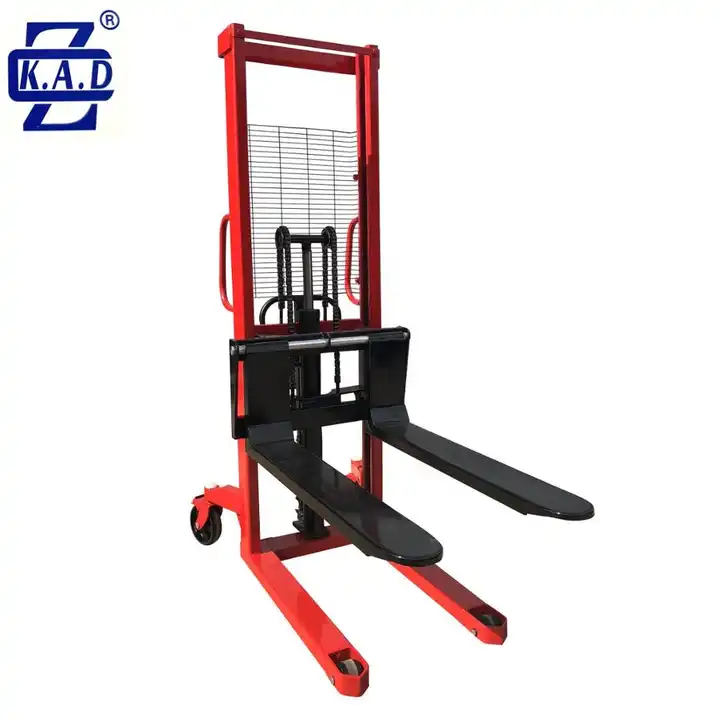

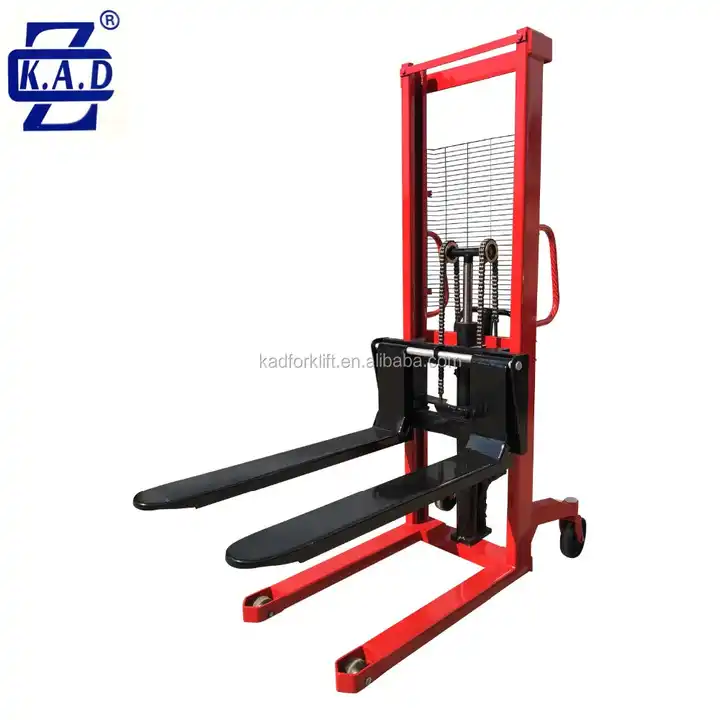

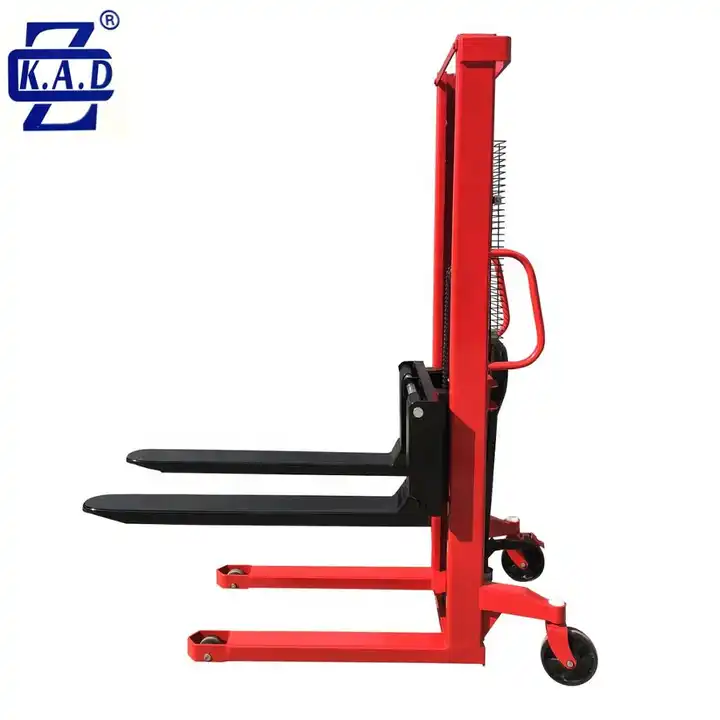

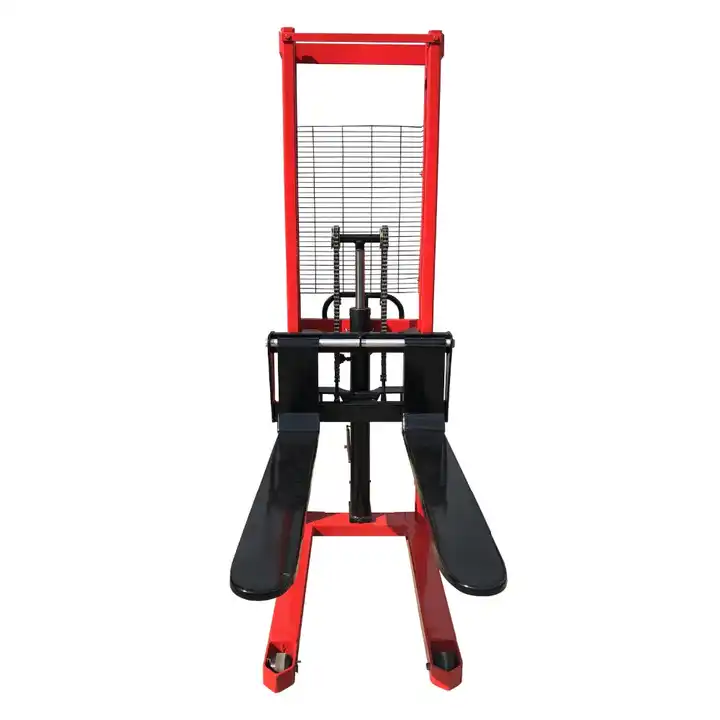

In small warehouses, production or retail environment,which is the entry level stacker you need to optimist your daily working routine. Due to its very small dimension, this stacker plays out its strengths in limited spaces.It can operate in narrow space, easy to operate and save much labor.
1) Lifting goods by both hand and foot, easy to operate
2) Both C-shaped steel and H steel can be choosed
3) Compact structure,good looking,high performance, flexible and safe
4)High strength fork , can cover the legs.
5)Straddle-leg design handles various widths and ensures the safety
Specification
| Load Capacity | KG | 1000 | 1500 | 2000 |
| Max Lifting Height | mm | 1600 or customized height | ||
| Lowered Fork Height | mm | 100 | 100 | 100 |
| Fork Adjustable width | mm | 200-580 | 240-580 | 240-580 |
| Leg Inner Width | mm | 580 | 580 | 580 |
| Leg overall width | mm | 730 | 730 | 730 |
| Fork Length | mm | 900 | 900 | 900 |
| Leg ground clearance | mm | 90 | 90 | 90 |
| Fork ground clearance | mm | 60 | 60 | 60 |
| Lifting Speed | mm/s | 20 | 20 | 20 |
| Descend speed | mm/s | Adjustable | ||
| Turning Radius | mm | 1380 | 1380 | 1380 |
| Overall Length | mm | 1400 | 1400 | 1400 |
| Overall Width | mm | 730 | 730 | 730 |
| Overall Height | mm | 1940 | 1940 | 1940 |
| Fork Width | mm | 10 | 12 | 12 |
| Material | - | 10#channel steel | 10#channel steel | 12#Joist Steel |
| Net Weight | kg | 145 | 160 | 175 |
| Notes | - | |||
