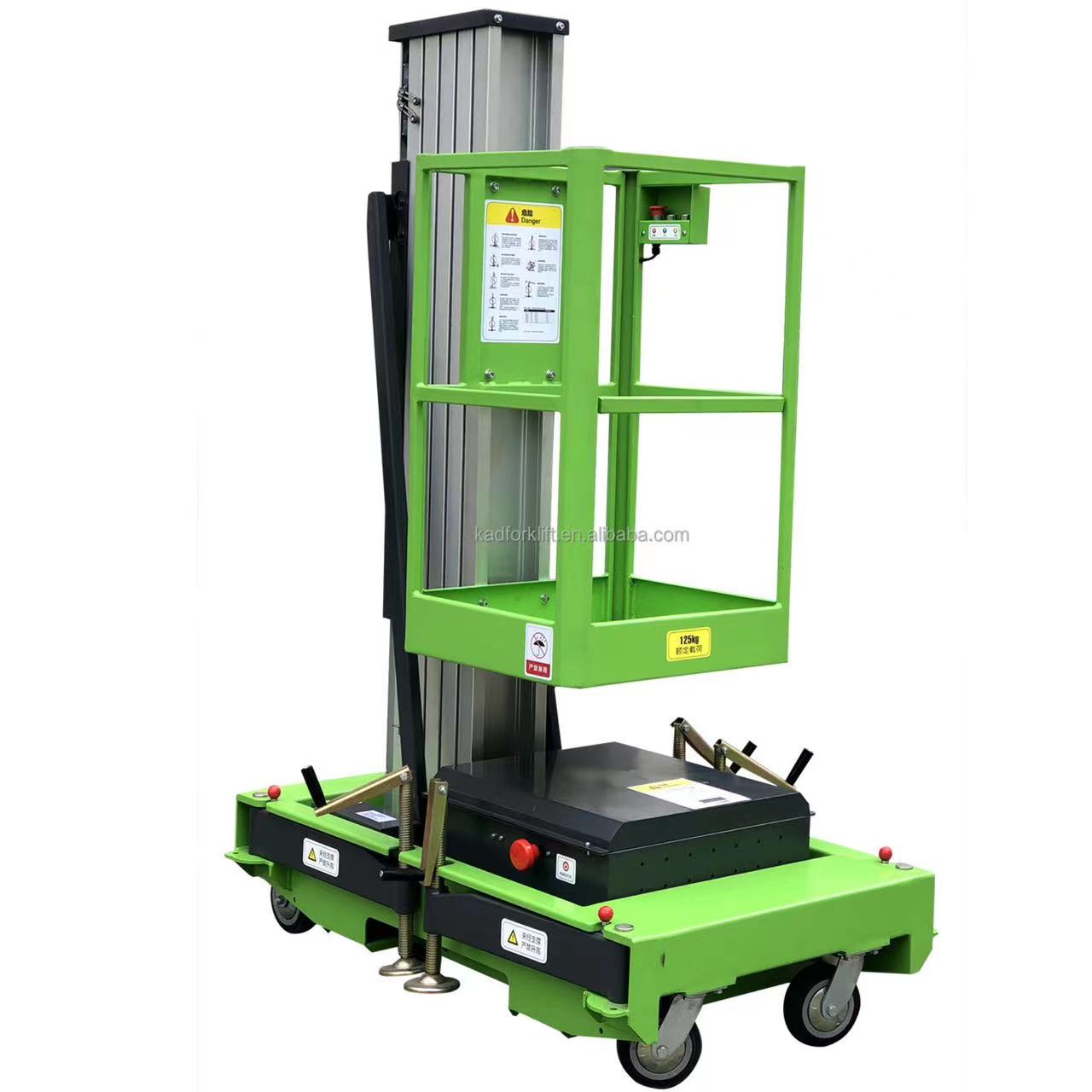

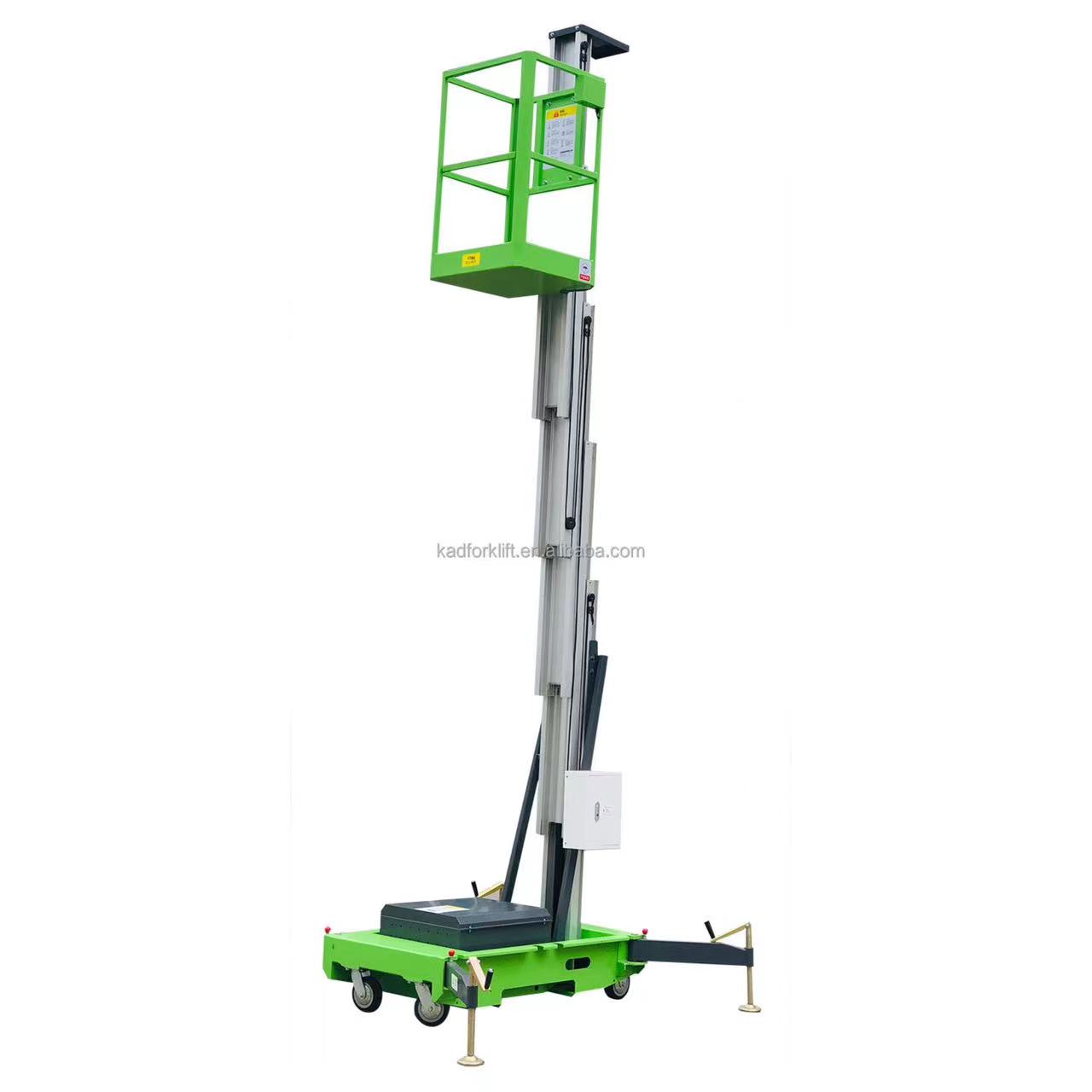

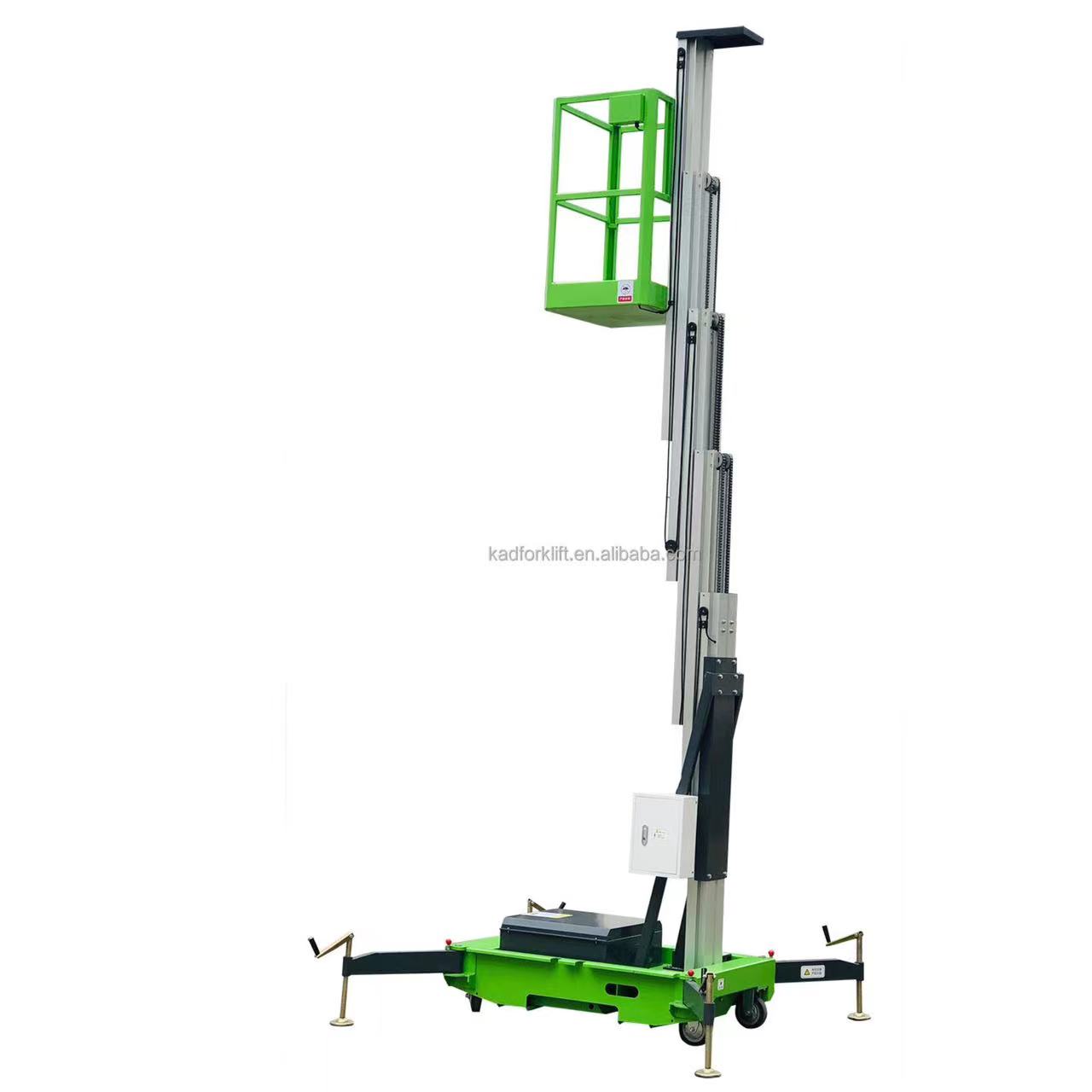

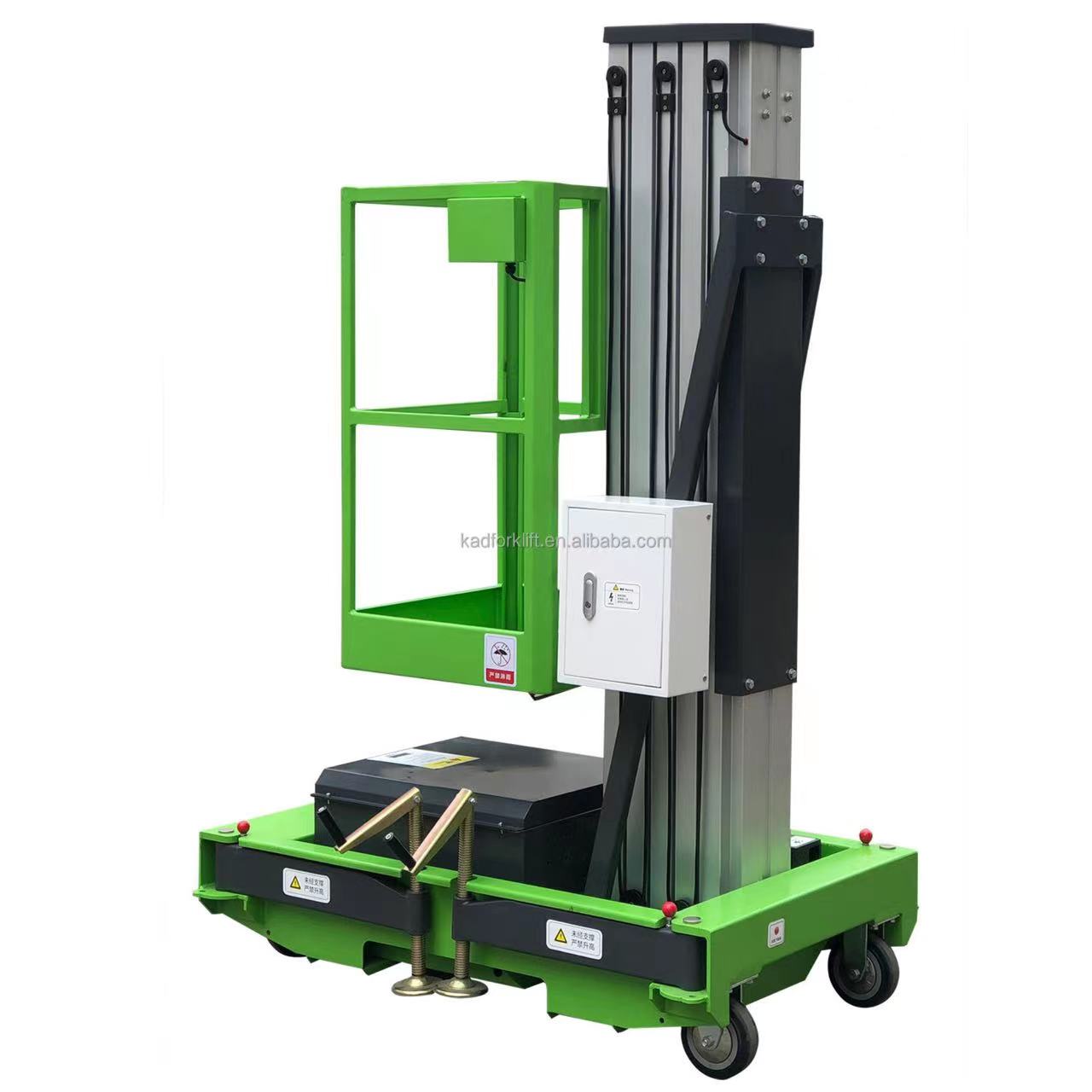

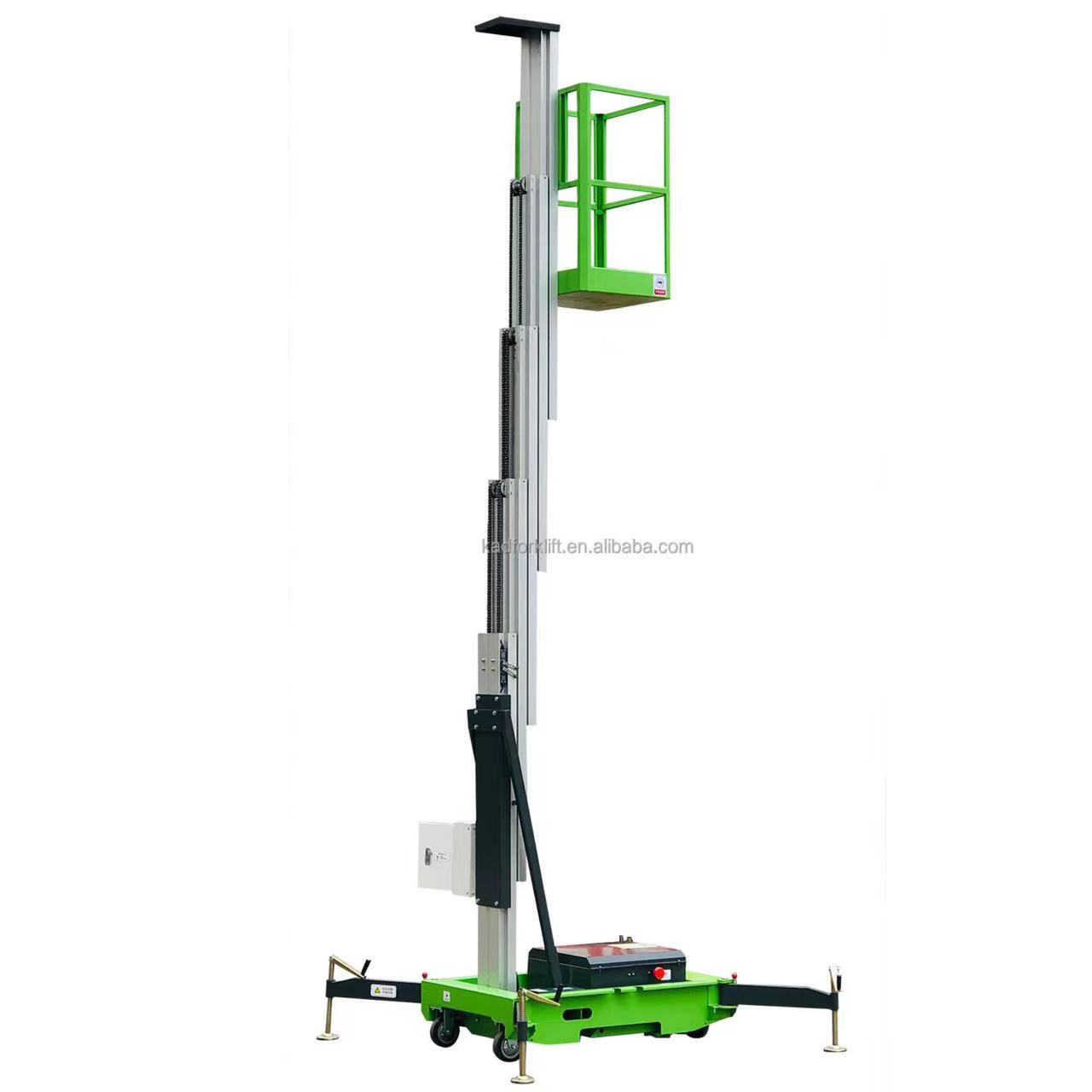

ME600-1
KAD
It is mainly used for the installation and maintenance of star hotels, modern factories, business halls, hotels, lobbies, restaurants, stations, exhibition halls, shopping malls and other narrow spaces, and is a good helper for equipment maintenance and paint decoration; it can pass through ordinary doors and elevators easily, with low energy consumption, no pollution, and no damage to the ground.It can be easily pushed to the designated place with beautiful structure, compact body, light weight, safe and reliable.
STANDARD CONFIGURATIONS
1.Platform and Ground Control
2.Auxiliary Lowering Device
3.Emergency Stop Button
4.Anti-burst System
5.Big level Gauge
6.Limit Switches
7.Screw type Outriggers
8.Short Circuit and Leakage Protection System
Model | ME600-1 | ME800-1 | ME900-1 | ME1000-1 | |
Lift capacity | 130kg | 130kg | 130kg | 130kg | |
Platform occupancy max | 1 | 1 | 1 | 1 | |
Working height max | 8.00m | 10.00m | 11.00m | 12.00m | |
Platform height max | 6.00m | 8.00m | 9.00m | 10.00m | |
Stowed length | 1.34m | 1.34m | 1.45m | 1.45m | |
Stowed width | 0.85m | 0.85m | 0.85m | 0.85m | |
Stowed height | 2.00m | 2.00m | 2.00m | 2.00m | |
Platform size | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m | |
Outrigger Footprint | 1.7*1.67m | 1.7*1.67m | 1.93*1.77m | 1.93*1.77m | |
Ground clearance | 0.05m | 0.05m | 0.05m | 0.05m | |
Lifting motor(AC) | 0.75kw | 0.75kw | 0.75kw | 1.1kw | |
Weight(AC) | 370kg | 390kg | 400kg | 420kg | |
Optional Configurations | Power source | 24V/80Ah | 24V/80Ah | 24V/80Ah | 24V/80Ah |
Lifting motor(DC) | 0.80kw | 0.80kw | 0.80kw | 0.80kw | |
Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
